Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPD241201BAC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
SPD (120W) | Box | Obsolete | AC or DC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 210V | 375V | 24V | - | - | - | - | - | 5A | 120W | - | Hazardous Locations, Industrial, ITE (Commercial) | 94% | -35°C ~ 71°C (With Derating) | Adjustable Output, IP20 | 4.41" L x 2.54" W x 4.88" H (111.9mm x 64.4mm x 124.0mm) | CCC, CE, cULus, TUV | - |
|
2787-2147/000-030PSU, PRO 2 1-PH |
0 |
|
Технический лист |
- | Bulk | Active | AC or DC | 1 | 90 ~ 264 VAC | 130V | 240V | 24V | - | - | - | - | - | 20A | 480W | 3.15 kV | Laboratory | 95.4% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 5.12" L x 2.76" W x 5.12" H (130.0mm x 70.0mm x 130.0mm) | UL | 61010-1 |
|
|
PS-C48024AC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
- |
PS-C480 (480W) | Bulk | Active | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Industrial, ITE (Commercial) | 94% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.06" L x 3.37" W x 4.93" H (128.5mm x 85.5mm x 125.2mm) | CB, CE, cULus, cURus | 508; 60950-1 |
|
|
PS-C48048AC/DC DIN RAIL SUPPLY 48V 480W |
0 |
|
- |
PS-C480 (480W) | Bulk | Active | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 10A | 480W | 3 kV | Industrial, ITE (Commercial) | 94% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.06" L x 3.37" W x 4.93" H (128.5mm x 85.5mm x 125.2mm) | CB, CE, cULus, cURus | 508; 60950-1 |
|
6EP31240TA000AY0DC/DC DIN RAIL SUPPLY 12V |
0 |
|
Технический лист |
6EP3 | Box | Active | DC | 1 | - | 14V | 32V | 12V | - | - | - | - | - | 15A | - | - | Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C | Adjustable Output, IP20 | 4.72" L x 1.65" W x 4.92" H (120.0mm x 42.0mm x 125.0mm) | CB, CE, cULus | 60950-1; UL 508 |
|
|
6EP34447SB003AX0SITOP PSU6200/3AC/DC48V/5A |
0 |
|
Технический лист |
6EP3 | Bulk | Active | AC or DC | 1 | 323 ~ 576 VAC | 450V | 600V | 48V | - | - | - | - | - | 5A | 240W | - | Industrial, ITE (Commercial) | 95.6% | -30°C ~ 70°C | Adjustable Output | 5.31" L x 1.77" W x 5.31" H (135.0mm x 45.0mm x 135.0mm) | cCSAus, CE, CSA, cULus, EAC | 60950-1; 62368-1; UL 508 |
|
|
S8VS-18024BE-FAC/DC DIN RAIL SUPPLY 24V 180W |
0 |
|
Технический лист |
S8VS (180W) | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 7.5A | 180W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.93" L x 2.95" W x 4.53" H (125.3mm x 75.0mm x 115.0mm) | CE, cULus, cURus, VDE | - |
|
|
8778870000AC/DC DIN RAIL SUPPLY 24V 500W |
0 |
|
- |
Connect Power Ecoline (500W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 500W | 3 kV | ITE (Commercial) | 86% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | 4.33" L x 8.96" W x 4.92" H (110.0mm x 227.5mm x 125.0mm) | CE, cULus, cURus, GOST, TUV | - |
|
|
SPD121203AC/DC DIN RAIL SUPPLY 12V 120W |
0 |
|
Технический лист |
SPD (120W) | Box | Active | AC or DC | 1 | 340 ~ 575 VAC (3 Phase) | 480V | 820V | 12V | - | - | - | - | - | 10A | 120W | - | Hazardous Locations, Industrial, ITE (Commercial) | 87% | -35°C ~ 71°C (With Derating) | Adjustable Output, IP20, PFC | 4.41" L x 2.93" W x 4.88" H (111.9mm x 74.3mm x 124.0mm) | CE, cULus, TUV | - |
|

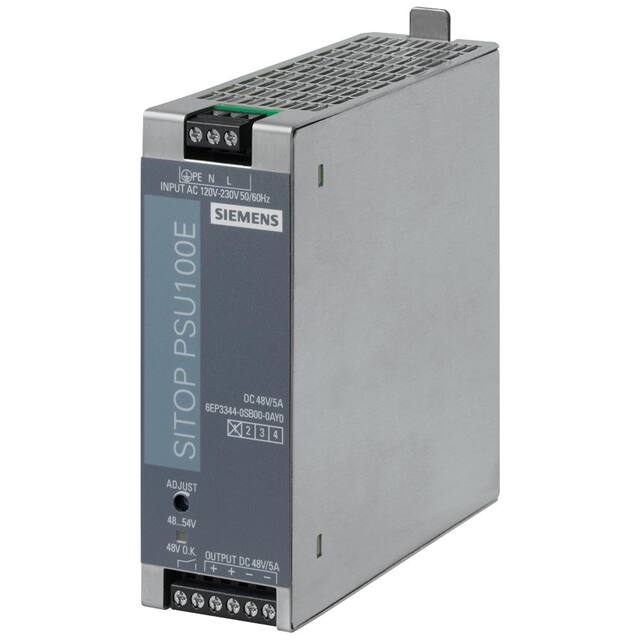

6EP33440SB000AY0AC/DC DIN RAIL SUPPLY 48V |
0 |
|
Технический лист |
6EP3 | Box | Active | AC | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 5A | - | - | Industrial, ITE (Commercial) | 92% | -25°C ~ 70°C | Adjustable Output, IP20 | 4.92" L x 1.65" W x 4.92" H (125.0mm x 42.0mm x 125.0mm) | CE, CSA, cULus, EAC, UL | 60950-1; UL 508 |
|
|
SMP21-S20-DC24V-20AAC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
Технический лист |
SMP21 | Bulk | Obsolete | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Industrial, ITE (Commercial) | 90% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 6.91" L x 4.59" W x 4.90" H (175.5mm x 116.6mm x 124.5mm) | TUV, UL | - |
|
|
S8VT-F24024EAC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
- |
S8VT | Bulk | Obsolete | AC or DC | 1 | 340 ~ 576 VAC (3 Phase) | 480V | 810V | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 90% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 5.12" L x 1.77" W x 7.13" H (130.0mm x 45.0mm x 181.0mm) | CE | - |
|
|
S8FS-G60024CD-WRAC/DC DIN RAIL SUPPLY 24V 648W |
0 |
|
Технический лист |
S8FS-G | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 350V | 24V | - | - | - | - | - | 27A | 648W | 3 kV | Industrial, ITE (Commercial) | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote On/Off, Universal Input | 8.70" L x 4.72" W x 2.46" H (221.0mm x 120.0mm x 62.5mm) | CE, cURus, TUV, UL | 60950-1; 62368-1; UL 508 |
|
|
UNOTEC2410NPOWER SUPPLY, 10A, 24V DC, DIN R |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LWR1801-6EM1GAC/DC DIN RAIL SUPPLY 49.4V 250W |
0 |
|
Технический лист |
Melcher W (125W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 49.4V | - | - | - | - | - | 2.5A | 250W | 2.8 kV | ITE (Commercial) | 88% | -40°C ~ 60°C | Adjustable Output, PFC, Universal Input | 4.47" L x 4.05" W x 5.43" H (113.6mm x 103.0mm x 138.0mm) | cCSAus, CE, cULus, NEMKO, TUV | - |
|
|
DPP960-48-3AC/DC DIN RAIL SUPPLY 48V 960W |
0 |
|
Технический лист |
DPP (960W) | Bulk | Not For New Designs | AC | 1 | 340 ~ 575 VAC (3 Phase) | - | - | 48V | - | - | - | - | - | 20A | 960W | 3 kV | ITE (Commercial) | 93% | -40°C ~ 71°C (With Derating) | Adjustable Output, Load Sharing | 10.86" L x 4.97" W x 4.68" H (275.8mm x 126.2mm x 4.41mm) | CE | - |
|
9919371215DC/DC DIN RAIL SUPPLY 15V 50W |
0 |
|
Технический лист |
CP-DCDC (50W) | Bulk | Obsolete | DC | 1 | - | 9V | 16V | 15V | - | - | - | - | - | 3A | 50W | - | ITE (Commercial) | 80% | -10°C ~ 50°C | - | 5.16" L x 2.24" W x 3.86" H (131.0mm x 57.0mm x 98.0mm) | CE, CSA, UL | - |
|
6EP43330SB000AY0AC/DC DIN RAIL SUPPLY 24V 120W |
0 |
|
Технический лист |
6EP4 | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 88V | 265V | 24V | - | - | - | - | - | 5A | 120W | - | Industrial, ITE (Commercial) | 89% | 0°C ~ 60°C | Adjustable Output | 4.92" L x 1.65" W x 4.92" H (125.0mm x 42.0mm x 125.0mm) | CE, CSA, cULus, EAC | 60950-1 |
|
LDW480-24AC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
Технический лист |
LDW480 (480W) | Box | Active | AC or DC | 1 | 187 ~ 550 VAC (1 ~ 2 Phase) | 250V | 725V | 24V | - | - | - | - | - | 20A | 480W | 4.2 kV | ITE (Commercial) | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC | 4.92" L x 2.87" W x 5.51" H (125.0mm x 73.0mm x 140.0mm) | - | - |
|
|
SPDE484803RAC/DC DIN RAIL SUPPLY 48V 480W |
0 |
|
Технический лист |
SPDE (120W) | Bulk | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 10A | 480W | 3 kV | ITE (Commercial), Laboratory | 94% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | 5.18" L x 1.89" W x 5.14" H (131.5mm x 48.0mm x 130.6mm) | CE, cULus, cURus, UKCA | 61010-1; 62368-1 |
