Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
787-831AC/DC DIN RAIL SUPPLY 12V 180W |
0 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 300V | 12V | - | - | - | - | - | 15A | 180W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 87% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 7.05" L x 2.24" W x 6.42" H (179.0mm x 57.0mm x 163.0mm) | cURus, EAC, UL | 60950-1; 61010-1; UL 508 |
|
VFK400W-Q48-S15-DINDC/DC DIN RAIL SUPPLY 15V 400W |
0 |
|
Технический лист |
VFK400W-DIN (400W) | Box | Active | DC | 1 | - | 18V | 75V | 15V | - | - | - | - | - | 26.7A | 400W | - | - | - | -40°C ~ 85°C | - | 7.83" L x 5.00" W x 2.11" H (198.9mm x 127.0mm x 53.6mm) | CE | - |
|
8951420000AC/DC DIN RAIL SUPPLY 24V 1000W |
0 |
|
- |
Connect Power Pro-M (1000W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 40A | 1000W | 4 kV | ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 7.09" L x 5.91" W x 5.12" H (180.0mm x 150.0mm x 130.0mm) | CE, cULus, cURus, GOST, TUV | - |
|
|
6EP13363BA00AC/DC DIN RAIL SUPPLY 24V |
0 |
|
Технический лист |
6EP1 | Box | Obsolete | AC | 1 | 85 ~ 132 VAC, 176 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | - | - | Industrial, ITE (Commercial) | 89% | 0°C ~ 70°C | Adjustable Output, IP20 | 4.92" L x 6.30" W x 4.92" H (125.0mm x 160.0mm x 125.0mm) | CE, CSA, cULus, UL | 60950-1; UL 508 |
|
|
CACN-3A-1-20-G2FIXED POWER SUPPLY |
0 |
|
Технический лист |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6EP44387EC003DX0DC/DC DIN RAIL SUPPLY 3V |
0 |
|
Технический лист |
6EP4 | Bulk | Active | DC | 8 | - | 20.4V | 30V | 24V | 24V | 24V | 24V | 24V | 24V | 10A, 10A, 10A, 10A, 10A, 10A | - | - | ITE (Commercial) | 98% | -25°C ~ 70°C | Adjustable Output, Remote On/Off | 4.92" L x 1.77" W x 5.31" H (125.0mm x 45.0mm x 135.0mm) | CE, EAC | 60950-1 |
|

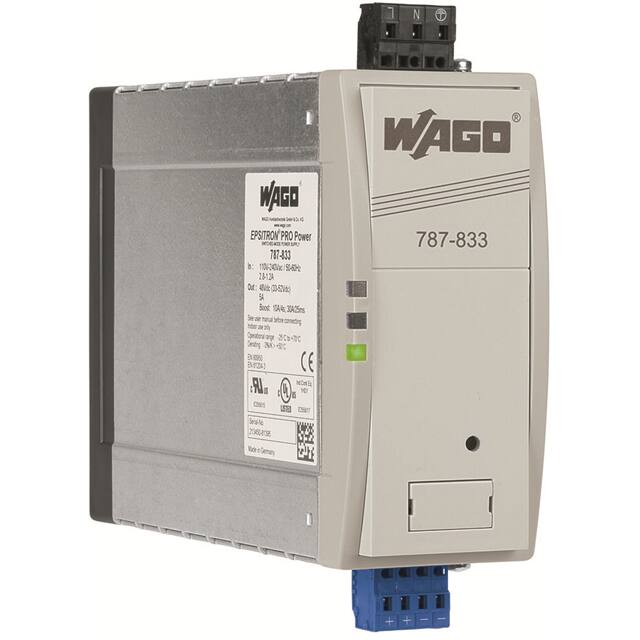

787-833AC/DC DIN RAIL SUPPLY 48V 240W |
0 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 300V | 48V | - | - | - | - | - | 5A | 240W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 91% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 7.05" L x 2.24" W x 6.42" H (179.0mm x 57.0mm x 163.0mm) | cURus, EAC, UL | 60950-1; 61010-1; UL 508 |
|
|
2787-2448/000-030PSU, PRO 2 1-PH |
0 |
|
Технический лист |
- | Bulk | Active | AC | 1 | 180 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 40A | 960W | 3.15 kV | Laboratory | 96% | -25°C ~ 70°C | Adjustable Output, IP20, PFC | 5.12" L x 4.72" W x 5.12" H (130.0mm x 120.0mm x 130.0mm) | UL | 61010-1 |
|

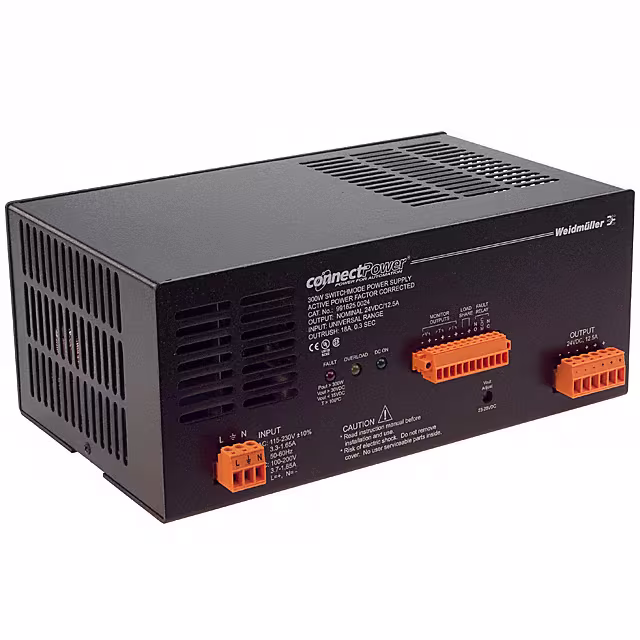

9916250024AC/DC DIN RAIL SUPPLY 24V 300W |
0 |
|
Технический лист |
- | Bulk | Obsolete | AC | 1 | 85 ~ 265 VAC | - | - | 24V | - | - | - | - | - | 12.5A | 300W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 70°C | Adjustable Output, PFC, Universal Input | 6.10" L x 9.45" W x 3.97" H (155.0mm x 240.0mm x 101.0mm) | CSA, GOST | - |
|
787-850AC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
- | Box | Active | AC or DC | 1 | 340 ~ 550 VAC | 480V | 780V | 24V | - | - | - | - | - | 10A | 240W | 4.242 kV | Industrial, ITE (Commercial), Laboratory | 91.7% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 7.05" L x 2.21" W x 6.42" H (179.0mm x 56.2mm x 163.0mm) | CE, cURus, EAC, UL | 60950-1; 61010-1; UL 508 |
|
LDT960-72AC/DC DIN RAIL SUPPLY 72V 960W |
0 |
|
Технический лист |
LDT960 (960W) | Box | Active | AC | 1 | 340 ~ 550 VAC (3 Phase) | - | - | 72V | - | - | - | - | - | 13.3A | 960W | 4.2 kV | ITE (Commercial) | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing | 5.41" L x 3.15" W x 5.00" H (137.5mm x 80.0mm x 127.0mm) | - | - |
|
|
VFK400W-Q24-S24-DINDC/DC DIN RAIL SUPPLY 24V 400W |
0 |
|
Технический лист |
VFK400W-DIN (400W) | Bulk | Active | DC | 1 | - | 10V | 36V | 24V | - | - | - | - | - | 16.7A | 400W | - | - | 86% | -40°C ~ 85°C | - | 7.83" L x 5.00" W x 2.11" H (198.9mm x 127.0mm x 53.6mm) | CE | - |
|
|
6EP34377SB003AX0SITOP PSU6200/3AC/24VDC/40A |
0 |
|
Технический лист |
6EP3 | Bulk | Active | AC or DC | 1 | 323 ~ 576 VAC | 450V | 600V | 24V | - | - | - | - | - | 40A | 960W | - | Industrial, ITE (Commercial) | 96% | -30°C ~ 70°C | Adjustable Output | 5.31" L x 1.77" W x 5.31" H (135.0mm x 45.0mm x 135.0mm) | cCSAus, CE, CSA, cULus, EAC | 60950-1; UL 508 |
|
SPD244801AC/DC DIN RAIL SUPPLY 24V 480W |
1 |
|
Технический лист |
SPD (480W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 24V | - | - | - | - | - | 20A | 480W | - | Hazardous Locations, Industrial, ITE (Commercial) | 89% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 4.59" L x 6.91" W x 4.90" H (116.6mm x 175.5mm x 124.5mm) | CCC, CE, cULus, TUV | - |
|
|
SPD484801AC/DC DIN RAIL SUPPLY 48V 480W |
0 |
|
- |
SPD (480W) | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 120V | 375V | 48V | - | - | - | - | - | 10A | 480W | - | Hazardous Locations, Industrial, ITE (Commercial) | 90% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 4.59" L x 6.91" W x 4.90" H (116.6mm x 175.5mm x 124.5mm) | CCC, CE, cULus, TUV | - |
|
LXR1601-6GAC/DC DIN RAIL SUPPLY 24.7V 375W |
0 |
|
Технический лист |
Melcher X (375W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24.7V | - | - | - | - | - | 15A | 375W | 2.8 kV | ITE (Commercial) | 87% | -40°C ~ 60°C | Adjustable Output, Load Sharing, PFC, Universal Input | 7.64" L x 4.47" W x 5.43" H (194.0mm x 106.6mm x 138.0mm) | cCSAus, CE | - |
|
|
LXR1701-6GAC/DC DIN RAIL SUPPLY 37V 375W |
0 |
|
Технический лист |
Melcher X (375W) | Bulk | Active | AC | 1 | 85 ~ 264 VAC | - | - | 37V | - | - | - | - | - | 10A | 375W | 2.8 kV | ITE (Commercial) | 87% | -40°C ~ 60°C | Adjustable Output, Load Sharing, PFC, Universal Input | 7.64" L x 4.47" W x 5.43" H (194.0mm x 106.6mm x 138.0mm) | cCSAus, CE | - |
|
|
K24-STR-24..30VDC-10AAS-INTERFACE (EXCLUDING SENSORS) |
0 |
|
Технический лист |
- | Box | Active | AC | 1 | 93 ~ 132 VAC, 187 ~ 265 VAC | - | - | 30V | - | - | - | - | - | 12A | 360W | - | Laboratory | 89% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 6.46" L x 2.76" W x 5.55" H (164.0mm x 70.0mm x 141.0mm) | CE, cULus | 61010-1 |
|
|
8951370010AC/DC DIN RAIL SUPPLY 24V 500W |
0 |
|
- |
Connect Power Pro-M (500W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 500W | 4 kV | ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 5.91" L x 4.76" W x 5.12" H (150.0mm x 121.0mm x 130.0mm) | CE, cULus, cURus, GOST, TUV | - |
|
|
S8VS-48024-FAC/DC DIN RAIL SUPPLY 24V 480W |
0 |
|
Технический лист |
S8VS (480W) | Bulk | Obsolete | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 5.01" L x 5.91" W x 4.53" H (127.2mm x 150.1mm x 115.0mm) | CE, cULus, cURus, VDE | - |
