Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2787-2347/000-070PSU, PRO 2 3-PH |
0 |
|
Технический лист |
- | Bulk | Active | AC | 1 | 340 ~ 550 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 3.15 kV | Laboratory | 95.9% | -25°C ~ 70°C | Adjustable Output, IP20, PFC | 5.12" L x 2.76" W x 5.12" H (130.0mm x 70.0mm x 130.0mm) | UL | 61010-1 |
|
|
CQ1001-9RGDC/DC DIN RAIL SUPPLY 5.1V 102W |
0 |
|
Технический лист |
MelcherQ | Bulk | Active | DC | 1 | - | 33.6V | 75V | 5.1V | - | - | - | - | - | 20A | 102W | - | ITE (Commercial), Railway | 87% | -40°C ~ 71°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | 6.46" L x 4.37" W x 0.78" H (164.0mm x 111.0mm x 19.8mm) | cCSAus, CE, EAC, NEMKO | 60950-1 |
|
|
CQ2320-9RGDC/DC DIN RAIL SUPPLY 2X12V 240W |
0 |
|
Технический лист |
MelcherQ | Bulk | Active | DC | 2 | - | 33.6V | 75V | 12V | 12V | - | - | - | - | 10A, 10A | 240W | - | ITE (Commercial), Railway | 88% | -40°C ~ 71°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | 6.46" L x 4.37" W x 0.78" H (164.0mm x 111.0mm x 19.8mm) | cCSAus, CE, EAC, NEMKO | 60950-1 |
|
|
S8VK-T96024-400AC/DC DIN RAIL SUPPLY 960W |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

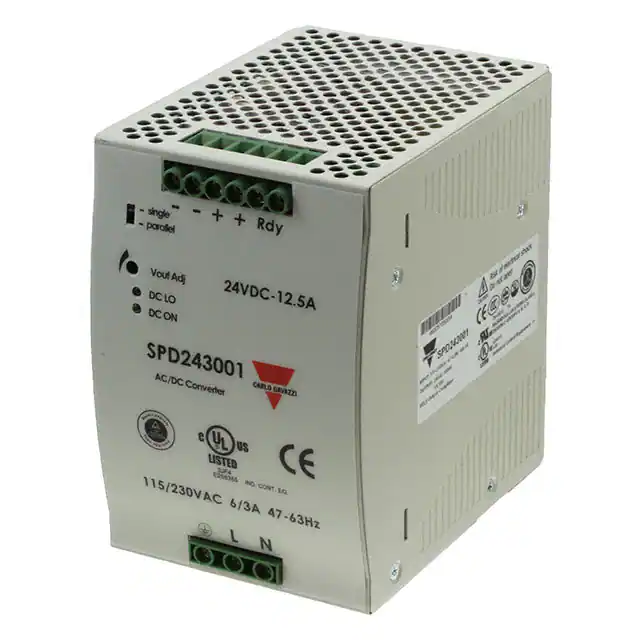

SPD243001AC/DC DIN RAIL SUPPLY 24V 300W |
1 |
|
Технический лист |
SPD (300W) | Box | Obsolete | AC or DC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 210V | 375V | 24V | - | - | - | - | - | 12.5A | 300W | - | Hazardous Locations, Industrial, ITE (Commercial) | 89% | -30°C ~ 71°C (With Derating) | Adjustable Output, IP20, PFC | 4.59" L x 3.29" W x 4.90" H (116.6mm x 83.6mm x 124.5mm) | CE, cULus, TUV | - |
|
|
CACN-3A-7-5-G2FIXED POWER SUPPLY |
0 |
|
- |
- | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | - | ITE (Commercial) | - | -25°C ~ 70°C | IP20 | 6.30" L x 1.65" W x 5.12" H (160.0mm x 42.0mm x 130.0mm) | cULus | - |
.jpg)
|
SPD242401BAC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
SPD (240W) | Box | Obsolete | AC or DC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 210V | 375V | 24V | - | - | - | - | - | 10A | 240W | - | Hazardous Locations, Industrial, ITE (Commercial) | 89% | -40°C ~ 71°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 4.59" L x 3.29" W x 4.90" H (116.6mm x 83.5mm x 124.5mm) | CCC, CE, cULus, cURus, TUV | - |
|
6EP34468SB100AY0AC/DC DIN RAIL SUPPLY 36V |
0 |
|
Технический лист |
6EP3 | Box | Active | AC | 1 | 320 ~ 575 VAC | - | - | 36V | - | - | - | - | - | 13A | - | - | Industrial, ITE (Commercial) | 94% | -25°C ~ 70°C | Adjustable Output, IP20 | 4.92" L x 2.76" W x 4.92" H (125.0mm x 70.0mm x 125.0mm) | CE, CSA, EAC, UL | 60950-1; UL 508 |
|
|
6EP19312EC31DC/DC DIN RAIL SUPPLY 24V |
0 |
|
Технический лист |
6EP1 | Box | Active | DC | 1 | - | 22V | 29V | 24V | - | - | - | - | - | 15A | - | - | Industrial, ITE (Commercial) | 96.2% | -25°C ~ 60°C | Adjustable Output, IP20 | 4.92" L x 1.97" W x 4.92" H (125.0mm x 50.0mm x 125.0mm) | cCSAus, CE, CSA, cULus, EAC, UL | 60950-1; UL 508 |
|
|
TRETEC2424NPOWER SUPPLY, 24A, 24V DC, DIN R |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
8951380000AC/DC DIN RAIL SUPPLY 24V 1000W |
0 |
|
Технический лист |
Connect Power Pro-M (1000W) | Box | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 40A | 1000W | 4 kV | ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 5.91" L x 4.53" W x 5.12" H (150.0mm x 115.0mm x 130.0mm) | CE, cULus, cURus, GOST, TUV | - |
|
|
SDN524100CX5A, 24V 1PH DIN, CONFORMAL COAT |
0 |
|
- |
SDN-C | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 24V | - | - | - | - | - | 5A | 120W | - | ITE (Commercial) | 88% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 4.36" L x 1.97" W x 4.85" H (110.7mm x 50.0mm x 123.2mm) | CE, cULus, cURus, EAC | 60950-1 |
|
2736686AC/DC DIN RAIL SUPPLY 30.1V 72W |
0 |
|
Технический лист |
Quint | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 30.1V | - | - | - | - | - | 2.4A | 72W | 4 kV | ITE (Commercial) | 86% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.92" L x 2.17" W x 5.71" H (125.0mm x 55.0mm x 145.0mm) | CB, cULus, cURus | - |
|
|
2316383DC/DC DIN RAIL SUPPLY 24V 48W |
0 |
|
Технический лист |
- | Bulk | Last Time Buy | DC | 1 | - | 12V | 24V | 24V | - | - | - | - | - | 2A | 48W | - | ITE (Commercial) | - | -20°C ~ 60°C | IP20 | 5.51" L x 0.08" W x 4.33" H (140.0mm x 2.0mm x 110.0mm) | cULus | - |
|
E84036AC/DC DIN RAIL SUPPLY 24V 960W |
1 |
|
- |
- | Box | Active | AC | 1 | 380 ~ 480 VAC | - | - | 24V | - | - | - | - | - | 40A | 960W | - | ITE (Commercial) | 95.3% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | 5.15" L x 4.33" W x 5.14" H (130.7mm x 110.0mm x 130.5mm) | CE, cULus, cURus | - |
|

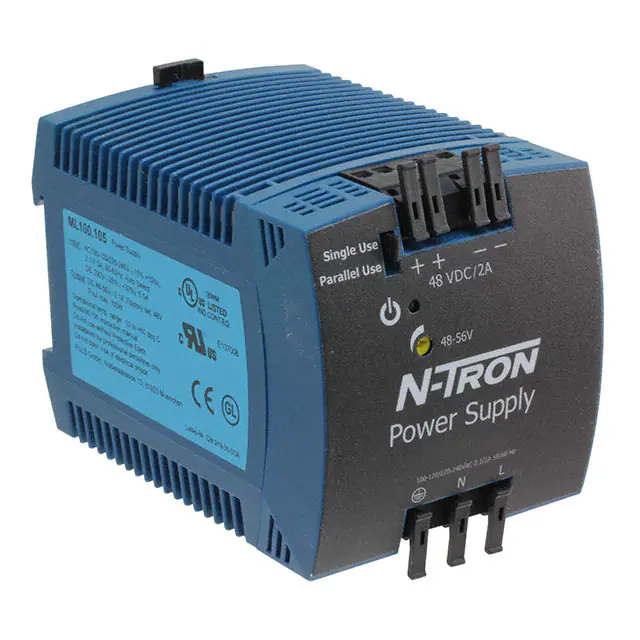

NTPS-48-2AC/DC DIN RAIL SUPPLY 48V 100W |
0 |
|
Технический лист |
N-TRON® | Bulk | Active | AC | 1 | 85 ~ 132 VAC, 184 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 2.1A | 100W | - | ITE (Commercial) | 91% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing | 4.22" L x 2.84" W x 4.22" H (107.2mm x 72.3mm x 107.2mm) | CB, CE, UL | - |
|
|
S8VS-24024AP-FAC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
S8VS (240W) | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.93" L x 3.94" W x 4.53" H (125.2mm x 100.0mm x 115.0mm) | CE, cULus, cURus, VDE | - |
|
|
S8VS-24024A-FAC/DC DIN RAIL SUPPLY 24V 240W |
0 |
|
Технический лист |
S8VS (240W) | Bulk | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 20A | 240W | 3 kV | ITE (Commercial) | 80% | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | 4.93" L x 3.94" W x 4.53" H (125.2mm x 100.0mm x 115.0mm) | CE, cULus, cURus, VDE | - |
|
|
AC1154AS-I ADDRESSING UNIT |
0 |
|
Технический лист |
- | Box | Active | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - | ITE (Commercial) | - | - | - | 8.23" L x 3.15" W x 1.38" H (209.0mm x 80.0mm x 35.0mm) | CE | - |
|
|
SDN1024100CX10A, 24V 1PH DIN, CONFORMAL COAT |
0 |
|
- |
SDN-C | Bulk | Obsolete | AC or DC | 2 | 85 ~ 264 VAC | 90V | 375V | 24V | - | - | - | - | - | 10A | 240W | - | ITE (Commercial) | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | 4.36" L x 2.36" W x 4.85" H (110.7mm x 59.9mm x 123.2mm) | Adjustable Output, IP20, PFC, Universal Input | 60950-1 |
