Промышленные блоки питания на DIN-рейку
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Размер/измерение | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2787-2346/000-070PSU, PRO 2, 3-PHASE, 24 VDC OUTP |
0 |
|
Технический лист |
- | Bulk | Active | AC | 1 | 340 ~ 550 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 10A | 240W | 3.51 kV | Laboratory | 94.1% | -25°C ~ 70°C | Adjustable Output, PFC | 5.12" L x 1.97" W x 5.12" H (130.0mm x 50.0mm x 130.0mm) | EAC, UL | 61010-1 |
|
TSP 600-148 EXAC/DC DIN RAIL SUPPLY 48V 600W |
0 |
|
Технический лист |
TSP-EX (600W) | Box | Active | AC | 1 | 85 ~ 132 VAC, 187 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 12.5A | 600W | - | Hazardous Locations, Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Remote On/Off, Universal Input | 6.50" L x 4.92" W x 4.92" H (165.1mm x 125.0mm x 125.0mm) | CB, CE, cURus, SIQ | - |
|
787-622AC/DC DIN RAIL SUPPLY 24V |
0 |
|
Технический лист |
- | Box | Obsolete | AC or DC | 1 | 90 ~ 264 VAC | 130V | 300V | 24V | - | - | - | - | - | 5A | - | 4.242 kV | Industrial, ITE (Commercial) | 90% | -10°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 4.72" L x 2.64" W x 5.24" H (120.0mm x 67.0mm x 133.0mm) | cURus, EAC, UL | 60950-1; UL 508 |
|
|
SPD481201BNAC/DC DIN RAIL SUPPLY 48V 120W |
0 |
|
- |
SPD (120W) | Box | Obsolete | AC or DC | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 210V | 375V | 48V | - | - | - | - | - | 2.5A | 120W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 87% | -35°C ~ 71°C (With Derating) | Adjustable Output, IP20, PFC | 4.69" L x 2.52" W x 4.90" H (119.0mm x 64.0mm x 124.5mm) | CCC, CE, cULus, TUV | - |
|
|
8708710000AC/DC DIN RAIL SUPPLY 24V 500W |
0 |
|
- |
Connect Power Ecoline (500W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 500W | 3 kV | ITE (Commercial) | 88% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 4.33" L x 8.96" W x 4.92" H (110.0mm x 227.5mm x 125.0mm) | cURus, GOST, UL | - |
|
7940126745DC/DC DIN RAIL SUPPLY 12V 50W |
0 |
|
Технический лист |
CP-DCDC (50W) | Bulk | Obsolete | DC | 1 | - | 18V | 30V | 12V | - | - | - | - | - | 3A | 50W | - | ITE (Commercial) | 80% | -10°C ~ 50°C | - | 5.16" L x 2.24" W x 3.86" H (131.0mm x 57.0mm x 98.0mm) | CE, CSA, UL | - |
|
|
TSP960-124-3PAC400AC/DC DIN RAIL SUPPLY 24V 960W |
0 |
|
Технический лист |
TSP-3P (960W) | Box | Obsolete | AC | 1 | 320 ~ 440 VAC (3 Phase) | - | - | 24V | - | - | - | - | - | 40A | 960W | - | Hazardous Locations, Industrial, ITE (Commercial) | 92% | -25°C ~ 60°C | IP20 | 6.50" L x 5.18" W x 4.92" H (165.1mm x 131.6mm x 125.0mm) | CB, CE, SIQ | - |
|
ABL8BUF24400DC/DC DIN RAIL SUPPLY 24V |
0 |
|
Технический лист |
- | Box | Active | DC | 1 | - | 22V | 30V | 24V | - | - | - | - | - | 40A | - | 500 V | Industrial, ITE (Commercial) | - | -25°C ~ 60°C | IP20 | 7.17" L x 6.69" W x 4.53" H (182.0mm x 170.0mm x 115.0mm) | CE, EAC | 60950-1; UL 508 |
|
|
TRETEC2412NPOWER SUPPLY, 12A, 24V DC, DIN R |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2467250000PRO TOP2 240W 24V 10A UW |
0 |
|
- |
* | Bulk | Active | AC or DC | 1 | 85 ~ 550 VAC | 90V | 800V | 24V | - | - | - | - | - | 10A | 240W | 3.5 kV | Household Appliances, ITE (Commercial), Laboratory | 91.5% | -25°C ~ 75°C (With Derating) | Adjustable Output, IP20, Universal Input | 4.92" L x 1.97" W x 5.12" H (125.0mm x 50.0mm x 130.0mm) | - | 60335-1; 60950-1; 61010-1 |
|
2866530DC/DC DIN RAIL SUPPLY 24V 480W |
1 |
|
Технический лист |
TRIO (480W) | Bulk | Discontinued | DC | 1 | - | 450V | 840V | 24V | - | - | - | - | - | 20A | 480W | - | ITE (Commercial) | 91% | -25°C ~ 70°C | - | 6.00" L x 4.53" W x 5.12" H (152.5mm x 115.0mm x 130.0mm) | cULus | - |
|
1105890000DC/DC DIN RAIL SUPPLY 24V 600W |
0 |
|
- |
Pro-H | Bulk | Obsolete | DC | 1 | - | - | - | 24V | - | - | - | - | - | 25A | 600W | - | - | - | -25°C ~ 70°C | - | 4.33" L x 2.13" W x 4.33" H (110.0mm x 54.0mm x 110.0mm) | CE, cULus | - |
|
|
SPD24901BAC/DC DIN RAIL SUPPLY 24V 91W |
0 |
|
- |
SPD (90W) | Box | Obsolete | AC or DC | 1 | 90 ~ 132 VAC, 186 ~ 264 VAC | 210V | 370V | 24V | - | - | - | - | - | 3.8A | 91W | 3 kV | Hazardous Locations, Industrial, ITE (Commercial) | 85% | -25°C ~ 71°C (With Derating) | Adjustable Output, IP20, PFC | 4.59" L x 2.52" W x 4.90" H (116.6mm x 64.0mm x 124.5mm) | CCC, CE, cULus, TUV | - |
|

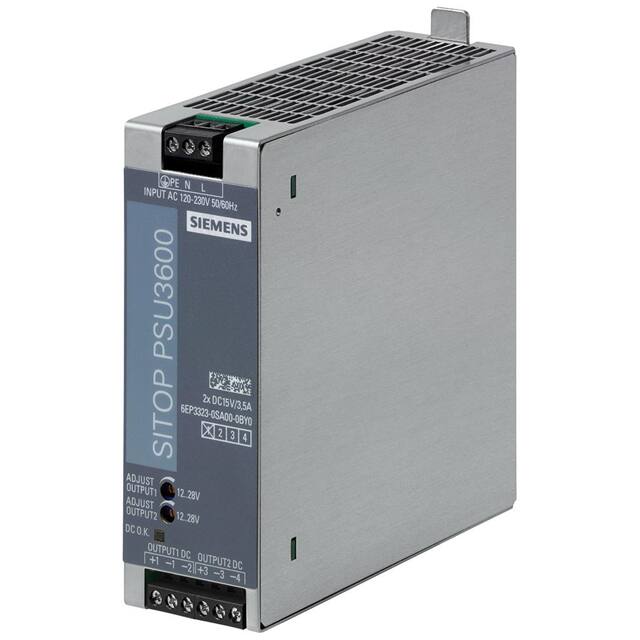

6EP33230SA000BY0AC/DC DIN RAIL SUPPLY 2X15V |
0 |
|
Технический лист |
6EP3 | Box | Active | AC or DC | 2 | 85 ~ 264 VAC | 88V | 250V | 15V | 15V | - | - | - | - | 3.5A, 3.5A | - | - | Industrial, ITE (Commercial) | 88% | -25°C ~ 70°C | Adjustable Output, IP20 | 4.92" L x 1.65" W x 4.92" H (125.0mm x 42.0mm x 125.0mm) | CE, cULus, EAC, UL | 60950-1; UL 508 |
|
|
6EP44387FC003DX0SITOP SEL1200/8X2-10A/EX |
0 |
|
Технический лист |
6EP4 | Bulk | Active | DC | 8 | - | 20.4V | 30V | 3V | 3V | 3V | 3V | 3V | 3V, 3V, 3V | 10A, 10A, 10A, 10A, 10A, 10A | - | - | ITE (Commercial) | 98% | -25°C ~ 70°C | Adjustable Output, Remote On/Off | 4.92" L x 1.77" W x 5.31" H (125.0mm x 45.0mm x 135.0mm) | CE, EAC | 60950-1 |
|
|
8951400010AC/DC DIN RAIL SUPPLY 24V 250W |
0 |
|
- |
Connect Power Pro-M (250W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 250W | 4 kV | ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, Universal Input | 5.91" L x 2.36" W x 5.12" H (150.0mm x 60.0mm x 130.0mm) | CE, cULus, cURus, GOST, TUV | - |
|
|
9925340012AC/DC DIN RAIL SUPPLY 12V 160W |
0 |
|
- |
- | Bulk | Obsolete | AC | 1 | 85 ~ 265 VAC | - | - | 12V | - | - | - | - | - | 8A | 160W | 3 kV | ITE (Commercial) | 85% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Universal Input | 6.89" L x 2.24" W x 5.00" H (175.0mm x 57.0mm x 127.0mm) | CE, cULus, cURus, GOST, TUV | - |
|
|
2787-2147/000-070PSU, PRO 2 1-PH |
0 |
|
Технический лист |
- | Bulk | Active | AC or DC | 1 | 90 ~ 264 VAC | 130V | 240V | 24V | - | - | - | - | - | 20A | 480W | 3.15 kV | Laboratory | 95.4% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | 5.12" L x 2.76" W x 5.12" H (130.0mm x 70.0mm x 130.0mm) | UL | 61010-1 |
|
|
SCD30S15-UDNDC/DC DIN RAIL SUPPLY 15V 30W |
0 |
|
Технический лист |
SCD | Bulk | Active | DC | 1 | - | 20V | 72V | 15V | - | - | - | - | - | 2A | 30W | - | Industrial, ITE (Commercial) | - | -25°C ~ 65°C | IP20 | 2.55" L x 1.29" W x 4.71" H (65.0mm x 33.0mm x 120.0mm) | CE, cULus, cURus | 60950-1; UL 508 |
|
|
SCD30S12-UDNDC/DC DIN RAIL SUPPLY 12V 30W |
0 |
|
Технический лист |
SCD | Bulk | Active | DC | 1 | - | 20V | 72V | 12V | - | - | - | - | - | 2.5A | 30W | - | Industrial, ITE (Commercial) | - | -25°C ~ 65°C | IP20 | 2.55" L x 1.29" W x 4.71" H (65.0mm x 33.0mm x 120.0mm) | CE, cULus, cURus | 60950-1; UL 508 |
