Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A1100.07.065CABLE GLAND 5-6.5MM PG7 BRASS |
32 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.256" (6.50mm) | PG7 | 0.394" (10.00mm) | - | 0.492" (12.5mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
K151-1012-00CABLE GLAND 3-8MM M12 BRASS |
91 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.315" (8.00mm) | M12x1.5 | 0.256" (6.50mm) | - | - | Brass, Nickel Plated | Contact Spring, O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
4220620CABLE GLAND 7-13MM M20 BRASS |
34 |
|
Технический лист |
Cable Gland | 0.276" (7.00mm) | 0.512" (13.00mm) | M20x1.5 | 0.236" (6.00mm) | - | 0.787" (20.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
PMS25 SL080CABLE GLAND 13-18.01MM M25 |
56 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | M25x1.5 | 0.394" (10.00mm) | - | 0.984" (25.0mm) | Polyamide (PA), Nylon | Gasket, Nut, Strain Relief | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
A1100.11.120CABLE GLAND 8.5-12MM PG11 BRASS |
70 |
|
Технический лист |
Cable Gland | 0.335" (8.50mm) | 0.472" (12.00mm) | PG11 | 0.394" (10.00mm) | - | 0.732" (18.6mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
MPG7 NC080CABLE GLAND 3-6.5MM PG7 BRASS |
87 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | PG7 | 0.236" (6.00mm) | - | 0.492" (12.5mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
50.640 PA/RSWCABLE GLAND 16-28MM M40 POLYAMID |
35 |
|
Технический лист |
Cable Gland | 0.630" (16.00mm) | 1.102" (28.00mm) | M40x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
MES12 NC080CABLE GLAND 3-6.5MM M12 BRASS |
64 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | M12x1.5 | 0.236" (6.00mm) | - | 0.472" (12.0mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
53112878CABLE GLAND 9-16.99MM M25 |
80 |
|
Технический лист |
Cable Gland | 0.354" (9.00mm) | 0.669" (16.99mm) | M25 | 0.315" (8.00mm) | - | 0.996" (25.3mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
53112881CABLE GLAND 6-13MM M25 POLYAMIDE |
59 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.512" (13.00mm) | M25 | 0.996" (25.30mm) | - | 0.996" (25.3mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

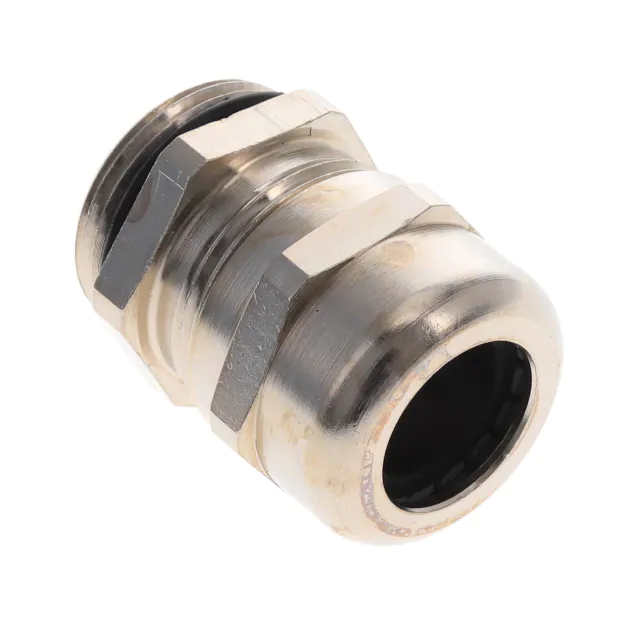

1411199CABLE GLAND 10-14MM PG16 BRASS |
84 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | PG16 | 0.256" (6.50mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
PNS3/4 BK080CABLE GLAND 13-18.01MM 3/4" NPT |
83 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | 3/4" NPT | 0.591" (15.00mm) | - | 1.050" (26.7mm) | Polyamide (PA), Nylon | Gasket, Nut, Strain Relief | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
|
PNS3/4 SL080CABLE GLAND 13-18.01MM 3/4" NPT |
65 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | 3/4" NPT | 0.591" (15.00mm) | - | 1.050" (26.7mm) | Polyamide (PA), Nylon | Gasket, Nut, Strain Relief | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|

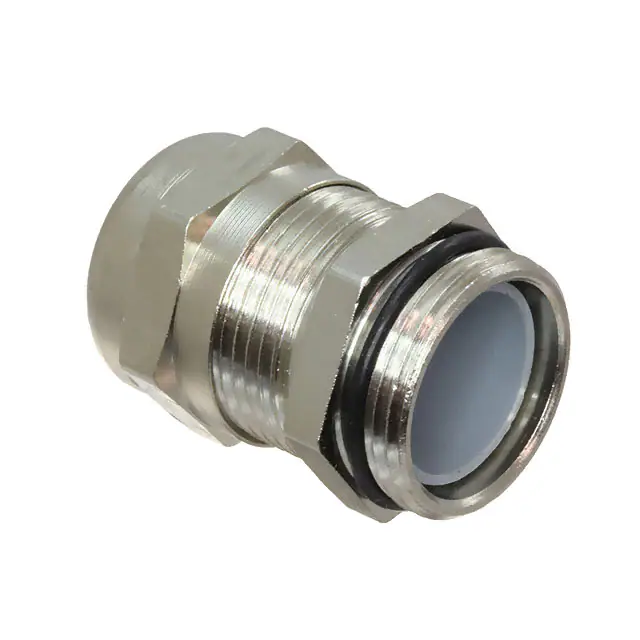

4220316CABLE GLAND 8-15MM PG16 BRASS |
81 |
|
Технический лист |
Cable Gland | 0.315" (8.00mm) | 0.591" (15.00mm) | PG16 | 0.256" (6.50mm) | - | 0.886" (22.5mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
A1100.13.150CABLE GLAND 11-15MM PG13 BRASS |
38 |
|
Технический лист |
Cable Gland | 0.433" (11.00mm) | 0.591" (15.00mm) | PG13 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
52015730CABLE GLAND 5-12MM PG13 BRASS |
76 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.472" (12.00mm) | PG13 | 0.256" (6.50mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof; Nema 6P | -40°C ~ 100°C | |
|
|
52015800CABLE GLAND 4-9MM PG13 BRASS |
42 |
|
Технический лист |
Cable Gland | 0.157" (4.00mm) | 0.354" (9.00mm) | PG13 | 0.256" (6.50mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof; Nema 6P | -40°C ~ 100°C | |
|
S1229CABLE GLAND 11-20MM PG29 |
30 |
|
Технический лист |
Cable Gland | 0.433" (11.00mm) | 0.787" (20.00mm) | PG29 | 0.433" (11.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
50.021CABLE GLND 13-18.01MM PG21 BRASS |
55 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | PG21 | 0.276" (7.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

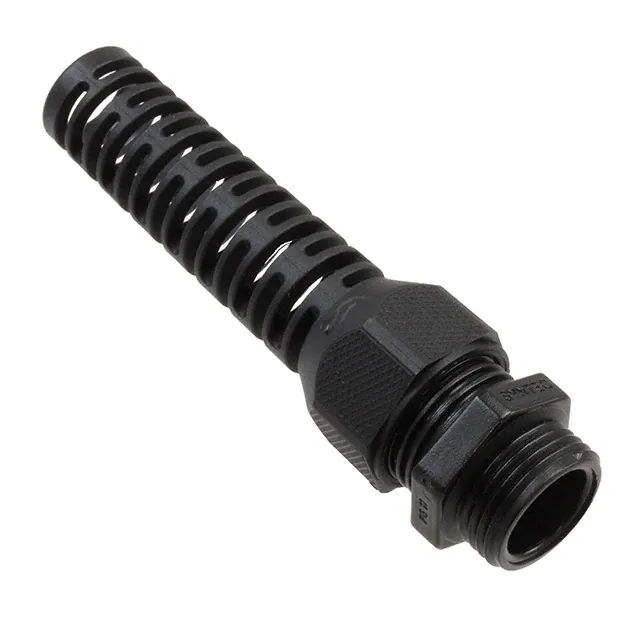

5306117CABLE GLAND 5-11MM PG16 POLYAMID |
40 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.433" (11.00mm) | PG16 | 0.394" (10.00mm) | - | 0.886" (22.5mm) | Polyamide (PA), Nylon | Strain Relief | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C |
