Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PPS9 SL080CABLE GLAND 4-8MM PG9 POLYAMIDE |
74 |
|
Технический лист |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | PG9 | 0.315" (8.00mm) | - | 0.598" (15.2mm) | Polyamide (PA), Nylon | Gasket, Locknut | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
PPS9 BK080CABLE GLAND 4-8MM PG9 POLYAMIDE |
43 |
|
Технический лист |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | PG9 | 0.315" (8.00mm) | - | 0.598" (15.2mm) | Polyamide (PA), Nylon | Gasket, Locknut | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
M4450CABLE GLAND 2.92-6.35MM M12 |
72 |
|
Технический лист |
Cable Gland, Anti-Vibration | 0.115" (2.92mm) | 0.250" (6.35mm) | M12 | 0.320" (8.13mm) | - | 0.472" (12.0mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 115°C | |
|
5308 906CABLE GLAND 7-16MM 3/4" NPT |
26 |
|
Технический лист |
Cable Gland | 0.276" (7.00mm) | 0.630" (16.00mm) | 3/4" NPT | 0.591" (15.00mm) | - | 1.050" (26.7mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
12002210CABLE GLAND 5-10MM M16 POLYAMIDE |
59 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M16x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | Strain Relief | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
CG-PG21-1-BKCABLE GLAND 9-16MM PG21 POLYAMID |
61 |
|
Технический лист |
Cable Gland | 0.354" (9.00mm) | 0.630" (16.00mm) | PG21 | 0.433" (11.00mm) | - | 1.126" (28.6mm) | Polyamide (PA), Nylon | Sealing Gland, Sealing Nut | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
PPC16 SL080CABLE GLAND 10-14MM PG16 |
61 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | PG16 | 0.394" (10.00mm) | - | 0.886" (22.5mm) | Polyamide (PA), Nylon | Locknut | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|

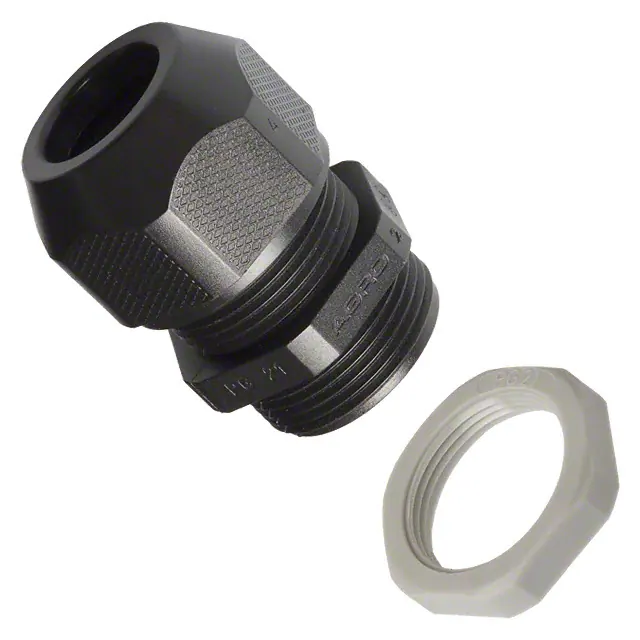

A1545.21.18CABLE GLAND 11-18.01MM PG21 |
48 |
|
Технический лист |
Cable Gland | 0.433" (11.00mm) | 0.709" (18.01mm) | PG21 | 0.433" (11.00mm) | - | 1.114" (28.3mm) | Polyamide (PA), Nylon | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
|
PPS11 SL080CABLE GLAND 5-10MM PG11 POLYAMID |
27 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | PG11 | 0.315" (8.00mm) | - | 0.732" (18.6mm) | Polyamide (PA), Nylon | Gasket, Locknut | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
|
A1545.21.14CABLE GLAND 6.5-14MM PG21 |
34 |
|
Технический лист |
Cable Gland | 0.256" (6.50mm) | 0.551" (14.00mm) | PG21 | 0.433" (11.00mm) | - | 1.114" (28.3mm) | Polyamide (PA), Nylon | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
1569020000CABLE GLAND 13-18.01MM PG21 |
47 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | PG21 | 0.433" (11.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP67/IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
M8564CABLE GLND 4.32-11.43MM 1/2" NPT |
50 |
|
Технический лист |
Cable Gland, Anti-Vibration | 0.170" (4.32mm) | 0.450" (11.43mm) | 1/2" NPT | 0.610" (15.49mm) | - | 0.875" (22.2mm), 7/8" | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
AIO-CSPG16CABLE GLAND 10-14MM PG16 |
96 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | PG16 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | Panel Nut, Sealing Nut | Black, Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
4220307CABLE GLAND 2.5-6.5MM PG7 BRASS |
38 |
|
Технический лист |
Cable Gland | 0.098" (2.50mm) | 0.256" (6.50mm) | PG7 | 0.197" (5.00mm) | - | 0.492" (12.5mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
5306111CABLE GLAND 4-10MM PG11 POLYAMID |
47 |
|
Технический лист |
Cable Gland | 0.157" (4.00mm) | 0.394" (10.00mm) | PG11 | 0.315" (8.00mm) | - | 0.732" (18.6mm) | Polyamide (PA), Nylon | Strain Relief | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
96572.1CABLE FEEDTHROUGH 8.89-13.97MM |
63 |
|
Технический лист |
Cable Feedthrough | 0.350" (8.89mm) | 0.550" (13.97mm) | M20x1.5 | 0.260" (6.60mm) | - | 0.790" (20.1mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|
|
PMS16 SL080CABLE GLAND 5-10MM M16 POLYAMIDE |
73 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M16x1.5 | 0.394" (10.00mm) | - | 0.630" (16.0mm) | Polyamide (PA), Nylon | Gasket, Nut, Strain Relief | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
96573.0CABLE FEEDTHROUGH 16-20.07MM M25 |
32 |
|
- |
Cable Feedthrough | 0.630" (16.00mm) | 0.790" (20.07mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Polyamide (PA), Nylon | - | Light Gray | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|
CGM25N24X2CABLE GLAND 3-6MM M25 THERMOPL |
60 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.236" (6.00mm) | M25x1.5 | 0.310" (7.87mm) | - | - | Thermoplastic | O-Ring, Seal | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
53112886CABLE GLAND 5-10MM M20 POLYAMIDE |
46 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M20 | 0.799" (20.30mm) | - | 0.800" (20.3mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C |
