Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1772310000CABLE GLAND 13-18.01MM M25 |
28 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | M25x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Seal | Gray | IP67/IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
50.620 MCABLE GLAND 9-13MM M20 BRASS |
60 |
|
Технический лист |
Cable Gland | 0.354" (9.00mm) | 0.512" (13.00mm) | M20x1.5 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
GC1001-GCABLE GLAND 25-32MM M50 POLYAMID |
59 |
|
Технический лист |
Cable Gland | 0.984" (25.00mm) | 1.260" (32.00mm) | M50x1.5 | 0.492" (12.50mm) | - | 2.008" (51.0mm) | Polyamide (PA), Nylon | Locknut, O-Ring, Seal | Light Gray | IP67 - Dust Tight, Waterproof | - | |
|
5306131CABLE GLAND 4-8MM M16 POLYAMIDE |
62 |
|
Технический лист |
Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | M16x1.5 | 0.236" (6.00mm) | - | 0.630" (16.0mm) | Polyamide (PA), Nylon | Strain Relief | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
CG-NPT-1-2-BKCABLE GLAND 19-25MM 1" NPT |
27 |
|
Технический лист |
Cable Gland | 0.748" (19.00mm) | 0.984" (25.00mm) | 1" NPT | 0.709" (18.01mm) | - | 1.350" (34.3mm) | Polyamide (PA), Nylon | O-Ring, Sealing Gland, Sealing Nut | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
1424527CABLE GLAND 10-14MM M25 BRASS |
70 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | M25x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|
K150-1016-00CABLE GLAND 5-10.5MM M16 BRASS |
64 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.413" (10.50mm) | M16x1.5 | 0.276" (7.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
PPC21 BK080CABLE GLAND 13-18.01MM PG21 |
83 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | PG21 | 0.433" (11.00mm) | - | 1.114" (28.3mm) | Polyamide (PA), Nylon | Locknut | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
IPG-22236CABLE GLAND 22.1-32MM PG36 |
32 |
|
Технический лист |
Cable Gland | 0.870" (22.10mm) | 1.260" (32.00mm) | PG36 | 0.530" (13.46mm) | - | 1.850" (47.0mm) | Polyamide (PA), Nylon | Gasket | Black | IP66 - Dust Tight, Water Resistant | -20°C ~ 65°C | |
|
A1100.08.035CABLE GLAND 2.5-3.5MM M8 BRASS |
37 |
|
Технический лист |
Cable Gland | 0.098" (2.50mm) | 0.138" (3.50mm) | M8x1.25 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
4220712CABLE GLAND 1.5-5MM M12 BRASS |
88 |
|
Технический лист |
Cable Gland | 0.059" (1.50mm) | 0.197" (5.00mm) | M12x1.5 | 0.197" (5.00mm) | - | 0.472" (12.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
PMS20 SL080CABLE GLAND 10-14MM M20 POLYAMID |
74 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | M20x1.5 | 0.394" (10.00mm) | - | 0.787" (20.0mm) | Polyamide (PA), Nylon | Gasket, Nut, Strain Relief | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
4220311CABLE GLAND 6-11.5MM PG11 BRASS |
34 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.453" (11.50mm) | PG11 | 0.236" (6.00mm) | - | 0.732" (18.6mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
5308 729CABLE GLAND 14-25MM PG29 |
48 |
|
Технический лист |
Cable Gland | 0.551" (14.00mm) | 0.984" (25.00mm) | PG29 | 0.433" (11.00mm) | - | 1.457" (37.0mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
52015700CABLE GLAND 1.98-6.5MM PG7 BRASS |
59 |
|
Технический лист |
Cable Gland | 0.078" (1.98mm) | 0.256" (6.50mm) | PG7 | 0.197" (5.00mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof; Nema 6P | -40°C ~ 100°C | |
|

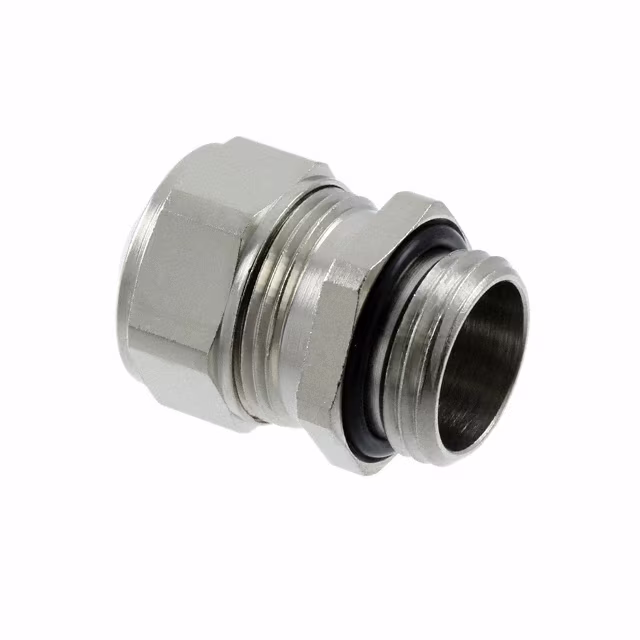

A1100.09.045CABLE GLAND 3.5-4.5MM PG9 BRASS |
38 |
|
Технический лист |
Cable Gland | 0.138" (3.50mm) | 0.177" (4.50mm) | PG9 | 0.394" (10.00mm) | - | 0.598" (15.2mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|

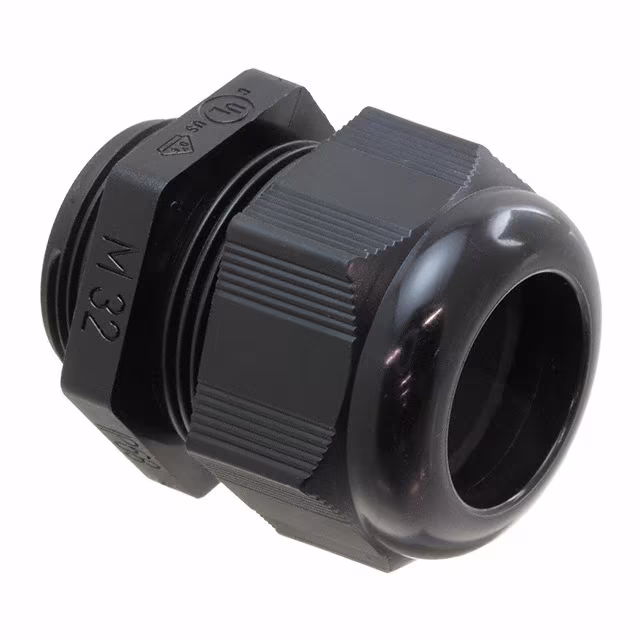

5308 944CABLE GLAND 14-25MM M32 POLYAMID |
49 |
|
Технический лист |
Cable Gland | 0.551" (14.00mm) | 0.984" (25.00mm) | M32x1.5 | 0.394" (10.00mm) | - | 1.260" (32.0mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|

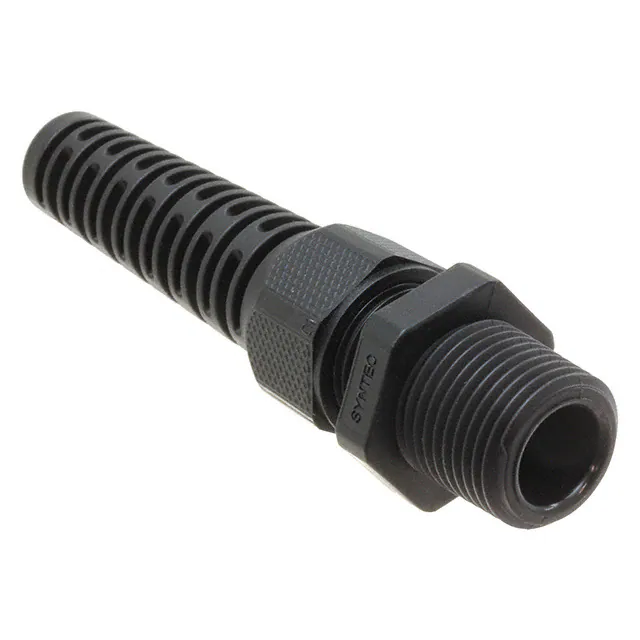

5306150CABLE GLAND 3-8MM 3/8" NPT |
71 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.315" (8.00mm) | 3/8" NPT | 0.591" (15.00mm) | - | 0.673" (17.1mm) | Polyamide (PA), Nylon | Strain Relief | Black | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
50.640 PA7035CABLE GLAND 19-28MM M40 POLYAMID |
70 |
|
Технический лист |
Cable Gland | 0.748" (19.00mm) | 1.102" (28.00mm) | M40x1.5 | 0.394" (10.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
M4854CABLE GRIP 22.23-32MM POLYAMID |
45 |
|
Технический лист |
Cable Grip | 0.875" (22.23mm) | 1.260" (32.00mm) | - | - | - | 1.500" (38.1mm) | Polyamide (PA66), Nylon 6/6 | Strain Relief | Black | - | -18°C ~ 105°C |
