Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
52015810CABLE GLAND 6-13MM PG16 BRASS |
89 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.512" (13.00mm) | PG16 | 0.256" (6.50mm) | - | - | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof; Nema 6P | -40°C ~ 100°C | |
|
4264007CABLE GLAND 4-6.5MM PG7 BRASS |
26 |
|
Технический лист |
Cable Gland | 0.157" (4.00mm) | 0.256" (6.50mm) | PG7 | 0.197" (5.00mm) | - | 0.492" (12.5mm) | Brass, Nickel Plated | Clamping Ring, Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 120°C | |
|
PMC32 BK080CABLE GLAND 15-21MM M32 POLYAMID |
60 |
|
Технический лист |
Cable Gland | 0.591" (15.00mm) | 0.827" (21.00mm) | M32x1.5 | 0.394" (10.00mm) | - | 1.260" (32.0mm) | Polyamide (PA), Nylon | Locknut | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
PMC32 SL080CABLE GLAND 15-21MM M32 POLYAMID |
37 |
|
Технический лист |
Cable Gland | 0.591" (15.00mm) | 0.827" (21.00mm) | M32x1.5 | 0.394" (10.00mm) | - | 1.260" (32.0mm) | Polyamide (PA), Nylon | Locknut | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
50.616 Y/EMVCABLE GLAND 5-9.5MM M16 BRASS |
94 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.374" (9.50mm) | M16x1.5 | 0.394" (10.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
4535CABLE GRIP 6-8MM PG9 BRASS |
87 |
|
Технический лист |
Cable Grip | 0.236" (6.00mm) | 0.315" (8.00mm) | PG9 | 0.390" (9.91mm) | - | 0.598" (15.2mm) | Brass, Nickel Plated | - | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
EM-SGL-M32-MET-ECABLE GLAND 13-18.01MM M32 BRASS |
62 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | M32x1.5 | 0.354" (9.00mm) | - | - | Brass, Nickel Plated | Locknut, Seal | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
4220321CABLE GLAND 11-19MM PG21 BRASS |
15 |
|
Технический лист |
Cable Gland | 0.433" (11.00mm) | 0.748" (19.00mm) | PG21 | 0.276" (7.00mm) | - | 1.114" (28.3mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 100°C | |
|
|
M4524GCJ-SMCABLE GRIP 1 1/4" NPT POLYAMIDE |
25 |
|
Технический лист |
Cable Grip, Multi-Hole | - | - | 1 1/4" NPT | 0.780" (19.81mm) | - | 1.680" (42.7mm) | Polyamide (PA66), Nylon 6/6 | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 112°C | |
|
21.616MCABLE GLAND RA M16 ZINC |
66 |
|
Технический лист |
Cable Gland - 90° | - | - | M16x1.5 | 0.630" (16.00mm) | - | 0.480" (12.2mm) | Zinc, Nickel Plated | Locknut, O-Ring | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
50.134/EMV/RCABLE GLND 8-16MM 3/4" NPT BRASS |
52 |
|
Технический лист |
Cable Gland | 0.315" (8.00mm) | 0.630" (16.00mm) | 3/4" NPT | 0.433" (11.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
PNC1 SL080CABLE GLAND 18.01-25MM 1" NPT |
54 |
|
Технический лист |
Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | 1" NPT | 0.709" (18.01mm) | - | 1.315" (33.4mm) | Polyamide (PA), Nylon | Locknut | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
|
PNC1 BK080CABLE GLAND 18.01-25MM 1" NPT |
10 |
|
Технический лист |
Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | 1" NPT | 0.709" (18.01mm) | - | 1.315" (33.4mm) | Polyamide (PA), Nylon | Locknut | Black | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|

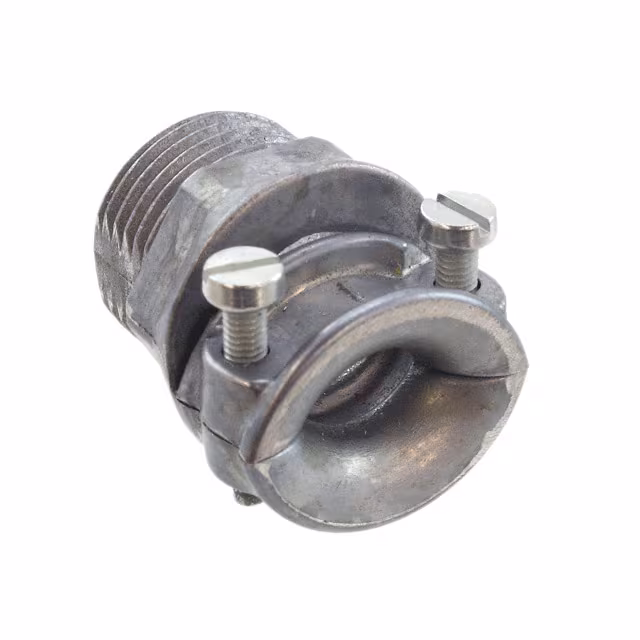

09000005101CABLE GLAND PG11 |
14 |
|
Технический лист |
Cable Gland | - | - | PG11 | - | - | - | - | - | - | - | - | |
|
09000005158CABLE GLAND 17-20.5MM PG21 |
8 |
|
Технический лист |
Cable Gland | 0.669" (17.00mm) | 0.807" (20.50mm) | PG21 | - | - | - | Thermoplastic | - | - | IP65 - Dust Tight, Water Resistant | -40°C ~ 100°C | |
|
50.048 PA/SWCABLE GLAND 34-44MM PG48 |
25 |
|
Технический лист |
Cable Gland | 1.339" (34.00mm) | 1.732" (44.00mm) | PG48 | 0.551" (14.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
50.632 M-LCABLE GLAND 14-20MM M32 BRASS |
28 |
|
Технический лист |
Cable Gland | 0.551" (14.00mm) | 0.787" (20.00mm) | M32x1.5 | 0.512" (13.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
MPG13 NC080CABLE GLAND 6-12MM PG13.5 BRASS |
25 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | PG13.5 | 0.256" (6.50mm) | - | 0.803" (20.4mm) | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -20°C ~ 100°C | |
|
19000005186CABLE GLAND 13-20MM M32 POLYAMID |
8 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.787" (20.00mm) | M32 | - | - | - | Polyamide (PA), Nylon | - | Black | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
K150-1025-00CABLE GLND 12.5-20.5MM M25 BRASS |
15 |
|
Технический лист |
Cable Gland | 0.492" (12.50mm) | 0.807" (20.50mm) | M25x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C |
