Кабельные и шнуровые зажимы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Корпус/корпус | Тип | Внешний диаметр кабеля (мин.) | Внешний диаметр кабеля (макс.) | Размер резьбы | Длина резьбы | Размер втулки кабелепровода | Размер отверстия панели | Материал | Включает | Цвет | Защита от проникновения | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50.021 PA7035CABLE GLAND 13-18.01MM PG21 |
35 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | PG21 | 0.433" (11.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
10000300CABLE GLAND 5-10MM PG11 POLYAMID |
76 |
|
Технический лист |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | PG11 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
5308 904CABLE GLAND 1.5-6MM 3/8" NPT |
81 |
|
Технический лист |
Cable Gland | 0.059" (1.50mm) | 0.236" (6.00mm) | 3/8" NPT | 0.433" (11.00mm) | - | 0.673" (17.1mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
50016M20BSSWCABLE GLAND 10-14MM M20 POLYAMID |
46 |
|
Технический лист |
Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | M20x1.5 | 0.591" (15.00mm) | - | - | Polyamide (PA6), Nylon 6 | Strain Relief | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
12051809CABLE GLAND 4-6MM PG7 POLYAMIDE |
38 |
|
Технический лист |
Cable Gland | 0.157" (4.00mm) | 0.236" (6.00mm) | PG7 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP65 - Dust Tight, Water Resistant | -30°C ~ 100°C | |
|
IPG-22221-GCABLE GLAND 12.95-18.03MM PG21 |
27 |
|
Технический лист |
Cable Gland | 0.510" (12.95mm) | 0.710" (18.03mm) | PG21 | 0.390" (9.91mm) | - | 1.110" (28.2mm) | Polyamide (PA), Nylon | Gasket | Gray | IP66 - Dust Tight, Water Resistant | -20°C ~ 65°C | |
|
10000400CABLE GLAND 6-12MM PG13.5 |
89 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | PG13.5 | 0.354" (9.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|

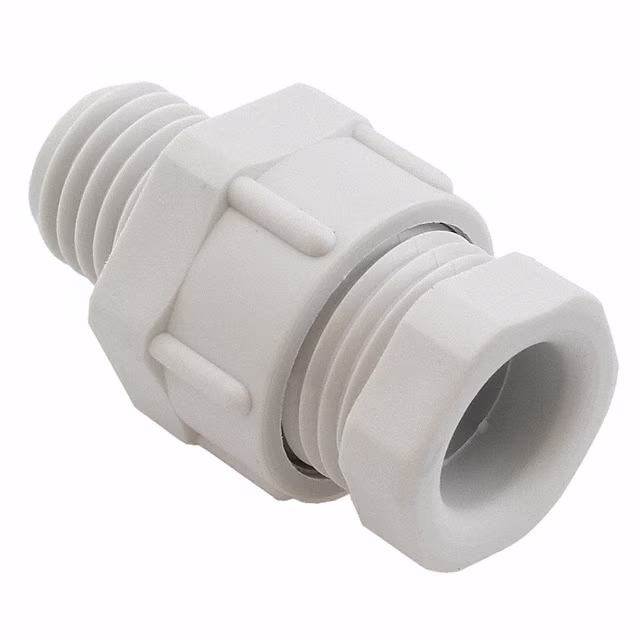

12151900CABLE GLAND 6-8MM M12 POLYAMIDE |
56 |
|
Технический лист |
Cable Gland | 0.236" (6.00mm) | 0.315" (8.00mm) | M12x1.5 | 0.433" (11.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP65 - Dust Tight, Water Resistant | -30°C ~ 100°C | |
|
50.625 PA/RSWCABLE GLAND 8-16.99MM M25 |
37 |
|
Технический лист |
Cable Gland | 0.315" (8.00mm) | 0.669" (16.99mm) | M25x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
CG-PG11-1-BKCABLE GLAND 3-7MM PG11 POLYAMIDE |
53 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.276" (7.00mm) | PG11 | 0.315" (8.00mm) | - | 0.740" (18.8mm) | Polyamide (PA), Nylon | Sealing Gland, Sealing Nut | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
IPG-22225-GCABLE GLAND 14.99-19.05MM PG25 |
60 |
|
Технический лист |
Cable Gland | 0.590" (14.99mm) | 0.750" (19.05mm) | PG25 | 0.430" (10.92mm) | - | 1.160" (29.5mm) | Polyamide (PA), Nylon | Gasket | Gray | IP66 - Dust Tight, Water Resistant | -20°C ~ 65°C | |
|
5308 905CABLE GLAND 3-9MM 1/2" NPT |
50 |
|
Технический лист |
Cable Gland | 0.118" (3.00mm) | 0.354" (9.00mm) | 1/2" NPT | 0.551" (14.00mm) | - | 0.835" (21.2mm) | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
S1207CABLE GLAND 1.5-5MM PG7 POLYAMID |
90 |
|
Технический лист |
Cable Gland | 0.059" (1.50mm) | 0.197" (5.00mm) | PG7 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|
50.625 PA7001CABLE GLAND 11-16.99MM M25 |
80 |
|
Технический лист |
Cable Gland | 0.433" (11.00mm) | 0.669" (16.99mm) | M25x1.5 | 0.315" (8.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
IPG-2229-BPGCABLE GLAND 4.06-7.87MM PG9 |
27 |
|
Технический лист |
Cable Gland | 0.160" (4.06mm) | 0.310" (7.87mm) | PG9 | 0.320" (8.13mm) | - | 0.600" (15.2mm) | Polyamide (PA), Nylon | Gasket | Gray | IP66 - Dust Tight, Water Resistant | -20°C ~ 65°C | |
|
S1238CABLE GLAND 2-6MM 3/8" NPT |
80 |
|
Технический лист |
Cable Gland | 0.079" (2.00mm) | 0.236" (6.00mm) | 3/8" NPT | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon | - | Gray | IP68 - Dust Tight, Waterproof; NEMA 1, 12 | -40°C ~ 100°C | |
|

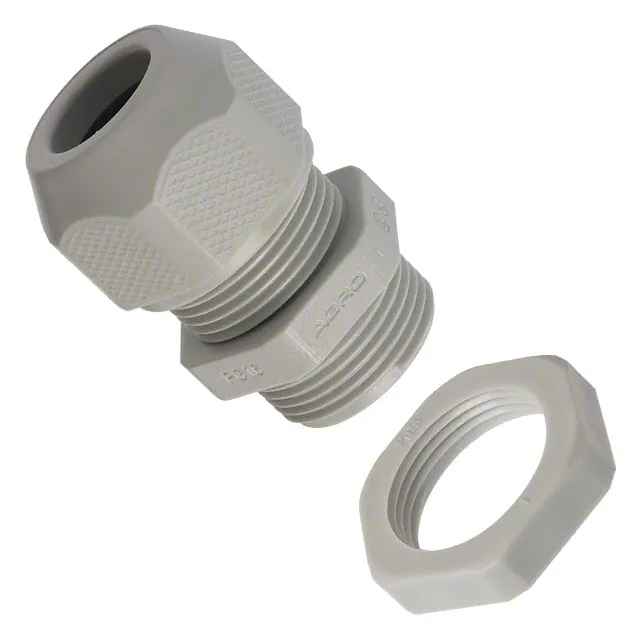

A1555.16.14CABLE GLAND 8.5-14MM PG16 |
81 |
|
Технический лист |
Cable Gland | 0.335" (8.50mm) | 0.551" (14.00mm) | PG16 | 0.394" (10.00mm) | - | 0.886" (22.5mm) | Polyamide (PA), Nylon | Sealing Ring | Light Gray | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C | |
|
50.021 PACABLE GLAND 13-18.01MM PG21 |
46 |
|
Технический лист |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | PG21 | 0.433" (11.00mm) | - | - | Polyamide (PA6), Nylon 6 | Sealing Ring | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
96570.0CABLE FEEDTHROUGH 2-5MM M12 |
33 |
|
Технический лист |
Cable Feedthrough | 0.079" (2.00mm) | 0.197" (5.00mm) | M12x1.5 | 0.200" (5.08mm) | - | 0.470" (11.9mm) | Polyamide (PA), Nylon | - | Light Gray | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|

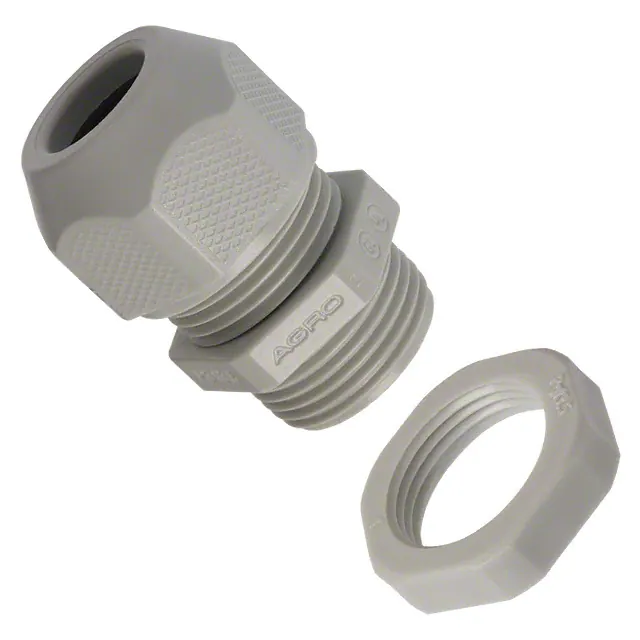

A1555.13.12CABLE GLAND 5.5-12MM PG13 |
39 |
|
Технический лист |
Cable Gland | 0.217" (5.50mm) | 0.472" (12.00mm) | PG13 | 0.354" (9.00mm) | - | - | Polyamide (PA), Nylon | Sealing Ring | Light Gray | IP68 - Dust Tight, Waterproof | -30°C ~ 100°C |
