Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

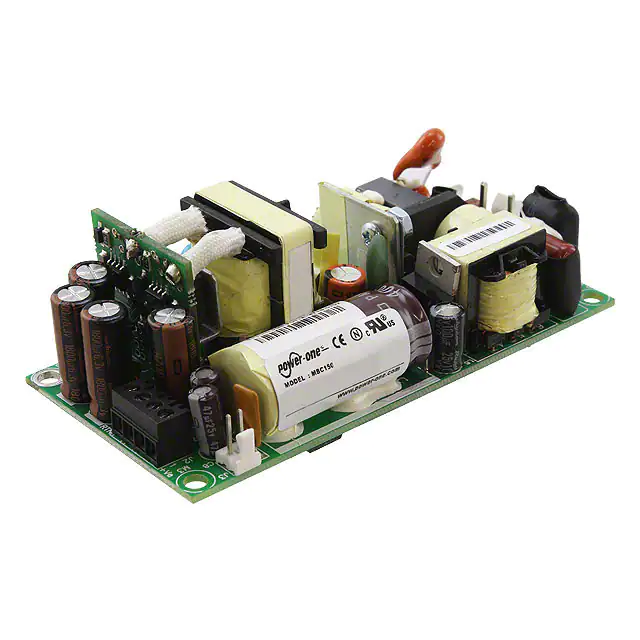

MBC150-1012GAC/DC CONVERTER 12V 110/150W |
63 |
|
Технический лист |
MBC150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 8.33 A | - | - | - | - | - | 110W (150W Forced Air) | Medical | 5.9 kV | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) | - |
|
|
MBC150-1024GAC/DC CONVERTER 24V 110W |
51 |
|
Технический лист |
MBC150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 4.17 A | - | - | - | - | - | 110W (150W Forced Air) | Medical | 5.9 kV | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) | - |
|
ATX-0250GAAC/DC CNVT 3.3V 5V 2X12V -12V |
39 |
|
Технический лист |
- | Bulk | Active | ATX | 5 | 90 ~ 264 VAC | 3.3V | 5V | 12V | 12V | -12V | - | 24 A | 20 A | 20 A | 20 A | 300 mA | - | 663W | ITE (Commercial) | - | 83.39% | 0°C ~ 40°C | PFC, Standby Output, Universal Input | Benchtop | 5.90" L x 5.50" W x 3.38" H (149.9mm x 139.7mm x 85.9mm) | CB, CCC, CE, cUL, cURus, FCC, Nemko |
|
AA15D1515CAC/DC CONVERTER +/-15V 15W |
234 |
|
Технический лист |
AA15D (15W) | Box | Obsolete | Enclosed | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 500 mA | 500 mA | - | - | - | - | 15W | ITE (Commercial) | 3 kV | 79% | -25°C ~ 70°C | DC Input Capable, Universal Input | Chassis Mount | 2.91" L x 2.13" W x 0.77" H (74.0mm x 54.0mm x 19.5mm) | CE |
|

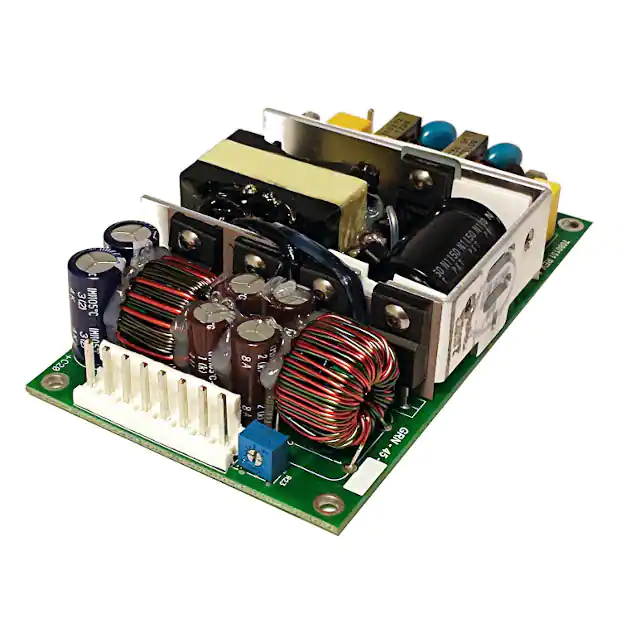

1011268GRN-45-2002 |
50 |
|
Технический лист |
GRN-45 (45W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 5 A | 2 A | - | - | - | - | 45W | ITE (Commercial), Medical | - | 85% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 0.83" H (108.0mm x 63.5mm x 21.1mm) | CE, cURus, TUV, UKCA |
|

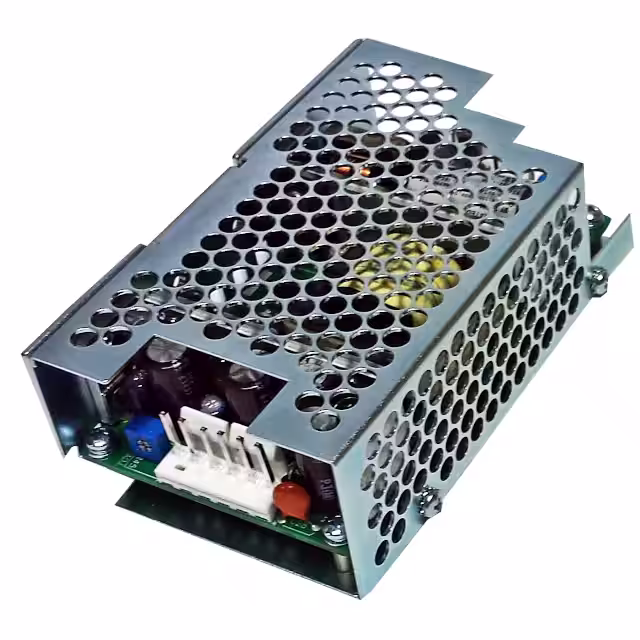

1010427CHCOSRP-25-1004 CHCO |
50 |
|
Технический лист |
SRP-25 (25W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 15V | - | - | - | - | - | 1.67 A | - | - | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 69% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.21" L x 2.47" W x 1.40" H (106.9mm x 62.7mm x 35.6mm) | CE, cURus, TUV, UKCA |
|
|
1010428CHCOSRP-25-1005 CHCO |
50 |
|
Технический лист |
SRP-25 (25W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 1.04 A | - | - | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 69% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.21" L x 2.47" W x 1.40" H (106.9mm x 62.7mm x 35.6mm) | CE, cURus, TUV, UKCA |
|
|
1010426CHCOSRP-25-1003 CHCO |
50 |
|
Технический лист |
SRP-25 (25W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 2.08 A | - | - | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 69% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.21" L x 2.47" W x 1.40" H (106.9mm x 62.7mm x 35.6mm) | CE, cURus, TUV, UKCA |
|
|
1010429CHCOSRP-25-1006 CHCO |
50 |
|
Технический лист |
SRP-25 (25W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 520 mA | - | - | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 69% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.21" L x 2.47" W x 1.40" H (106.9mm x 62.7mm x 35.6mm) | CE, cURus, TUV, UKCA |
|
|
1010424CHCOSRP-25-1001 CHCO |
50 |
|
Технический лист |
SRP-25 (25W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 6 A | - | - | - | - | - | 20W | Industrial, ITE (Commercial), Medical | - | 69% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.21" L x 2.47" W x 1.40" H (106.9mm x 62.7mm x 35.6mm) | CE, cURus, TUV, UKCA |
|
|
1010425CHCOSRP-25-1002 CHCO |
50 |
|
Технический лист |
SRP-25 (25W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 5V | - | - | - | - | - | 5 A | - | - | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 69% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.21" L x 2.47" W x 1.40" H (106.9mm x 62.7mm x 35.6mm) | CE, cURus, TUV, UKCA |
|
VGS-250B-48AC/DC CONVERTER 48V 250W |
0 |
|
Технический лист |
VGS-250B (250W) | Bulk | Obsolete | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 48V | - | - | - | - | - | 5.2 A | - | - | - | - | - | 250W | ITE (Commercial) | 1.5 kV | 89.5% | -20°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|
1011401CHGRN-60-1001 OVP CH |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 9 A | - | - | - | - | - | 30W | ITE (Commercial), Medical | - | 80% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|

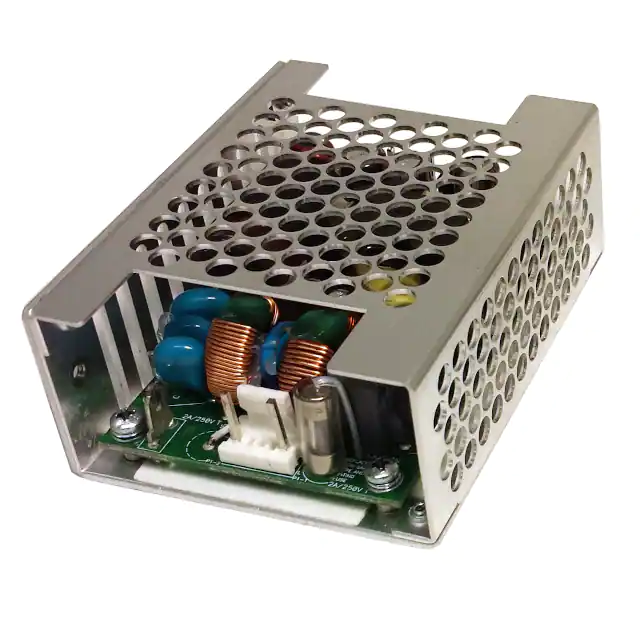

1011336CHCOGRN-60-1006 CHCO |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 2.2 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011333CHCOGRN-60-1003 CHCO |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011403CHGRN-60-1003 OVP CH |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011407CHGRN-60-1007 OVP CH |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011335CHCOGRN-60-1005 CHCO |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011406CHGRN-60-1006 OVP CH |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 2.2 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011360CHCOGRN-60-1008 CHCO |
50 |
|
Технический лист |
GRN-60 (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 19V | - | - | - | - | - | 3.1 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.20" L x 2.43" W x 1.28" H (81.3mm x 61.7mm x 32.5mm) | CE, cURus, TUV, UKCA |
