Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

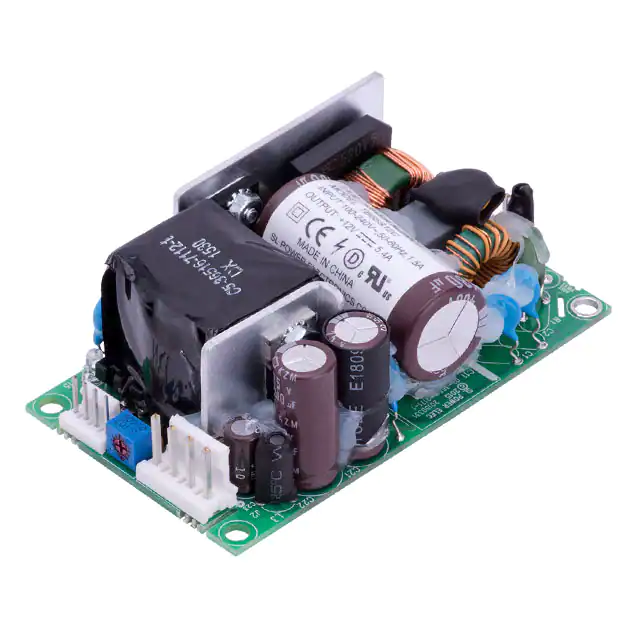

TB65S12CAC/DC CONVERTER 12V 65W |
0 |
|
Технический лист |
TB65 (65W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 5.4 A | - | - | - | - | - | 65W | ITE (Commercial) | 3 kV | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.50" L x 2.00" W x 1.30" H (88.9mm x 50.8mm x 33.1mm) | CE, cURus, DEMKO |
|
|
TB65S36KAC/DC CONVERTER 36V 65W |
242 |
|
Технический лист |
TB65 (65W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 1.8 A | - | - | - | - | - | 65W | ITE (Commercial) | 3 kV | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.50" L x 2.00" W x 1.30" H (88.9mm x 50.8mm x 33.0mm) | CE, cURus |
|
|
TB65S48KAC/DC CONVERTER 48V 65W |
0 |
|
Технический лист |
TB65 (65W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 1.35 A | - | - | - | - | - | 65W | ITE (Commercial) | 3 kV | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.50" L x 2.00" W x 1.30" H (88.9mm x 50.8mm x 33.1mm) | CE, cURus, DEMKO |
|
MK40S-5AC/DC CONVERTER 24V 43W |
82 |
|
Технический лист |
MK40S (40W) | Bulk | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 1.8 A | - | - | - | - | - | 43W | ITE (Commercial), Laboratory | 4.242 kV | 80% | 0°C ~ 60°C | - | Chassis Mount | 4.74" L x 2.50" W x 1.50" H (120.5mm x 63.5mm x 38.1mm) | CB, cURus, UL |
|

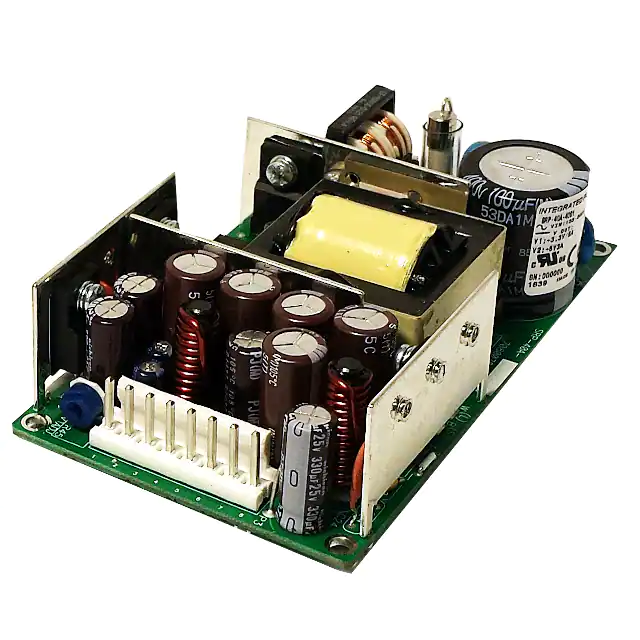

1010391SRP-40A-2005 |
62 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Open Frame | 2 | 100 ~ 240 VAC | 15V | -15V | - | - | - | - | 2.5 A | 2 A | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 1.20" H (107.9mm x 63.5mm x 30.5mm) | CE, cURus, TUV, UKCA |
|
|
1010389SRP-40A-2003 |
56 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Open Frame | 2 | 100 ~ 240 VAC | 5V | -5V | - | - | - | - | 5 A | 4 A | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 1.20" H (107.9mm x 63.5mm x 30.5mm) | CE, cURus, TUV, UKCA |
|
|
1010820SRP-40A-2007 |
50 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Open Frame | 2 | 100 ~ 240 VAC | 3.3V | - | - | - | - | - | 5 A | 700 mA | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 1.20" H (107.9mm x 63.5mm x 30.5mm) | CE, cURus, TUV, UKCA |
|
|
1010387SRP-40A-2001 |
48 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Open Frame | 2 | 100 ~ 240 VAC | 5V | 24V | - | - | - | - | 5 A | 1.5 A | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 1.20" H (107.9mm x 63.5mm x 30.5mm) | CE, cURus, TUV, UKCA |
|
|
1010828SRP-40A-2008 |
44 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Open Frame | 2 | 100 ~ 240 VAC | 6V | 9V | - | - | - | - | 5 A | 1.1 A | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 1.20" H (107.9mm x 63.5mm x 30.5mm) | CE, cURus, TUV, UKCA |
|
|
1010388SRP-40A-2002 |
42 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Open Frame | 2 | 100 ~ 240 VAC | 5V | 12V | - | - | - | - | 5 A | 3 A | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 1.20" H (107.9mm x 63.5mm x 30.5mm) | CE, cURus, TUV, UKCA |
|
|
1010830SRP-40A-2009 |
37 |
|
Технический лист |
SRP-40A (40W) | Box | Active | Open Frame | 2 | 100 ~ 240 VAC | 30V | -30V | - | - | - | - | 500 mA | 500 mA | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | - | 73% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.25" L x 2.50" W x 1.20" H (107.9mm x 63.5mm x 30.5mm) | CE, cURus, TUV, UKCA |
|
1010770CHSRP-25-3003 CH |
50 |
|
Технический лист |
SRP-25 (25W) | Box | Active | Chassis | 3 | 100 ~ 240 VAC | 3.3V | 6V | 5V | - | - | - | 2.5 A | 2 A | 1 A | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 69% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.21" L x 2.47" W x 1.40" H (106.9mm x 62.7mm x 35.6mm) | CE, cURus, TUV, UKCA |
|
|
1010418CHSRP-25-3002 CH |
50 |
|
Технический лист |
SRP-25 (25W) | Box | Active | Chassis | 3 | 100 ~ 240 VAC | 5V | 15V | -15V | - | - | - | 3 A | 1.5 A | 500 mA | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 69% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.21" L x 2.47" W x 1.40" H (106.9mm x 62.7mm x 35.6mm) | CE, cURus, TUV, UKCA |
|
|
1010417CHSRP-25-3001 CH |
50 |
|
Технический лист |
SRP-25 (25W) | Box | Active | Chassis | 3 | 100 ~ 240 VAC | 5V | 12V | -12V | - | - | - | 3 A | 1.5 A | 500 mA | - | - | - | 25W | Industrial, ITE (Commercial), Medical | - | 69% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.21" L x 2.47" W x 1.40" H (106.9mm x 62.7mm x 35.6mm) | CE, cURus, TUV, UKCA |
|
EPM30-150-BC-0F0AC/DC CONVERTER 15V 30W |
105 |
|
Технический лист |
EPM30 (30W) | Box | Active | Enclosed | 1 | 80 ~ 275 VAC | 15V | - | - | - | - | - | 2 A | - | - | - | - | - | 30W | Medical | 4 kV | 87.5% | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 3.77" L x 2.16" W x 1.00" H (95.8mm x 54.9mm x 25.4mm) | CB, cTUVus, TUV |
|
|
EPM30-180-BC-0F0AC/DC CONVERTER 18V 30W |
73 |
|
Технический лист |
EPM30 (30W) | Box | Active | Enclosed | 1 | 80 ~ 275 VAC | 18V | - | - | - | - | - | 1.67 A | - | - | - | - | - | 30W | Medical | 4 kV | 87.5% | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 3.77" L x 2.16" W x 1.00" H (95.8mm x 54.9mm x 25.4mm) | CB, cTUVus, TUV |
|
|

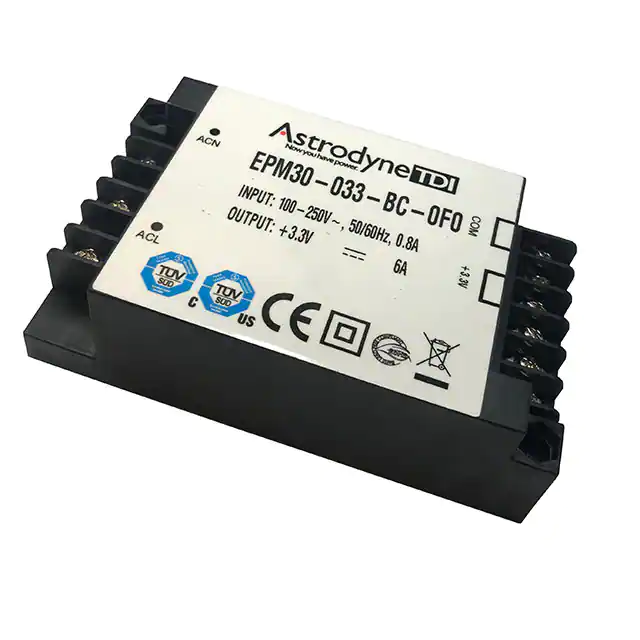

EPM30-033-BC-0F0AC/DC CONVERTER 3.3V 20W |
42 |
|
Технический лист |
EPM30 (30W) | Box | Active | Enclosed | 1 | 80 ~ 275 VAC | 3.3V | - | - | - | - | - | 6.06 A | - | - | - | - | - | 20W | Medical | 4 kV | 87.5% | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 3.77" L x 2.16" W x 1.00" H (95.8mm x 54.9mm x 25.4mm) | CB, cTUVus, TUV |
|
MBC150-1012G-2AC/DC CONVERTER 12V 110/150W |
117 |
|
Технический лист |
MBC150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 8.33 A | - | - | - | - | - | 110W (150W Forced Air) | Medical | 5.9 kV | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) | - |
|
|
MBC150-1T12G-2AC/DC CONVERTER 12V 110/150W |
71 |
|
Технический лист |
MBC150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 8.33 A | - | - | - | - | - | 110W (150W Forced Air) | Medical | 5.9 kV | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) | - |
|
|
MBC150-1T24G-2AC/DC CONVERTER 24V 110/150W |
70 |
|
Технический лист |
MBC150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 4.17 A | - | - | - | - | - | 110W (150W Forced Air) | Medical | 5.9 kV | 86% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) | - |
