Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASM201-480-BNH-PF1AC/DC CONVERTER 48V 139W |
194 |
|
Технический лист |
ASM201 (200W) | Box | Active | Open Frame | 1 | 80 ~ 240 VAC | 48V | - | - | - | - | - | 2.9 A | - | - | - | - | - | 139W (202W Forced Air) | ITE (Commercial), Medical | 4 kV | 95% | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.11" H (101.6mm x 50.8mm x 28.2mm) | CB, CSA, cTUVus, TUV |
|
ASM201-480-BET-PF1AC/DC CONVERTER 48V 200W |
136 |
|
Технический лист |
ASM201 | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 200W | ITE (Commercial), Medical | 4 kV | 95% | -40°C ~ 85°C | Universal Input | Chassis Mount | 4.17" L x 2.68" W x 1.57" H (105.9mm x 68.1mm x 39.9mm) | CB, CSA, cTUVus, TUV |
|
ASM201-480-BEH-PF1AC/DC CONVERTER 48V 139W |
135 |
|
Технический лист |
ASM201 (200W) | Box | Active | Enclosed | 1 | 80 ~ 240 VAC | 48V | - | - | - | - | - | 2.9 A | - | - | - | - | - | 139W (202W Forced Air) | ITE (Commercial), Medical | 4 kV | 95% | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.17" L x 2.68" W x 1.57" H (105.9mm x 68.1mm x 39.9mm) | CB, CSA, cTUVus, TUV |
|
|
ASM201-150-BEH-PF1AC/DC CONVERTER 15V 141W |
92 |
|
Технический лист |
ASM201 (200W) | Box | Active | Enclosed | 1 | 80 ~ 240 VAC | 15V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 141W (201W Forced Air) | ITE (Commercial), Medical | 4 kV | 93% | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.17" L x 2.68" W x 1.57" H (105.9mm x 68.1mm x 39.9mm) | CB, CSA, cTUVus, TUV |
|
|
ASM201-300-BET-PF1AC/DC CONVERTER 30V 200W |
59 |
|
Технический лист |
ASM201 | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 30V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 200W | ITE (Commercial), Medical | 4 kV | 94% | -40°C ~ 85°C | Universal Input | Chassis Mount | 4.17" L x 2.68" W x 1.57" H (105.9mm x 68.1mm x 39.9mm) | CB, CSA, cTUVus, TUV |
|
|
ASM201-280-BEH-PF1AC/DC CONVERTER 28V 140W |
53 |
|
Технический лист |
ASM201 (200W) | Box | Active | Enclosed | 1 | 80 ~ 240 VAC | 28V | - | - | - | - | - | 5 A | - | - | - | - | - | 140W (199W Forced Air) | ITE (Commercial), Medical | 4 kV | 94% | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.17" L x 2.68" W x 1.57" H (105.9mm x 68.1mm x 39.9mm) | CB, CSA, cTUVus, TUV |
|
|
ASM201-190-BNH-PF1AC/DC CONVERTER 19V 141W |
31 |
|
Технический лист |
ASM201 (200W) | Box | Active | Open Frame | 1 | 80 ~ 240 VAC | 19V | - | - | - | - | - | 7.4 A | - | - | - | - | - | 141W (200W Forced Air) | ITE (Commercial), Medical | 4 kV | 93% | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.11" H (101.6mm x 50.8mm x 28.2mm) | CB, CSA, cTUVus, TUV |
|
|
ASM201-360-BET-PF1AC/DC CONVERTER 36V 200W |
28 |
|
Технический лист |
ASM201 | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 36V | - | - | - | - | - | 5.5 A | - | - | - | - | - | 200W | ITE (Commercial), Medical | 4 kV | 94% | -40°C ~ 85°C | Universal Input | Chassis Mount | 4.17" L x 2.68" W x 1.57" H (105.9mm x 68.1mm x 39.9mm) | CB, CSA, cTUVus, TUV |
|
MINT1180A2875K01AC/DC CONVERTER 28V 180W |
0 |
|
Технический лист |
MINT1180 (180W) | Bulk | Active | Open Frame | 1 | 100 ~ 240 VAC | 28V | - | - | - | - | - | 6.4 A | - | - | - | - | - | 180W | Medical | 4 kV | 88% | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 31.8mm) | CE |
|
1011204CHREL-70-2003 CH |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 5V | 24V | - | - | - | - | 6 A | 2 A | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1011202CHREL-70-2001 CH |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 3.3V | 5V | - | - | - | - | 6 A | 5 A | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1011359CHREL-70-2008 CH |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 9V | 48V | - | - | - | - | 2 A | 1.5 A | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1011207CHREL-70-2006 CH |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 5.5V | -5.5V | - | - | - | - | 6 A | 5 A | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1011208CHREL-70-2007 CH |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 5V | 29V | - | - | - | - | 6 A | 2 A | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1011206CHREL-70-2005 CH |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 3 A | 2 A | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1011205CHREL-70-2004 CH |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 3 A | 3 A | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1011203CHREL-70-2002 CH |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 6 A | 4 A | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|

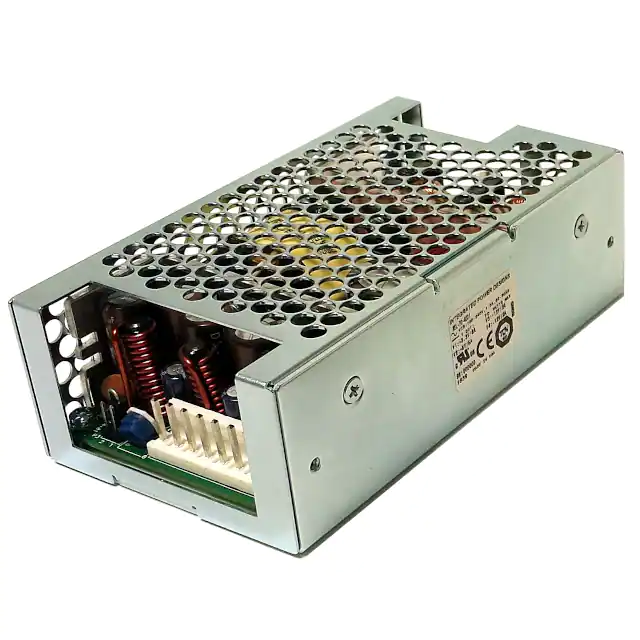

1011192CHCOREL-70-1001 CHCO |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 2.5V | - | - | - | - | - | 14 A | - | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1011193CHCOREL-70-1002 CHCO |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 14 A | - | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1011197CHCOREL-70-1006 CHCO |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.9 A | - | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
