Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HD160-148AC/DC CONVERTER 48V 160W |
156 |
|
Технический лист |
HD160 (160W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 170 ~ 370 VDC | 48V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 160W | ITE (Commercial), Medical | - | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.06" H (101.6mm x 50.8mm x 26.9mm) | CE, CSA, NEMKO |
|
HD160-105AC/DC CONVERTER 5V 100W |
136 |
|
Технический лист |
HD160 (160W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 170 ~ 370 VDC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | - | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.06" H (101.6mm x 50.8mm x 26.9mm) | CE, CSA, NEMKO |
|

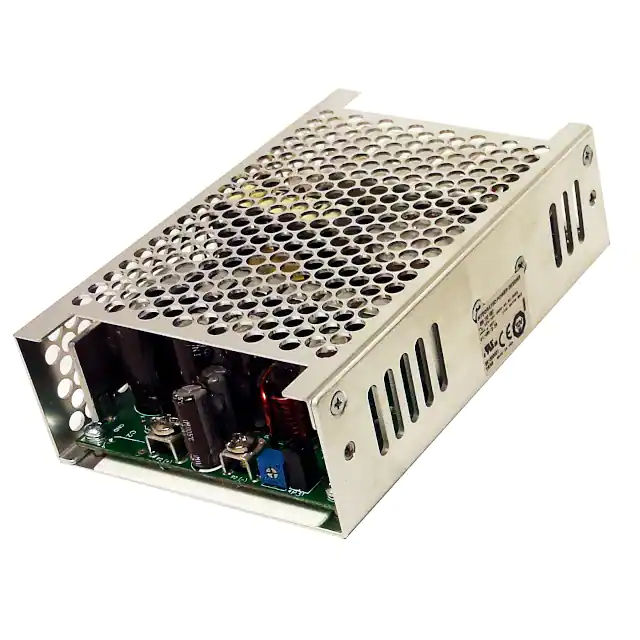

1011345CHCOGRN-110-1002 CHCO |
50 |
|
Технический лист |
GRN-110 (110W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 22 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 86% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
1011348CHCOGRN-110-1005 CHCO |
50 |
|
Технический лист |
GRN-110 (110W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 4.6 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
1011412CHGRN-110-1004 OVP CH |
50 |
|
Технический лист |
GRN-110 (110W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
1011344CHCOGRN-110-1001 CHCO |
50 |
|
Технический лист |
GRN-110 (110W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 22 A | - | - | - | - | - | 73W | ITE (Commercial), Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
1011410CHGRN-110-1002 OVP CH |
50 |
|
Технический лист |
GRN-110 (110W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 22 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 86% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
1011413CHGRN-110-1005 OVP CH |
50 |
|
Технический лист |
GRN-110 (110W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 4.6 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
1011347CHCOGRN-110-1004 CHCO |
50 |
|
Технический лист |
GRN-110 (110W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 7.3 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
1011414CHGRN-110-1006 OVP CH |
50 |
|
Технический лист |
GRN-110 (110W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 3.9 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
1011411CHGRN-110-1003 OVP CH |
50 |
|
Технический лист |
GRN-110 (110W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 9.2 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
1011346CHCOGRN-110-1003 CHCO |
50 |
|
Технический лист |
GRN-110 (110W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 9.2 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
1011409CHGRN-110-1001 OVP CH |
50 |
|
Технический лист |
GRN-110 (110W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 22 A | - | - | - | - | - | 73W | ITE (Commercial), Medical | - | 82% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
1011350CHCOGRN-110-1007 CHCO |
50 |
|
Технический лист |
GRN-110 (110W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 2.3 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
1011415CHGRN-110-1007 OVP CH |
50 |
|
Технический лист |
GRN-110 (110W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 2.3 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
|
1011349CHCOGRN-110-1006 CHCO |
50 |
|
Технический лист |
GRN-110 (110W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 3.9 A | - | - | - | - | - | 110W | ITE (Commercial), Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.50" H (133.4mm x 82.6mm x 38.1mm) | CE, cURus, TUV, UKCA |
|
1011252GRN-80-4002 |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Open Frame | 4 | 85 ~ 264 VAC | 5V | -5V | 12V | -12V | - | - | 8 A | 5 A | 1.5 A | 1.5 A | - | - | 80W | ITE (Commercial), Medical | - | 88% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | CE, cURus, TUV, UKCA |
|

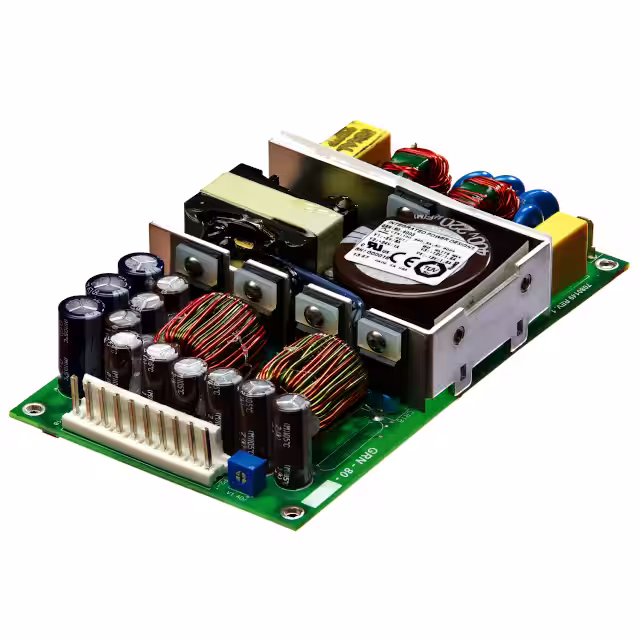

1011353GRN-80-4005 |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Open Frame | 4 | 85 ~ 264 VAC | 3.5V | 5.2V | 18V | -18V | - | - | 3.5 A | 1 A | 1.5 A | 1.5 A | - | - | 80W | Industrial, ITE (Commercial), Laboratory, Medical | - | 87% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | CE, cURus, TUV, UKCA |
|
|
1011254GRN-80-4004 |
30 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Open Frame | 4 | 85 ~ 264 VAC | 5V | 24V | 15V | -15V | - | - | 8 A | 1 A | 1.5 A | 1.5 A | - | - | 80W | ITE (Commercial), Medical | - | 88% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | CE, cURus, TUV, UKCA |
|

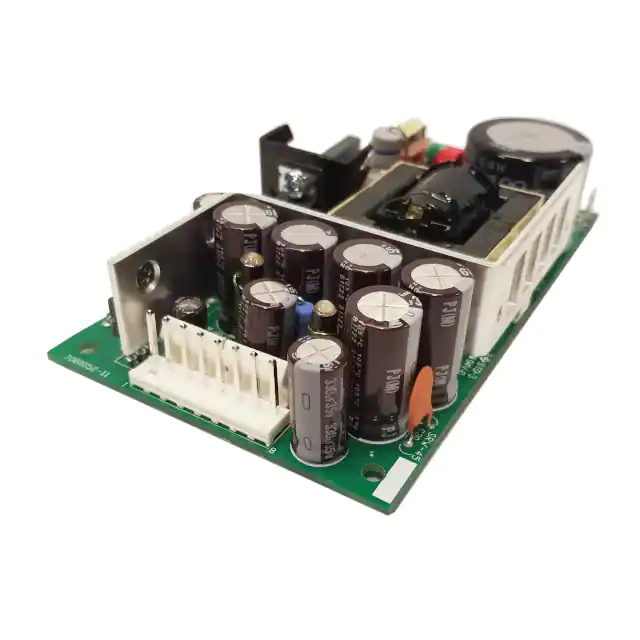

1010868SRW-45-2012 |
35 |
|
Технический лист |
SRW-45 (45W) | Box | Not For New Designs | Open Frame | 2 | 200 ~ 240 VAC | 5V | 21V | - | - | - | - | 2.5 A | 1 A | - | - | - | - | 35W | Industrial, ITE (Commercial) | - | 70% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | CE, TUV, UKCA |
