Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010104SRW-45-2004 |
26 |
|
Технический лист |
SRW-45 (45W) | Box | Not For New Designs | Open Frame | 2 | 100 ~ 240 VAC | 12V | -12V | - | - | - | - | 3 A | 2 A | - | - | - | - | 45W | Industrial, ITE (Commercial) | - | 70% | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | CE, TUV, UKCA |
|

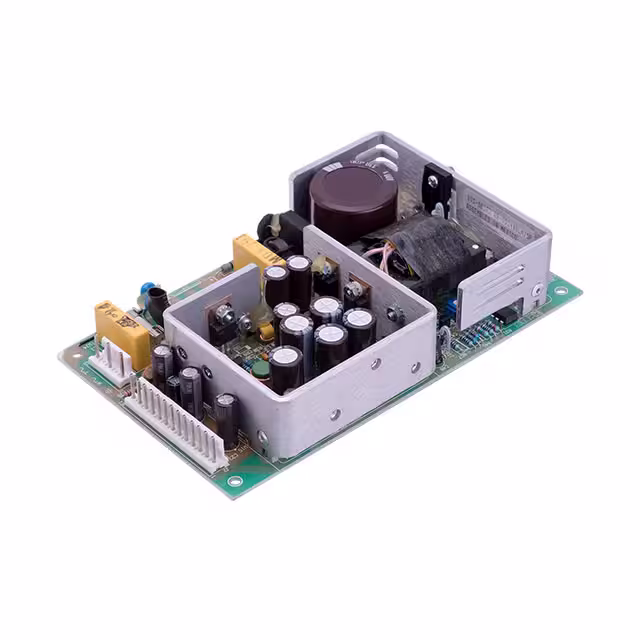

GLM75AGAC/DC CONVERTER 5.1V +/-12V 75W |
0 |
|
Технический лист |
GLM75 (75W) | Bulk | Active | Open Frame | 4 | 90 ~ 264 VAC | 5.1V | 12V | -12V | 12V | - | - | 8 A | 2.5 A | 1 A | 2.5 A | - | - | 75W | Medical | - | 78% | 0°C ~ 50°C | Universal Input | Chassis Mount | 7.00" L x 4.25" W x 1.30" H (177.8mm x 108.0mm x 33.0mm) | CE, cURus, TUV |
|

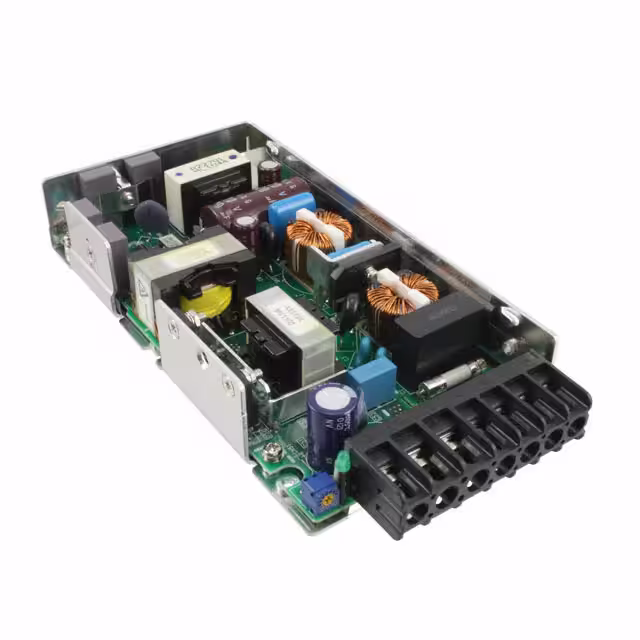

HWS100-48/MEAC/DC CONVERTER 48V 100W |
2 |
|
Технический лист |
HWS/ME (100W) | Bulk | Obsolete | Open Frame | 1 | 85 ~ 265 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | 3 kV | 87% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote Sense, Universal Input | Chassis Mount | 6.30" L x 1.10" W x 3.23" H (160.0mm x 28.0mm x 82.0mm) | CE |
|
1011222REL-70-4006 |
97 |
|
Технический лист |
REL-70 (70W) | Box | Active | Open Frame | 4 | 85 ~ 264 VAC | 5V | 24V | 12V | -12V | - | - | 6 A | 2 A | 2 A | 2 A | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA |
|
|
1011223REL-70-4007 |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Open Frame | 4 | 85 ~ 264 VAC | 5V | 24V | 15V | -15V | - | - | 6 A | 2 A | 2 A | 2 A | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA |
|
|
1011217REL-70-4001 |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Open Frame | 4 | 85 ~ 264 VAC | 3.3V | 5V | 12V | -12V | - | - | 6 A | 5 A | 2 A | 2 A | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA |
|
HN28-3-AGAC/DC CONVERTER 28V 84W |
0 |
|
Технический лист |
Linear N | Bulk | Obsolete | Linear | 1 | 100, 120, 220, 230, 240 VAC | 28V | - | - | - | - | - | 3 A | - | - | - | - | - | 84W | ITE (Commercial) | 3 kV | 60% | 0°C ~ 50°C | Adjustable Output, Remote Sense | Chassis Mount | 7.00" L x 4.87" W x 3.28" H (177.8mm x 123.7mm x 83.3mm) | - |
|
LU225S56KLAC/DC CONVERTER 56V 150W |
0 |
|
Технический лист |
LU225 | Bulk | Active | Open Frame | 1 | 90 ~ 305 VAC | 56V | - | - | - | - | - | 2.68 A | - | - | - | - | - | 150W (224W Forced Air) | ITE (Commercial) | - | 92% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.16" L x 2.20" W x 1.50" H (105.7mm x 55.9mm x 38.1mm) | CE, cURus, TUV |
|
1011386GRN-80-3002 OVP |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Open Frame | 3 | 85 ~ 264 VAC | 5V | 15V | -15V | - | - | - | 8 A | 2 A | 2 A | - | - | - | 80W | ITE (Commercial), Medical | - | 88% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | CE, cURus, TUV, UKCA |
|
|
1011385GRN-80-3001 OVP |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Open Frame | 3 | 85 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 8 A | 2 A | 2 A | - | - | - | 80W | ITE (Commercial), Medical | - | 88% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) | CE, cURus, TUV, UKCA |
|
1011256CHGRN-80-3002 CH |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 5V | 15V | -15V | - | - | - | 8 A | 2 A | 2 A | - | - | - | 80W | ITE (Commercial), Medical | - | 88% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011255CHGRN-80-3001 CH |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Chassis | 3 | 85 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 8 A | 2 A | 2 A | - | - | - | 80W | ITE (Commercial), Medical | - | 88% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
1011388CHCOGRN-80-2002 OVP CHCO |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 8 A | 4 A | - | - | - | - | 80W | ITE (Commercial), Medical | - | 88% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011390CHCOGRN-80-2004 OVP CHCO |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 3 A | 3 A | - | - | - | - | 80W | ITE (Commercial), Medical | - | 88% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011389CHCOGRN-80-2003 OVP CHCO |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 4 A | 4 A | - | - | - | - | 80W | ITE (Commercial), Medical | - | 88% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011387CHCOGRN-80-2001 OVP CHCO |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 5V | 24V | - | - | - | - | 8 A | 2 A | - | - | - | - | 80W | ITE (Commercial), Medical | - | 88% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
ASM201-360-BNH-PF1AC/DC CONVERTER 36V 137W |
615 |
|
Технический лист |
ASM201 (200W) | Box | Active | Open Frame | 1 | 80 ~ 240 VAC | 36V | - | - | - | - | - | 3.8 A | - | - | - | - | - | 137W (198W Forced Air) | ITE (Commercial), Medical | 4 kV | 94% | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.11" H (101.6mm x 50.8mm x 28.2mm) | CB, CSA, cTUVus, TUV |
|
ASM201-120-BET-PF1AC/DC CONVERTER 12V 200W |
359 |
|
Технический лист |
ASM201 | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 200W | ITE (Commercial), Medical | 4 kV | 93% | -40°C ~ 85°C | Universal Input | Chassis Mount | 4.17" L x 2.68" W x 1.57" H (105.9mm x 68.1mm x 39.9mm) | CB, CSA, cTUVus, TUV |
|
|
ASM201-120-BNH-PF1200W Medical Grade Open Frame Po |
309 |
|
Технический лист |
ASM201 (200W) | Tape & Box (TB) | Active | Open Frame | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 140W (200W Forced Air) | ITE (Commercial), Medical | 4 kV | 93% | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) | CB, CSA, cTUVus, TUV |
|

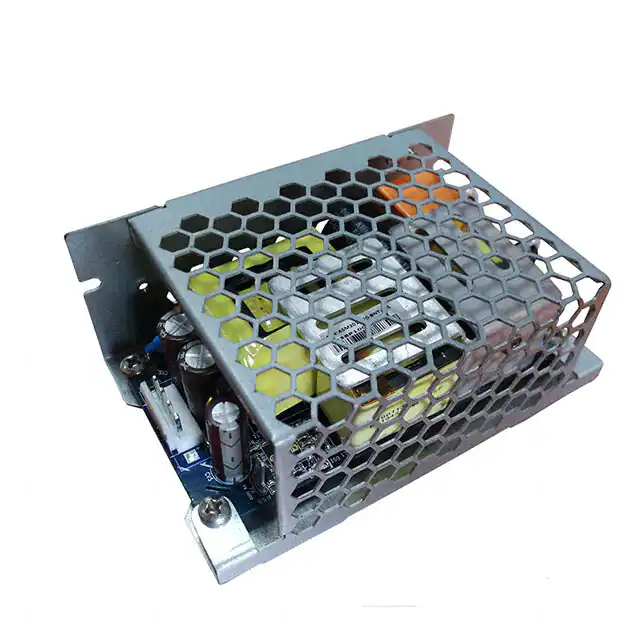

ASM201-120-BEH-PF1200W Medical Grade Enclosed Powe |
208 |
|
Технический лист |
ASM201 (200W) | Tape & Box (TB) | Active | Enclosed | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 140W (200W Forced Air) | ITE (Commercial), Medical | 4 kV | 93% | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.17" L x 2.68" W x 1.61" H (105.9mm x 68.1mm x 40.9mm) | CB, CSA, cTUVus, TUV |
