Преобразователи переменного и постоянного тока
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - Вход | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - Выход 1 | Ток - Выход 2 | Ток - Выход 3 | Ток - Выход 4 | Ток - Выход 5 | Ток - Выход 6 | Мощность (Вт) | Применение | Напряжение - Изоляция | Эффективность | Рабочая температура | Особенности | Тип крепления | Размер/измерение | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LOF750-20B24AC/DC CONVERTER 24V 451W |
49 |
|
Технический лист |
LOF750-20Bxx (750W) | Tray | Not For New Designs | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 31.2 A | - | - | - | - | - | 451W (749W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.69" H (127.0mm x 76.2mm x 43.0mm) | - |
|
|
LOF750-20B12AC/DC CONVERTER 12V 400W |
40 |
|
Технический лист |
LOF750-20Bxx (750W) | Tray | Not For New Designs | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 58.3 A | - | - | - | - | - | 400W (700W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.69" H (127.0mm x 76.2mm x 43.0mm) | - |
|

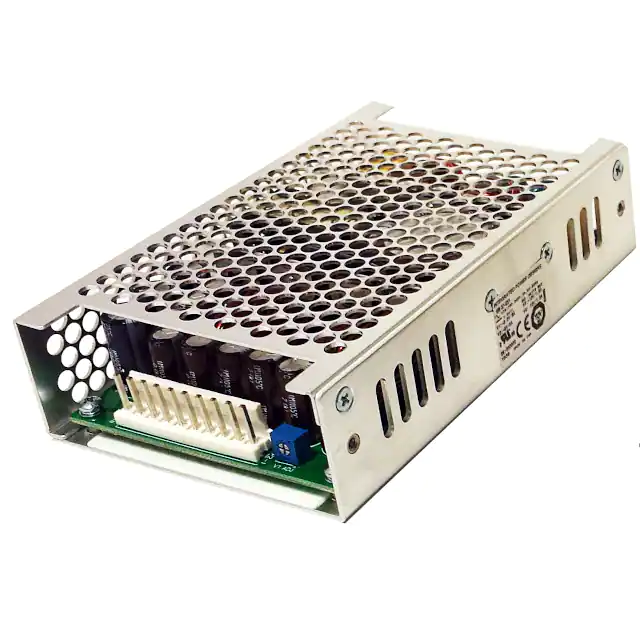

1011259CHCOGRN-80-2003 CHCO |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 4 A | 4 A | - | - | - | - | 80W | ITE (Commercial), Medical | - | 88% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011257CHCOGRN-80-2001 CHCO |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 5V | 24V | - | - | - | - | 8 A | 2 A | - | - | - | - | 80W | ITE (Commercial), Medical | - | 88% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011258CHCOGRN-80-2002 CHCO |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 8 A | 4 A | - | - | - | - | 80W | ITE (Commercial), Medical | - | 88% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011260CHCOGRN-80-2004 CHCO |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 3 A | 3 A | - | - | - | - | 80W | ITE (Commercial), Medical | - | 88% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm) | CE, cURus, TUV, UKCA |
|

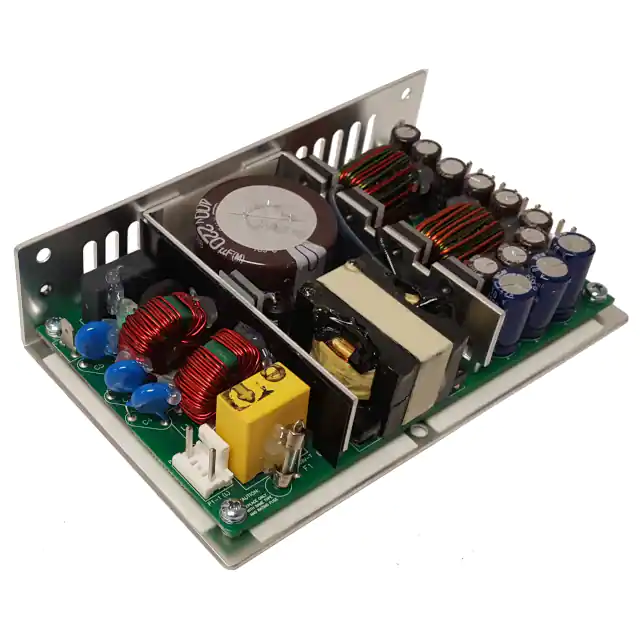

1011389CHGRN-80-2003 OVP CH |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 4 A | 4 A | - | - | - | - | 80W | ITE (Commercial), Medical | - | 88% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011387CHGRN-80-2001 OVP CH |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 5V | 24V | - | - | - | - | 8 A | 2 A | - | - | - | - | 80W | ITE (Commercial), Medical | - | 88% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011390CHGRN-80-2004 OVP CH |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 3 A | 3 A | - | - | - | - | 80W | ITE (Commercial), Medical | - | 88% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
1011388CHGRN-80-2002 OVP CH |
50 |
|
Технический лист |
GRN-80 (80W) | Box | Active | Chassis | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 8 A | 4 A | - | - | - | - | 80W | ITE (Commercial), Medical | - | 88% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.25" L x 3.25" W x 1.28" H (133.4mm x 82.6mm x 32.5mm) | CE, cURus, TUV, UKCA |
|
|
MTCC-0111AC/DC CONVERTER 5V +/-15V 10W |
47 |
|
Технический лист |
MCA-10 (10W) | Bulk | Active | Enclosed | 3 | 90 ~ 264 VAC | 5V | 15V | -15V | - | - | - | 1.5 A | 100 mA | 100 mA | - | - | - | 10W | ITE (Commercial) | 3 kV | 70% | 0°C ~ 50°C | Adjustable Output | Chassis Mount | 3.77" L x 2.16" W x 1.00" H (95.8mm x 54.9mm x 25.4mm) | CB, CE, cURus, UL |
|
1011205REL-70-2004 |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 3 A | 3 A | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA |
|
|
1011208REL-70-2007 |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 5V | 29V | - | - | - | - | 6 A | 2 A | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA |
|
|
1011202REL-70-2001 |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 3.3V | 5V | - | - | - | - | 6 A | 5 A | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA |
|
|
1011206REL-70-2005 |
43 |
|
Технический лист |
REL-70 (70W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 3 A | 2 A | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA |
|
|
1011203REL-70-2002 |
39 |
|
Технический лист |
REL-70 (70W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 6 A | 4 A | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA |
|
|
1011359REL-70-2008 |
26 |
|
Технический лист |
REL-70 (70W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 9V | 48V | - | - | - | - | 2 A | 1.5 A | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.22" H (114.3mm x 63.5mm x 31.0mm) | CE, cURus, TUV, UKCA |
|
1011199CHREL-70-1008 CH |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 1.5 A | - | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|
1011194CHREL-70-1003 CH |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 14 A | - | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
|
|

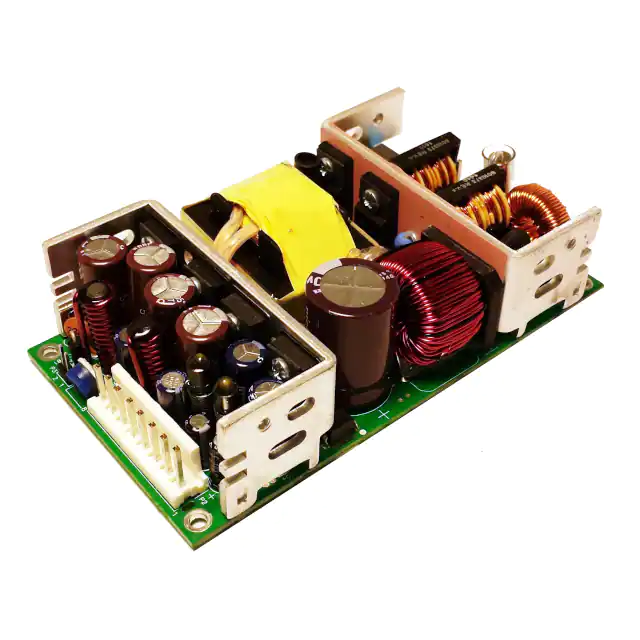

1011192CHREL-70-1001 CH |
50 |
|
Технический лист |
REL-70 (70W) | Box | Active | Chassis | 1 | 85 ~ 264 VAC | 2.5V | - | - | - | - | - | 14 A | - | - | - | - | - | 70W | Industrial, ITE (Commercial), Laboratory, Medical | - | 78% | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.79" L x 2.62" W x 1.48" H (121.6mm x 66.5mm x 37.6mm) | CE, cURus, TUV, UKCA |
