Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-X50250B-C1-R0SUPERGRIP HEATSINK 25X25X7.5MM |
91 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 0.295" (7.50mm) | - | 8.60°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-59004-C1-R0HEAT SINK 32MM X 50MM X 12MM |
97 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | Flip Chip Processors | Clip | Rectangular, Angled Fins | 1.260" (32.00mm) | 1.969" (50.00mm) | - | 0.472" (12.00mm) | - | 3.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-X53350B-C1-R0SUPERGRIP HEATSINK 35X35X7.5MM |
43 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.295" (7.50mm) | - | 10.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X53375B-C1-R0SUPERGRIP HEATSINK 37X37X7.5MM |
87 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.457" (37.00mm) | 1.457" (37.00mm) | - | 0.295" (7.50mm) | - | 10.00°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X50300B-C1-R0SUPERGRIP HEATSINK 30X30X7.5MM |
125 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.295" (7.50mm) | - | 7.10°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X53425B-C1-R0SUPERGRIP HEATSINK 42X42X7.5MM |
122 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.654" (42.00mm) | 1.654" (42.00mm) | - | 0.295" (7.50mm) | - | 8.40°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X53270G-C1-R0SUPERGRIP HEATSINK 27X27X12.5MM |
93 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.492" (12.50mm) | - | 7.60°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X50325B-C1-R0SUPERGRIP HEATSINK 32X32X7.5MM |
125 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.260" (32.00mm) | 1.260" (32.00mm) | - | 0.295" (7.50mm) | - | 5.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X50190G-C1-R0SUPERGRIP HEATSINK 19X19X12.5MM |
101 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.492" (12.50mm) | - | 10.20°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

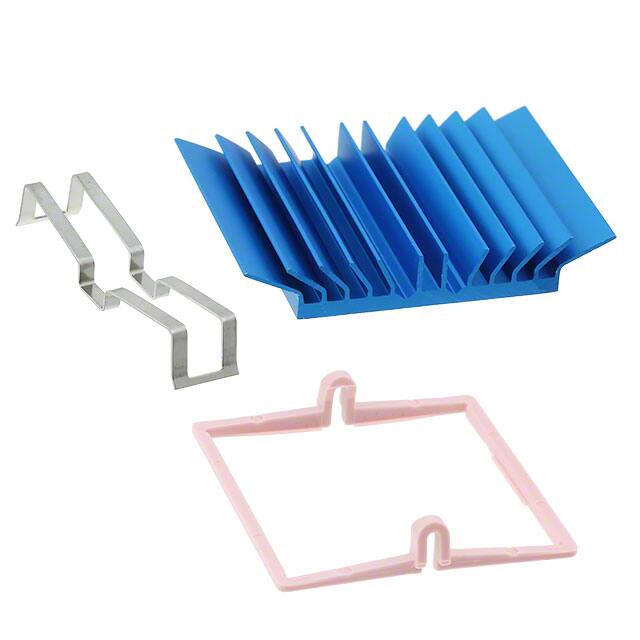

ATS-X50330B-C1-R0SUPERGRIP HEATSINK 33X33X7.5MM |
124 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | - | 0.295" (7.50mm) | - | 5.80°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X50210G-C1-R0SUPERGRIP HEATSINK 21X21X12.5MM |
72 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.492" (12.50mm) | - | 7.20°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X53300G-C1-R0SUPERGRIP HEATSINK 30X30X12.5MM |
123 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.492" (12.50mm) | - | 6.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X50375B-C1-R0SUPERGRIP HEATSINK 37X37X7.5MM |
119 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.457" (37.00mm) | 1.457" (37.00mm) | - | 0.295" (7.50mm) | - | 4.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

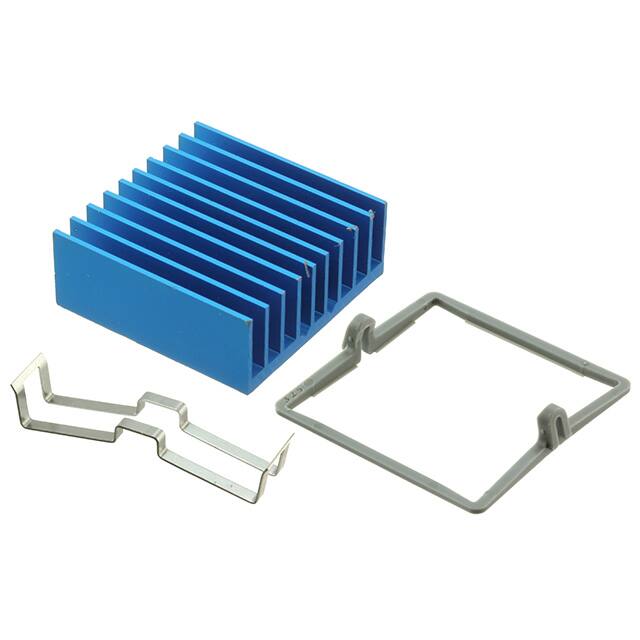

ATS-X53325G-C1-R0SUPERGRIP HEATSINK 32X32X12.5MM |
119 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.260" (32.00mm) | 1.260" (32.00mm) | - | 0.492" (12.50mm) | - | 5.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

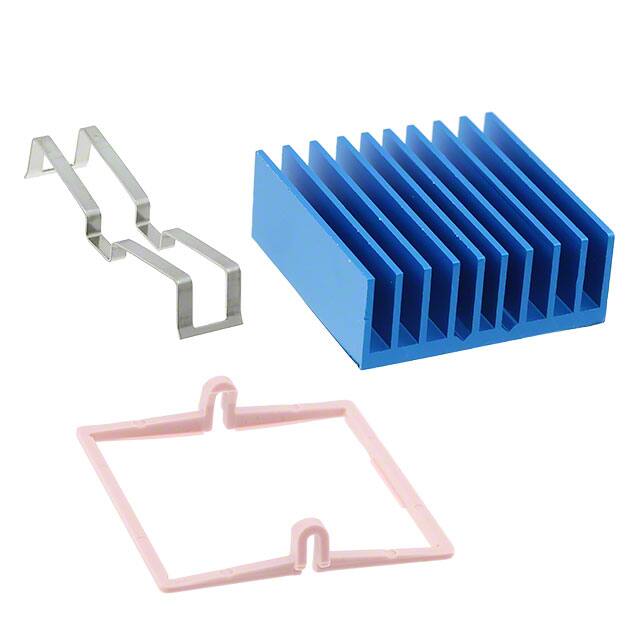

ATS-X53330G-C1-R0SUPERGRIP HEATSINK 33X33X12.5MM |
119 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | - | 0.492" (12.50mm) | - | 5.80°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X50425B-C1-R0SUPERGRIP HEATSINK 42X42X7.5MM |
122 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.654" (42.00mm) | 1.654" (42.00mm) | - | 0.295" (7.50mm) | - | 4.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

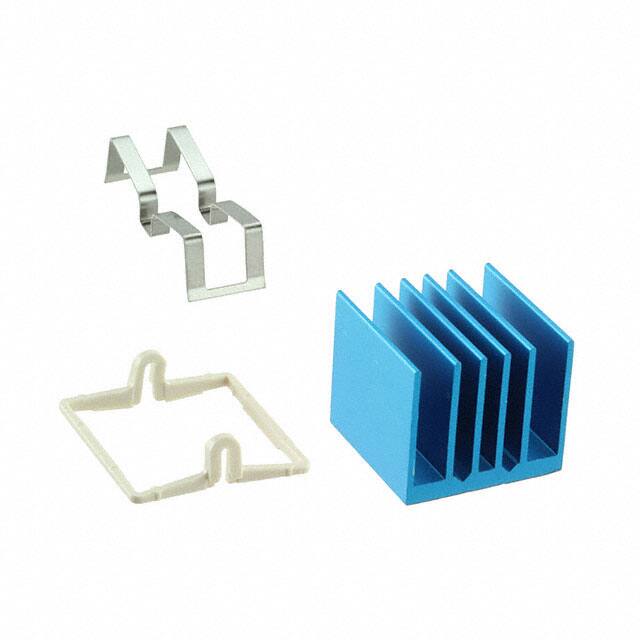

ATS-X53210P-C1-R0SUPERGRIP HEATSINK 21X21X17.5MM |
109 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.689" (17.50mm) | - | 7.80°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-59009-C1-R0HEAT SINK 62MM X 52MM X 13MM |
74 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | Flip Chip Processors | Clip | Rectangular, Fins | 2.441" (62.00mm) | 2.047" (52.00mm) | - | 0.512" (13.00mm) | - | 3.20°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-X50290G-C1-R0SUPERGRIP HEATSINK 29X29X12.5MM |
42 |
|
Технический лист |
maxiFLOW, superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.492" (12.50mm) | - | 4.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-X53230P-C1-R0SUPERGRIP HEATSINK 23X23X17.5MM |
152 |
|
Технический лист |
superGRIP™ | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 0.900" (23.00mm) | 0.906" (23.01mm) | - | 0.689" (17.50mm) | - | 7.30°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
