Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
ATS060060013-MF-16LMAXIFLOW HEATSINK 60X60X13MM |
45 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.512" (13.00mm) | - | 4.04°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS060060023-SF-16VHEATSINK 60X60X23MM |
20 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.906" (23.00mm) | - | 1.99°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS060060015-PF-16NCROSS CUT HEATSINK 60X60X15MM |
73 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.591" (15.00mm) | - | 2.77°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS060060014-MF-16MMAXIFLOW HEATSINK 60X60X14MM |
47 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.551" (14.00mm) | - | 3.62°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-H1-31-C2-R0HEATSINK 57.9X36.83X5.84MM T766 |
99 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.230" (5.84mm) | - | 25.25°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-53325D-C1-R0HEAT SINK 32.5 X 32.5 X 9.5MM |
144 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.280" (32.51mm) | 1.280" (32.51mm) | - | 0.374" (9.50mm) | - | 11.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-51210D-C1-R0HEAT SINK 21MM X 21MM X 9.5MM |
79 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.374" (9.50mm) | - | 12.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS060060015-MF-16NMAXIFLOW HEATSINK 60X60X15MM |
44 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.591" (15.00mm) | - | 3.26°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-H1-33-C2-R0HEATSINK 57.9X36.83X17.78MM T766 |
99 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.700" (17.78mm) | - | 17.42°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-37-C2-R0HEATSINK 36.83X57.6X17.78MM T766 |
99 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 1.450" (36.83mm) | 2.267" (57.60mm) | - | 0.700" (17.78mm) | - | 9.12°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS060060016-MF-16OMAXIFLOW HEATSINK 60X60X16MM |
100 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.630" (16.00mm) | - | 2.96°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-50325B-C1-R0HEAT SINK 32.5 X 32.5 X 7.5MM |
138 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.280" (32.51mm) | 1.280" (32.51mm) | - | 0.295" (7.50mm) | - | 5.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-H1-29-C2-R0HEATSINK 70X70X20MM XCUT T766 |
77 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.756" (70.00mm) | 2.756" (70.00mm) | - | 0.790" (20.00mm) | - | 7.57°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

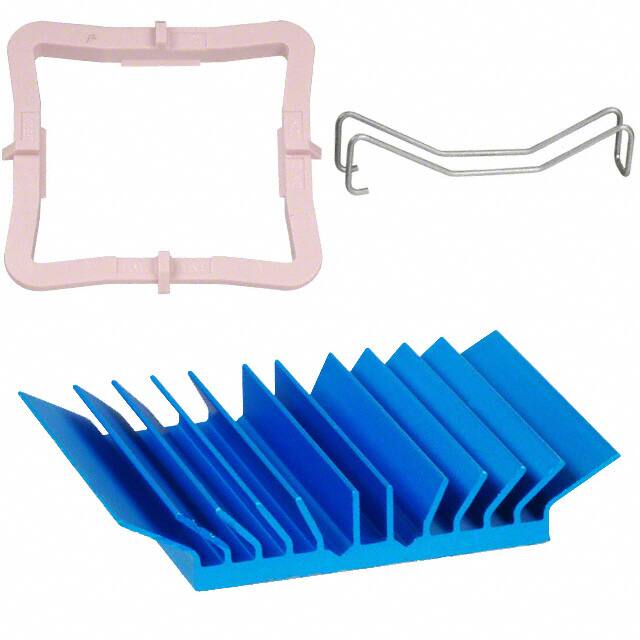

ATS-50330B-C1-R0HEAT SINK 33MM X 33MM X 7.5MM |
132 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.299" (32.99mm) | 1.299" (32.99mm) | - | 0.295" (7.50mm) | - | 5.80°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-50210G-C1-R0HEAT SINK 21MM X 21MM X 12.5MM |
100 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.492" (12.50mm) | - | 7.20°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
|
ATS060060017-MF-16PMAXIFLOW HEATSINK 60X60X17MM |
46 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.669" (17.00mm) | - | 2.68°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

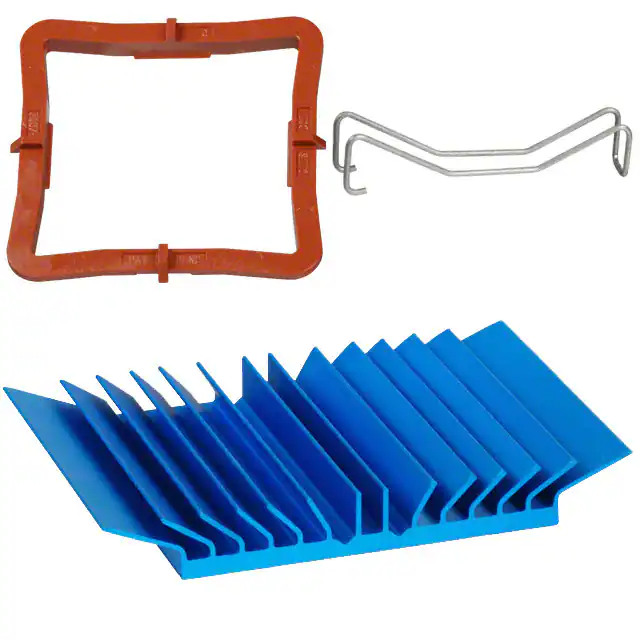

ATS-50375B-C1-R0HEAT SINK 37.5 X 37.5 X 7.5MM |
140 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.295" (7.50mm) | - | 4.90°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|

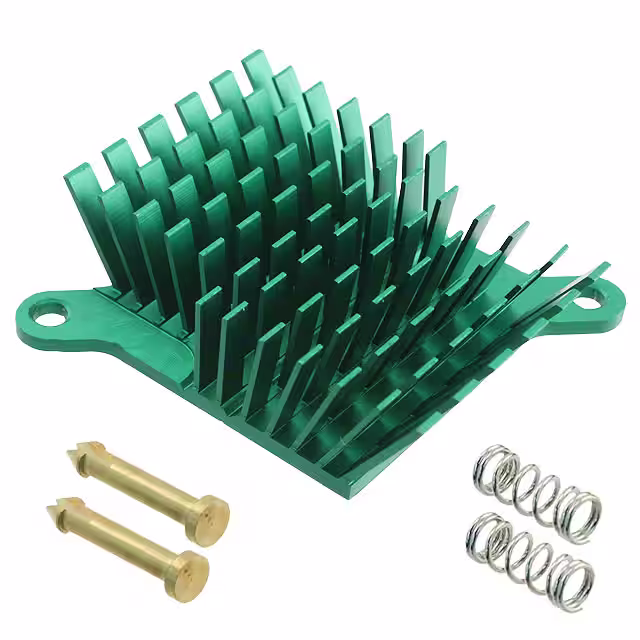

ATS-1039-C2-R0HEATSINK 40X38X15MM BRASSPUSHPIN |
31 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Push Pin | Rectangular, Angled Fins | 1.575" (40.00mm) | 1.500" (38.10mm) | - | 0.590" (15.00mm) | - | 2.50°C/W @ 300 LFM | - | Aluminum | Green Anodized |
|
ATS-53325K-C1-R0HEAT SINK 32.5 X 32.5 X 14.5MM |
150 |
|
Технический лист |
maxiGRIP | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Fins | 1.280" (32.51mm) | 1.280" (32.51mm) | - | 0.571" (14.50mm) | - | 5.90°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-50400B-C1-R0HEAT SINK 40MM X 40MM X 7.5MM |
131 |
|
Технический лист |
maxiGRIP, maxiFLOW | Bulk | Active | Top Mount | BGA | Clip, Thermal Material | Square, Angled Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.295" (7.50mm) | - | 4.50°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
