Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
ATS028028017-SF-9PHEATSINK 28X28X17MM |
50 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.102" (28.00mm) | 1.102" (28.00mm) | - | 0.669" (17.00mm) | - | 5.14°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-P1-103-C2-R1HEATSINK 40X40X9.5MM XCUT T766 |
87 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.374" (9.50mm) | - | 27.67°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-19-C2-R0HEATSINK 54X54X20MM XCUT T766 |
94 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.790" (20.00mm) | - | 9.77°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS031031007-PF-10FCROSS CUT HEATSINK 31X31X7MM |
78 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.276" (7.00mm) | - | 12.23°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS028028018-SF-9QHEATSINK 28X28X18MM |
46 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.102" (28.00mm) | 1.102" (28.00mm) | - | 0.709" (18.00mm) | - | 4.82°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

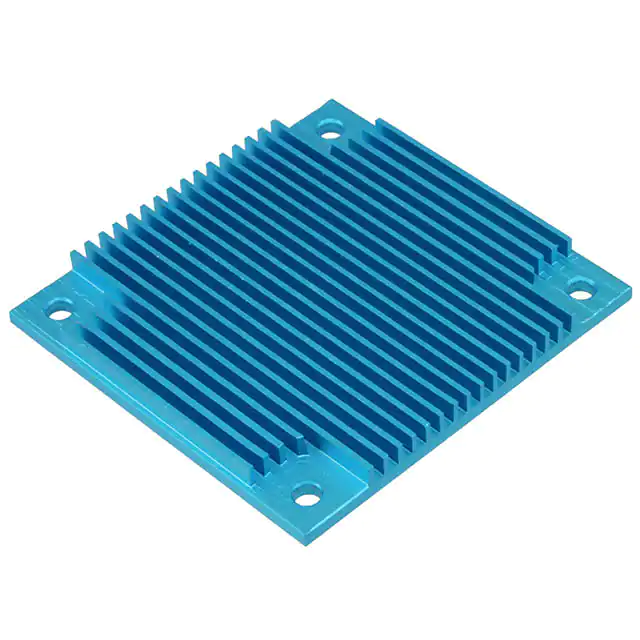

ATS-FPS058061006-39-C2-R0HEATSINK 57.9X60.96X5.84MM FP |
90 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.230" (5.84mm) | - | 18.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

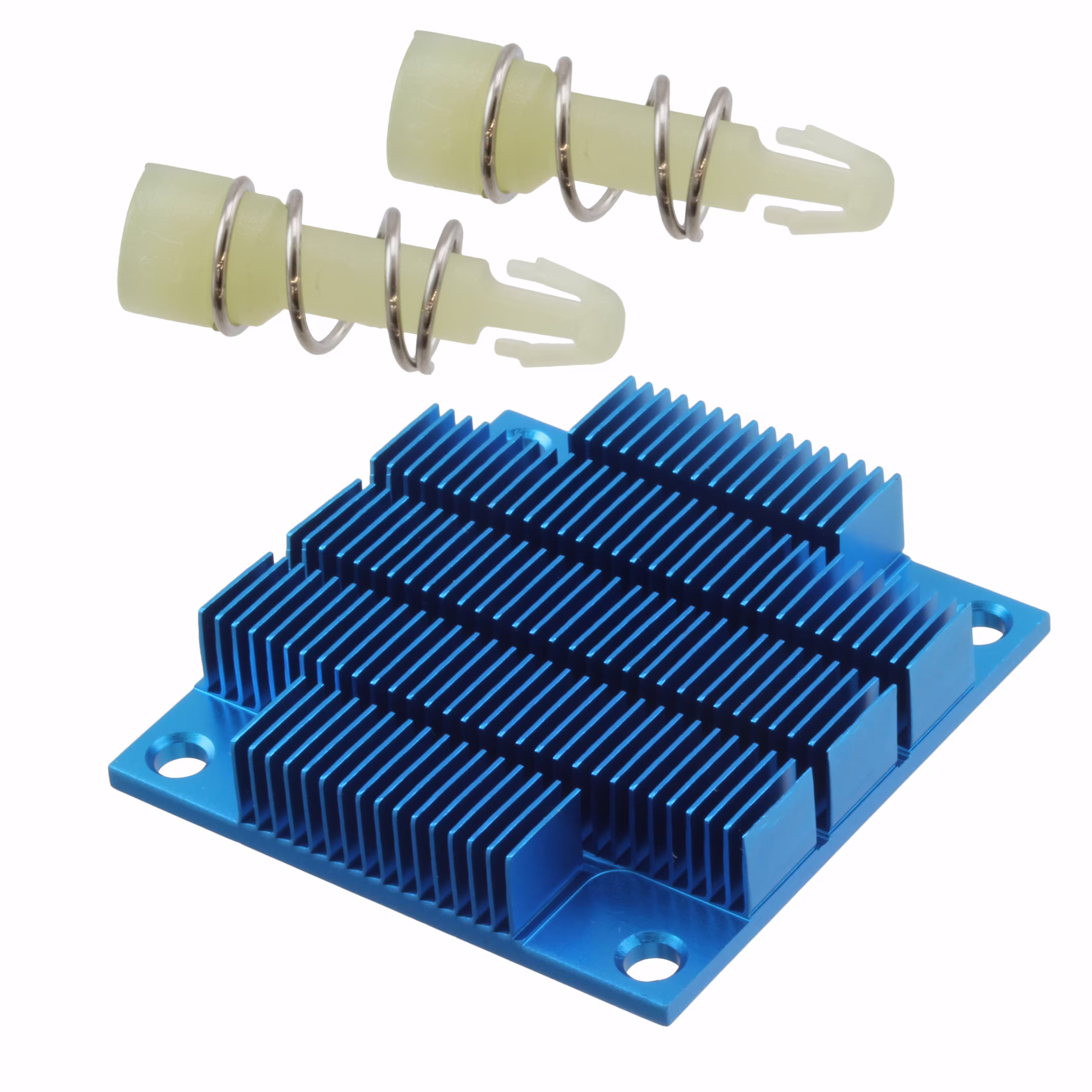

ATS-P1-105-C2-R1HEATSINK 45X45X9.5MM XCUT T766 |
99 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.374" (9.50mm) | - | 28.22°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-16-C2-R0HEATSINK 54X54X10MM XCUT T766 |
95 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.394" (10.00mm) | - | 18.08°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS031031008-PF-10GCROSS CUT HEATSINK 31X31X8MM |
73 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.315" (8.00mm) | - | 10.46°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS035035010-MF-11IMAXIFLOW HEATSINK 35X35X10MM |
67 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.394" (10.00mm) | - | 7.71°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-P2-15-C2-R0HEATSINK 50X50X25MM XCUT T766 |
67 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.984" (25.00mm) | - | 7.44°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

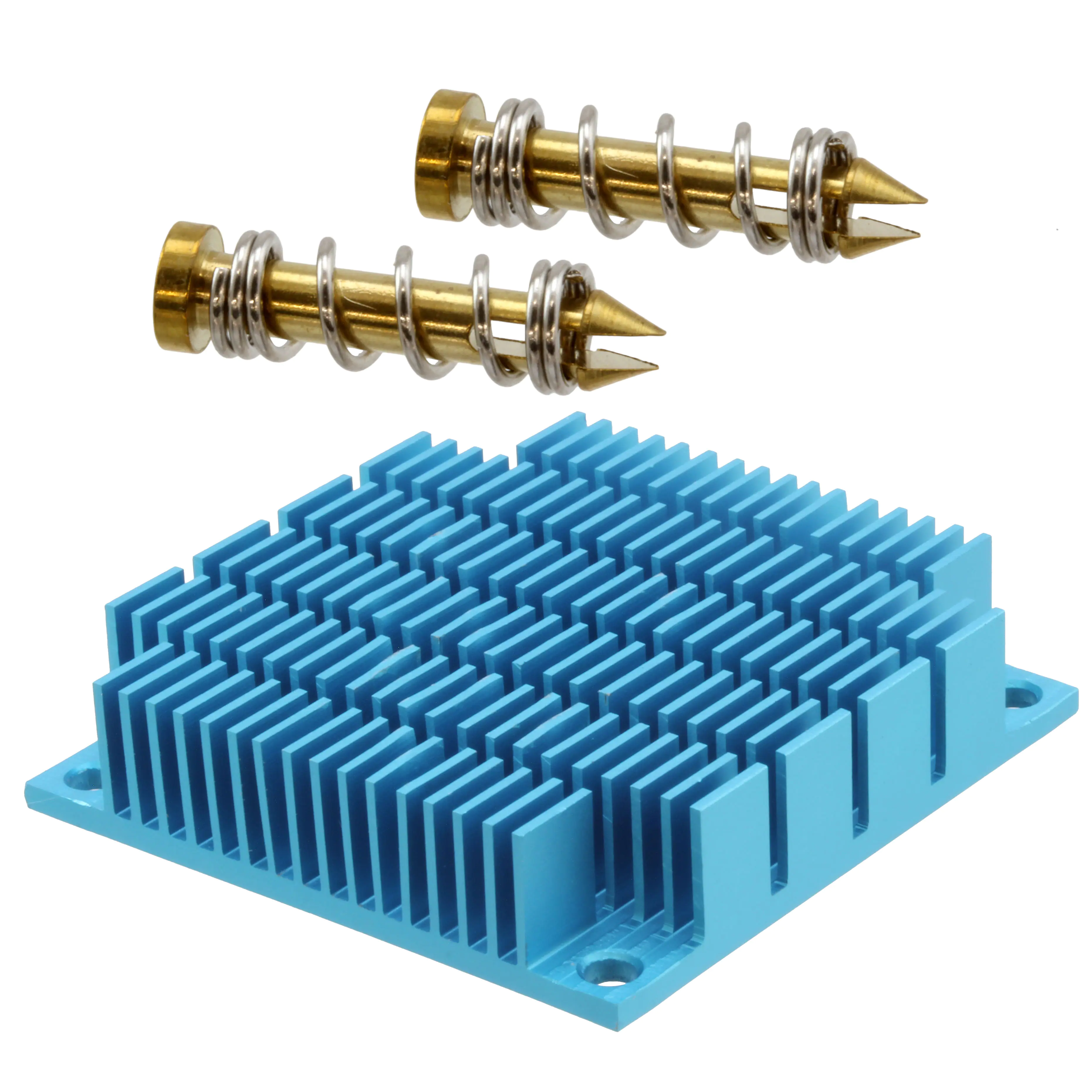

ATS-P2-17-C2-R0HEATSINK 54X54X12.7MM XCUT T766 |
43 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.500" (12.70mm) | - | 15.44°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS035035015-SF-11NHEATSINK 35X35X15MM |
70 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.591" (15.00mm) | - | 5.15°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-P1-107-C2-R1HEATSINK 50X50X9.5MM XCUT T766 |
100 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.374" (9.50mm) | - | 27.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-18-C2-R0HEATSINK 54X54X15MM XCUT T766 |
100 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.590" (15.00mm) | - | 13.38°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-106-C2-R1HEATSINK 45X45X12.7MM XCUT T766 |
99 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.500" (12.70mm) | - | 26.60°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS031031018-SF-10QHEATSINK 31X31X18MM |
43 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.709" (18.00mm) | - | 4.37°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS028028020-SF-9SHEATSINK 28X28X20MM |
50 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.102" (28.00mm) | 1.102" (28.00mm) | - | 0.787" (20.00mm) | - | 4.28°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

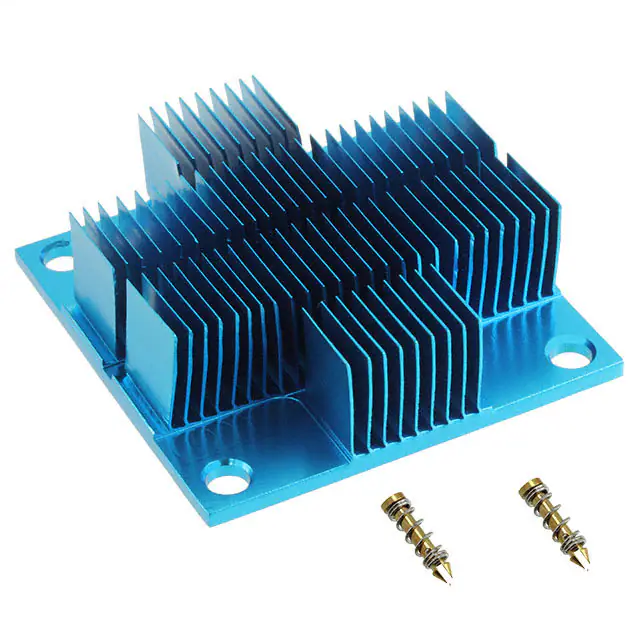

ATS-P2-104-C2-R1HEATSINK 40X40X12.7MM XCUT T766 |
100 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.500" (12.70mm) | - | 25.23°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS035035016-SF-11OHEATSINK 35X35X16MM |
47 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.630" (16.00mm) | - | 4.76°C/W @ 200 LFM | - | Aluminum | Black Anodized |
