Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
ATS043045009-PF031PINFIN HEATSINK 44.5X43.2X8.9MM |
39 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Rectangular, Pin Fins | 1.752" (44.50mm) | 1.701" (43.20mm) | - | 0.350" (8.89mm) | - | 8.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS015015007-PF-4FCROSS CUT HEATSINK 15X15X7MM |
50 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.591" (15.00mm) | 0.590" (15.00mm) | - | 0.276" (7.00mm) | - | 28.63°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-FPX040040025-64-C2-R0HEATSINK 40X40X25MM L-TAB FP |
81 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 9.39°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS031031008-SF-10GHEATSINK 31X31X8MM |
39 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.315" (8.00mm) | - | 11.67°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

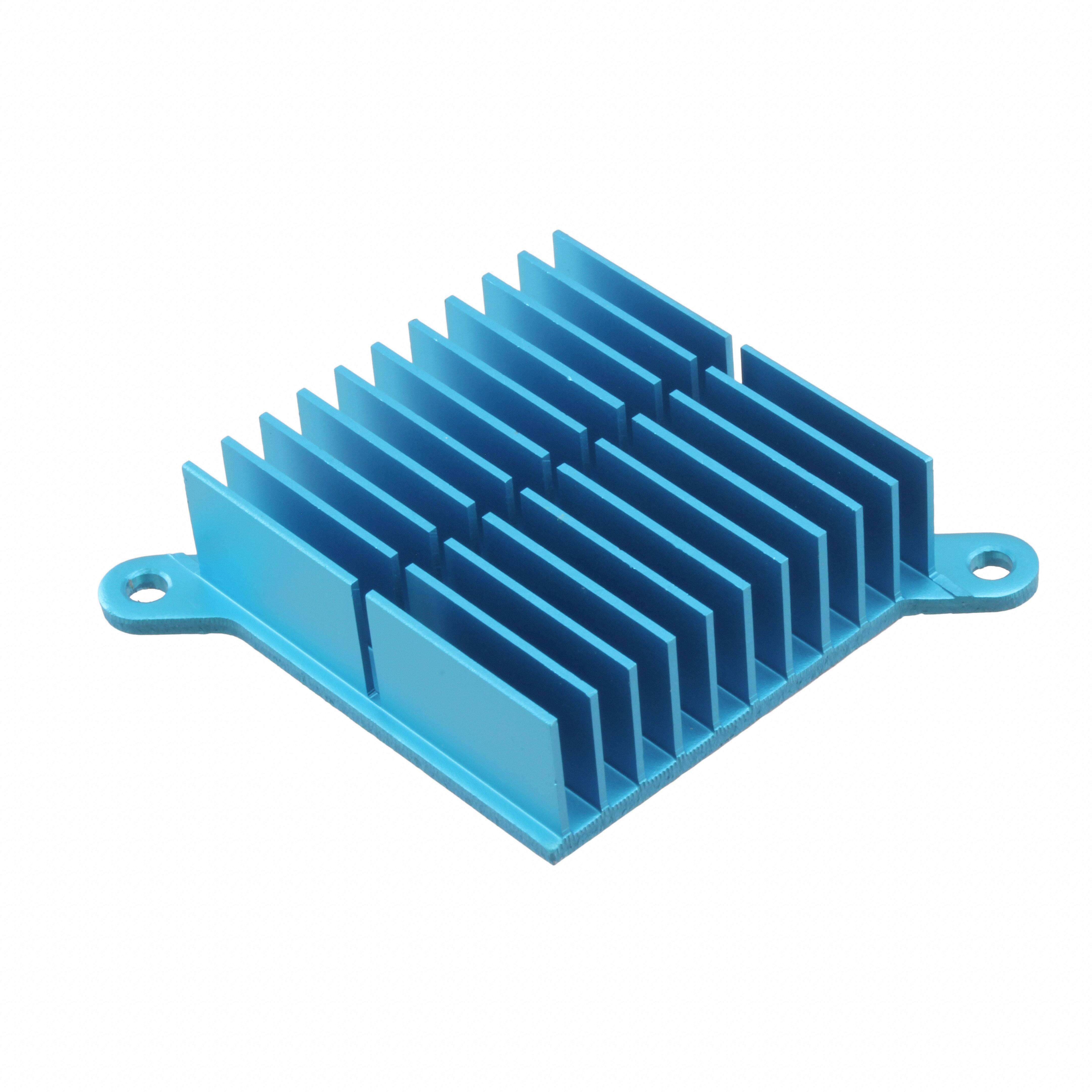

ATS-CPX045045015-160-C2-R0HEATSINK 45X45X15MM L-TAB CP |
28 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 6.67°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS048054010-PF034PINFIN HEATSINK 53.3X47.2X10.2MM |
43 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Rectangular, Pin Fins | 2.098" (53.30mm) | 1.858" (47.20mm) | - | 0.402" (10.21mm) | - | 7.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS043045016-PF033PIN FIN HEATSINK |
100 |
|
Технический лист |
- | Bulk | Active | - | - | Thermal Tape, Adhesive (Not Included) | - | - | - | - | - | - | - | - | - | - |
|
ATS-FPX045045020-69-C2-R0HEATSINK 45X45X20MM L-TAB FP |
99 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.790" (20.00mm) | - | 11.51°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

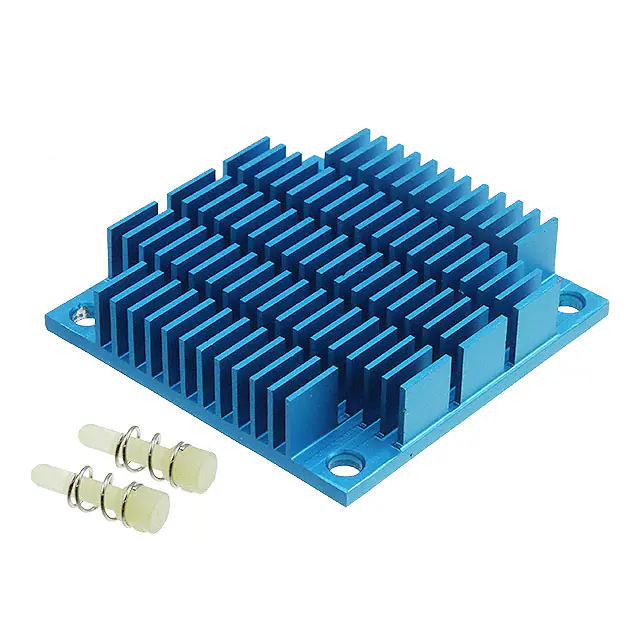

ATS-P1-06-C2-R0HEATSINK 45X45X10MM XCUT T766 |
99 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 20.17°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX045045030-191-C2-R0HEATSINK 45X45X30MM R-TAB CP |
38 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.181" (30.00mm) | - | 2.90°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS024024004-PF-8CCROSS CUT HEATSINK 24X24X4MM |
40 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 0.945" (24.00mm) | 0.945" (24.00mm) | - | 0.157" (4.00mm) | - | 32.87°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS031031010-SF-10IHEATSINK 31X31X10MM |
28 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.394" (10.00mm) | - | 8.81°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS012012018-SF-2QHEATSINK 12X12X18MM |
92 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.472" (12.00mm) | 0.472" (12.00mm) | - | 0.709" (18.00mm) | - | 12.86°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS035035008-SF-11GHEATSINK 35X35X8MM |
47 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.315" (8.00mm) | - | 11.29°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
960-31-12-D-AB-0HEATSINK 31X12MM DIA PUSH PIN |
93 |
|
Технический лист |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.472" (12.00mm) | - | 5.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS035035011-PF024PINFIN HEATSINK 35X35X11.4MM |
80 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.449" (11.40mm) | - | 5.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS031031011-SF-10JHEATSINK 31X31X11MM |
95 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.220" (31.00mm) | 1.220" (31.00mm) | - | 0.433" (11.00mm) | - | 7.85°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS054054010-PF038PINFIN HEATSINK 53.3X53.3X10.2MM |
94 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 2.098" (53.30mm) | 2.098" (53.30mm) | - | 0.402" (10.21mm) | - | 6.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS028028019-SF-9RHEATSINK 28X28X19MM |
50 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Fins | 1.102" (28.00mm) | 1.102" (28.00mm) | - | 0.748" (19.00mm) | - | 4.54°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
ATS037037005-MF-12DMAXIFLOW HEATSINK 37X37X5MM |
37 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 1.457" (37.00mm) | 1.457" (37.00mm) | - | 0.197" (5.00mm) | - | 19.60°C/W @ 200 LFM | - | Aluminum | Black Anodized |
