Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-CPX045045030-163-C2-R0HEATSINK 45X45X30MM L-TAB CP |
97 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.181" (30.00mm) | - | 2.90°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

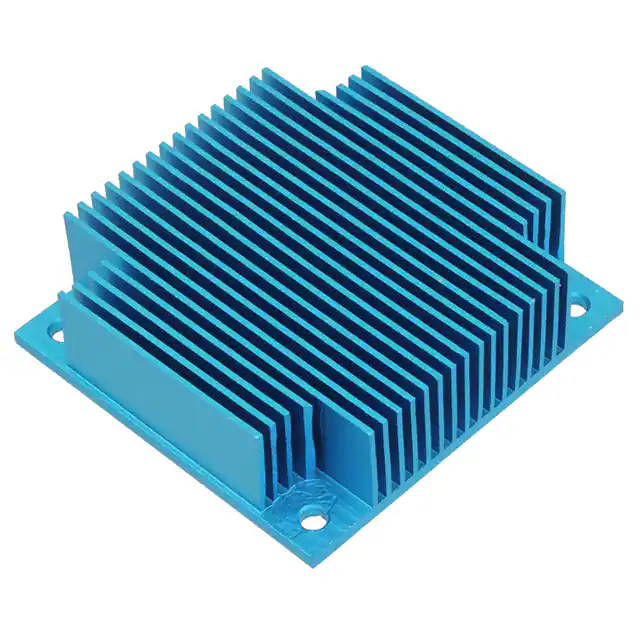

ATS-FPS058061018-41-C2-R0HEATSINK 57.9X60.96X17.78MM FP |
61 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 2.400" (60.96mm) | - | 0.700" (17.78mm) | - | 10.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-19C-50-C2-R0HEATSINK 30X30X15MM L-TAB T766 |
100 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.590" (15.00mm) | - | 19.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

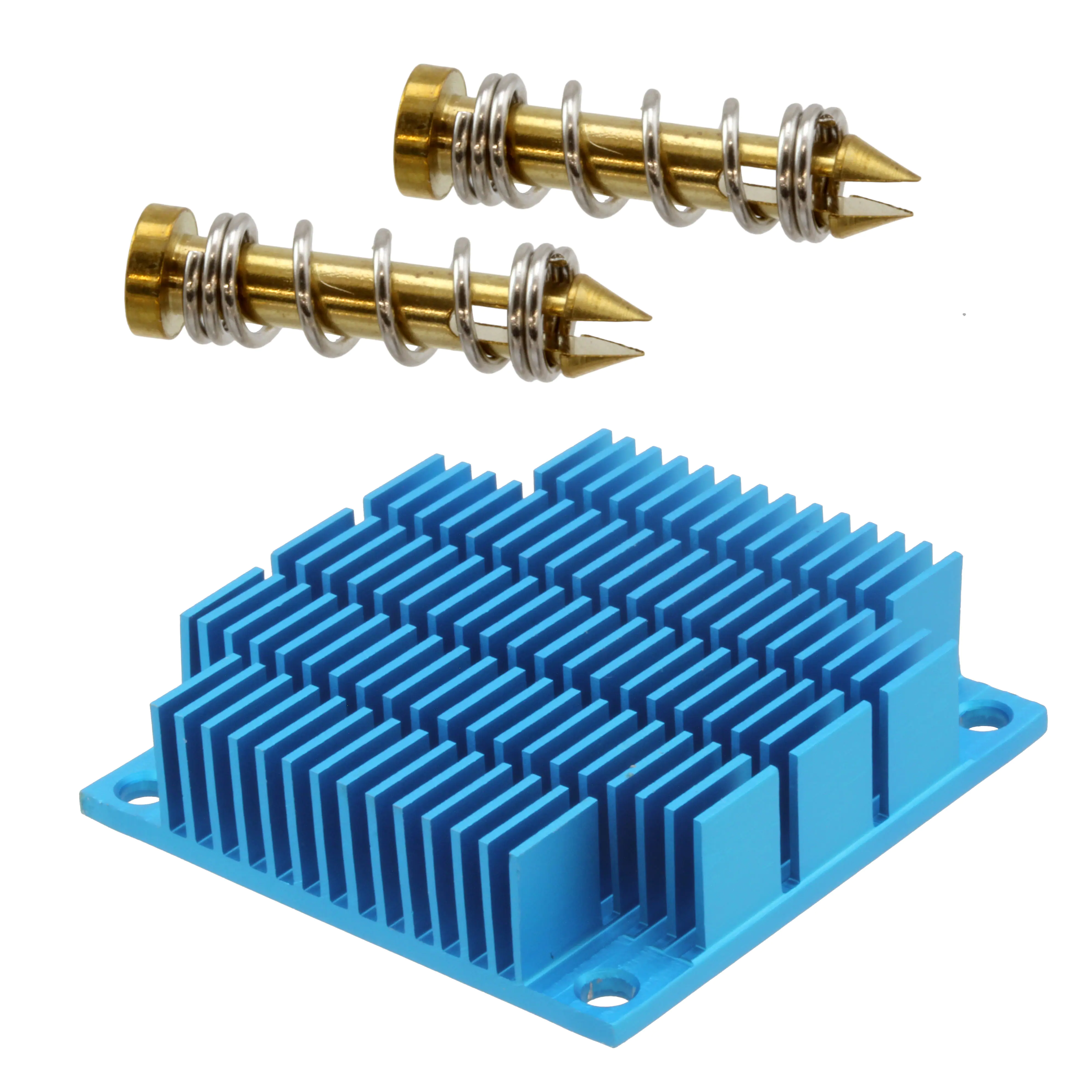

ATS-P2-12-C2-R0HEATSINK 50X50X12.7MM XCUT T766 |
98 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.500" (12.70mm) | - | 15.86°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-10-C2-R0HEATSINK 45X45X25MM XCUT T766 |
67 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 7.89°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-144-C2-R0HEATSINK 30X30X25MM L-TAB T766 |
100 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.984" (25.00mm) | - | 5.52°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

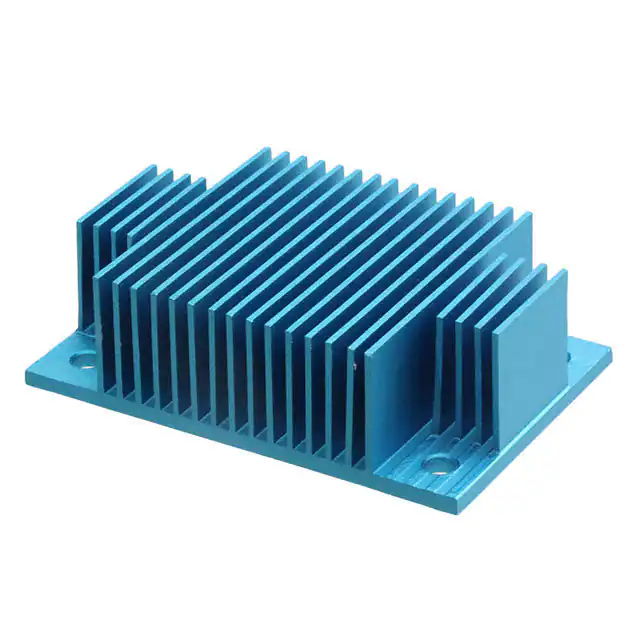

ATS-FPS037058018-37-C2-R0HEATSINK 36.83X57.6X17.78MM FP |
74 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 1.450" (36.83mm) | 2.267" (57.60mm) | - | 0.700" (17.78mm) | - | 9.12°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-13-C2-R0HEATSINK 50X50X15MM XCUT T766 |
82 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.590" (15.00mm) | - | 13.70°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03C-154-C1-R0HEATSINK 40X40X15MM L-TAB |
99 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.590" (15.00mm) | - | 7.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

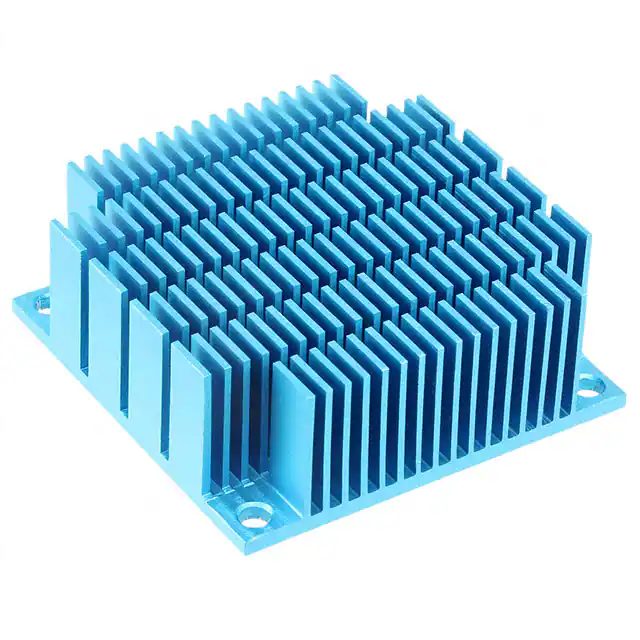

ATS-FPX054054020-19-C2-R0HEATSINK 54X54X20MM XCUT FP |
70 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.790" (20.00mm) | - | 9.77°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
960-19-33-D-AB-0HEATSINK 19X33MM DIA PUSH PIN |
84 |
|
Технический лист |
960 | Box | Active | Top Mount | BGA | Push Pin | Square, Pin Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 1.299" (33.00mm) | - | - | - | Aluminum | Black Anodized |
|

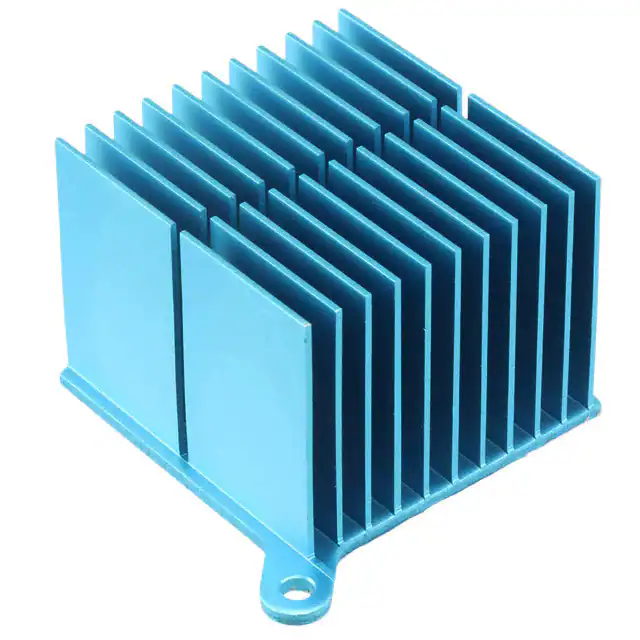

ATS-CPX045045035-192-C2-R0HEATSINK 45X45X35MM R-TAB CP |
159 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 1.378" (35.00mm) | - | 2.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-54290D-C1-R0HEAT SINK 29MM X 29MM X 9.5MM |
75 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.142" (29.00mm) | 1.142" (29.00mm) | - | 0.374" (9.50mm) | - | 13.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-03F-82-C2-R0HEATSINK 30X30X25MM R-TAB T766 |
100 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.984" (25.00mm) | - | 10.79°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX050050013-108-C3-R1HEATSINK 50X50X12.7MM XCUT SFP |
95 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.500" (12.70mm) | - | 27.12°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-14-C2-R0HEATSINK 50X50X20MM XCUT T766 |
88 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.790" (20.00mm) | - | 9.97°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-03C-141-C2-R0HEATSINK 30X30X10MM L-TAB T766 |
98 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) | - | 15.71°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-54300D-C1-R0HEAT SINK 30MM X 30MM X 9.5MM |
28 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.374" (9.50mm) | - | 12.70°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-FPX060060010-21-C3-R0HEATSINK 60X60X10MM XCUT FP |
45 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.394" (10.00mm) | - | 16.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-16C-94-C1-R0HEATSINK 40X40X25MM R-TAB |
100 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 9.36°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
