Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-08D-51-C2-R0HEATSINK 30X30X20MM L-TAB T766 |
82 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.790" (20.00mm) | - | 14.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-122-C2-R0HEATSINK 50X50X15MM XCUT T766 |
35 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.590" (15.00mm) | - | 5.87°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-145-C2-R0HEATSINK 30X30X30MM L-TAB T766 |
100 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.181" (30.00mm) | - | 4.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-21E-120-C2-R0HEATSINK 45X45X25MM XCUT T766 |
100 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 3.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

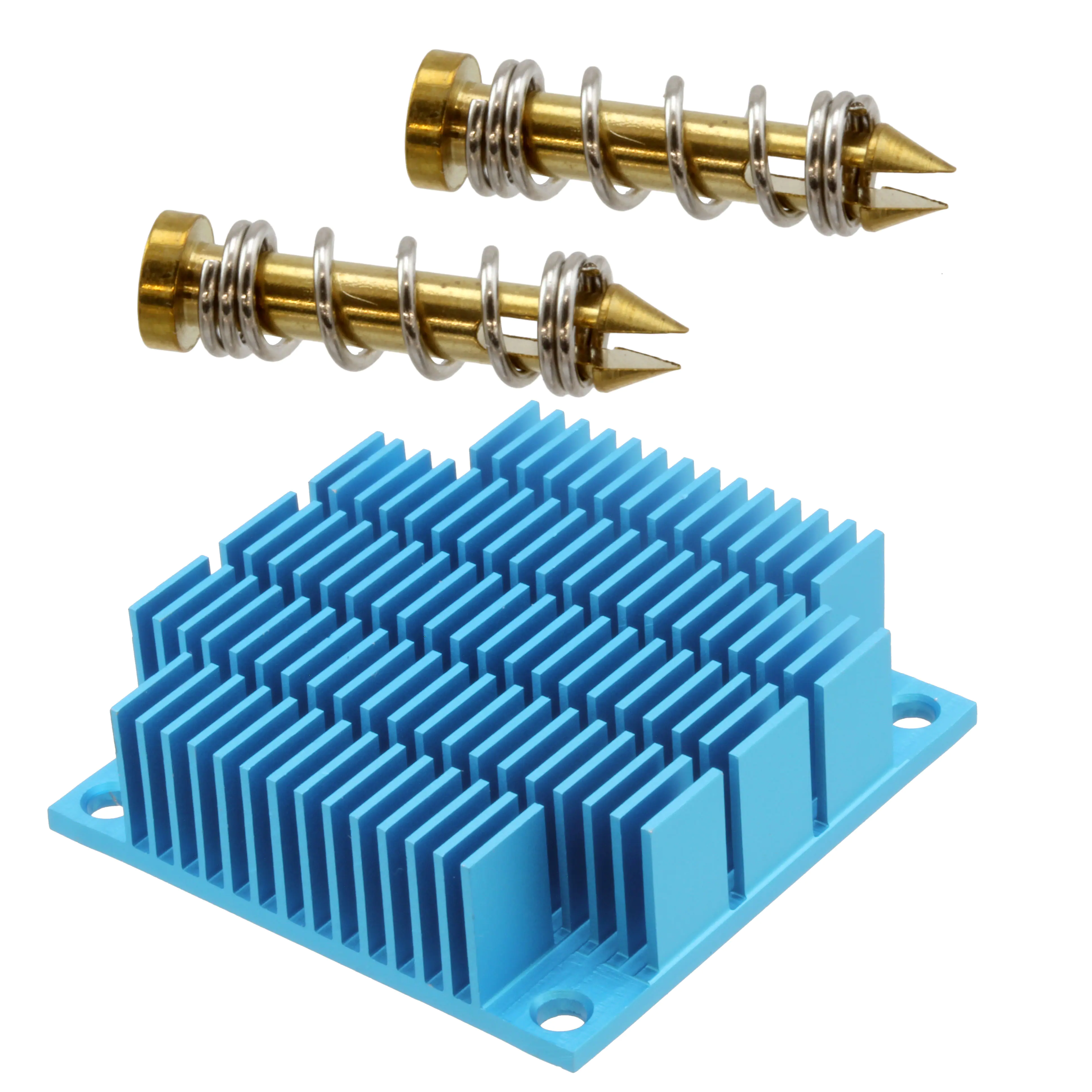

ATS-04D-122-C2-R0HEATSINK 50X50X15MM XCUT T766 |
100 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.590" (15.00mm) | - | 5.87°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-08F-173-C2-R0HEATSINK 30X30X30MM R-TAB T766 |
75 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.181" (30.00mm) | - | 4.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-108-C2-R1HEATSINK 50X50X12.7MM XCUT T766 |
100 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.500" (12.70mm) | - | 27.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-20G-87-C2-R0HEATSINK 35X35X20MM R-TAB T766 |
100 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.790" (20.00mm) | - | 13.16°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

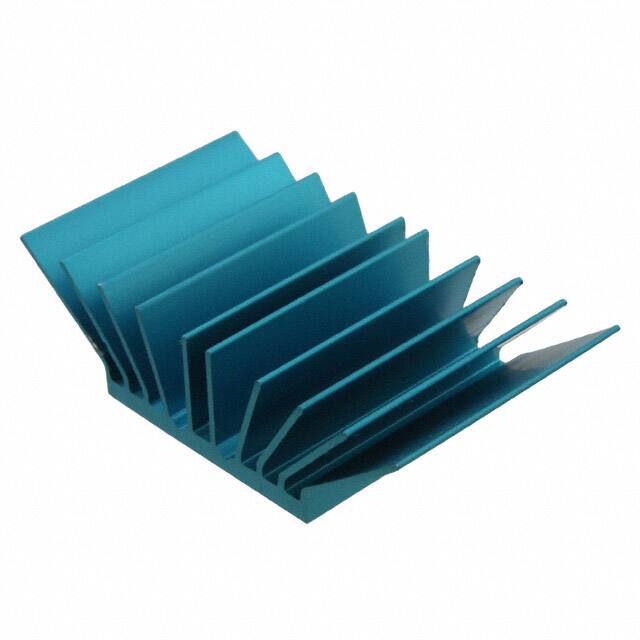

ATS-52270G-C0-R0HEATSINK 27X27X12.5MM W/OUT TIM |
84 |
|
- |
maxiFLOW | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 1.063" (27.00mm) | 1.063" (27.00mm) | - | 0.492" (12.50mm) | - | 4.80°C/W @ 200 LFM | - | Aluminum | Blue Anodized |
|
ATS-56001-C4-R0HEAT SINK 19MM X 19MM X 9MM |
73 |
|
Технический лист |
maxiFLOW | Bulk | Active | Top Mount | ASIC | Thermal Tape, Adhesive (Not Included) | Square, Angled Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.354" (9.00mm) | - | 5.30°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-54450D-C1-R0HEAT SINK 45MM X 45MM X 9.5MM |
68 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.374" (9.50mm) | - | 8.40°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

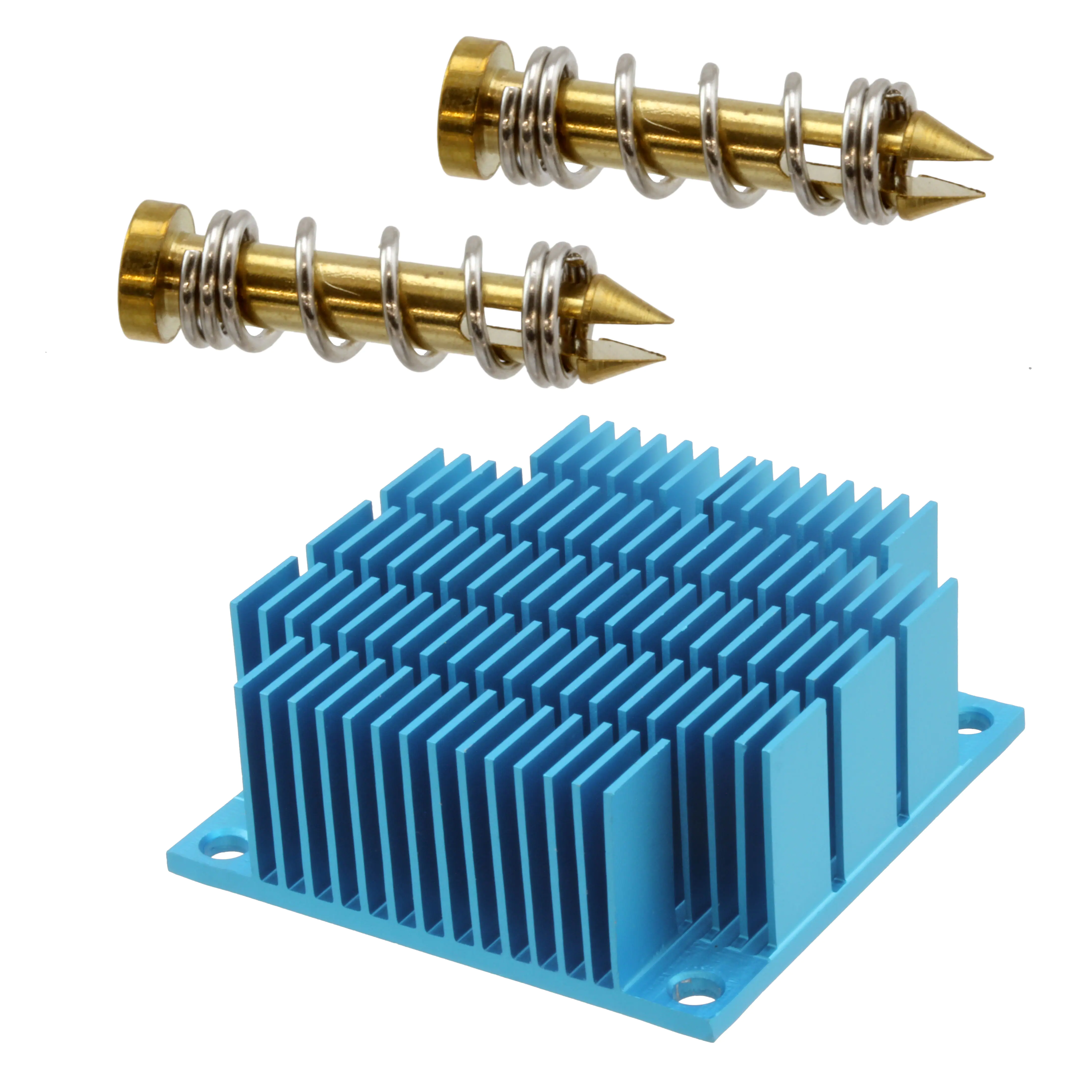

ATS-18F-123-C2-R0HEATSINK 50X50X20MM XCUT T766 |
62 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.790" (20.00mm) | - | 4.16°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03A-177-C2-R0HEATSINK 35X35X20MM R-TAB T766 |
100 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.790" (20.00mm) | - | 6.21°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-19E-177-C2-R0HEATSINK 35X35X20MM R-TAB T766 |
100 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.790" (20.00mm) | - | 6.21°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-03F-120-C2-R0HEATSINK 45X45X25MM XCUT T766 |
92 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 3.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P2-103-C2-R1HEATSINK 40X40X9.5MM XCUT T766 |
98 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.374" (9.50mm) | - | 27.67°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-55375D-C1-R0HEAT SINK 37.5 X 37.5 X 9.5MM |
100 |
|
Технический лист |
- | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.476" (37.50mm) | 1.476" (37.50mm) | - | 0.374" (9.50mm) | - | 11.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
ATS-P2-19-C2-R0HEATSINK 54X54X20MM XCUT T766 |
98 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.790" (20.00mm) | - | 9.77°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-09H-202-C2-R0HEATSINK 54X54X6MM XCUT T766 |
90 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.236" (6.00mm) | - | 14.83°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14F-10-C2-R0HEATSINK 45X45X25MM XCUT T766 |
100 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 7.89°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
