Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-CPX030030030-145-C2-R0HEATSINK 30X30X30MM L-TAB CP |
47 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.181" (30.00mm) | - | 4.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

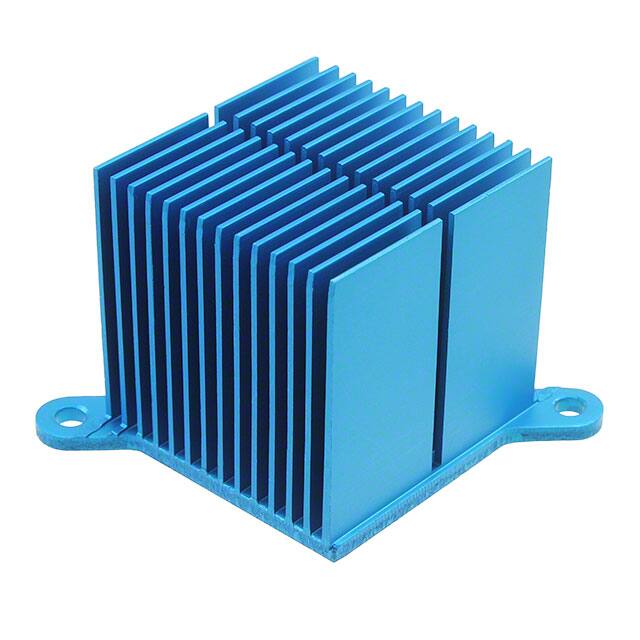

ATS-FPX035035035-90-C2-R0HEATSINK 35X35X35MM R-TAB FP |
66 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 6.36°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

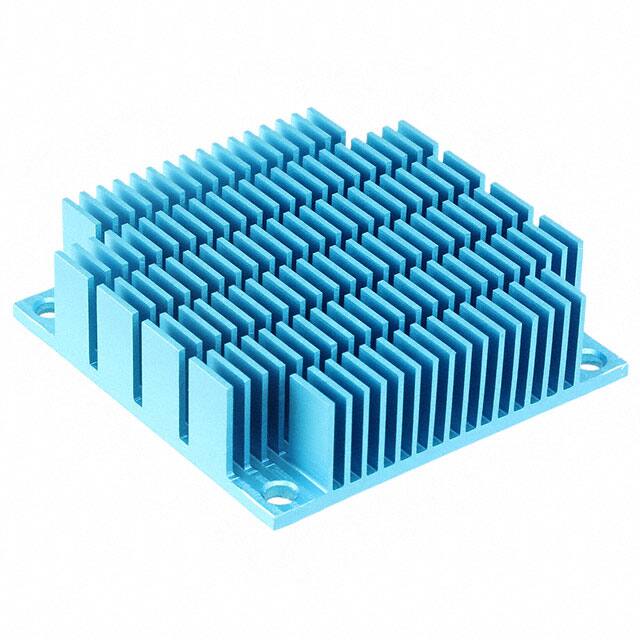

ATS-FPX054054015-18-C2-R0HEATSINK 54X54X15MM XCUT FP |
98 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.590" (15.00mm) | - | 13.38°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

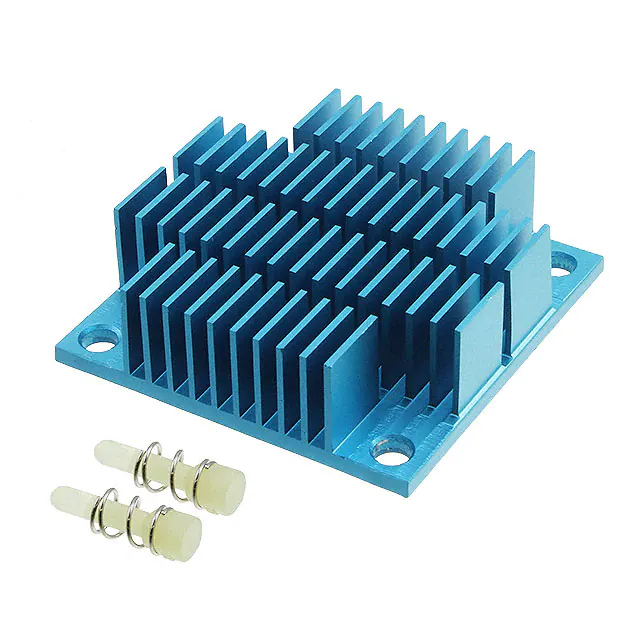

ATS-P1-02-C2-R0HEATSINK 40X40X12.7MM XCUT T766 |
52 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.500" (12.70mm) | - | 18.32°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-04F-184-C2-R0HEATSINK 40X40X25MM R-TAB T766 |
26 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 4.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-05B-184-C2-R0HEATSINK 40X40X25MM R-TAB T766 |
26 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 4.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-04D-156-C2-R0HEATSINK 40X40X25MM L-TAB T766 |
26 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 4.14°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX040040035-158-C1-R0HEATSINK 40X40X35MM L-TAB CP |
50 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 2.77°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

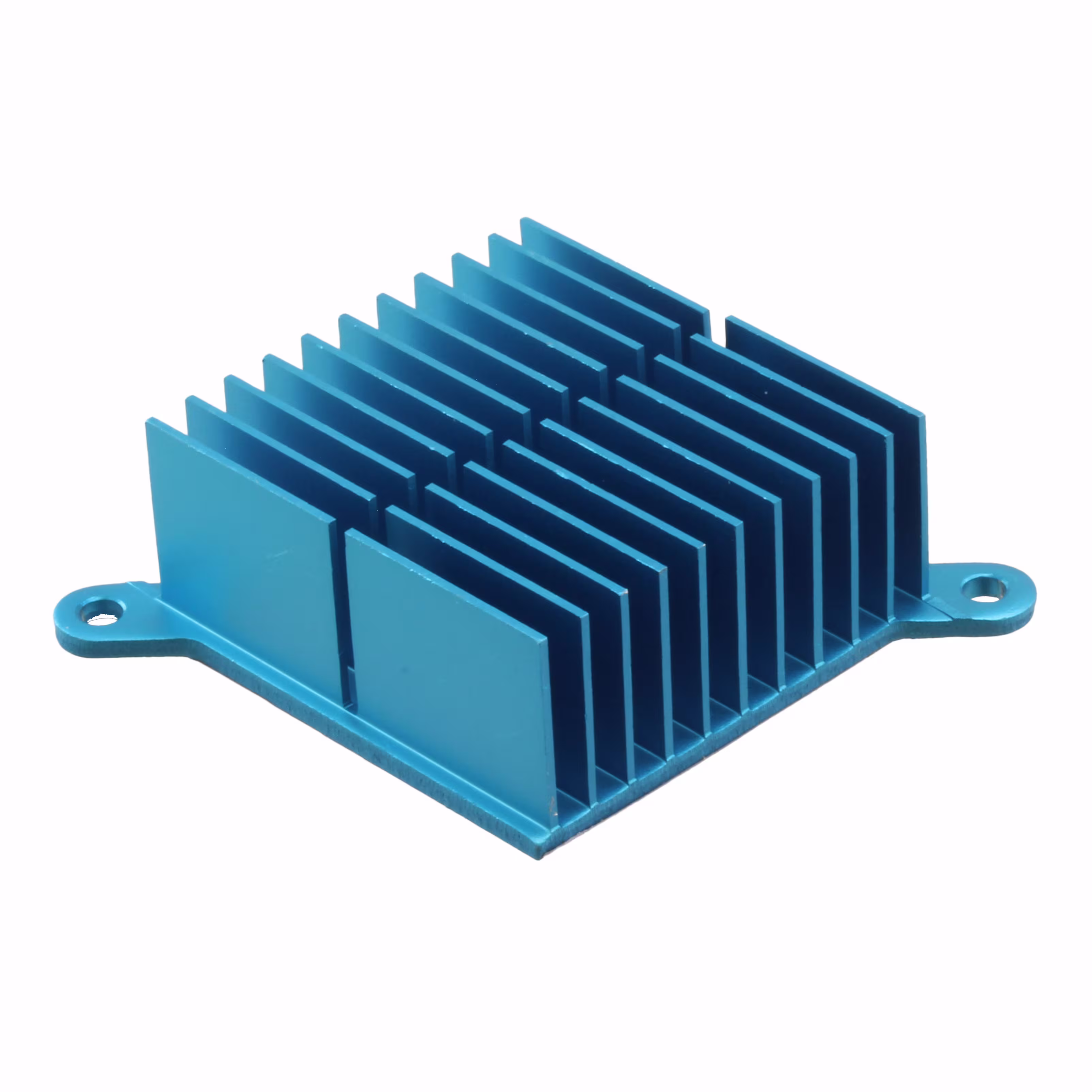

ATS-CPX045045020-161-C2-R0HEATSINK 45X45X20MM L-TAB CP |
98 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.790" (20.00mm) | - | 4.74°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

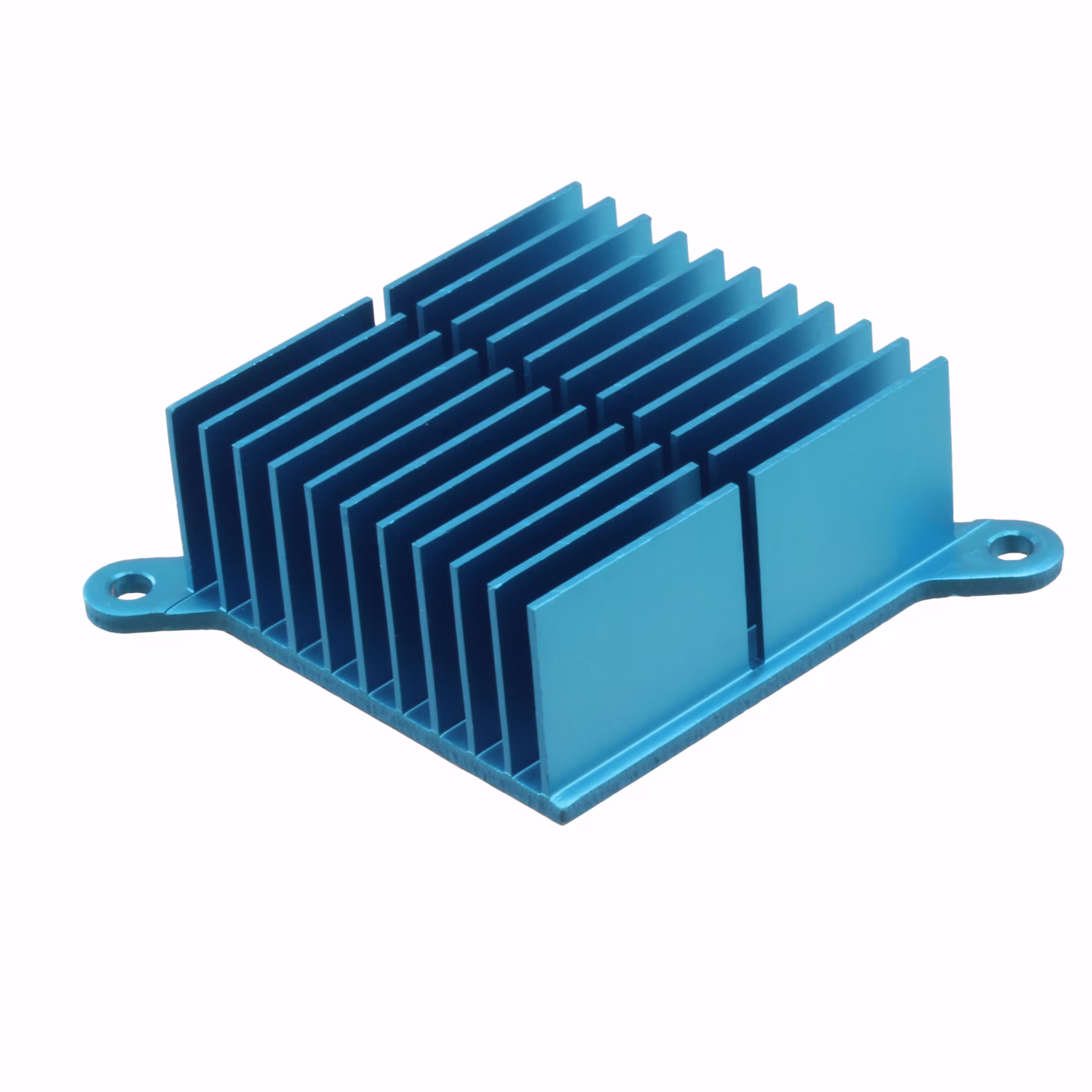

ATS-CPX045045020-189-C2-R0HEATSINK 45X45X20MM R-TAB CP |
52 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.790" (20.00mm) | - | 4.74°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040013-104-C2-R1HEATSINK 40X40X12.7MM XCUT SFP |
63 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount, Skived | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.500" (12.70mm) | - | 25.23°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
TGH-0350-04ALUMINIUM HEAT SINK 35X35MM |
64 |
|
Технический лист |
TGH | Bulk | Active | Top Mount | - | - | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.787" (19.99mm) | - | - | - | Aluminum | Black Anodized |
|
ATS-CPX030030035-146-C3-R0HEATSINK 30X30X35MM L-TAB CP |
74 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.378" (35.00mm) | - | 4.21°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-14G-94-C2-R0HEATSINK 40X40X25MM R-TAB T766 |
26 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 9.39°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX035035035-60-C1-R0HEATSINK 35X35X35MM L-TAB FP |
70 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 6.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

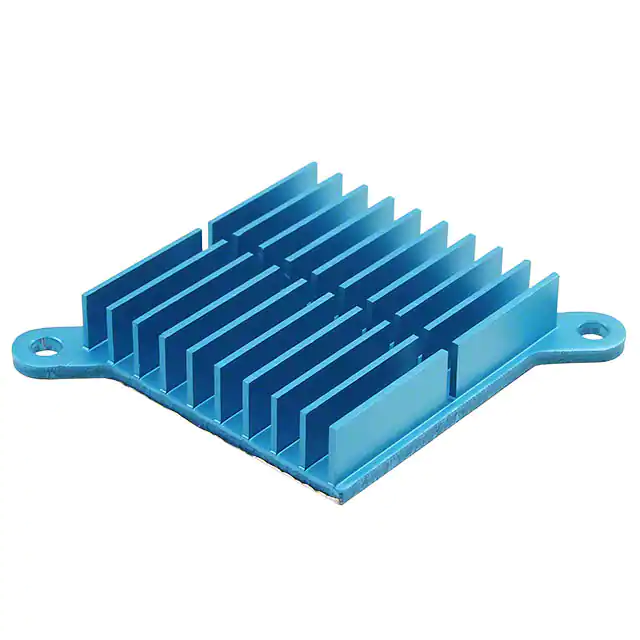

ATS-CPX040040010-181-C2-R0HEATSINK 40X40X10MM R-TAB CP |
195 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 11.95°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

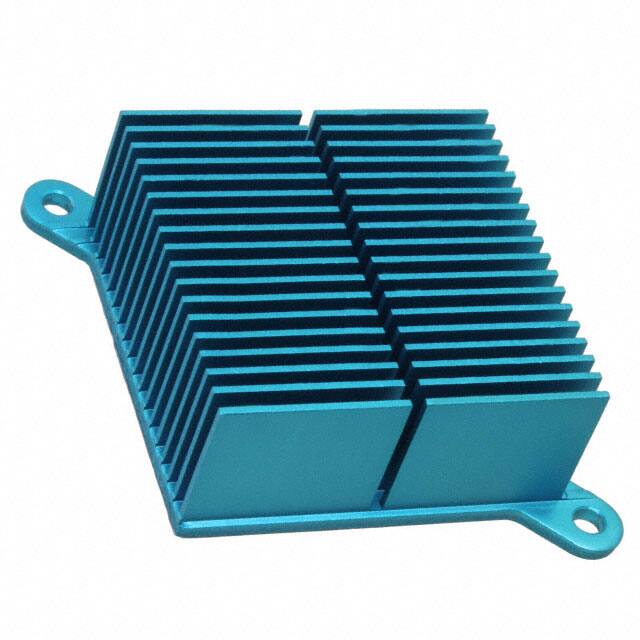

ATS-FPX045045020-99-C2-R0HEATSINK 45X45X20MM R-TAB FP |
76 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.790" (20.00mm) | - | 11.51°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

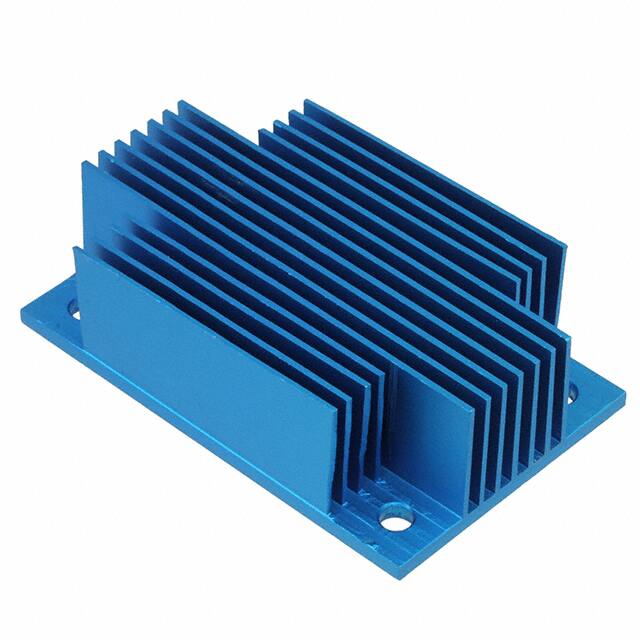

ATS-FPS058037018-33-C2-R0HEATSINK 57.9X36.83X17.78MM FP |
65 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Rectangular, Fins | 2.280" (57.90mm) | 1.450" (36.83mm) | - | 0.700" (17.78mm) | - | 17.42°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-04-C2-R0HEATSINK 40X40X20MM XCUT T766 |
45 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | - | 11.58°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX045045025-190-C2-R0HEATSINK 45X45X25MM R-TAB CP |
100 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 3.62°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
