Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-CPX030030025-144-C3-R0HEATSINK 30X30X25MM L-TAB CP |
90 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.984" (25.00mm) | - | 5.71°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-05C-142-C2-R0HEATSINK 30X30X15MM L-TAB T766 |
34 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.590" (15.00mm) | - | 10.07°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX045045020-161-C1-R0HEATSINK 45X45X20MM L-TAB CP |
85 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.790" (20.00mm) | - | 4.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX054054015-18-C1-R0HEATSINK 54X54X15MM XCUT FP |
84 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.590" (15.00mm) | - | 13.37°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX030030030-83-C1-R0HEATSINK 30X30X30MM R-TAB FP |
96 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.181" (30.00mm) | - | 8.52°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX035035035-90-C1-R0HEATSINK 35X35X35MM R-TAB FP |
27 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 6.33°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX035035020-87-C3-R0HEATSINK 35X35X20MM R-TAB FP |
100 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.790" (20.00mm) | - | 13.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
TGH-0280-06ALUMINIUM HEAT SINK 28X28MM |
93 |
|
Технический лист |
TGH | Bulk | Active | Top Mount | - | Push Pin | Square, Pin Fins | 1.102" (28.00mm) | 1.102" (28.00mm) | - | 0.500" (12.70mm) | - | - | - | Aluminum | Black Anodized |
|

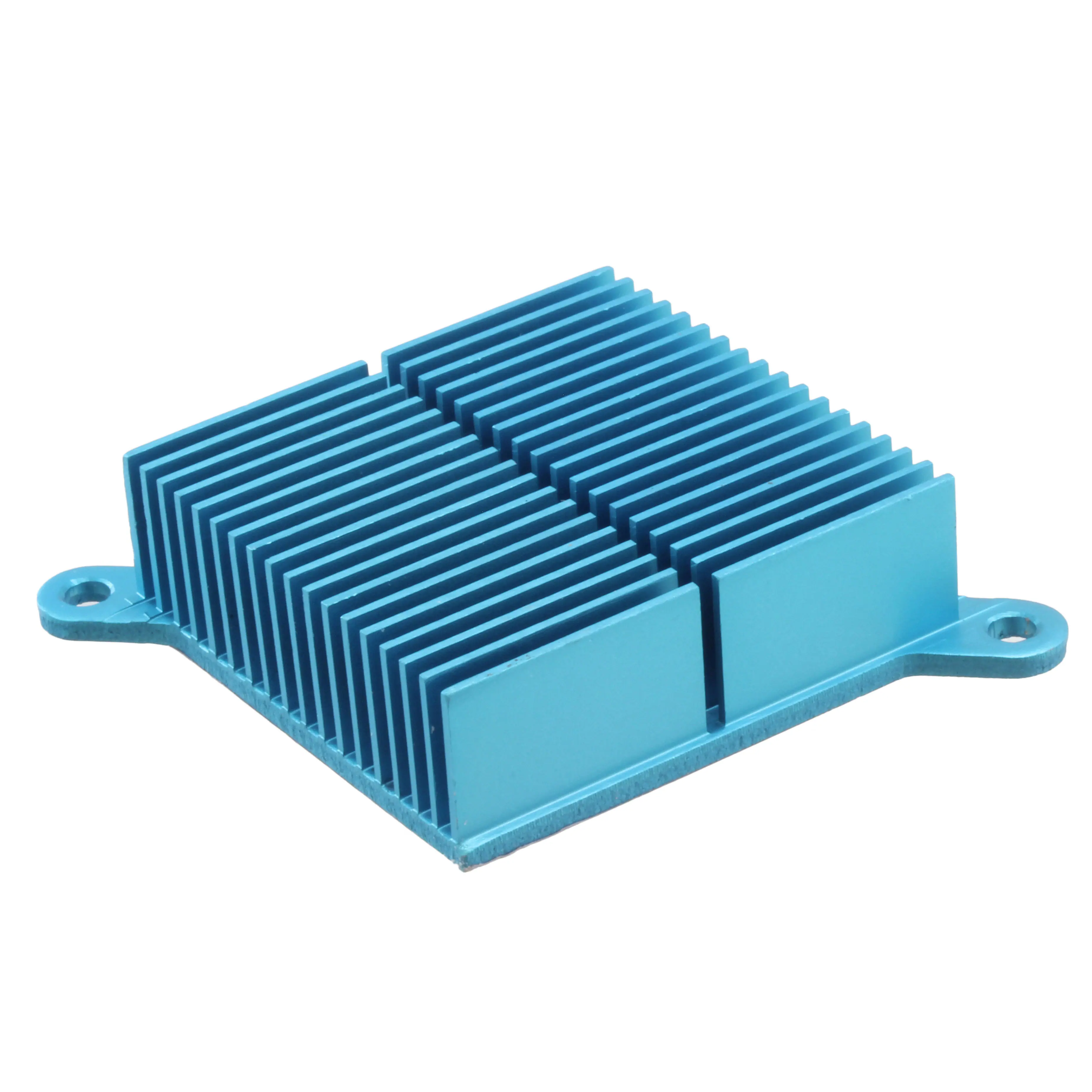

ATS-FPX045045015-98-C2-R0HEATSINK 45X45X15MM R-TAB FP |
85 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 15.31°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

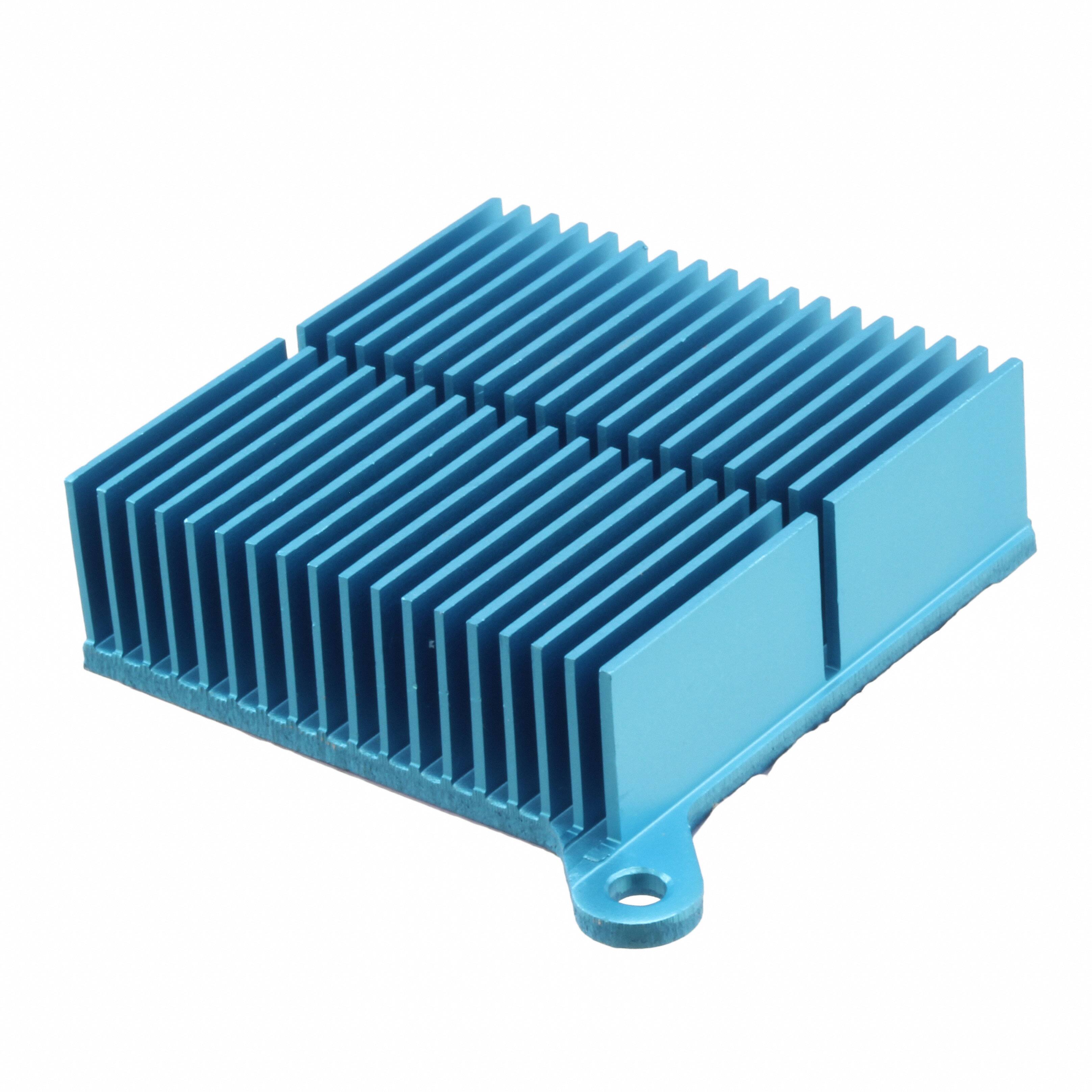

ATS-FPX045045015-68-C2-R0HEATSINK 45X45X15MM L-TAB FP |
59 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.590" (15.00mm) | - | 15.31°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX030030030-145-C3-R0HEATSINK 30X30X30MM L-TAB CP |
99 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.181" (30.00mm) | - | 4.91°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
WAVE-32-12ANCHOR HEATSINK 32X32X12MM |
53 |
|
Технический лист |
Wave 3x | Bulk | Active | Board Level | BGA | Clip | Square, Angled Fins | 1.260" (32.00mm) | 1.260" (32.00mm) | - | 0.472" (12.00mm) | - | 4.64°C/W @ 200 LFM | - | Aluminum Alloy | Black Anodized |
|
|
ATS-CPX035035035-152-C1-R0HEATSINK 35X35X35MM L-TAB CP |
89 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 1.378" (35.00mm) | - | 3.29°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-05-C2-R0HEATSINK 40X40X25MM XCUT T766 |
86 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 8.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-01E-172-C2-R0HEATSINK 30X30X25MM R-TAB T766 |
99 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.984" (25.00mm) | - | 5.76°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

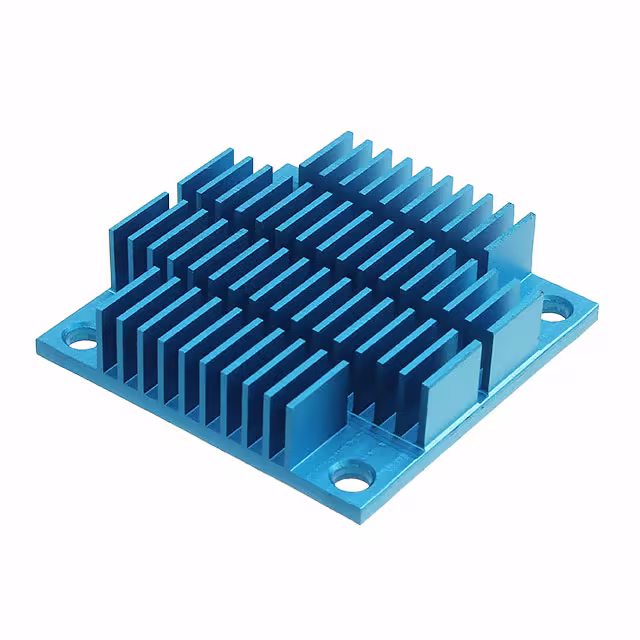

ATS-P1-01-C2-R0HEATSINK 40X40X10MM XCUT T766 |
28 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.394" (10.00mm) | - | 21.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX060060015-23-C3-R0HEATSINK 60X60X15MM XCUT FP |
82 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.362" (60.00mm) | 2.362" (60.00mm) | - | 0.590" (15.00mm) | - | 12.06°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-20E-120-C2-R0HEATSINK 45X45X25MM XCUT T766 |
100 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 3.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-04F-120-C2-R0HEATSINK 45X45X25MM XCUT T766 |
100 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 3.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-07A-120-C2-R0HEATSINK 45X45X25MM XCUT T766 |
100 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 3.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
