Радиаторы
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип | Упаковка охлаждаемая | Способ крепления | Форма | Длина | Ширина | Диаметр | Высота ребра | Рассеивание мощности при повышении температуры | Тепловое сопротивление при принудительном потоке воздуха | Тепловое сопротивление при естественном | Материал | Отделка материала |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATS-CPX030030010-169-C3-R0HEATSINK 30X30X10MM R-TAB CP |
79 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.394" (10.00mm) | - | 15.90°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX040040030-185-C2-R0HEATSINK 40X40X30MM R-TAB CP |
65 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.181" (30.00mm) | - | 3.35°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

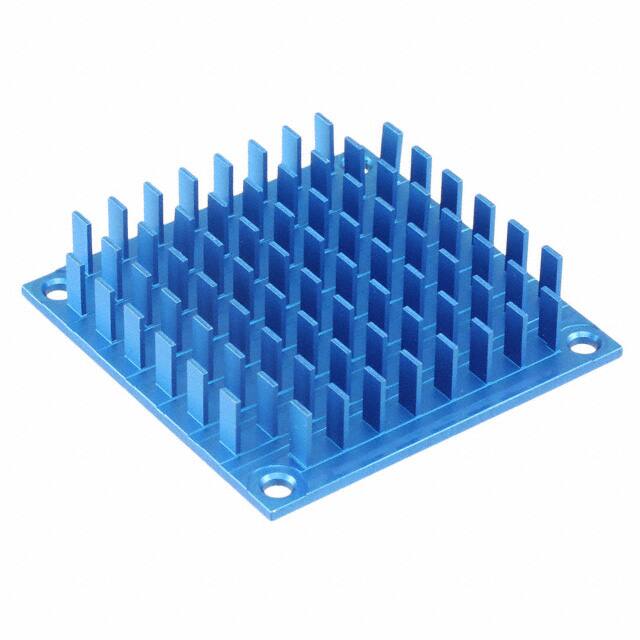

ATS-CPX054054010-203-C2-R0HEATSINK 54X54X10MM XCUT CP |
96 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.394" (10.00mm) | - | 8.93°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

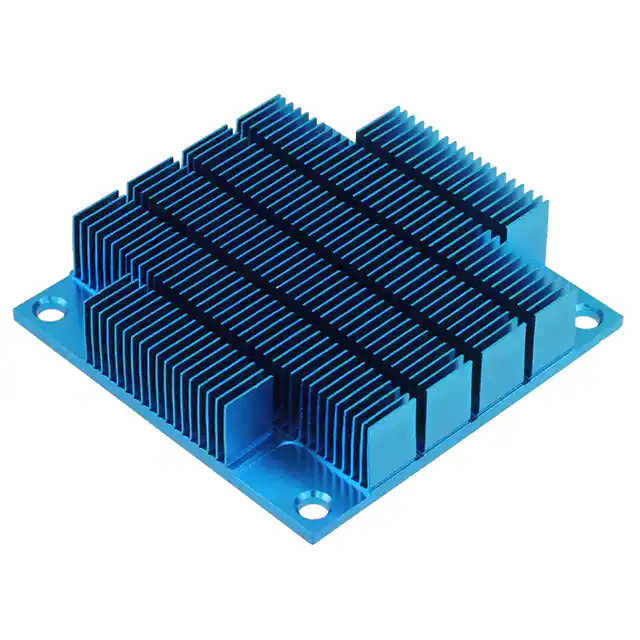

ATS-FPX054054013-110-C1-R1HEATSINK 54X54X12.7MM XCUT SFP |
99 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount, Skived | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.500" (12.70mm) | - | 26.97°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

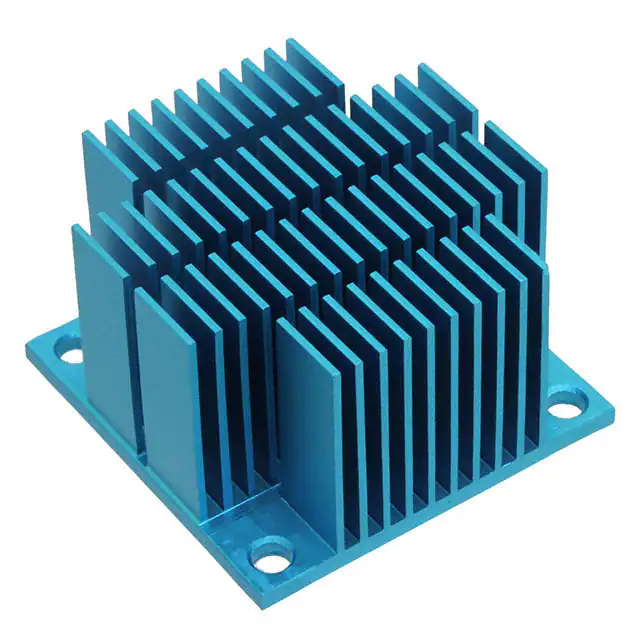

ATS-FPX040040025-05-C2-R0HEATSINK 40X40X25MM XCUT FP |
90 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.984" (25.00mm) | - | 8.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

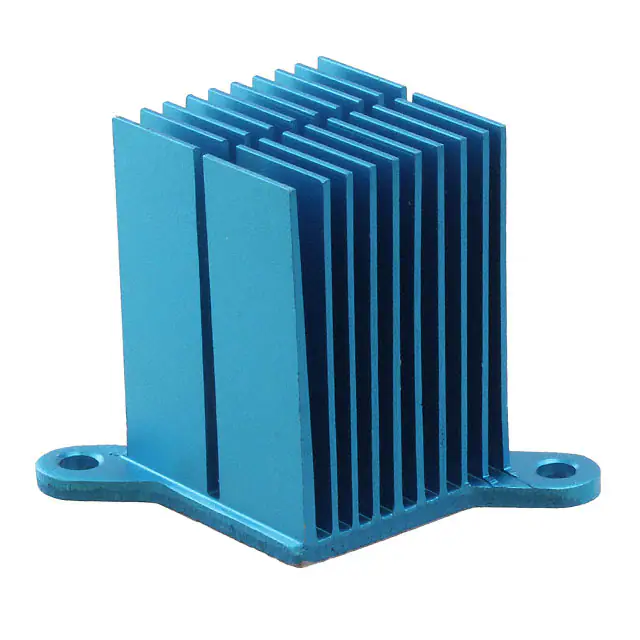

ATS-FPX025025035-78-C1-R0HEATSINK 25X25X35MM R-TAB FP |
47 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 0.984" (25.00mm) | 0.984" (25.00mm) | - | 1.378" (35.00mm) | - | 7.64°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-55-C2-R0HEATSINK 35X35X10MM L-TAB T766 |
95 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.378" (35.00mm) | 1.378" (35.00mm) | - | 0.394" (10.00mm) | - | 23.98°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX030030025-82-C3-R0HEATSINK 30X30X25MM R-TAB FP |
93 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.984" (25.00mm) | - | 10.97°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040035-96-C3-R0HEATSINK 40X40X35MM R-TAB FP |
65 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 1.378" (35.00mm) | - | 5.73°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX054054012-204-C2-R0HEATSINK 54X54X12MM XCUT CP |
39 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 2.126" (54.00mm) | 2.126" (54.00mm) | - | 0.472" (12.00mm) | - | 7.43°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-19H-50-C2-R0HEATSINK 30X30X15MM L-TAB T766 |
55 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.590" (15.00mm) | - | 19.03°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX030030015-170-C3-R0HEATSINK 30X30X15MM R-TAB CP |
90 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.590" (15.00mm) | - | 10.26°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-14D-145-C2-R0HEATSINK 30X30X30MM L-TAB T766 |
36 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 1.181" (30.00mm) | - | 4.72°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-CPX040040020-183-C2-R0HEATSINK 40X40X20MM R-TAB CP |
83 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | - | 5.37°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

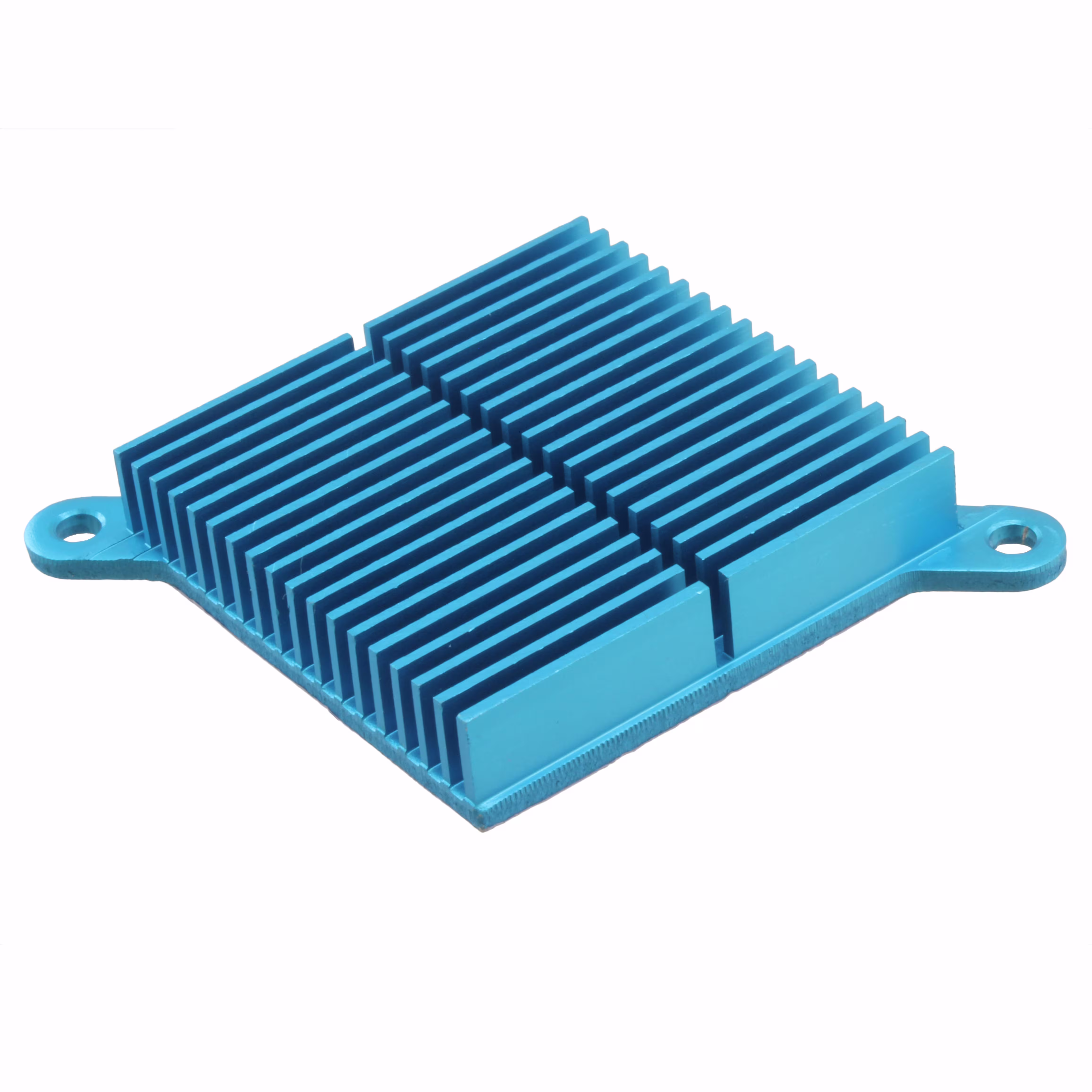

ATS-FPX045045010-97-C2-R0HEATSINK 45X45X10MM R-TAB FP |
100 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.394" (10.00mm) | - | 20.30°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

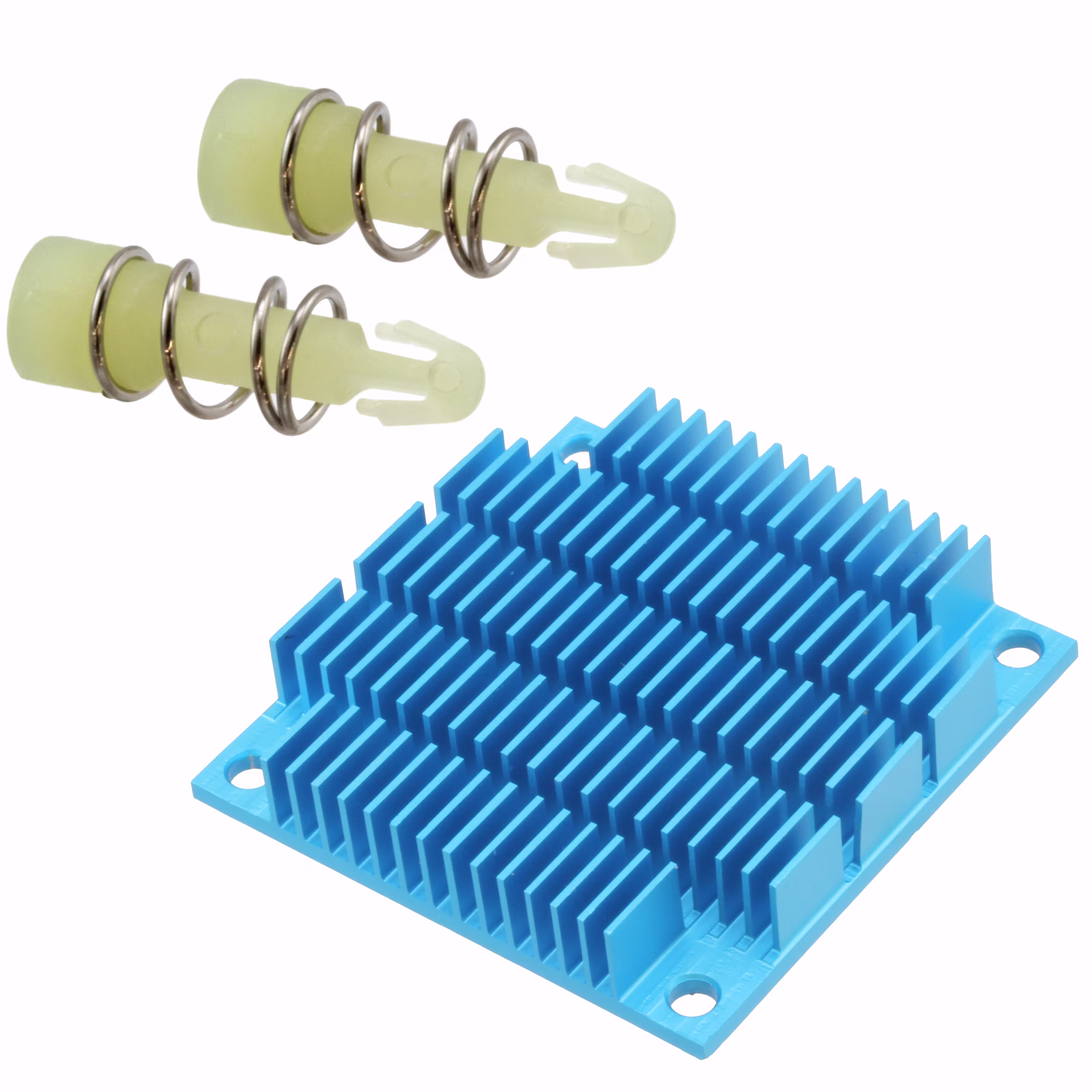

ATS-P1-11-C2-R0HEATSINK 50X50X10MM XCUT T766 |
50 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.394" (10.00mm) | - | 18.78°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|

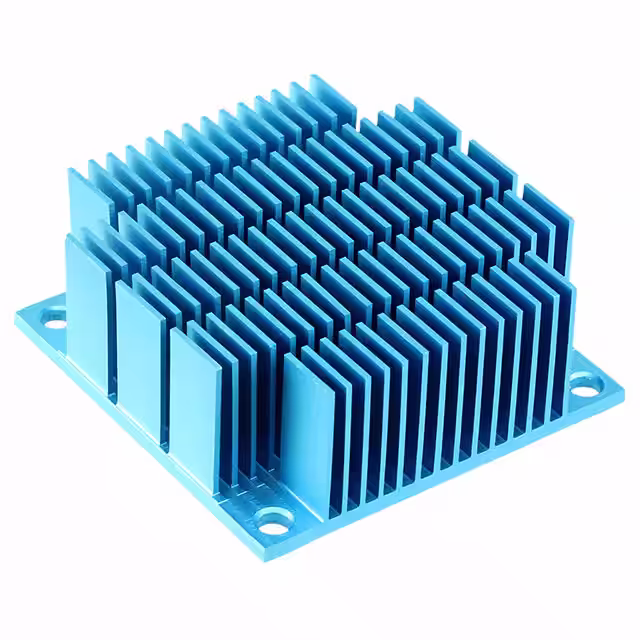

ATS-FPX050050020-14-C2-R0HEATSINK 50X50X20MM XCUT FP |
50 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.969" (50.00mm) | 1.969" (50.00mm) | - | 0.790" (20.00mm) | - | 9.97°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-FPX040040020-93-C2-R0HEATSINK 40X40X20MM R-TAB FP |
100 |
|
Технический лист |
pushPIN™ | Bulk | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.575" (40.00mm) | 1.575" (40.00mm) | - | 0.790" (20.00mm) | - | 12.32°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
ATS-P1-120-C2-R0HEATSINK 45X45X25MM XCUT T766 |
99 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.772" (45.00mm) | 1.772" (45.00mm) | - | 0.984" (25.00mm) | - | 3.48°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
|
|
ATS-CPX030030025-172-C3-R0HEATSINK 30X30X25MM R-TAB CP |
100 |
|
Технический лист |
pushPIN™ | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Push Pin | Square, Fins | 1.181" (30.00mm) | 1.181" (30.00mm) | - | 0.984" (25.00mm) | - | 5.94°C/W @ 100 LFM | - | Aluminum | Blue Anodized |
