DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
REM30-2424SWDC DC CONVERTER 24V 30W |
45 |
|
Технический лист |
MEDLINE REM30-W (30W) | 6-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 1.25A | 30 W | 5 kV | ITE (Commercial), Medical | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
VHB50W-Q24-S48DC DC CONVERTER 48V 50W |
1,273 |
|
Технический лист |
VHB50W (50W) | 9-DIP Module, 1/2 Brick | Box | Active | Isolated Module | 1 | 9V | 36V | 48V | - | - | - | 1.04A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 83% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | Enable, Active High | EN, UL | 60950-1; 61000-3-2; 61000-3-3; 61000-6-1 |
|
TEP 75-2412WIDC DC CONVERTER 12V 76W |
44 |
|
Технический лист |
TEP 75WI (75W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 6.3A | 76 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 75°C | 88% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | - | cURus | - |
|
AEE10A36-LDC DC CONVERTER 5V 50W |
281 |
|
Технический лист |
AEE (50W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 85°C | 92% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
TEN 40-2411WIDC DC CONVERTER 5V 40W |
39 |
|
Технический лист |
TEN 40WI (40W) | 8-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 8A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 87% | - | - | Through Hole | 2.00" L x 1.10" W x 0.40" H (50.8mm x 27.9mm x 10.2mm) | Module | - | - | - |
|
VG20-24S250DC DC CONVERTER 250V 20W |
27 |
|
Технический лист |
VG20 (20W) | 4-DIP Module | Tube | Active | High Voltage - Isolated Module | 1 | 18V | 36V | 250V | - | - | - | 80mA | 20 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP | -25°C ~ 70°C (With Derating) | 82% | - | - | Through Hole | 2.00" L x 1.00" W x 0.50" H (50.8mm x 25.4mm x 12.7mm) | 4-DIP | - | - | - |
.jpg)
|
LTM4644MPYDC DC CONVERTER 4X0.6-5.5V |
169 |
|
Технический лист |
µModule® | 77-BBGA Module | Tray | Active | Non-Isolated PoL Module | 4 | 4V | 14V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | 4A, 4A, 4A, 4A | - | - | ITE (Commercial) | OCP, OTP, OVP | -55°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.20" H (15.0mm x 9.0mm x 5.0mm) | 77-BGA (15x9) | - | - | - |
|
LTM4650IY#PBFDC DC CNVRTR 0.6-1.8V 0.6-1.8V |
357 |
|
Технический лист |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 15V | 0.6 ~ 1.8V | 0.6 ~ 1.8V | - | - | 25A, 25A | - | - | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.63" L x 0.63" W x 0.20" H (16.0mm x 16.0mm x 5.0mm) | 144-BGA (16x16) | Enable, Active High | - | - |
|
LTM4650AIV#PBFDC DC CNVRTR 0.6-5.5V 0.6-5.5V |
68 |
|
Технический лист |
µModule® | 144-BLGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 16V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | - | - | 25A, 25A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.63" L x 0.63" W x 0.17" H (16.0mm x 16.0mm x 4.4mm) | 144-LGA (16x16) | Enable, Active High | - | - |
|
LTM4678IY#PBFDC DC CNVRTR 0.5-3.3V 0.5-3.3V |
65 |
|
Технический лист |
LTM®, uModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module, Digital | 2 | 5.75V | 16V | 0.5 ~ 3.3V | 0.5 ~ 3.3V | - | - | 25A, 25A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.63" L x 0.63" W x 0.23" H (16.0mm x 16.0mm x 6.3mm) | 144-BGA (16x16) | - | - | - |
|
THM 30-2415WIDC DC CONVERTER 24V 30W |
235 |
|
Технический лист |
THM 30WI (30W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 1.25A | 30 W | 5 kV | Medical | OCP, OTP, OVP, SCP | -40°C ~ 80°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
LTM4650AIY#PBFDC DC CNVRTR 0.6-5.5V 0.6-5.5V |
342 |
|
Технический лист |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 16V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | - | - | 25A, 25A | - | - | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.63" L x 0.63" W x 0.20" H (16.0mm x 16.0mm x 5.0mm) | 144-BGA (16x16) | Enable, Active High | - | - |
|
BCM48BF060T240A00DC DC CONVERTER 6V 240W |
299 |
|
Технический лист |
VI Chip® BCM® (240W) | 30-SMD Module | Tray | Active | Bus Converter Module | 1 | 38V | 55V | 6V | - | - | - | 60A | 240 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | 95.6% | - | - | Surface Mount | 1.28" L x 0.87" W x 0.26" H (32.5mm x 22.0mm x 6.7mm) | - | - | - | - |
|
QSB10024S12DC DC CONVERTER 12V 100W |
130 |
|
Технический лист |
QSB (100W) | 8-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 8.3A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 100°C | 86.5% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | - | Enable, Active High | - | - |
|
GQA2W010A120V-0P7-RDC DC CONVERTER 12V 120W |
273 |
|
Технический лист |
GQA120 (120W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 10A | 120 W | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 105°C | 89% | - | - | Through Hole | 2.39" L x 1.95" W x 0.50" H (60.6mm x 49.5mm x 12.7mm) | Quarter Brick | Enable, Active Low | CE | - |
|
|
GQA2W005A240V-0P7-RDC DC CONVERTER 24V 120W |
197 |
|
Технический лист |
GQA120 (120W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 5A | 120 W | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 105°C | 87% | - | - | Through Hole | 2.39" L x 1.95" W x 0.50" H (60.6mm x 49.5mm x 12.7mm) | Quarter Brick | Enable, Active Low | CE | - |
|
PRM48BF480T500A00DC DC CONVERTER 48V 500W |
44 |
|
Технический лист |
VI Chip® PRM® (500W) | Module | Tray | Active | Pre-Regulator Module | 1 | 38V | 55V | 48V | - | - | - | 10.42A | 500 W | - | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 125°C | 97.8% | - | - | Surface Mount | 1.28" L x 0.87" W x 0.26" H (32.5mm x 22.0mm x 6.7mm) | - | - | - | - |
|
DCM2322T50T3160T60DC DC CONVERTER 28V 60W |
113 |
|
Технический лист |
VI Chip® DCM® | 9-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 50V | 28V | - | - | - | 2.14A | 60 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | 93% | - | - | Through Hole | 0.98" L x 0.90" W x 0.28" H (24.8mm x 22.8mm x 7.2mm) | - | - | CE, cTUVus, cURus | - |
|

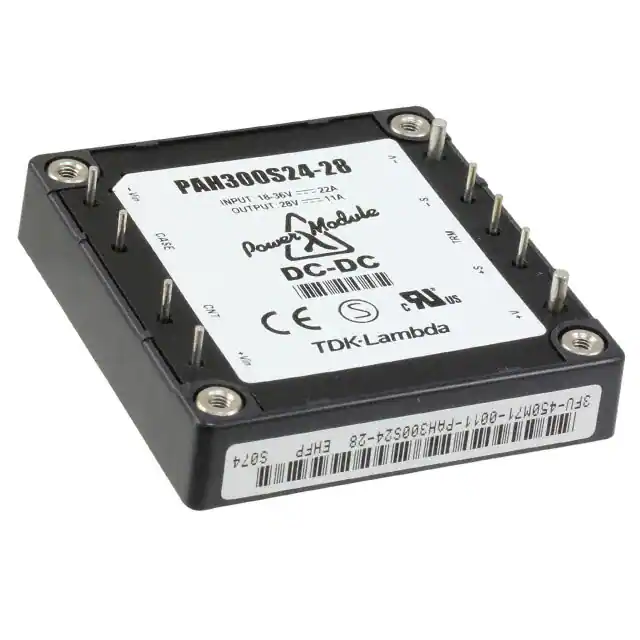

PAH300S24-28DC DC CONVERTER 28V 300W |
102 |
|
Технический лист |
PAH300 (300W) | 9-DIP Module, 1/2 Brick | Bulk | Active | Isolated Module | 1 | 18V | 36V | 28V | - | - | - | 11A | 300 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP | -40°C ~ 100°C | 88% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | Enable, Active Low | - | - |
|
|
DCM2322T50T5360T60DC DC CONVERTER 48V 60W |
30 |
|
Технический лист |
VI Chip® DCM® | 9-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 50V | 48V | - | - | - | 1.25A | 60 W | 3 kV | ITE (Commercial) | Adjustable Output | -40°C ~ 125°C | 93% | - | - | Through Hole | 0.98" L x 0.90" W x 0.28" H (24.8mm x 22.8mm x 7.2mm) | - | - | CE, cTUVus, cURus | - |
