DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
THM 30-2415DC DC CONVERTER 24V 30W |
63 |
|
Технический лист |
THM 30 (30W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 1.25A | 30 W | 5 kV | Medical | OCP, OTP, OVP, SCP | -40°C ~ 80°C (With Derating) | 88.5% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
PKJ4716HPIHSDC DC CONVERTER 50V 700W |
326 |
|
Технический лист |
PKJ4000 (700W) | Half Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 50V | - | - | - | 14A | 700 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 96.6% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
TEN 30-2423WIDC DC CONVERTER +/-15V 30W |
49 |
|
Технический лист |
TEN 30WI (30W) | 7-DIP Module | Tube | Not For New Designs | Isolated Module | 2 | 10V | 40V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm) | - | - | - | - |
|
PRC60-24-S5DC-DC, ISOLATED, 60 W, 9 ~ 36 VD |
36 |
|
Технический лист |
PRC60 (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 12A | 60 W | 1.6 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm) | - | - | CE, UKCA | 62368-1 |
|
LTM4616MPYDC DC CONVERTER 0.6-5V 0.6-5V |
60 |
|
Технический лист |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 2.7V | 5.5V | 0.6 ~ 5V | 0.6 ~ 5V | - | - | 8A, 8A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -55°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.59" W x 0.13" H (15.0mm x 15.0mm x 3.4mm) | 144-BGA (15x15) | - | - | - |
|
TEN 60-2413WINDC DC CONVERTER 15V 60W |
167 |
|
Технический лист |
TEN 60WIN (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 4A | 60 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
|
LTM4650EY#PBFDC DC CNVRTR 0.6-1.8V 0.6-1.8V |
375 |
|
Технический лист |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 15V | 0.6 ~ 1.8V | 0.6 ~ 1.8V | - | - | 25A, 25A | - | - | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.63" L x 0.63" W x 0.20" H (16.0mm x 16.0mm x 5.0mm) | 144-BGA (16x16) | Enable, Active High | - | - |
|

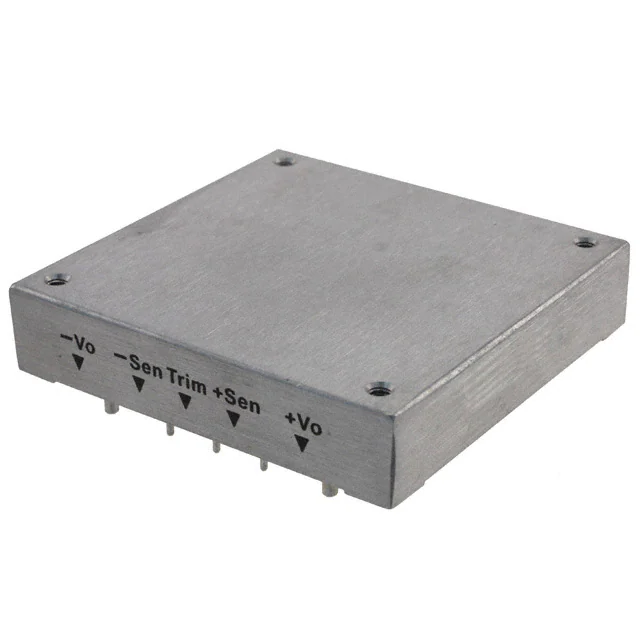

VHB50W-Q24-S15DC DC CONVERTER 15V 50W |
70 |
|
Технический лист |
VHB50W (50W) | 9-DIP Module, 1/2 Brick | Box | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 3.33A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 83% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | Enable, Active High | EN, UL | 60950-1; 61000-3-2; 61000-3-3; 61000-6-1 |
|
PKJ7216HWPI14-160 V48.659.4 V200 W3.7 A |
60 |
|
Технический лист |
PKJ 7200 (200W) | Half Brick | Tray | Active | Isolated Module | 1 | 14V | 160V | 54V | - | - | - | 3.7A | 200 W | 4 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 90% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active Low | cURus, UL | 62368-1 |
|

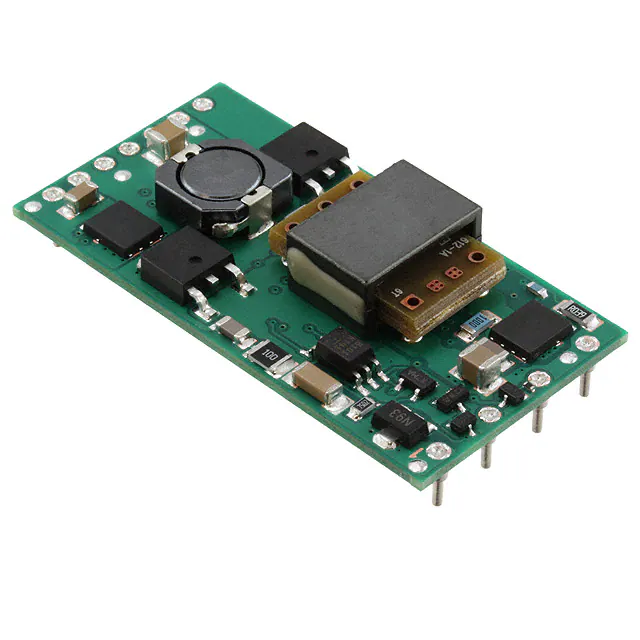

PTB78560BAHDC DC CONVERTER 1.8-3.6V 30W |
100 |
|
Технический лист |
PTB78560 (30W) | 11-DIP Module | Tray | Not For New Designs | Isolated Module | 1 | 18V | 60V | 1.8 ~ 3.6V | - | - | - | 8A | 30 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 2.05" L x 1.05" W x 0.39" H (52.1mm x 26.7mm x 10.0mm) | - | - | - | - |
|
LTM4643MPYDC DC CONVERTER 3X0.6-3.3V |
158 |
|
Технический лист |
µModule® | 77-BBGA Module | Tray | Active | Non-Isolated PoL Module | 4 | 4V | 20V | 0.6 ~ 3.3V | 0.6 ~ 3.3V | 0.6 ~ 3.3V | - | 3A, 3A, 3A, 3A | - | - | ITE (Commercial) | OCP, OTP, OVP | -55°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.10" H (15.0mm x 9.0mm x 2.4mm) | 77-BGA (15x9) | - | - | - |
|
LTM4678EY#PBFDC DC CNVRTR 0.5-3.3V 0.5-3.3V |
6 |
|
Технический лист |
LTM®, uModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module, Digital | 2 | 5.75V | 16V | 0.5 ~ 3.3V | 0.5 ~ 3.3V | - | - | 25A, 25A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.63" L x 0.63" W x 0.23" H (16.0mm x 16.0mm x 6.3mm) | 144-BGA (16x16) | - | - | - |
|
CQB150W-24S05DC DC CONVERTER 5V 150W |
487 |
|
Технический лист |
CQB150W (150W) | Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 30A | 150 W | 2.25 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Module | Enable, Active High | CB, CE, cURus | 50155; 60950-1 |
|
|
LTM4650AEY#PBFDC DC CNVRTR 0.6-5.5V 0.6-5.5V |
299 |
|
Технический лист |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 16V | 0.6 ~ 5.5V | 0.6 ~ 5.5V | - | - | 25A, 25A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.63" L x 0.63" W x 0.20" H (16.0mm x 16.0mm x 5.0mm) | 144-BGA (16x16) | Enable, Active High | - | - |
|

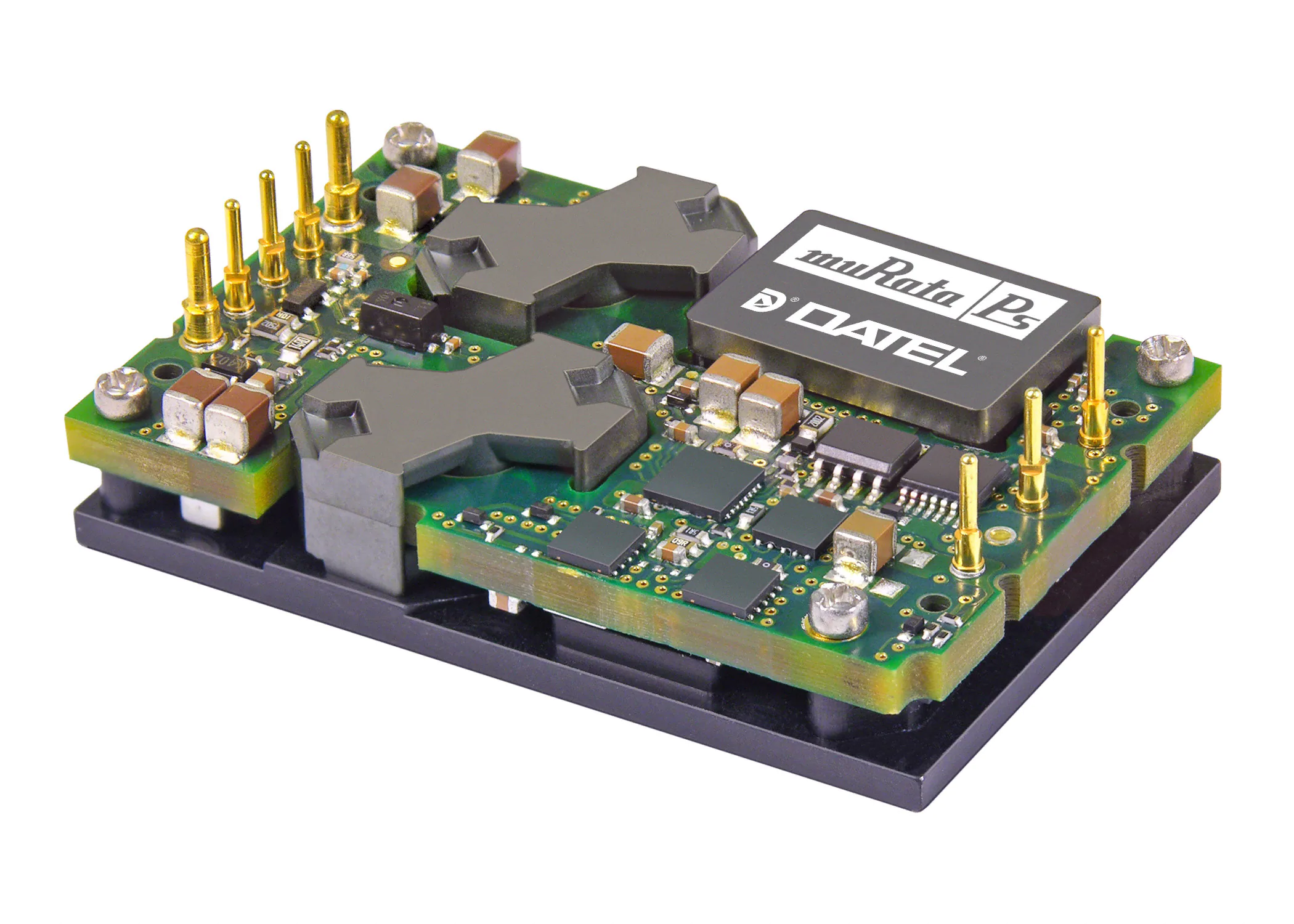

UQQ-12/8-Q12PB-CDC DC CONVERTER 12V 96W |
236 |
|
Технический лист |
UQQ | 8-DIP Module, 1/4 Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 8A | 96 W | 2 kV | ITE (Commercial) | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 89% | - | - | Through Hole | 2.22" L x 1.45" W x 0.50" H (56.4mm x 36.8mm x 12.7mm) | - | Enable, Active High | - | - |
|
LTM4613MPV#PBFDC DC CONVERTER 12V |
80 |
|
Технический лист |
µModule® | 133-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 5V | 36V | 12V | - | - | - | 8A | - | - | ITE (Commercial) | - | -55°C ~ 125°C | 96% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.17" H (15.0mm x 15.0mm x 4.3mm) | 133-LGA (15x15) | - | - | - |
|
|
VHB100W-Q24-S5DC DC CONVERTER 5V 100W |
113 |
|
Технический лист |
VHB100W (100W) | 9-DIP Module | Box | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 20A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C | 83.5% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | - | Enable, Active High | UL | 60950-1 |
|

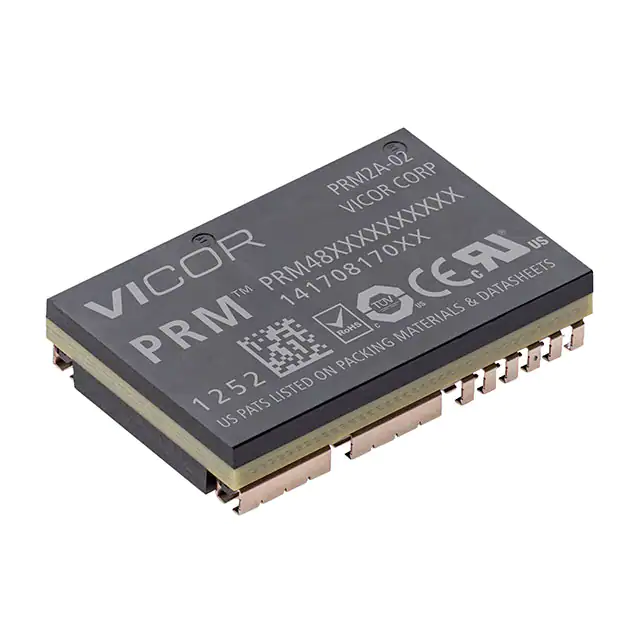

PRM48AT480T400A00DC DC CONVERTER 48V 400W |
133 |
|
Технический лист |
VI Chip® PRM® (400W) | 16-DIP Module | Tray | Active | Pre-Regulator Module | 1 | 36V | 75V | 48V | - | - | - | 8.33A | 400 W | - | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 125°C | 97.5% | - | - | Through Hole | 1.28" L x 0.87" W x 0.26" H (32.5mm x 22.0mm x 6.7mm) | - | - | - | - |
|
|
PKM7513WPIDC/DC CONVERTERS INPUT 12-160 V, |
104 |
|
Технический лист |
PKM 7500W (50W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 12V | 160V | 12V | - | - | - | 4.2A | 50 W | 4 kV | ITE (Commercial) | Baseplate, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 110°C (With Derating) | 88.5% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active High | cURus, UL | 62368-1 |
|
|
PRM48AF480T400A00DC DC CONVERTER 48V 400W |
892 |
|
Технический лист |
VI Chip® PRM® (400W) | Module | Tray | Active | Pre-Regulator Module | 1 | 36V | 75V | 48V | - | - | - | 8.33A | 400 W | - | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 125°C | 97.5% | - | - | Surface Mount | 1.28" L x 0.87" W x 0.26" H (32.5mm x 22.0mm x 6.7mm) | - | - | - | - |
