DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AGQ500-48S50-6LDC DC CONVERTER 50V 500W |
262 |
|
Технический лист |
AGQ500 (500W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 50V | - | - | - | 10A | 500 W | 2.25 kV | ITE (Commercial) | Baseplate, Remote On/Off | -40°C ~ 85°C | 95% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active Low | CE, TUV, UL | - |
|
TEN 40-2411WIRDC DC CONVERTER 5V 40W |
54 |
|
Технический лист |
TEN 40WIR (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 8A | 40 W | 1.6 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
|

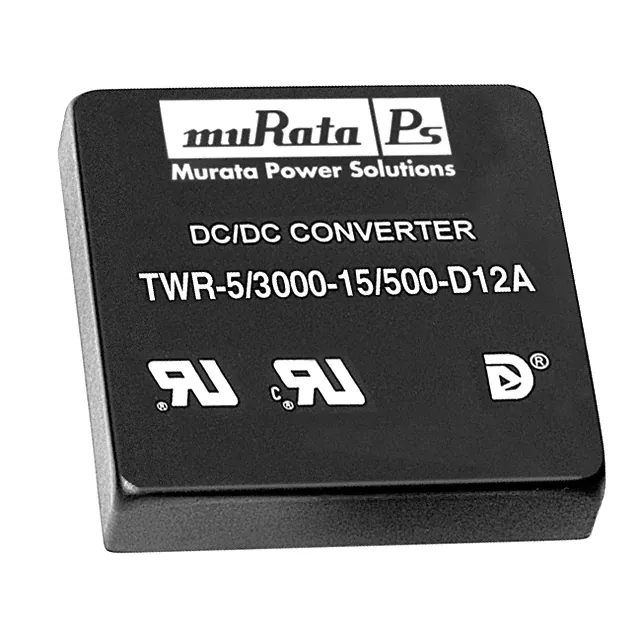

TWR-5/3000-15/500-D12A-CDC DC CONVERTER 5V +/-15V 20W |
93 |
|
Технический лист |
TWR A (11W) | 8-DIP Module, 7 Leads | Tube | Active | Isolated Module | 3 | 9V | 36V | 5V | 15V | -15V | - | 3A, 500mA, 500mA | 20 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 100°C | 82% | - | - | Through Hole | 2.00" L x 2.00" W x 0.45" H (50.8mm x 50.8mm x 11.4mm) | - | - | - | - |
|
Q02-12DC DC CONVERTER 200V 500MW |
54 |
|
Технический лист |
XP EMCO - Q (0.5W) | 4-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | 200V | - | - | - | 2.5mA | 500 mW | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 70°C | - | - | - | Through Hole | 0.50" L x 0.50" W x 0.50" H (12.7mm x 12.7mm x 12.7mm) | - | - | - | 62368-1 |
|

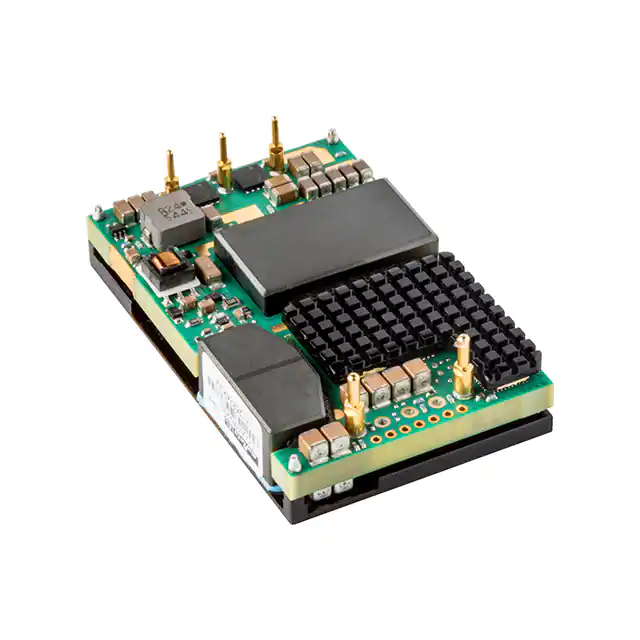

DSQ0150V2NBCDC DC CONVERTER 12V 600W |
97 |
|
Технический лист |
DSQ (600W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 50A | 600 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 85°C (With Derating) | 96% | - | - | Through Hole | 2.30" L x 1.45" W x 0.52" H (58.4mm x 36.8mm x 13.2mm) | Quarter Brick | - | - | - |
|

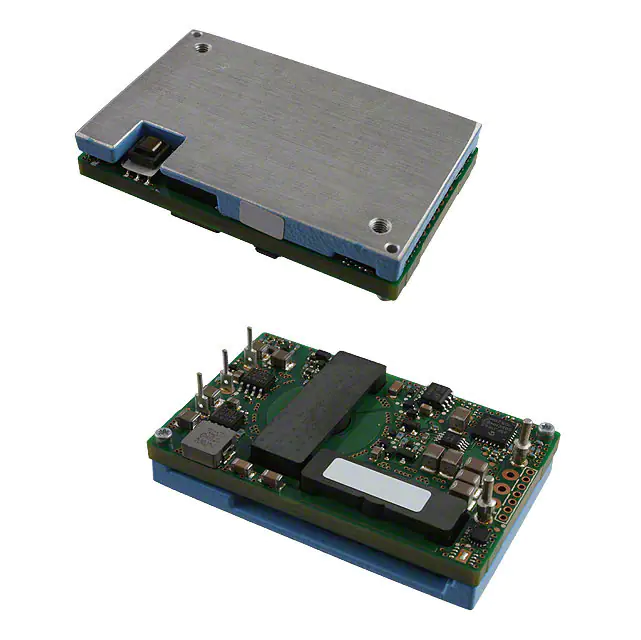

QBVW033A0B41-HZDC DC CONVERTER 12V 400W |
313 |
|
Технический лист |
Barracuda™ QBVW033A0B (400W) | 5-DIP Module, 1/4 Brick | Tray | Active | Intermediate Bus Converter | 1 | 36V | 75V | 12V | - | - | - | 33A | 400 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 96% | - | - | Through Hole | 2.30" L x 1.45" W x 0.46" H (58.4mm x 36.8mm x 11.7mm) | - | Enable, Active Low | - | - |
|
CQE50W-24S12DC DC CONVERTER 12V 50W |
256 |
|
Технический лист |
CQE50W (50W) | Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 4.16A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 91.5% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Module | Enable, Active High | CE | 60950-1 |
|
LTM4677IY#PBFDC DC CNVRTR 0.5-1.8V 0.5-1.8V |
139 |
|
Технический лист |
µModule® | 144-BBGA Module | Tray | Active | Isolated Module | 2 | 4.5V | 16V | 0.5 ~ 1.8V | 0.5 ~ 1.8V | - | - | 18A, 18A | - | - | ITE (Commercial) | Remote On/Off, OTP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.63" L x 0.63" W x 0.20" H (16.0mm x 16.0mm x 5.0mm) | 144-BGA (16x16) | - | - | - |
|

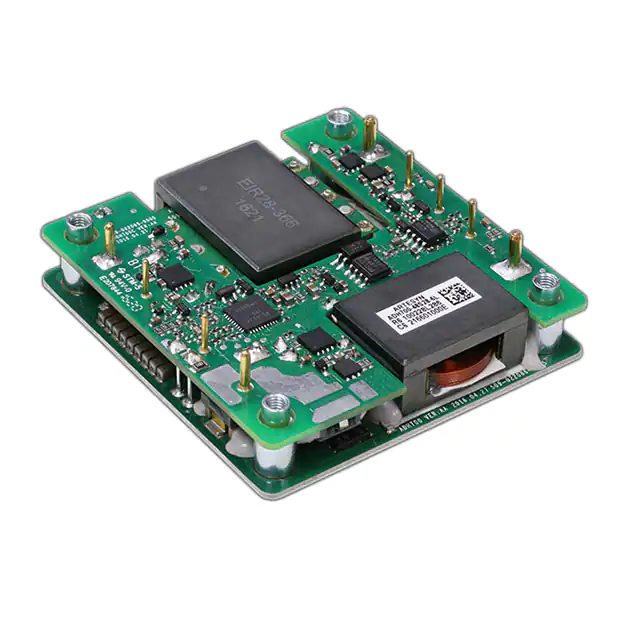

ADH700-48S28-6LDC DC CONVERTER 28V 700W |
282 |
|
Технический лист |
ADH700 (700W) | 9-DIP Module, 1/2 Brick | Bulk | Active | Isolated Module | 1 | 36V | 65V | 28V | - | - | - | 25A | 700 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | - | - | - |
|

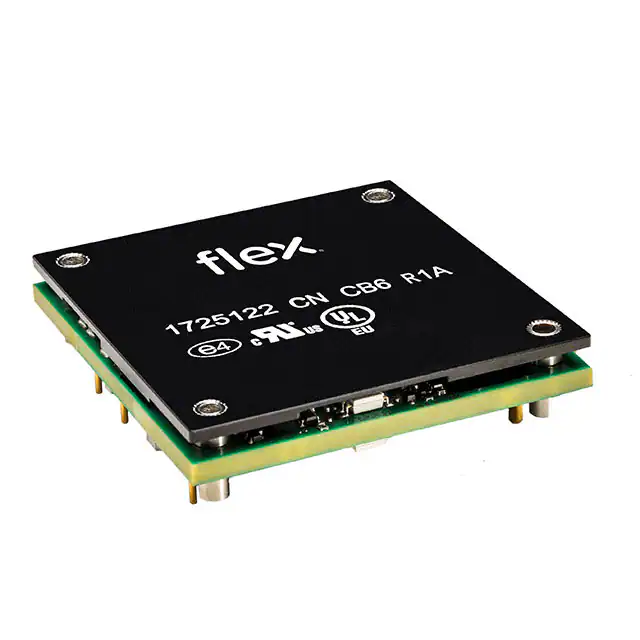

PKJ4716APIHSDC DC CONVERTER 28V 700W |
317 |
|
Технический лист |
PKJ4000 (700W) | Half Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 28V | - | - | - | 25A | 700 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 125°C (With Derating) | 96.5% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
TEN 40-7212WIRDC DC CONVERTER 12V 40W |
34 |
|
Технический лист |
TEN 40WIR (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 43V | 160V | 12V | - | - | - | 3.333A | 40 W | 1.6 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
|
PKJ7216JWPI14-160 V43.252.8 V200 W4.16 A |
55 |
|
Технический лист |
PKJ 7200 (200W) | Half Brick | Tray | Active | Isolated Module | 1 | 14V | 160V | 48V | - | - | - | 4.16A | 200 W | 4 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 115°C (With Derating) | 90% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active Low | cURus, UL | 62368-1 |
|

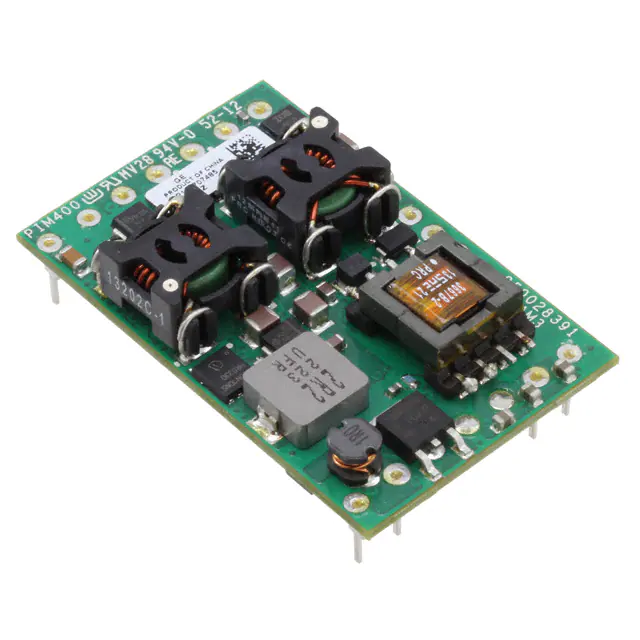

PIM400KZDC DC CONVERTER -48V 400W |
333 |
|
Технический лист |
PIM400 (400W) | 18-DIP Module, 1/4 Brick | Tray | Active | Isolated Module, Digital | 2 | -36V | -75V | -48V | - | - | - | 10A | - | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 98.5% | - | - | Through Hole | 2.30" L x 1.45" W x 0.54" H (58.4mm x 36.8mm x 13.7mm) | Quarter Brick | - | - | - |
|
LTM4660IY#PBF72V, 300W NON-ISOLATED UMODULE C |
100 |
|
Технический лист |
LTM®, uModule® | 120-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 30V | 60V | 12V | - | - | - | 25A | 300 W | - | ITE (Commercial) | Adjustable Output, Heat Sink, Load Sharing, Remote On/Off, Remote Sense | -40°C ~ 125°C | 97.3% | - | - | Surface Mount | 0.63" L x 0.63" W x 0.41" H (16.0mm x 16.0mm x 10.3mm) | 120-BGA (16x16) | Enable, Active High | - | - |
|
A03N-12DC DC CONVERTER -300V 1W |
532 |
|
Технический лист |
XP EMCO - A (1W) | 5-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 12V | -300V | - | - | - | 3.33mA | 1 W | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | - | - | - | Through Hole | 0.92" L x 0.45" W x 0.25" H (23.4mm x 11.4mm x 6.4mm) | - | - | CE, cURus | 62368-1 |
|
|
A05P-5DC DC CONVERTER 500V 1W |
50 |
|
Технический лист |
XP EMCO - A (1W) | 5-DIP Module | Box | Active | High Voltage - Isolated Module | 1 | 0.7V | 5V | 500V | - | - | - | 2mA | 1 W | 500 V | ITE (Commercial) | Proportional Output | -25°C ~ 75°C | - | - | - | Through Hole | 0.92" L x 0.45" W x 0.25" H (23.4mm x 11.4mm x 6.4mm) | - | - | CE, cURus | 62368-1 |
|
TEN 60-2411DC DC CONVERTER 5V 60W |
58 |
|
Технический лист |
TEN 60 (60W) | 8-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 12A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 90% | - | - | Through Hole | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | Module | - | - | - |
|
TEN 60-2412WINDC DC CONVERTER 12V 60W |
323 |
|
Технический лист |
TEN 60WIN (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 5A | 60 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
|
CHB100-24S24DC DC CONVERTER 24V 100W |
47 |
|
Технический лист |
CHB100 (100W) | Half Brick | Tray | Active | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 4.17A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 87% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
PXD30-24WD05DC DC CONVERTER +/-5V 30W |
34 |
|
Технический лист |
PXD30W (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 3A, 3A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
