DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
LTM8055IY#PBFDC DC CONVERTER 1.2-36V |
0 |
|
Технический лист |
µModule® | 121-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 5V | 36V | 1.2 ~ 36V | - | - | - | 8.5A | - | - | ITE (Commercial) | OTP | -40°C ~ 125°C | 97.5% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.19" H (15.0mm x 15.0mm x 4.9mm) | 121-BGA (15x15) | - | - | - |
|
LTM4649IYDC DC CONVERTER 0.6-3.3V 33W |
189 |
|
Технический лист |
µModule® | 68-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 16V | 0.6 ~ 3.3V | - | - | - | 10A | - | - | ITE (Commercial) | OCP, OVP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.19" H (15.0mm x 9.0mm x 4.9mm) | 68-BGA (15x9) | - | - | - |
|
LTM4612EV#PBFDC DC CONVERTER 3.3-15V |
189 |
|
Технический лист |
µModule® | 133-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 5V | 36V | 3.3 ~ 15V | - | - | - | 5A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 133-LGA (15x15) | - | - | - |
.jpg)
|
LTM4653IYDC DC CONVERTER 0.5-54.5V |
211 |
|
Технический лист |
LTM®, uModule® | 77-BBGA | Tray | Active | Non-Isolated PoL Module | 1 | 3.1V | 58V | 0.5 ~ 54.5V | - | - | - | 4A | - | - | - | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.21" H (15.0mm x 9.0mm x 5.2mm) | 77-BGA (15x9) | - | - | - |
|
JTK3048S12DC DC CONVERTER 12V 30W |
473 |
|
Технический лист |
JTK30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 2.5A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 100°C | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.43" H (25.4mm x 25.4mm x 10.9mm) | - | Enable, Active High | - | 62368-1 |
|
|
JTK3024S15DC DC CONVERTER 15V 30W |
111 |
|
Технический лист |
JTK30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 100°C | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.43" H (25.4mm x 25.4mm x 10.9mm) | - | Enable, Active High | - | 62368-1 |
|
TMR 9-2423DC DC CONVERTER +/-15V 9W |
271 |
|
Технический лист |
TMR 9 (9W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 300mA, 300mA | 9 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
THM 3-2413WIDC DC CONVERTER 15V 3W |
354 |
|
Технический лист |
THM 3WI (3W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 200mA | 3 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 90°C | 87% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
PDQ15-Q48-S5-DDC DC CONVERTER 5V 15W |
788 |
|
Технический лист |
PDQ15-D (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
PDQ15-Q24-S12-DDC DC CONVERTER 12V 15W |
182 |
|
Технический лист |
PDQ15-D (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.25A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
PDQ15-Q24-S3-DDC DC CONVERTER 3.3V 13W |
171 |
|
Технический лист |
PDQ15-D (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 4A | 13 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|

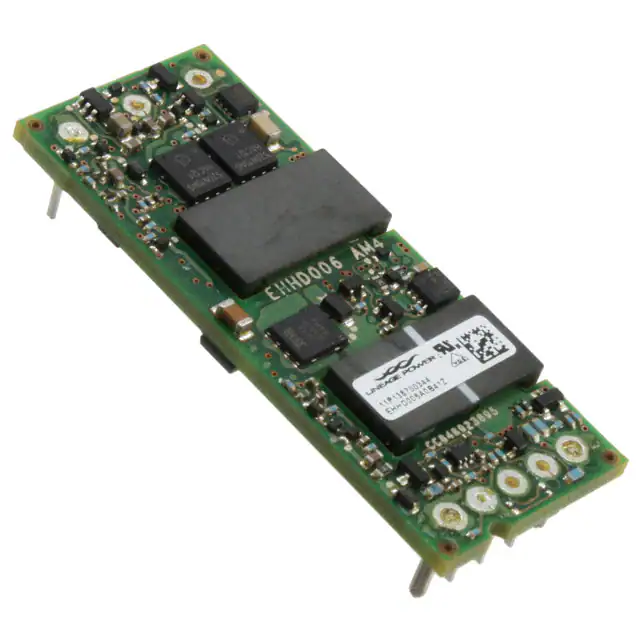

EHHD006A0B41-HZDC DC CONVERTER 12V 72W |
1,877 |
|
Технический лист |
Hammerhead™ EHHD006A0B (72W) | 8-DIP Module, 1/8 Brick | Bulk | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 6A | 72 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 91% | - | - | Through Hole | 2.28" L x 0.90" W x 0.47" H (57.9mm x 22.8mm x 12.0mm) | - | Enable, Active Low | - | - |
|
LTM4601HVEV#PBFDC DC CONVERTER 0.6-5V |
122 |
|
Технический лист |
µModule® | 118-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 0.6 ~ 5V | - | - | - | 12A | - | - | ITE (Commercial) | OVP, SCP, UVLO | -40°C ~ 85°C | 95% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 118-LGA (15x15) | - | - | - |
|
AVD75B-48S12B-6LDC DC CONVERTER 12V 75W |
326 |
|
Технический лист |
AVD75B (75W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 6.25A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 85°C | 93.3% | - | - | Through Hole | 1.30" L x 0.90" W x 0.47" H (33.0mm x 22.9mm x 12.0mm) | Sixteenth Brick | - | - | - |
|
THN 20-2413WIDC DC CONVERTER 15V 20W |
79 |
|
Технический лист |
THN 20WI (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1.33A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 75°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|
LTM4616EY#PBFDC DC CONVERTER 0.6-5V 0.6-5V |
213 |
|
Технический лист |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 2 | 2.7V | 5.5V | 0.6 ~ 5V | 0.6 ~ 5V | - | - | 8A, 8A | - | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.59" W x 0.13" H (15.0mm x 15.0mm x 3.4mm) | 144-BGA (15x15) | - | - | - |
|
LTM4643EY#PBFDC DC CONVERTER 3X0.6-3.3V |
203 |
|
Технический лист |
µModule® | 77-BBGA Module | Tray | Active | Non-Isolated PoL Module | 4 | 4V | 20V | 0.6 ~ 3.3V | 0.6 ~ 3.3V | 0.6 ~ 3.3V | - | 3A, 3A, 3A, 3A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.07" H (15.0mm x 9.0mm x 1.8mm) | 77-BGA (15x9) | - | - | - |
|
LTM4631EV#PBFDC DC CNVRTR 0.6-1.8V 0.6-1.8V |
20 |
|
Технический лист |
µModule® | 144-BBGA | Tray | Active | Non-Isolated PoL Module | 2 | 4.5V | 15V | 0.6 ~ 1.8V | 0.6 ~ 1.8V | - | - | 10A | - | - | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.63" L x 0.63" W x 0.11" H (16.0mm x 16.0mm x 2.7mm) | 144-BGA (16x16) | Enable, Active High | - | - |
|

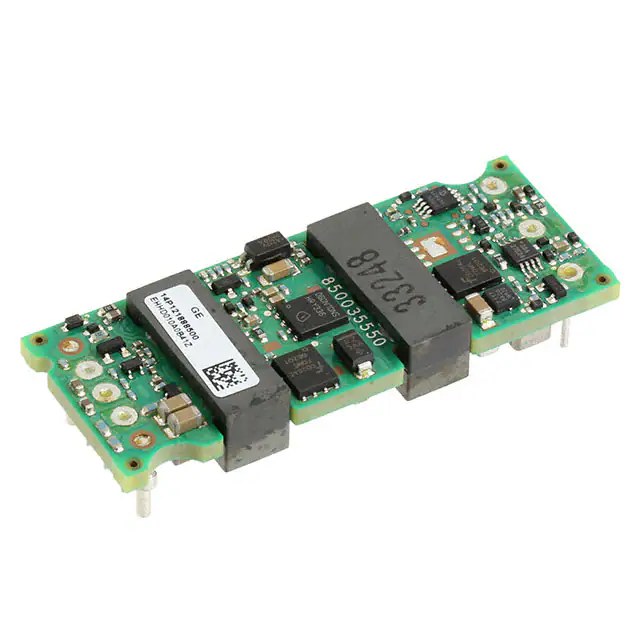

EHHD010A0B41ZDC DC CONVERTER 12V 120W |
1,151 |
|
Технический лист |
Hammerhead™ EHHD010A0B (120W) | 8-DIP Module, 1/8 Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 10A | 120 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Through Hole | 2.30" L x 0.90" W x 0.35" H (58.4mm x 22.9mm x 8.9mm) | - | Enable, Active Low | - | - |
|

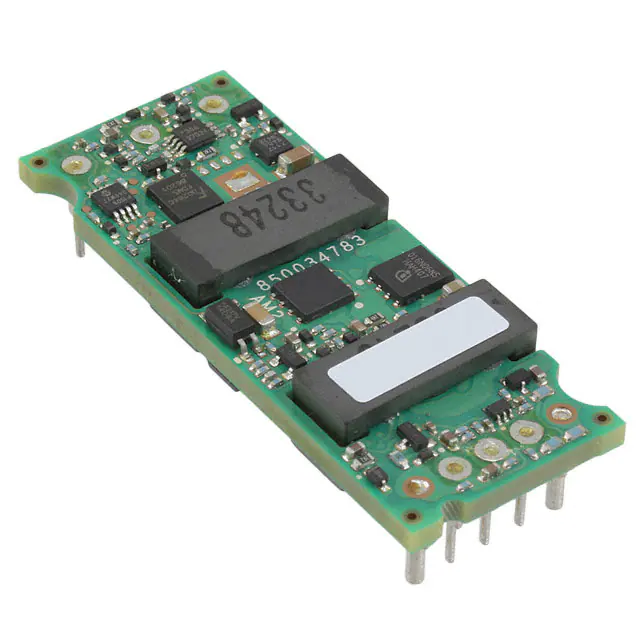

EHHD024A0A41ZDC DC CONVERTER 5V 120W |
195 |
|
Технический лист |
Hammerhead™ EHHD024A0A (120W) | 8-DIP Module, 1/8 Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 24A | 120 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 92% | - | - | Through Hole | 2.30" L x 0.90" W x 0.35" H (58.4mm x 22.9mm x 8.9mm) | - | Enable, Active Low | - | - |
