DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZUS34805-ADC DC CONVERTER 5V 3W |
0 |
|
Технический лист |
ZUS (3W) | 4-DIP Module | Box | Obsolete | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 71% | - | - | Through Hole | 1.38" L x 0.91" W x 0.28" H (35.0mm x 23.0mm x 7.0mm) | - | - | - | - |
|
|
ZUS34812-ADC DC CONVERTER 12V 3W |
0 |
|
Технический лист |
ZUS (3W) | 4-DIP Module | Box | Obsolete | Isolated Module | 1 | 36V | 72V | 12V | - | - | - | 250mA | 3 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 76% | - | - | Through Hole | 1.38" L x 0.91" W x 0.28" H (35.0mm x 23.0mm x 7.0mm) | - | - | - | - |
|
ZUS61205-ADC DC CONVERTER 5V 6W |
0 |
|
Технический лист |
ZUS (6W) | 4-DIP Module | Box | Obsolete | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1.2A | 6 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 73% | - | - | Through Hole | 1.75" L x 1.10" W x 0.28" H (44.5mm x 28.0mm x 7.0mm) | - | - | - | - |
|
|
ZUS61205-GDC DC CONVERTER 5V 6W |
0 |
|
Технический лист |
ZUS (6W) | 4-DIP Module | Box | Obsolete | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1.2A | 6 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 73% | - | - | Through Hole | 1.75" L x 1.10" W x 0.28" H (44.5mm x 28.0mm x 7.0mm) | - | - | - | - |
|
|
ZUS62405-ADC DC CONVERTER 5V 6W |
0 |
|
Технический лист |
ZUS (6W) | 4-DIP Module | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1.2A | 6 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 73% | - | - | Through Hole | 1.75" L x 1.10" W x 0.28" H (44.5mm x 28.0mm x 7.0mm) | - | - | - | - |
|
|
ZUS62405-GDC DC CONVERTER 5V 6W |
0 |
|
Технический лист |
ZUS (6W) | 4-DIP Module | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1.2A | 6 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 73% | - | - | Through Hole | 1.75" L x 1.10" W x 0.28" H (44.5mm x 28.0mm x 7.0mm) | - | - | - | - |
|
|
ZUS62412-GDC DC CONVERTER 12V 6W |
0 |
|
Технический лист |
ZUS (6W) | 4-DIP Module | Tray | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 500mA | 6 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 78% | - | - | Through Hole | 1.75" L x 1.10" W x 0.28" H (44.5mm x 28.0mm x 7.0mm) | - | - | - | - |
|
|
ZUS62415-GDC DC CONVERTER 15V 6W |
0 |
|
Технический лист |
ZUS (6W) | 4-DIP Module | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 400mA | 6 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 78% | - | - | Through Hole | 1.75" L x 1.10" W x 0.28" H (44.5mm x 28.0mm x 7.0mm) | - | - | - | - |
|
|
ZUS64805-ADC DC CONVERTER 5V 6W |
0 |
|
Технический лист |
ZUS (6W) | 4-DIP Module | Box | Obsolete | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 1.2A | 6 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 73% | - | - | Through Hole | 1.75" L x 1.10" W x 0.28" H (44.5mm x 28.0mm x 7.0mm) | - | - | - | - |
|
|
ZUS64812-ADC DC CONVERTER 12V 6W |
0 |
|
Технический лист |
ZUS (6W) | 4-DIP Module | Box | Obsolete | Isolated Module | 1 | 36V | 72V | 12V | - | - | - | 500mA | 6 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 78% | - | - | Through Hole | 1.75" L x 1.10" W x 0.28" H (44.5mm x 28.0mm x 7.0mm) | - | - | - | - |
|

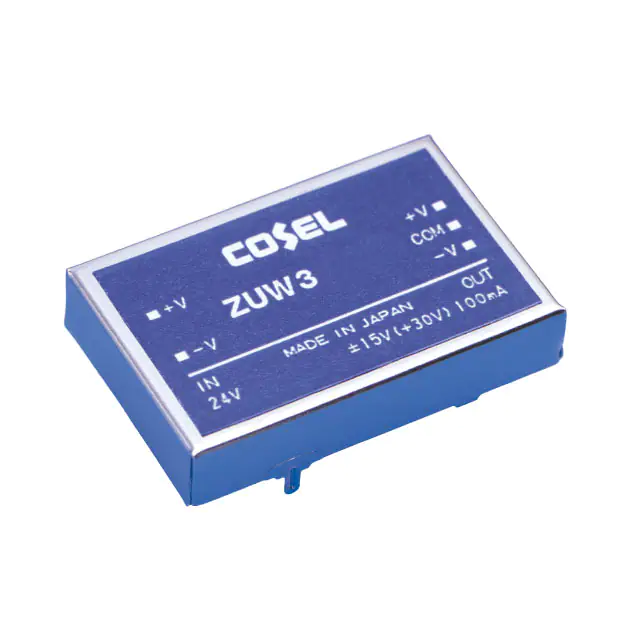

ZUW32415-GDC DC CONVERTER +/-15V 3W |
0 |
|
Технический лист |
ZUW (3W) | 5-DIP Module | Box | Obsolete | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 74% | - | - | Through Hole | 1.38" L x 0.91" W x 0.28" H (35.0mm x 23.0mm x 7.0mm) | - | - | - | - |
|

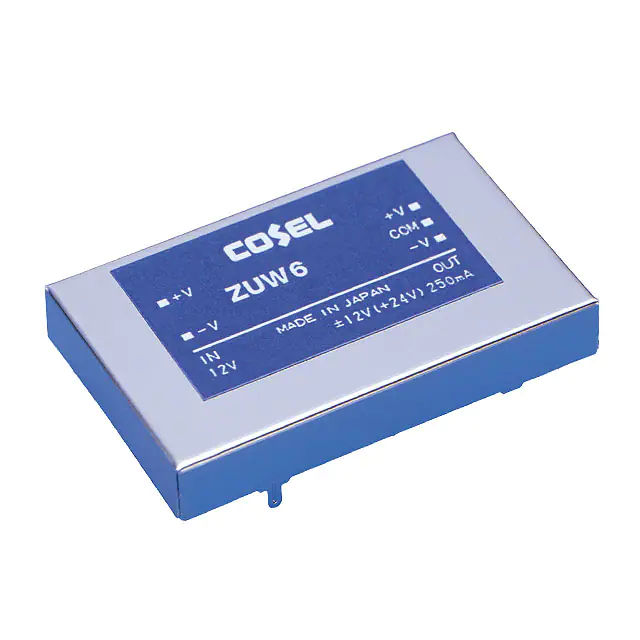

ZUW60512-ADC DC CONVERTER +/-12V 24V 6W |
0 |
|
Технический лист |
ZUW (6W) | 5-DIP Module | Box | Obsolete | Isolated Module | 2 | 4.5V | 9V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 75% | - | - | Through Hole | 1.75" L x 1.10" W x 0.28" H (44.5mm x 28.0mm x 7.0mm) | - | - | - | - |
|
|
ZUW62412-GDC DC CONVERTER +/-12V 24V 6W |
0 |
|
Технический лист |
ZUW (6W) | 5-DIP Module | Box | Obsolete | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 77% | - | - | Through Hole | 1.75" L x 1.10" W x 0.28" H (44.5mm x 28.0mm x 7.0mm) | - | - | - | - |
|
|
ZUW62415-GDC DC CONVERTER +/-15V 6W |
0 |
|
Технический лист |
ZUW (6W) | 5-DIP Module | Box | Obsolete | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 77% | - | - | Through Hole | 1.75" L x 1.10" W x 0.28" H (44.5mm x 28.0mm x 7.0mm) | - | - | - | - |
|
|
ZUW64812-ADC DC CONVERTER +/-12V 24V 6W |
0 |
|
Технический лист |
ZUW (6W) | 5-DIP Module | Box | Obsolete | Isolated Module | 2 | 36V | 72V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 77% | - | - | Through Hole | 1.75" L x 1.10" W x 0.28" H (44.5mm x 28.0mm x 7.0mm) | - | - | - | - |
|
DAS1004805DC DC CONVERTER 5V 100W |
0 |
|
Технический лист |
DAS (100W) | 12-DIP Module | Box | Obsolete | Isolated PoE (Power over Ethernet) Module | 1 | 88V | 370V | 5V | - | - | - | 20A | 100 W | 500 V | ITE (Commercial) | - | -10°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 5.12" L x 2.28" W x 0.50" H (130.0mm x 58.0mm x 12.7mm) | - | - | - | - |
|
|
DAS1004812DC DC CONVERTER 12V 102W |
0 |
|
Технический лист |
DAS (100W) | 12-DIP Module | Box | Obsolete | Isolated PoE (Power over Ethernet) Module | 1 | 36V | 72V | 12V | - | - | - | 8.5A | 102 W | 500 V | ITE (Commercial) | - | -10°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 5.12" L x 2.28" W x 0.50" H (130.0mm x 58.0mm x 12.7mm) | - | - | - | - |
|
|
DAS504805DC DC CONVERTER 5V 50W |
0 |
|
Технический лист |
DAS (50W) | 12-DIP Module | Box | Obsolete | Isolated PoE (Power over Ethernet) Module | 1 | 36V | 72V | 5V | - | - | - | 10A | 50 W | 500 V | ITE (Commercial) | - | -10°C ~ 85°C (With Derating) | 80% | - | - | Through Hole | 4.53" L x 2.28" W x 0.50" H (115.0mm x 58.0mm x 12.7mm) | - | - | - | - |
|
|
DAS504812DC DC CONVERTER 12V 50W |
0 |
|
Технический лист |
DAS (50W) | 12-DIP Module | Box | Obsolete | Isolated PoE (Power over Ethernet) Module | 1 | 36V | 72V | 12V | - | - | - | 4.2A | 50 W | 500 V | ITE (Commercial) | - | -10°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 4.53" L x 2.28" W x 0.50" H (115.0mm x 58.0mm x 12.7mm) | - | - | - | - |
|
|
DAS100F05DC DC CONVERTER 5V 100W |
0 |
|
Технический лист |
DAS (100W) | 12-DIP Module | Box | Obsolete | Isolated PoE (Power over Ethernet) Module | 1 | 88V | 370V | 5V | - | - | - | 20A | 100 W | - | ITE (Commercial) | - | -10°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 5.12" L x 2.28" W x 0.50" H (130.0mm x 58.0mm x 12.7mm) | - | - | - | - |
