DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CQS24120-12-RDC DC CONVERTER 12V 144W |
0 |
|
Технический лист |
CQS (140W) | 8-DIP Module | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 12A | 144 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.5mm) | - | - | - | - |
|
|
CQS24120-12-VDC DC CONVERTER 12V 144W |
0 |
|
Технический лист |
CQS (140W) | 8-DIP Module | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 12A | 144 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.5mm) | - | - | - | - |
|
|
CQS24150-8-NDC DC CONVERTER 15V 120W |
0 |
|
Технический лист |
CQS (140W) | 8-DIP Module | Box | Obsolete | Isolated Module | 1 | 20V | 33V | 15V | - | - | - | 8A | 120 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.5mm) | - | - | - | - |
|
|
CQS24150-8-RDC DC CONVERTER 15V 120W |
0 |
|
Технический лист |
CQS (140W) | 8-DIP Module | Box | Obsolete | Isolated Module | 1 | 20V | 33V | 15V | - | - | - | 8A | 120 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.5mm) | - | - | - | - |
|
|
CQS24150-8-VDC DC CONVERTER 15V 120W |
0 |
|
Технический лист |
CQS (140W) | 8-DIP Module | Box | Obsolete | Isolated Module | 1 | 20V | 33V | 15V | - | - | - | 8A | 120 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.5mm) | - | - | - | - |
|
|
CQS48033-45-NDC DC CONVERTER 3.3V 149W |
0 |
|
Технический лист |
CQS (160W) | 8-DIP Module | Box | Obsolete | Isolated Module | 1 | 36V | 76V | 3.3V | - | - | - | 45A | 149 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.5mm) | - | - | - | - |
|
|
CQS48033-45-RDC DC CONVERTER 3.3V 149W |
0 |
|
Технический лист |
CQS (160W) | 8-DIP Module | Box | Obsolete | Isolated Module | 1 | 36V | 76V | 3.3V | - | - | - | 45A | 149 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.5mm) | - | - | - | - |
|
|
CQS48050-28-NDC DC CONVERTER 5V 140W |
0 |
|
Технический лист |
CQS (160W) | 8-DIP Module | Box | Obsolete | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 28A | 140 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.5mm) | - | - | - | - |
|
|
CQS48050-28-RDC DC CONVERTER 5V 140W |
0 |
|
Технический лист |
CQS (160W) | 8-DIP Module | Box | Obsolete | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 28A | 140 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.5mm) | - | - | - | - |
|
|
CQS48050-28-VDC DC CONVERTER 5V 140W |
0 |
|
Технический лист |
CQS (160W) | 8-DIP Module | Box | Obsolete | Isolated Module | 1 | 36V | 76V | 5V | - | - | - | 28A | 140 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.5mm) | - | - | - | - |
|
|
CQS48120-14-NDC DC CONVERTER 12V 168W |
0 |
|
Технический лист |
CQS (160W) | 8-DIP Module | Box | Obsolete | Isolated Module | 1 | 36V | 76V | 12V | - | - | - | 14A | 168 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.5mm) | - | - | - | - |
|
|
CQS48120-14-RDC DC CONVERTER 12V 168W |
0 |
|
Технический лист |
CQS (160W) | 8-DIP Module | Box | Obsolete | Isolated Module | 1 | 36V | 76V | 12V | - | - | - | 14A | 168 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.5mm) | - | - | - | - |
|
|
CQS48120-14-VDC DC CONVERTER 12V 168W |
0 |
|
Технический лист |
CQS (160W) | 8-DIP Module | Box | Obsolete | Isolated Module | 1 | 36V | 76V | 12V | - | - | - | 14A | 168 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.5mm) | - | - | - | - |
|
|
CQS48150-8-VDC DC CONVERTER 15V 120W |
0 |
|
Технический лист |
CQS (160W) | 8-DIP Module | Box | Obsolete | Isolated Module | 1 | 40V | 60V | 15V | - | - | - | 8A | 120 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 92% | - | - | Through Hole | 2.28" L x 1.45" W x 0.33" H (57.9mm x 36.8mm x 8.5mm) | - | - | - | - |
|
|
DBS100A13R8DC DC CONVERTER 13.8V 101W |
0 |
|
Технический лист |
DBS (100W) | 21-DIP Module | Box | Obsolete | Isolated Module | 1 | 45V | 160V | 13.8V | - | - | - | 7.3A | 101 W | - | ITE (Commercial) | - | -20°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 4.60" L x 2.40" W x 0.50" H (116.8mm x 61.0mm x 12.7mm) | - | - | - | - |
|

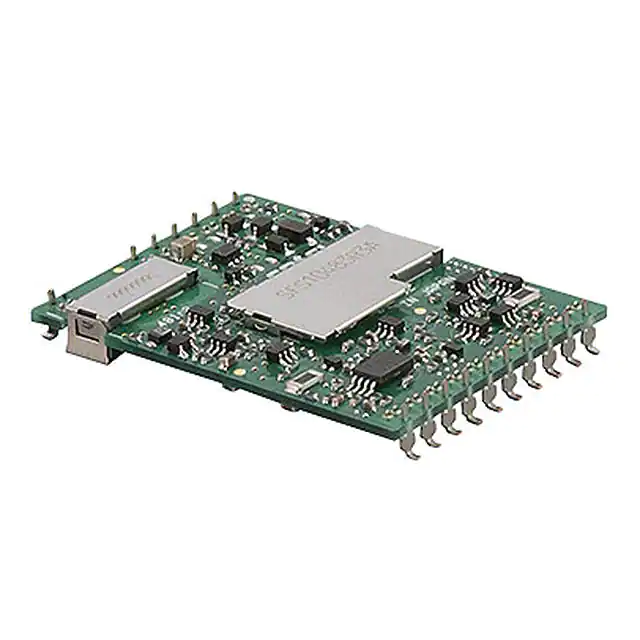

SFS104802BDC DC CONVERTER 2V 6W |
0 |
|
Технический лист |
SFS (10W) | 20-SMD Module, 17 Leads | Box | Obsolete | Isolated Module | 1 | 36V | 76V | 2V | - | - | - | 3A | 6 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 85% | - | - | Surface Mount | 1.52" L x 1.07" W x 0.20" H (38.7mm x 27.2mm x 5.0mm) | - | - | - | - |
|
|
SFS10481R5ADC DC CONVERTER 1.5V 5.25W |
0 |
|
Технический лист |
SFS (10W) | - | Box | Obsolete | Isolated Module | 1 | 36V | 76V | 1.5V | - | - | - | 3.5A | 5.25 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | - | - | - | 1.52" L x 1.07" W x 0.20" H (38.7mm x 27.2mm x 5.0mm) | - | - | - | - |
|
|
SFS10481R5BDC DC CONVERTER 1.5V 5.25W |
0 |
|
Технический лист |
SFS (10W) | 20-SMD Module, 17 Leads | Box | Obsolete | Isolated Module | 1 | 36V | 76V | 1.5V | - | - | - | 3.5A | 5.25 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | - | - | Surface Mount | 1.52" L x 1.07" W x 0.20" H (38.7mm x 27.2mm x 5.0mm) | - | - | - | - |
|
SFS10481R5CDC DC CONVERTER 1.5V 5.25W |
0 |
|
Технический лист |
SFS (10W) | 20-DIP Module, 17 Leads | Box | Obsolete | Isolated Module | 1 | 36V | 76V | 1.5V | - | - | - | 3.5A | 5.25 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 1.52" L x 1.07" W x 0.20" H (38.7mm x 27.2mm x 5.0mm) | - | - | - | - |
|

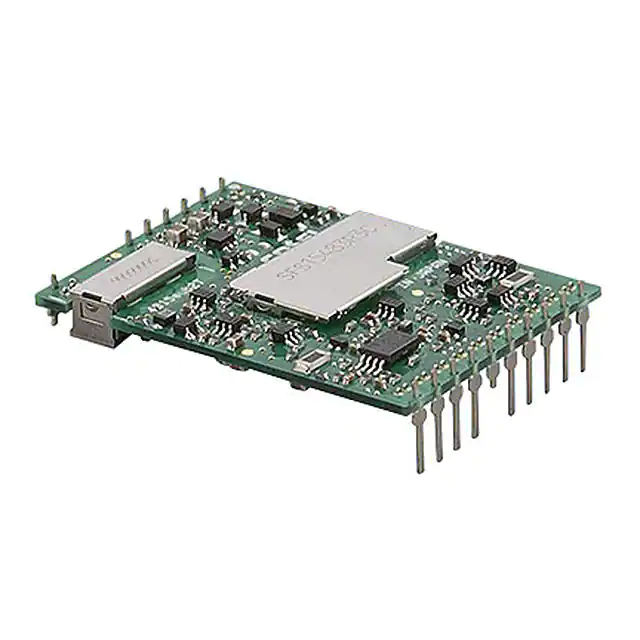

SFS154802CDC DC CONVERTER 2V 9W |
0 |
|
Технический лист |
SFS (15W) | 20-DIP Module, 17 Leads | Box | Obsolete | Isolated Module | 1 | 36V | 76V | 2V | - | - | - | 4.5A | 9 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.52" L x 1.07" W x 0.20" H (38.7mm x 27.2mm x 5.0mm) | - | - | - | - |
