DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NQB-420NWA-CNDC DC CONVERTER 12V 420W |
0 |
|
Технический лист |
NQB-N | Quarter Brick | Box | Obsolete | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 35A | 420 W | 2.25 kV | ITE (Commercial) | - | -40°C ~ 125°C | 95.7% | - | - | Through Hole | 2.28" L x 1.45" W x 0.44" H (57.9mm x 36.8mm x 11.2mm) | Quarter Brick | - | - | - |
.jpg)
|

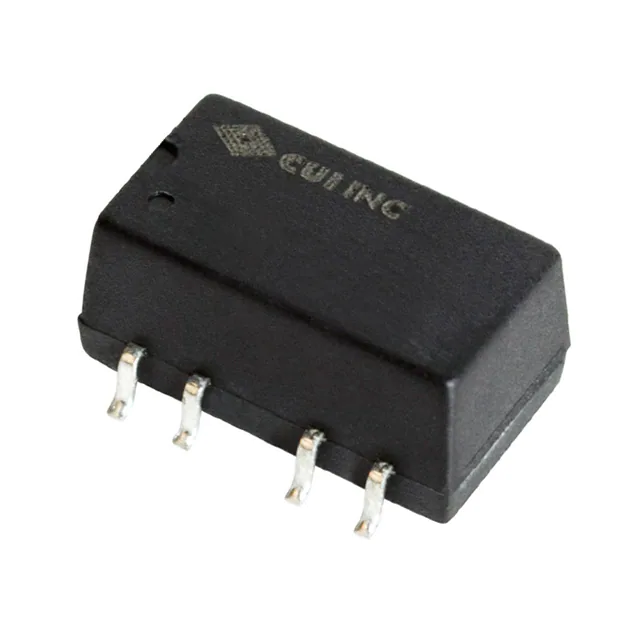

PDS1-S12-D5-MDC DC CONVERTER +/-5V 1W |
0 |
|
Технический лист |
PDS1-M (1W) | 10-SMD Module, 6 Leads | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.3mm x 7.3mm) | - | - | CB Scheme, EN, IEC | 55024; 55032 Class A; 60950-1 |
|
|
PDS1-S12-D9-MDC DC CONVERTER +/-9V 1W |
0 |
|
Технический лист |
PDS1-M (1W) | 10-SMD Module, 6 Leads | Tube | Obsolete | Isolated Module | 2 | 10.8V | 13.2V | 9V | -9V | - | - | 56mA, 56mA | 1 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 105°C (With Derating) | 80% | - | - | Surface Mount | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.3mm x 7.3mm) | - | - | CB Scheme, EN, IEC | 55024; 55032 Class A; 60950-1 |
|
|
CCK-0503SFDC DC CONVERTER 3.3V 1.32W |
0 |
|
Технический лист |
CCK (1.5W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 400mA | 1.32 W | 500 V | ITE (Commercial) | OCP | -20°C ~ 70°C (With Derating) | 66% | - | - | Through Hole | 1.10" L x 0.63" W x 0.31" H (27.9mm x 16.0mm x 7.9mm) | - | - | - | - |
|
|
CCK-0505SFDC DC CONVERTER 5V 1.5W |
0 |
|
Технический лист |
CCK (1.5W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 300mA | 1.5 W | 500 V | ITE (Commercial) | OCP | -20°C ~ 70°C (With Derating) | 68% | - | - | Through Hole | 1.10" L x 0.63" W x 0.31" H (27.9mm x 16.0mm x 7.9mm) | - | - | - | - |
|
|
CCK-0512SFDC DC CONVERTER 12V 1.5W |
0 |
|
Технический лист |
CCK (1.5W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 125mA | 1.5 W | 500 V | ITE (Commercial) | OCP | -20°C ~ 70°C (With Derating) | 70% | - | - | Through Hole | 1.10" L x 0.63" W x 0.31" H (27.9mm x 16.0mm x 7.9mm) | - | - | - | - |
|
|
CCK-1203SFDC DC CONVERTER 3.3V 1.32W |
0 |
|
Технический лист |
CCK (1.5W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 400mA | 1.32 W | 500 V | ITE (Commercial) | OCP | -20°C ~ 70°C (With Derating) | 70% | - | - | Through Hole | 1.10" L x 0.63" W x 0.31" H (27.9mm x 16.0mm x 7.9mm) | - | - | - | - |
|
|
CCK-1205SFDC DC CONVERTER 5V 1.5W |
0 |
|
Технический лист |
CCK (1.5W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 300mA | 1.5 W | 500 V | ITE (Commercial) | OCP | -20°C ~ 70°C (With Derating) | 73% | - | - | Through Hole | 1.10" L x 0.63" W x 0.31" H (27.9mm x 16.0mm x 7.9mm) | - | - | - | - |
|
|
CCK-1212SFDC DC CONVERTER 12V 1.5W |
0 |
|
Технический лист |
CCK (1.5W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 125mA | 1.5 W | 500 V | ITE (Commercial) | OCP | -20°C ~ 70°C (With Derating) | 75% | - | - | Through Hole | 1.10" L x 0.63" W x 0.31" H (27.9mm x 16.0mm x 7.9mm) | - | - | - | - |
|
|
CCK-2403SFDC DC CONVERTER 3.3V 1.32W |
0 |
|
Технический лист |
CCK (1.5W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 400mA | 1.32 W | 500 V | ITE (Commercial) | OCP | -20°C ~ 70°C (With Derating) | 70% | - | - | Through Hole | 1.10" L x 0.63" W x 0.31" H (27.9mm x 16.0mm x 7.9mm) | - | - | - | - |
|
|
CCK-2405SFDC DC CONVERTER 5V 1.5W |
0 |
|
Технический лист |
CCK (1.5W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 300mA | 1.5 W | 500 V | ITE (Commercial) | OCP | -20°C ~ 70°C (With Derating) | 75% | - | - | Through Hole | 1.10" L x 0.63" W x 0.31" H (27.9mm x 16.0mm x 7.9mm) | - | - | - | - |
|
|
CCK-2412SFDC DC CONVERTER 12V 1.5W |
0 |
|
Технический лист |
CCK (1.5W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 125mA | 1.5 W | 500 V | ITE (Commercial) | OCP | -20°C ~ 70°C (With Derating) | 75% | - | - | Through Hole | 1.10" L x 0.63" W x 0.31" H (27.9mm x 16.0mm x 7.9mm) | - | - | - | - |
|
|
CCK-4803SFDC DC CONVERTER 3.3V 1.32W |
0 |
|
Технический лист |
CCK (1.5W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 36V | 72V | 3.3V | - | - | - | 400mA | 1.32 W | 500 V | ITE (Commercial) | OCP | -20°C ~ 70°C (With Derating) | 70% | - | - | Through Hole | 1.10" L x 0.63" W x 0.31" H (27.9mm x 16.0mm x 7.9mm) | - | - | - | - |
|
|
CCK-4805SFDC DC CONVERTER 5V 1.5W |
0 |
|
Технический лист |
CCK (1.5W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 36V | 72V | 5V | - | - | - | 300mA | 1.5 W | 500 V | ITE (Commercial) | OCP | -20°C ~ 70°C (With Derating) | 75% | - | - | Through Hole | 1.10" L x 0.63" W x 0.31" H (27.9mm x 16.0mm x 7.9mm) | - | - | - | - |
|
|
CCM-0503SFDC DC CONVERTER 3.3V 1.98W |
0 |
|
Технический лист |
CCM (3W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 600mA | 1.98 W | 500 V | ITE (Commercial) | OCP | -20°C ~ 70°C (With Derating) | 65% | - | - | Through Hole | 1.12" L x 0.81" W x 0.33" H (28.4mm x 20.6mm x 8.4mm) | - | - | - | - |
|
|
CCM-0505SFDC DC CONVERTER 5V 3W |
0 |
|
Технический лист |
CCM (3W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | OCP | -20°C ~ 70°C (With Derating) | 70% | - | - | Through Hole | 1.12" L x 0.81" W x 0.33" H (28.4mm x 20.6mm x 8.4mm) | - | - | - | - |
|
|
CCM-0512SFDC DC CONVERTER 12V 3W |
0 |
|
Технический лист |
CCM (3W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 250mA | 3 W | 500 V | ITE (Commercial) | OCP | -20°C ~ 70°C (With Derating) | 72% | - | - | Through Hole | 1.12" L x 0.81" W x 0.33" H (28.4mm x 20.6mm x 8.4mm) | - | - | - | - |
|
|
CCM-1203SFDC DC CONVERTER 3.3V 1.98W |
0 |
|
Технический лист |
CCM (3W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 600mA | 1.98 W | 500 V | ITE (Commercial) | OCP | -20°C ~ 70°C (With Derating) | 70% | - | - | Through Hole | 1.12" L x 0.81" W x 0.33" H (28.4mm x 20.6mm x 8.4mm) | - | - | - | - |
|
|
CCM-1205SFDC DC CONVERTER 5V 3W |
0 |
|
Технический лист |
CCM (3W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | OCP | -20°C ~ 70°C (With Derating) | 75% | - | - | Through Hole | 1.12" L x 0.81" W x 0.33" H (28.4mm x 20.6mm x 8.4mm) | - | - | - | - |
|
|
CCM-1212SFDC DC CONVERTER 12V 3W |
0 |
|
Технический лист |
CCM (3W) | 6-DIP Module | Bulk | Obsolete | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 250mA | 3 W | 500 V | ITE (Commercial) | OCP | -20°C ~ 70°C (With Derating) | 77% | - | - | Through Hole | 1.12" L x 0.81" W x 0.33" H (28.4mm x 20.6mm x 8.4mm) | - | - | - | - |
