DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFS15481R5ADC DC CONVERTER 1.5V 7.8W |
0 |
|
Технический лист |
SFS (15W) | - | Box | Obsolete | Isolated Module | 1 | 36V | 76V | 1.5V | - | - | - | 5.2A | 7.8 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 83% | - | - | - | 1.52" L x 1.07" W x 0.20" H (38.7mm x 27.2mm x 5.0mm) | - | - | - | - |
|

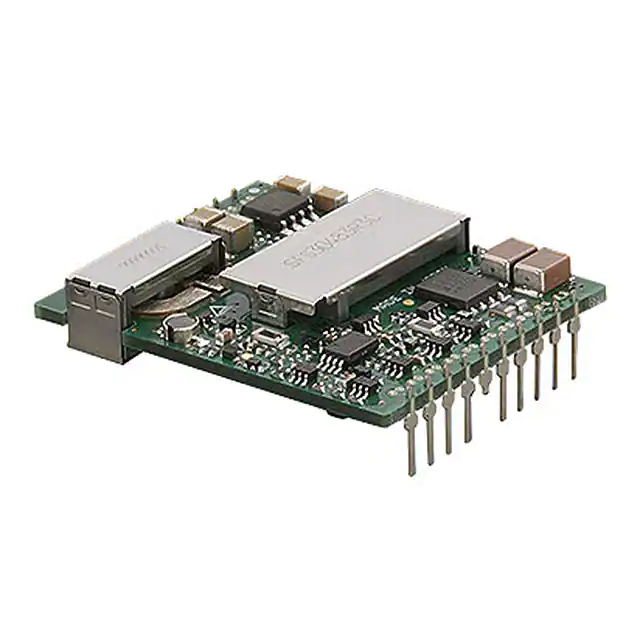

SFS30242R5CDC DC CONVERTER 2.5V 23W |
0 |
|
Технический лист |
SFS (30W) | 20-DIP Module, 17 Leads | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 2.5V | - | - | - | 9A | 23 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 1.52" L x 1.23" W x 0.31" H (38.7mm x 31.2mm x 8.0mm) | - | - | - | - |
|
|
SFS30481R2ADC DC CONVERTER 1.2V 12W |
0 |
|
Технический лист |
SFS (30W) | - | Box | Obsolete | Isolated Module | 1 | 36V | 76V | 1.2V | - | - | - | 10.4A | 12 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | - | - | - | 1.52" L x 1.23" W x 0.31" H (38.7mm x 31.2mm x 8.0mm) | - | - | - | - |
|

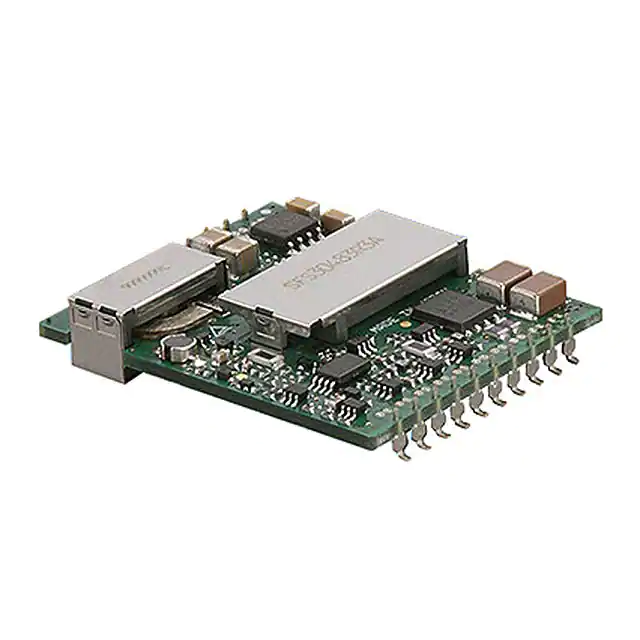

SFS30481R2BDC DC CONVERTER 1.2V 12W |
0 |
|
Технический лист |
SFS (30W) | 20-SMD Module, 17 Leads | Box | Obsolete | Isolated Module | 1 | 36V | 76V | 1.2V | - | - | - | 10.4A | 12 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 86% | - | - | Surface Mount | 1.52" L x 1.23" W x 0.31" H (38.7mm x 31.2mm x 8.0mm) | - | - | - | - |
|
|
SFS30481R5BDC DC CONVERTER 1.5V 16W |
0 |
|
Технический лист |
SFS (30W) | 20-SMD Module, 17 Leads | Box | Obsolete | Isolated Module | 1 | 36V | 76V | 1.5V | - | - | - | 10.4A | 16 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 87.5% | - | - | Surface Mount | 1.52" L x 1.23" W x 0.31" H (38.7mm x 31.2mm x 8.0mm) | - | - | - | - |
|
|
SFS30481R5CDC DC CONVERTER 1.5V 16W |
0 |
|
Технический лист |
SFS (30W) | 20-DIP Module, 17 Leads | Box | Obsolete | Isolated Module | 1 | 36V | 76V | 1.5V | - | - | - | 10.4A | 16 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 87.5% | - | - | Through Hole | 1.52" L x 1.23" W x 0.31" H (38.7mm x 31.2mm x 8.0mm) | - | - | - | - |
|
ZTS30512DC DC CONVERTER 12V 3W |
0 |
|
Технический лист |
ZTS (3W) | 6-DIP Module | Box | Obsolete | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 250mA | 3 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 70% | - | - | Through Hole | 1.40" L x 0.39" W x 1.02" H (35.5mm x 10.0mm x 26.0mm) | - | - | - | - |
|
|
ZTS32405-GDC DC CONVERTER 5V 3W |
0 |
|
Технический лист |
ZTS (3W) | 6-DIP Module | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 71% | - | - | Through Hole | 1.40" L x 0.39" W x 1.02" H (35.5mm x 10.0mm x 26.0mm) | - | - | - | - |
|
|
ZTS32415-GDC DC CONVERTER 15V 3W |
0 |
|
Технический лист |
ZTS (3W) | 6-DIP Module | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 200mA | 3 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 75% | - | - | Through Hole | 1.40" L x 0.39" W x 1.02" H (35.5mm x 10.0mm x 26.0mm) | - | - | - | - |
|
ZTW30512DC DC CONVERTER +/-12V 24V 3.1W |
0 |
|
Технический лист |
ZTW (3W) | 6-DIP Module | Box | Obsolete | Isolated Module | 2 | 4.5V | 9V | 12V | -12V | - | - | 130mA, 130mA | 3.1 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 70% | - | - | Through Hole | 1.40" L x 0.39" W x 1.02" H (35.5mm x 10.0mm x 26.0mm) | - | - | - | - |
|

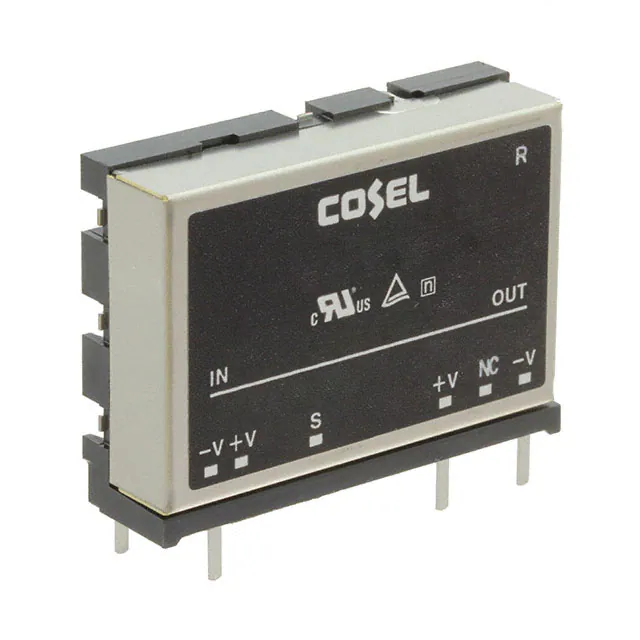

ZTW30515DC DC CONVERTER +/-15V 3W |
0 |
|
Технический лист |
ZTW (3W) | 6-DIP Module | Box | Obsolete | Isolated Module | 2 | 4.5V | 9V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 70% | - | - | Through Hole | 1.40" L x 0.39" W x 1.02" H (35.5mm x 10.0mm x 26.0mm) | - | - | - | - |
|
|
ZTW32415-GDC DC CONVERTER +/-15V 3W |
0 |
|
Технический лист |
ZTW (3W) | 6-DIP Module | Box | Obsolete | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 74% | - | - | Through Hole | 1.40" L x 0.39" W x 1.02" H (35.5mm x 10.0mm x 26.0mm) | - | - | - | - |
|
|
ZUS15053R3DC DC CONVERTER 3.3V 6.6W |
0 |
|
Технический лист |
ZUS (15W) | 6-DIP Module | Box | Obsolete | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 2A | 6.6 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 72% | - | - | Through Hole | 1.97" L x 1.77" W x 0.33" H (50.0mm x 45.0mm x 8.5mm) | - | - | - | - |
|
|
ZUS15483R3DC DC CONVERTER 3.3V 7.9W |
0 |
|
Технический лист |
ZUS (15W) | 6-DIP Module | Box | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 2.4A | 7.9 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 78% | - | - | Through Hole | 1.97" L x 1.77" W x 0.33" H (50.0mm x 45.0mm x 8.5mm) | - | - | - | - |
|

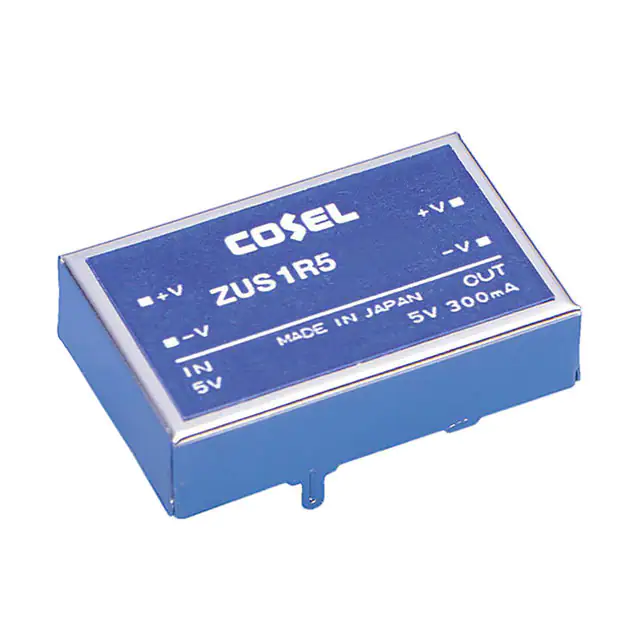

ZUS1R54812-ADC DC CONVERTER 12V 1.6W |
0 |
|
Технический лист |
ZUS (1.5W) | 4-DIP Module | Box | Obsolete | Isolated Module | 1 | 36V | 72V | 12V | - | - | - | 130mA | 1.6 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 73% | - | - | Through Hole | 1.08" L x 0.71" W x 0.28" H (27.5mm x 18.0mm x 7.0mm) | - | - | - | - |
|
|
ZUS25053R3DC DC CONVERTER 3.3V 13W |
0 |
|
Технический лист |
ZUS (25W) | 6-DIP Module | Box | Obsolete | Isolated Module | 1 | 4.5V | 9V | 3.3V | - | - | - | 4A | 13 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 72% | - | - | Through Hole | 2.56" L x 1.97" W x 0.33" H (65.0mm x 50.0mm x 8.5mm) | - | - | - | - |
|
ZUS30505-GDC DC CONVERTER 5V 3W |
0 |
|
Технический лист |
ZUS (3W) | 4-DIP Module | Box | Obsolete | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 67% | - | - | Through Hole | 1.38" L x 0.91" W x 0.28" H (35.0mm x 23.0mm x 7.0mm) | - | - | - | - |
|
|
ZUS32405-GDC DC CONVERTER 5V 3W |
0 |
|
Технический лист |
ZUS (3W) | 4-DIP Module | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 600mA | 3 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 71% | - | - | Through Hole | 1.38" L x 0.91" W x 0.28" H (35.0mm x 23.0mm x 7.0mm) | - | - | - | - |
|
|
ZUS32412-GDC DC CONVERTER 12V 3W |
0 |
|
Технический лист |
ZUS (3W) | 4-DIP Module | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 250mA | 3 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 75% | - | - | Through Hole | 1.38" L x 0.91" W x 0.28" H (35.0mm x 23.0mm x 7.0mm) | - | - | - | - |
|
|
ZUS32415-GDC DC CONVERTER 15V 3W |
0 |
|
Технический лист |
ZUS (3W) | 4-DIP Module | Box | Obsolete | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 200mA | 3 W | 500 V | ITE (Commercial) | - | -20°C ~ 71°C (With Derating) | 75% | - | - | Through Hole | 1.38" L x 0.91" W x 0.28" H (35.0mm x 23.0mm x 7.0mm) | - | - | - | - |
