DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVW010A0B41ZDC DC CONVERTER 12V 120W |
930 |
|
Технический лист |
EVW010A0B | Module | Bulk | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 10A | 120 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 93.5% | - | - | Through Hole | 2.28" L x 0.90" W x 0.34" H (57.9mm x 22.8mm x 8.5mm) | - | Enable, Active Low | - | - |
|
UEI15-120-Q12N-CDC DC CONVERTER 12V 15W |
755 |
|
Технический лист |
UEI15 (15W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.3A | 15 W | 2.25 kV | ITE (Commercial) | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 84.5% | - | - | Through Hole | 1.10" L x 0.96" W x 0.32" H (27.9mm x 24.4mm x 8.1mm) | - | - | - | - |
|
TEN 5-1221DC DC CONVERTER +/-5V 5W |
395 |
|
Технический лист |
TEN 5 (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 500mA, 500mA | 5 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Module | - | - | - |
|
TIM 3.5-1211DC DC CONVERTER 5V 3.5W |
123 |
|
Технический лист |
TIM 3.5 (3.5W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 700mA | 3.5 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 90°C (With Derating) | 79% | - | - | Through Hole | 0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm) | - | - | - | - |
|
TDR 3-4811WISMDC DC CONVERTER 5V 3W |
147 |
|
Технический лист |
TDR 3WISM (3W) | 14-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 600mA | 3 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C | 80% | - | - | Surface Mount | 0.74" L x 0.50" W x 0.34" H (18.9mm x 12.8mm x 8.7mm) | - | - | - | - |
|
TIM 3.5-1211SMDC DC CONVERTER 5V 3.5W |
108 |
|
Технический лист |
TIM 3.5SM (3.5W) | 16-SMD Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 700mA | 3.5 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 90°C (With Derating) | 79% | - | - | Surface Mount | 0.96" L x 0.57" W x 0.41" H (24.3mm x 14.4mm x 10.5mm) | - | - | - | - |
|
AVD75B-48S05-6LDC DC CONVERTER 5V 75W |
744 |
|
Технический лист |
AVD75B (75W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 15A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP | -40°C ~ 85°C | 91.5% | - | - | Through Hole | 1.30" L x 0.90" W x 0.36" H (33.0mm x 22.9mm x 9.2mm) | Sixteenth Brick | - | - | - |
|
CCG30-24-03SDC DC CONVERTER 3.3V 30W |
876 |
|
Технический лист |
CCG30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 7A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off, OCP | -40°C ~ 85°C | 86% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | IEC, UL, CSA, EN, CE, UKCA | 62368-1 |
|
THI 2411DC DC CONVERTER 5V 2W |
362 |
|
Технический лист |
THI 2 (2W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 400mA | 2 W | 2.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 62% | - | - | Through Hole | 1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm) | - | - | - | - |
|
TMR 9-1211DC DC CONVERTER 5V 8W |
183 |
|
Технический лист |
TMR 9 (9W) | 8-SIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 1.6A | 8 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
REC8-2412SRWZ/H3/A/MDC DC CONVERTER 12V 8W |
141 |
|
Технический лист |
ECONOLINE REC8 (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 666mA | 8 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, OCP, SCP | -40°C ~ 71°C | 85% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | Enable, Active High | - | - |
|
BTD24-12W45DDC DC CONVERTER +/-12V 11W |
106 |
|
Технический лист |
BTD (10W) | Module | Bulk | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 450mA, 450mA | 11 W | 500 V | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.41" L x 0.89" W x 0.33" H (35.9mm x 22.6mm x 8.4mm) | - | - | - | - |
|

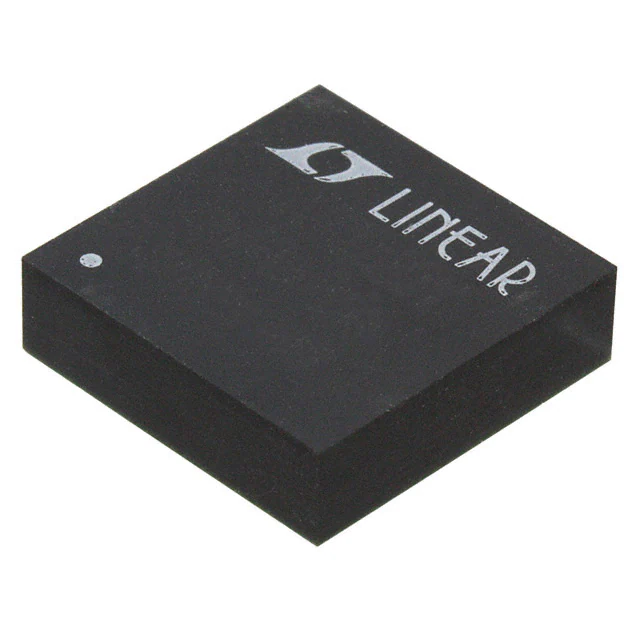

LTM8028IY#PBFDC DC CONVERTER 0.8-1.8V 9W |
107 |
|
Технический лист |
µModule® | 114-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 0.8 ~ 1.8V | - | - | - | 5A | - | - | ITE (Commercial) | OCP, OTP, SCP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.59" W x 0.19" H (15.0mm x 15.0mm x 4.9mm) | 114-BGA (15x15) | - | - | - |
|
LTM4608AMPV#PBFDC DC CONVERTER 0.6-5V |
101 |
|
Технический лист |
µModule® | 68-BLGA, Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.7V | 5.5V | 0.6 ~ 5V | - | - | - | 8A | - | - | ITE (Commercial) | - | -55°C ~ 125°C | 98% | - | - | Surface Mount | 0.59" L x 0.35" W x 0.11" H (15.0mm x 9.0mm x 2.8mm) | 68-LGA (15x9) | - | - | - |
|
|
REC8-2415SRWZ/H3/A/MDC DC CONVERTER 15V 8W |
195 |
|
Технический лист |
ECONOLINE REC8 (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 533mA | 8 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, OCP, SCP | -40°C ~ 71°C | 85% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
THI 2421DC DC CONVERTER +/-12V 1.9W |
288 |
|
Технический лист |
THI 2 (2W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 21.6V | 26.4V | 12V | -12V | - | - | 80mA, 80mA | 1.9 W | 2.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 58% | - | - | Through Hole | 1.26" L x 0.79" W x 0.39" H (32.0mm x 20.0mm x 10.0mm) | - | - | - | - |
|
S24SE12001NDFADC DC CONVERTER 12V 15W |
111 |
|
Технический лист |
S24SE (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.25A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 87.5% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active Low | - | - |
|
THB 3-1211DC DC CONVERTER 5V 3W |
844 |
|
Технический лист |
THB 3 (3W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C (With Derating) | 74% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.5mm) | - | - | - | - |
|
THN 10-4810WIRDC DC CONVERTER 3.3V 10W |
228 |
|
Технический лист |
THN 10WIR (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 3.3V | - | - | - | 3A | 10 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|

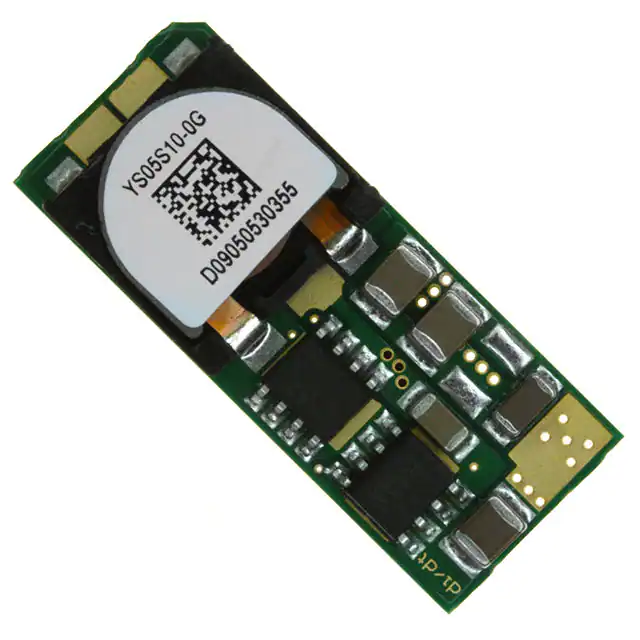

YS05S10-0GDC DC CONVERTER 0.75-3.63V 36W |
355 |
|
Технический лист |
Y (36W) | 6-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 3V | 5.5V | 0.75 ~ 3.63V | - | - | - | 10A | 36 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94.5% | - | - | Surface Mount | 1.30" L x 0.53" W x 0.31" H (33.0mm x 13.5mm x 7.9mm) | - | Enable, Active High | - | - |
