DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TEN 5-2421WIDC DC CONVERTER +/-5V 5W |
156 |
|
Технический лист |
TEN 5WI (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 500mA, 500mA | 5 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Module | - | - | - |
|
LTM8048IYDC DC CONVERTER 2.5-13V 1.2-12V |
0 |
|
Технический лист |
µModule® | 45-BBGA Module | Tray | Active | Isolated Module | 2 | 3.1V | 32V | 2.5 ~ 13V | 1.2 ~ 12V | - | - | 440mA, 300mA | - | 725 V | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.44" L x 0.35" W x 0.19" H (11.3mm x 9.0mm x 4.9mm) | 45-BGA (11.25x9) | - | - | - |
|
RS3-2412SZ/H3DC DC CONVERTER 12V 3W |
308 |
|
Технический лист |
ECONOLINE RS3 (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 27V | 12V | - | - | - | 250mA | 3 W | 3 kV | ITE (Commercial), Medical | Remote On/Off, SCP | -40°C ~ 71°C | 80% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) | - | Enable, Active Low | - | - |
|

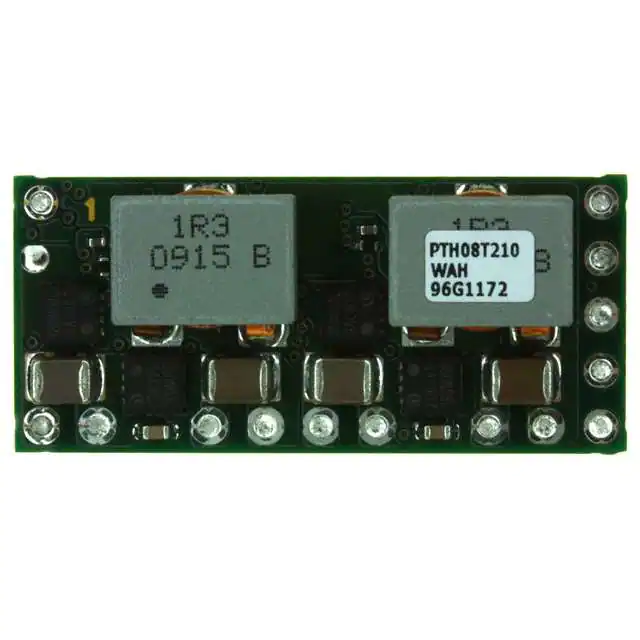

PTH08T210WAHDC DC CONVERTER 0.7-3.6V |
110 |
|
Технический лист |
PTH08T210W | 14-DIP Module | Bulk | Active | Non-Isolated PoL Module | 1 | 5.5V | 14V | 0.7 ~ 3.6V | - | - | - | 25A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 93% | - | - | Through Hole | 1.37" L x 0.62" W x 0.34" H (34.8mm x 15.8mm x 8.5mm) | - | - | - | - |
.jpg)
|
MGFW104815DC DC CONVERTER +/-15V 10W |
185 |
|
Технический лист |
MGFW (10W) | 7-SIP Module | Tube | Active | Isolated Module | 2 | 18V | 76V | 15V | -15V | - | - | 340mA, 340mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | - |
|
MGFS104812DC DC CONVERTER 12V 11W |
152 |
|
Технический лист |
MGFS (10W) | 7-SIP Module | Tube | Active | Isolated Module | 1 | 18V | 76V | 12V | - | - | - | 900mA | 11 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) | - | - | - | - |
|
UJT035A0X43-SRZDC DC CONVERTER 0.51-3.63V |
196 |
|
Технический лист |
MicroDLynx™ II | 17-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module, Digital | 1 | 4.5V | 14.4V | 0.51 ~ 3.63V | - | - | - | 35A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94.3% | - | - | Surface Mount | 0.80" L x 0.45" W x 0.43" H (20.3mm x 11.4mm x 11.0mm) | Module | Enable, Active High | - | - |
|
PDQ10-Q24-S3-DDC DC CONVERTER 3.3V 10W |
145 |
|
Технический лист |
PDQ10-D (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 2.5A | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 81% | - | - | Through Hole | - | - | Enable, Active High | EN | 55032 Class A |
|
|
PDQ10-Q24-S12-DDC DC CONVERTER 12V 10W |
128 |
|
Технический лист |
PDQ10-D (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 835mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 86% | - | - | Through Hole | - | - | Enable, Active High | EN | 55032 Class A |
|
|
PDQ10-Q24-S15-DDC DC CONVERTER 15V 10W |
120 |
|
Технический лист |
PDQ10-D (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 666mA | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 86% | - | - | Through Hole | - | - | Enable, Active High | EN | 55032 Class A |
|
VAWQ6-Q24-D12HDC DC CONVERTER +/-12V 6W |
232 |
|
Технический лист |
VAWQ6 (6W) | 24-DIP Module, 15 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 230mA, 230mA | 6 W | 3 kV | ITE (Commercial) | SCP | -25°C ~ 71°C | 80% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
TEN 5-2412DC DC CONVERTER 12V 6W |
128 |
|
Технический лист |
TEN 5 (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 500mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Module | - | - | - |
|
PKE3315PIDC DC CONVERTER 15V 30W |
195 |
|
Технический лист |
PKE 3000 (30W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2A | 30 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 110°C (With Derating) | 92% | - | - | Through Hole | 1.00" L x 1.00" W x 0.43" H (25.4mm x 25.4mm x 10.8mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|

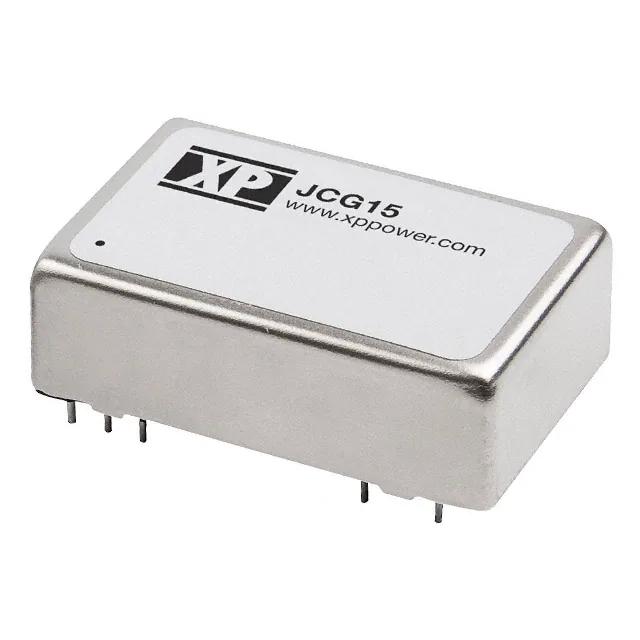

JCG1548S12DC DC CONVERTER 12V 15W |
238 |
|
Технический лист |
JCG (15W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 1.25A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 89% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active High | - | 62368-1 |
|
LTM8052AIY#PBFDC DC CONVERTER 1.2-24V |
0 |
|
Технический лист |
µModule® | 81-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 1.2 ~ 24V | - | - | - | 5A | - | - | ITE (Commercial) | OCP, OTP, OVP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.44" W x 0.11" H (15.0mm x 11.3mm x 2.8mm) | 81-BGA (15x11.25) | - | - | - |
|
JCM1524D15DC DC CONVERTER +/-15V 15W |
179 |
|
Технический лист |
JCM (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 105°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active High | - | 62368-1 |
|
SW003A5F91-SRZDC DC CONVERTER 3.3V 12W |
450 |
|
Технический лист |
SW003 | 6-SMD Module | Tape & Reel (TR) | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 3.5A | 12 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, UVLO | -40°C ~ 85°C | 85% | - | - | Surface Mount | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.6mm) | - | Enable, Active Low | - | - |
|
EC3SBW-48S05DC DC CONVERTER 5V 15W |
195 |
|
Технический лист |
EC3SBW (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 3A | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE | 60950-1 |
|
LTM8052AIV#PBFDC DC CONVERTER 1.2-24V |
82 |
|
Технический лист |
µModule® | 81-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 1.2 ~ 24V | - | - | - | 5A | - | - | ITE (Commercial) | OTP, OVP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.44" W x 0.11" H (15.0mm x 11.3mm x 2.8mm) | 81-LGA (15x11.25) | - | - | - |
|
JTD2024S12DC DC CONVERTER 12V 20W |
181 |
|
Технический лист |
JTD20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | 3 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 100°C (With Derating) | 88.5% | - | - | Through Hole | 1.60" L x 1.00" W x 0.41" H (40.6mm x 25.4mm x 10.4mm) | - | - | CE | 62368-1 |
