DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMR 6-2413WIDC DC CONVERTER 15V 6W |
172 |
|
Технический лист |
TMR 6WI (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 400mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 88% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|

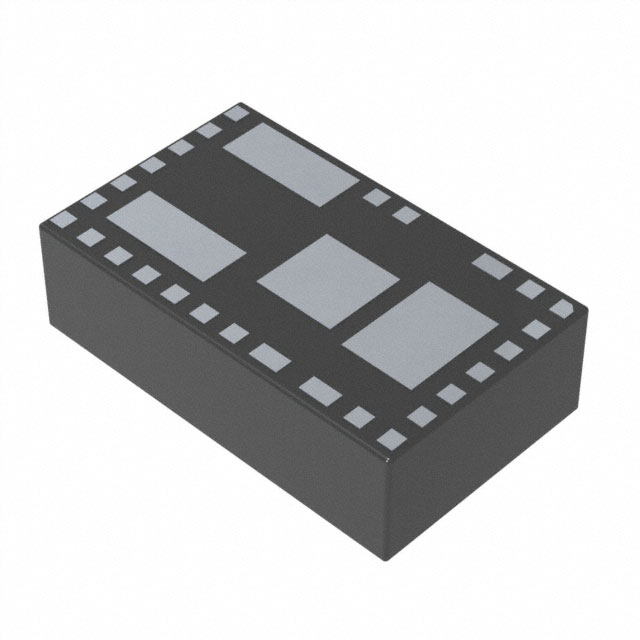

MAXM17546ALY#IC REG BUCK ADJ 5A 29SIP |
112 |
|
Технический лист |
Himalaya | 29-PowerBLGA Module | Tray | Active | - | - | 4.5V | 42V | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | - | Surface Mount | - | 29-SIP LGA (9x15) | - | - | - |
|
EC7AW-24S15NDC-DC CONVERTER |
107 |
|
Технический лист |
EC7AW (10W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 666mA | 10 W | 3 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off | -40°C ~ 105°C (With Derating) | 89.5% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active Low | CE | 62368-1 |
|
SW003A5F91ZDC DC CONVERTER 3.3V 12W |
195 |
|
Технический лист |
SW003 | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 3.5A | 12 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, UVLO | -40°C ~ 85°C | 85% | - | - | Through Hole | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.6mm) | - | Enable, Active Low | - | - |
|
SUCS62415CDC DC CONVERTER 15V |
304 |
|
Технический лист |
SUCS (6W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 400mA | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 1.28" L x 0.73" W x 0.28" H (32.6mm x 18.6mm x 7.0mm) | - | - | - | - |
|
|
SUCS62405CDC DC CONVERTER 5V |
266 |
|
Технический лист |
SUCS (6W) | 6-DIP Module | Box | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1.2A | - | 500 V | ITE (Commercial) | Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 81% | - | - | Through Hole | 1.28" L x 0.73" W x 0.28" H (32.6mm x 18.6mm x 7.0mm) | - | - | - | - |
|
TMR 3-2415WIRDC DC CONVERTER 24V 3W |
217 |
|
Технический лист |
TMR 3WIR (3W) | 8-SIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 125mA | 3 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, SCP | -40°C ~ 90°C (With Derating) | 82% | - | - | Through Hole | 0.86" L x 0.38" W x 0.44" H (21.8mm x 9.6mm x 11.2mm) | - | - | - | - |
|
JWE0624S05DC DC CONVERTER 5V 6W |
346 |
|
Технический лист |
JWE06 (6W) | 16-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1.2A | 6 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C (With Derating) | 82% | - | - | Through Hole | - | 16-DIP | - | - | 62368-1 |
|
TDN 5-2415WIDC DC CONVERTER 24V 5W |
111 |
|
Технический лист |
TDN 5WI (5W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 210mA | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 83% | - | - | Through Hole | 0.52" L x 0.36" W x 0.40" H (13.2mm x 9.1mm x 10.2mm) | - | - | - | - |
|
LTM8025IYDC DC CONVERTER 0.8-24V 72W |
0 |
|
Технический лист |
µModule® | 70-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.6V | 36V | 0.8 ~ 24V | - | - | - | 3A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.19" H (15.0mm x 9.0mm x 4.9mm) | 70-BGA (15x9) | - | - | - |
|
REC5-2405SRWZ/H4/ADC DC CONVERTER 5V 5W |
176 |
|
Технический лист |
ECONOLINE REC5 (5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 1A | 5 W | 4 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 82% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
.jpg)
|
REC3-2412DRWZ/H6/ADC DC CONVERTER +/-12V 3W |
157 |
|
Технический лист |
ECONOLINE REC3-DRW (3W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 6 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 85% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
TMR 6-2422WIDC DC CONVERTER +/-12V 6W |
148 |
|
Технический лист |
TMR 6WI (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 1.6 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 71°C | 87% | - | - | Through Hole | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm) | - | - | - | - |
|

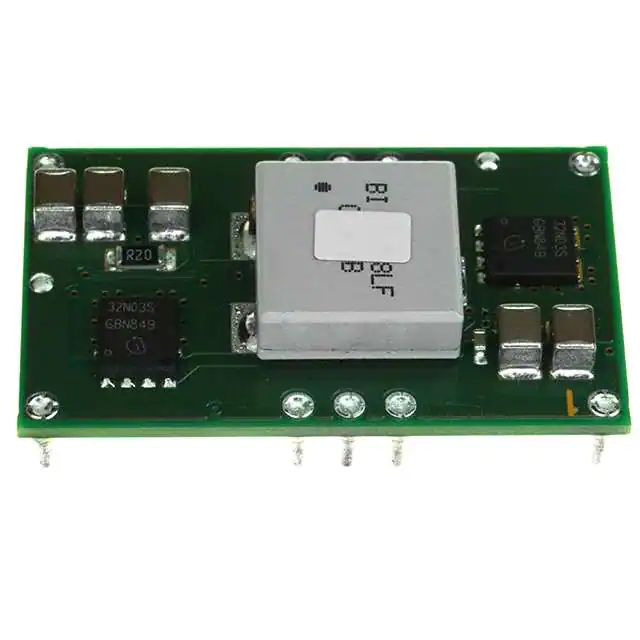

PTH05020WAHDC DC CONVERTER 0.8-3.6V 22A |
409 |
|
Технический лист |
PTH05020W | 10-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 0.8 ~ 3.6V | - | - | - | 22A | - | - | ITE (Commercial) | UVLO | -40°C ~ 85°C | 95% | - | - | Through Hole | 1.50" L x 0.87" W x 0.35" H (38.1mm x 22.1mm x 8.9mm) | - | - | - | - |
|
THD 10-1211NDC DC CONVERTER 5.1V 10W |
389 |
|
Технический лист |
THD 10N (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5.1V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
REC7.5-1212SRW/H2/A/MDC DC CONVERTER 12V 8W |
120 |
|
Технический лист |
ECONOLINE REC7.5 (7.5W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 625mA | 8 W | 2 kV | ITE (Commercial), Medical | SCP | -40°C ~ 71°C | 85% | - | - | Through Hole | 1.26" L x 0.80" W x 0.41" H (32.0mm x 20.3mm x 10.5mm) | - | - | - | - |
|
APTS020A0X3-SRZDC DC CONVERTER 0.7-5.5V 110W |
249 |
|
Технический лист |
TLynx™ | 10-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.7 ~ 5.5V | - | - | - | 20A | 110 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 92% | - | - | Surface Mount | 1.30" L x 0.53" W x 0.33" H (33.0mm x 13.5mm x 8.5mm) | - | Enable, Active Low | - | - |
|

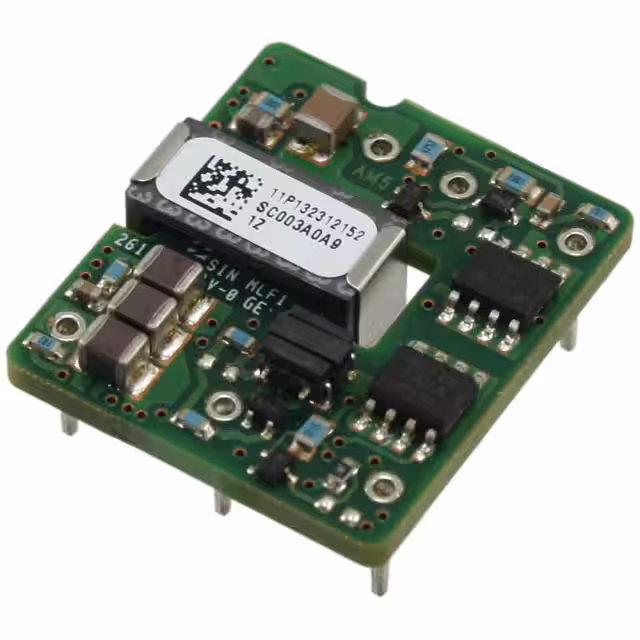

SC003A0A91ZDC DC CONVERTER 5V 15W |
537 |
|
Технический лист |
SC003 | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 3A | 15 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, UVLO | -40°C ~ 85°C | 85.5% | - | - | Through Hole | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.5mm) | - | Enable, Active Low | - | - |
|
TIM 2-1223DC DC CONVERTER +/-15V 2W |
313 |
|
Технический лист |
TIM 2 (2W) | 16-DIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 5 kV | Medical | Remote On/Off, OVP, SCP | -40°C ~ 95°C (With Derating) | 82% | - | - | Through Hole | 0.96" L x 0.57" W x 0.40" H (24.3mm x 14.4mm x 10.2mm) | - | - | - | - |
|
ASA00CC18-LSDC DC CONVERTER +/-15V 6W |
296 |
|
Технический лист |
ASA (6W) | 8-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 71°C | 81% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
