DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PXC-M03-24WS05-ADC DC CONVERTER 5V 3W |
129 |
|
Технический лист |
PXC-M03 (3W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 105°C | 84.5% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
SPM25-050-D48N-CDC DC CONVERTER 5V 25W |
329 |
|
Технический лист |
SPM25 (25W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 5A | 25 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -45°C ~ 85°C | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.41" H (25.4mm x 25.4mm x 10.4mm) | - | Enable, Active Low | - | - |
|
LTM4600HVIV#PBFDC DC CONVERTER 0.6-5V |
465 |
|
Технический лист |
µModule® | 104-BLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 28V | 0.6 ~ 5V | - | - | - | 10A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 92% | - | - | Surface Mount | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) | 104-LGA (15x15) | - | - | - |
|

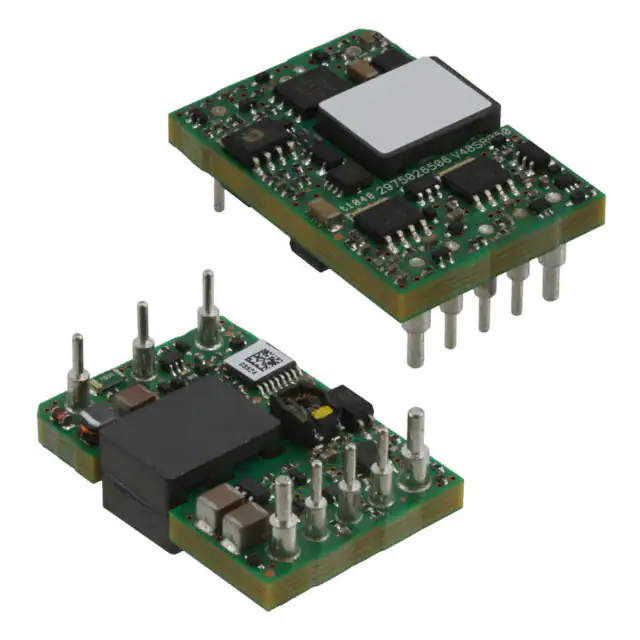

V48SR05013NRFADC DC CONVERTER 5V 65W |
745 |
|
Технический лист |
Delphi V48SR (66W) | 8-DIP Module, 1/16 Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 13A | 65 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 124°C | 91% | - | - | Through Hole | 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.9mm x 9.4mm) | - | Enable, Active Low | - | - |
|
LTM4648IYDC DC CONVERTER 0.6-5V |
205 |
|
Технический лист |
µModule® | 68-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 2.375V | 5.5V | 0.6 ~ 5V | - | - | - | 10A | - | - | ITE (Commercial) | OCP, OVP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.19" H (15.0mm x 9.0mm x 4.9mm) | 68-BGA (15x9) | - | - | - |
|

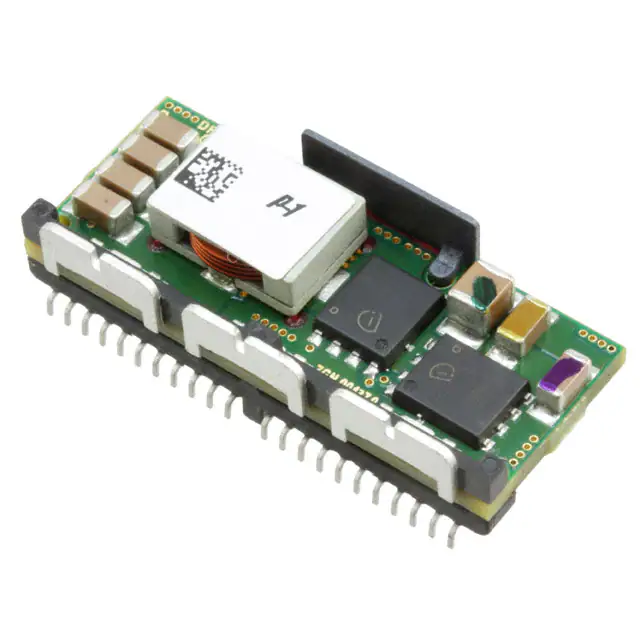

DP7120G-R100DC DC CONVERTER 0.7-5.5V |
1,441 |
|
Технический лист |
dPWER® | Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module, Digital | 1 | 8V | 14V | 0.7 ~ 5.5V | - | - | - | 20A | - | - | ITE (Commercial) | Digital, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | - | - | - | Surface Mount | 1.26" L x 0.55" W x 0.31" H (32.0mm x 14.0mm x 8.0mm) | - | - | - | - |
|
SKM50B-15DC DC CONVERTER 15V 50W |
246 |
|
Технический лист |
SKM50 (50W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 15V | - | - | - | 3.33A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 75°C (With Derating) | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.54" H (50.8mm x 25.4mm x 13.7mm) | - | - | - | - |
|
THM 6-2415WIDC DC CONVERTER 24V 6W |
74 |
|
Технический лист |
THM 6WI (6W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 250mA | 6 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 95°C | 88.5% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
REC3.5-0505SRW/R10/ADC DC CONVERTER 5V 3.5W |
240 |
|
Технический лист |
ECONOLINE REC3.5/R (3.5W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 700mA | 3.5 W | 10 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
REC3.5-0505SRW/R10/CDC DC CONVERTER 5V 3.5W |
48 |
|
Технический лист |
ECONOLINE REC3.5/R (3.5W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 700mA | 3.5 W | 10 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
TRI 6-2411DC DC CONVERTER 5V 6W |
27 |
|
Технический лист |
TRI 6 (6W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1.2A | 6 W | 9 kV | ITE (Commercial) | - | -40°C ~ 95°C | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.47" H (31.8mm x 20.3mm x 12.0mm) | - | - | CB, cURus | - |
|
|
REC3.5-0512SRW/R10/ADC DC CONVERTER 12V 3.5W |
306 |
|
Технический лист |
ECONOLINE REC3.5/R (3.5W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 12V | - | - | - | 290mA | 3.5 W | 10 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
EC7BW-110S05DC DC CONVERTER 5V 20W |
35 |
|
Технический лист |
EC7BW-110 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 43V | 160V | 5V | - | - | - | 4A | 20 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88.5% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | CE, cURus | 50155; 60950-1 |
|
CHB50-48S05DC DC CONVERTER 5V 50W |
30 |
|
Технический лист |
CHB50 (50W) | Half Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 84% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|

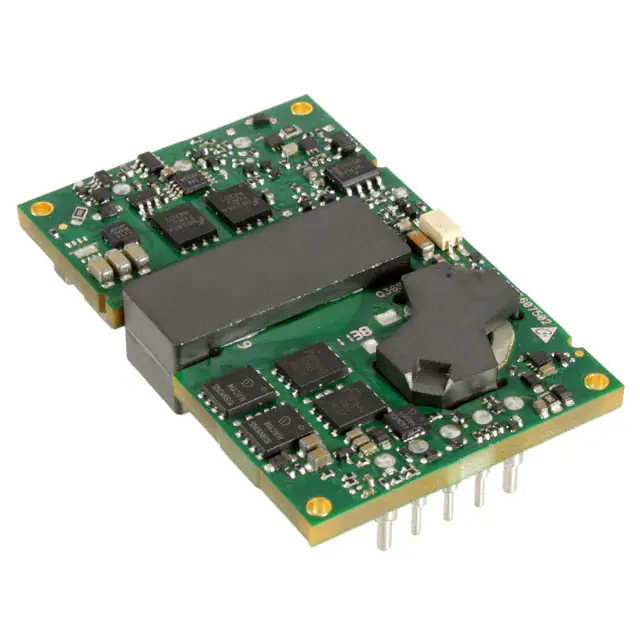

Q36SR12017NRFADC DC CONVERTER 12V 204W |
158 |
|
Технический лист |
Delphi Q36SR (240W) | 8-DIP Module, 1/4 Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 17A | 204 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 93% | - | - | Through Hole | 2.30" L x 1.45" W x 0.46" H (58.4mm x 36.8mm x 11.7mm) | - | Enable, Active Low | - | - |
|
RP08-2415SAWDC DC CONVERTER 15V 8W |
70 |
|
Технический лист |
POWERLINE RP08-W (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 533mA | 8 W | 1.6 kV | ITE (Commercial), Railway | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 78°C | 86% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active High | - | - |
|
EC1SC05DC DC CONVERTER +/-15V 20W |
31 |
|
Технический лист |
EC1SC (20W) | 8-DIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 666mA, 666mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -25°C ~ 100°C (With Derating) | 83% | - | - | Through Hole | 2.00" L x 1.60" W x 0.45" H (50.8mm x 40.6mm x 11.4mm) | - | Enable, Active High | cURus | 60950-1 |
|
THM 10-1212DC DC CONVERTER 12V 10W |
75 |
|
Технический лист |
THM 10 (10W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 830mA | 10 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 90°C (With Derating) | 88% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CB, cURus | - |
|
|
THM 10-4812DC DC CONVERTER 12V 10W |
27 |
|
Технический лист |
THM 10 (10W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 830mA | 10 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 90°C (With Derating) | 89% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | CB, cURus | - |
|
RPA20-2412SAW/NDC DC CONVERTER 12V 20W |
176 |
|
Технический лист |
RPA20-AW (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | 1.6 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | Enable, Active Low | - | - |
