DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
REM3-1205S/ADC DC CONVERTER 5V 3W |
117 |
|
Технический лист |
MEDLINE REM3 (3W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 600mA | 3 W | 5 kV | ITE (Commercial), Medical | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 84.5% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
E48SC12030NRFHDC DC CONVERTER 12V 360W |
39 |
|
Технический лист |
Delphi E48SC (360W) | 13-DIP Module, 1/8 Brick | Tray | Active | Isolated Module, Digital | 1 | 36V | 75V | 12V | - | - | - | 30A | 360 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 94.5% | - | - | Through Hole | 2.30" L x 0.90" W x 0.50" H (58.4mm x 22.9mm x 12.7mm) | - | Enable, Active Low | - | - |
|
I7C4W008A120V-0F3-RDC DC CONVERTER 10-48V 300W |
132 |
|
Технический лист |
I7c (300W) | Sixteenth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 36V | 9.6 ~ 48V | - | - | - | 8A | 384 W | - | ITE (Commercial) | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense | -40°C ~ 125°C | 97% | - | - | Through Hole | 1.45" L x 1.34" W x 0.98" H (36.8mm x 34.0mm x 24.9mm) | Sixteenth Brick | Enable, Active Low | CE, UKCA | 60950-1; 62368-1 |
|
CHB50-24S05DC DC CONVERTER 5V 50W |
138 |
|
Технический лист |
CHB50 (50W) | Half Brick | Tray | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 10A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 85% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
THM 10-2423WIDC DC CONVERTER +/-15V 10W |
100 |
|
Технический лист |
THM 10WI (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 90°C (With Derating) | 88% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
PXC-M10-24WS24-ADC DC CONVERTER 24V 10W |
600 |
|
Технический лист |
PXC-M10 (10W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 416mA | 10 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 105°C | 89% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
PXC-M10-24WS12-ADC DC CONVERTER 12V 10W |
201 |
|
Технический лист |
PXC-M10 (10W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 830mA | 10 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 105°C | 89% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
PXC-M10-24WS05-ADC DC CONVERTER 5V 10W |
57 |
|
Технический лист |
PXC-M10 (10W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 2A | 10 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 105°C | 86.5% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
THN 30-2413WIR33 WATT DC/DC CONVERTER, RAILWAY |
41 |
|
Технический лист |
THN 30WIR (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 2A | 30 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | 62368-1 |
|
TEN 20-1212DC DC CONVERTER 12V 20W |
392 |
|
Технический лист |
TEN 20 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 1.67A | 20 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
TEN 20-2411DC DC CONVERTER 5V 20W |
137 |
|
Технический лист |
TEN 20 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 4A | 20 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
THP 3-7222DC DC CONVERTER +/-12V 3W |
38 |
|
Технический лист |
THP 3 (3W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 36V | 160V | 12V | -12V | - | - | 125mA, 125mA | 3 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.5mm) | - | - | - | - |
|
|
TEN 20-2412DC DC CONVERTER 12V 20W |
30 |
|
Технический лист |
TEN 20 (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 1.67A | 20 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
REC20-245.1SZDC DC CONVERTER 5.1V 20W |
30 |
|
Технический лист |
ECONOLINE REC20-Z (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5.1V | - | - | - | 4A | 20 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 100°C | 90% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|
|
LGA110D-01DADJJBDCDC POL DUAL 55A DIGITAL/ANALOG |
167 |
|
Технический лист |
LGA (350W) | 34-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 7.5V | 14V | 0.5 ~ 5V | - | - | - | 110A | 350 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 96% | - | - | Surface Mount | 1.08" L x 0.50" W x 0.53" H (27.5mm x 12.8mm x 13.4mm) | - | - | - | - |
|

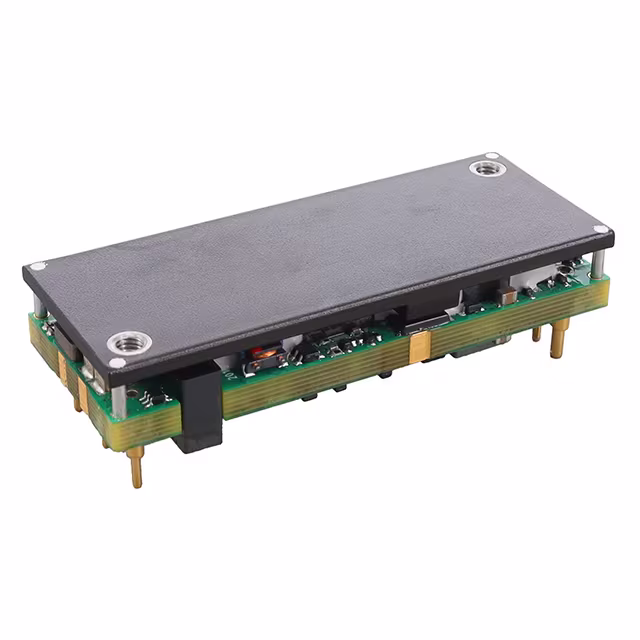

AVO250-48S28B-6LDC DC CONVERTER 28V 250W |
291 |
|
Технический лист |
AVO250 (250W) | 8-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 75V | 28V | - | - | - | 9A | 250 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 93% | - | - | Through Hole | 2.29" L x 0.91" W x 0.50" H (58.1mm x 23.0mm x 12.7mm) | - | - | - | - |
|
VG10-12S250DC DC CONVERTER 250V 10W |
26 |
|
Технический лист |
VG10 (10W) | 4-DIP Module | Bulk | Active | High Voltage - Isolated Module | 1 | 9V | 18V | 250V | - | - | - | 40mA | 10 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP | -25°C ~ 70°C (With Derating) | 81% | - | - | Through Hole | 2.00" L x 1.00" W x 0.50" H (50.8mm x 25.4mm x 12.7mm) | 4-DIP | - | - | - |
|
PTH08T250WAZDC DC CONVERTER 0.7-3.6V |
63 |
|
Технический лист |
PTH08T250W | 22-SMD Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 14V | 0.7 ~ 3.6V | - | - | - | 50A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | -40°C ~ 85°C | 94% | - | - | Surface Mount | 1.52" L x 1.02" W x 0.40" H (38.6mm x 25.9mm x 10.2mm) | - | - | - | - |
|
THM 20-2412DC DC CONVERTER 12V 20W |
239 |
|
Технический лист |
THM 20 (20W) | 5-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 1.67A | 20 W | 5 kV | Medical | OCP, OTP, OVP, SCP | -40°C ~ 80°C (With Derating) | 90% | - | - | Through Hole | 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm) | - | - | - | - |
|

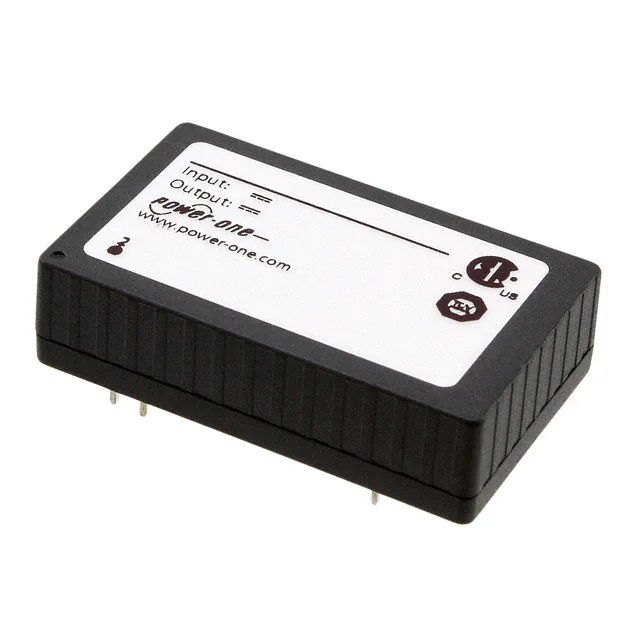

20IMX4-1212-8GDC DC CONVERTER +/-12V 4W |
153 |
|
Технический лист |
Melcher IMX4 (4W) | 24-DIP Module, 13 Leads | Bulk | Active | Isolated Module, Conformal Coated | 2 | 8.4V | 36V | 12V | -12V | - | - | 170mA, 170mA | 4 W | 1.2 kV | ITE (Commercial), Railway | OTP, OVP, SCP | -40°C ~ 85°C | 82% | - | - | Through Hole | 1.30" L x 0.79" W x 0.33" H (33.0mm x 20.1mm x 8.4mm) | - | - | - | - |
