DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MGFW304815DC DC CONVERTER +/-15V |
42 |
|
Технический лист |
MGFW (30W) | 6-DIP Module | Box | Active | Isolated Module | 2 | 18V | 76V | 15V or 30V | -15V | - | - | 1A, 1A | - | 1.5 kV | ITE (Commercial) | Bridgeable, Remote On/Off, OCP | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.39" H (50.8mm x 25.4mm x 9.9mm) | - | - | - | - |
|
THN 15-7215WIRDC DC CONVERTER 24V 15W |
83 |
|
Технический лист |
THN 15WIR (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 160V | 24V | - | - | - | 625mA | 15 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
RSDW60F-12DC DC CONVERTER 12V 60W |
279 |
|
Технический лист |
RSDW60 (60W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 5A | 60 W | 1.6 kV | Railway | - | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm) | - | - | CE, EAC | - |
|
JTM2024S3V3DC DC CONVERTER 3.3V 20W |
108 |
|
Технический лист |
JTM (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 5.5A | 20 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 89% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | 62368-1 |
|
TVN 5-2410WIDC DC CONVERTER 3.3V 5W |
469 |
|
Технический лист |
TVN 5WI (5W) | 24-DIP Module, 10 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 1.515A | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 90°C (With Derating) | 81% | - | - | Through Hole | 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm) | - | - | - | - |
|
JHM1512S12DC DC CONVERTER 12V 15W |
55 |
|
Технический лист |
JHM (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 1.25A | 15 W | 4 kV | Medical | OCP, OVP, SCP, UVLO | -40°C ~ 80°C | 86% | - | - | Through Hole | 1.60" L x 1.00" W x 0.40" H (40.6mm x 25.4mm x 10.2mm) | - | - | - | - |
|
THN 20-2425WIDC DC CONVERTER +/-24V 20W |
77 |
|
Технический лист |
THN 20WI (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 24V | -24V | - | - | 417mA, 417mA | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 75°C (With Derating) | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|
THN 15-2423WIDC DC CONVERTER +/-15V 15W |
328 |
|
Технический лист |
THN 15WI (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|
REC6-2405DRW/R10/ADC DC CONVERTER +/-5V 6W |
106 |
|
Технический лист |
ECONOLINE REC6/R (6W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 500mA, 500mA | 6 W | 10 kV | ITE (Commercial), Medical | SCP | -40°C ~ 75°C | 81% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
|
THN 15-4825WIRDC DC CONVERTER +/-24V 15W |
29 |
|
Технический лист |
THN 15WIR (15W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 18V | 75V | 24V | -24V | - | - | 315mA, 315mA | 15 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
TEN 20-2412WINDC DC CONVERTER 12V 20W |
230 |
|
Технический лист |
TEN 20WIN (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|

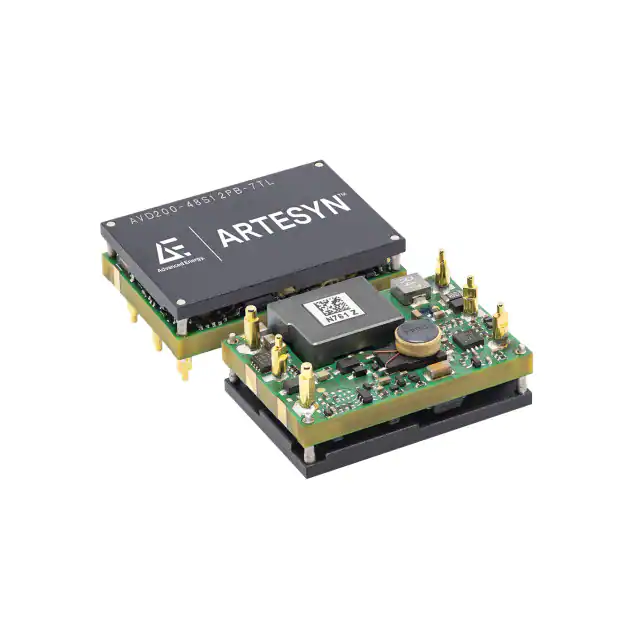

AVD200-48S12PB-6L12V 200W SIXTEENTH BRICK |
345 |
|
Технический лист |
AVD200-48S12 (200W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 17A | 204 W | 2.25 kV | ITE (Commercial) | Baseplate, Remote On/Off | -40°C ~ 85°C | 93.9% | - | - | Through Hole | 1.30" L x 0.90" W x 0.50" H (33.0mm x 22.9mm x 12.7mm) | Sixteenth Brick | - | CE, CSA, TUV, UL | 62368-1 |
|
TVN 5-2415WIDC DC CONVERTER 24V 5W |
35 |
|
Технический лист |
TVN 5WI (5W) | 24-DIP Module, 10 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 208mA | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 90°C (With Derating) | 89% | - | - | Through Hole | 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm) | - | - | - | - |
|
THN 15-7211WIRDC DC CONVERTER 5V 15W |
1,791 |
|
Технический лист |
THN 15WIR (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 160V | 5V | - | - | - | 3A | 15 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
THL 20-2412WIDC DC CONVERTER 12V 20W |
73 |
|
Технический лист |
THL 20WI (20W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 75°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) | - | - | - | - |
|
CHB75-24S12NDC DC CONVERTER 12V 75W |
841 |
|
Технический лист |
CHB75 (75W) | Half Brick | Tray | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 6.25A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active Low | CE, cURus | 60950-1 |
|
ECLB40W-110D12DC DC CONVERTER +/-12V 40W |
26 |
|
Технический лист |
ECLB40W-110S (40W) | 6-DIP Module | Tray | Active | Isolated Module | 2 | 43V | 160V | 12V | -12V | - | - | 1.667A, 1.667A | 40 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 2.05" L x 1.20" W x 0.40" H (52.0mm x 30.5mm x 10.2mm) | - | Enable, Active High | CE, cURus | 50155; 60950-1 |
.jpg)
|
TEN 12-2412DC DC CONVERTER 12V 12W |
142 |
|
Технический лист |
TEN 12WI (12W) | 5-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1A | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
|
TEN 12-2413DC DC CONVERTER 15V 12W |
128 |
|
Технический лист |
TEN 12WI (12W) | 5-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 800mA | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 84% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|

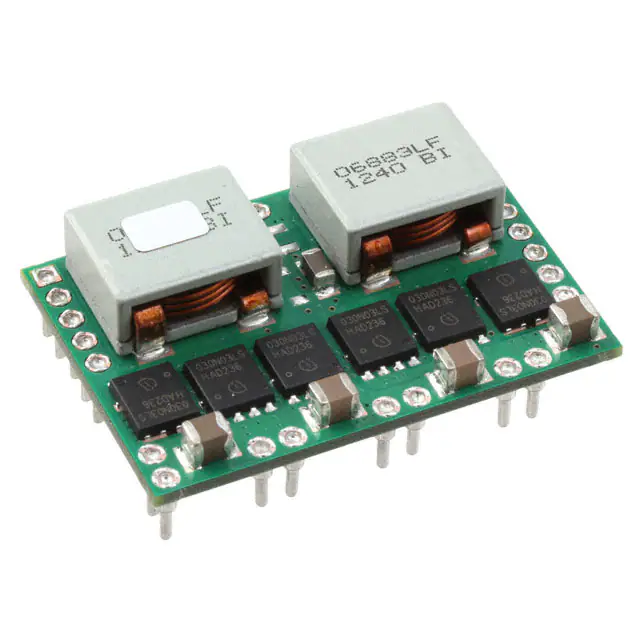

PTH08T255WADDC DC CONVERTER 3-5.25V |
83 |
|
Технический лист |
PTH08T255W | 22-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 8V | 14V | 3 ~ 5.25V | - | - | - | 40A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 95% | - | - | Through Hole | 1.52" L x 1.02" W x 0.38" H (38.6mm x 25.9mm x 9.7mm) | - | - | - | - |
