DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TEN 20-2410WINDC DC CONVERTER 3.3V 18W |
83 |
|
Технический лист |
TEN 20WIN (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 5.5A | 18 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
TEN 40-4812EDC DC CONVERTER 12V 40W |
59 |
|
Технический лист |
TEN 40E (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 3.333A | 40 W | 1.6 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 92% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | CB, cURus | - |
|

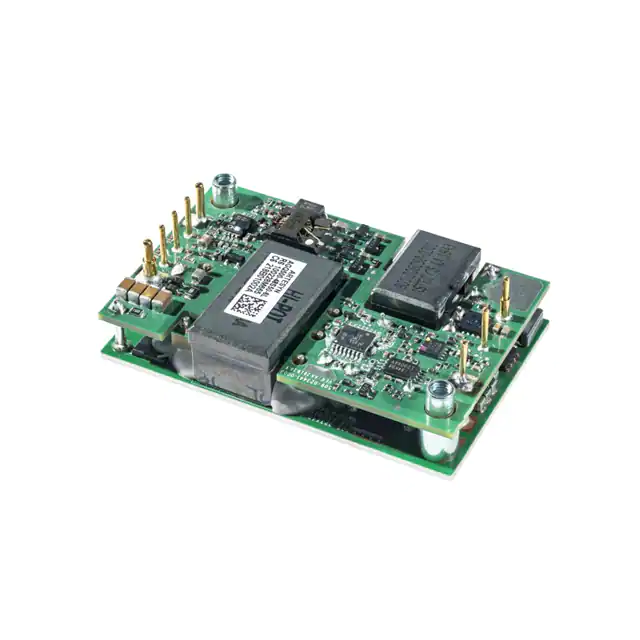

AGQ500-48S28P-6L500W, 36 - 75VIN, SINGLE, 28V@18 |
210 |
|
Технический лист |
AGQ500 (500W) | Quarter Brick | Box | Active | Isolated Module | 1 | 36V | 75V | 28V | - | - | - | 18A | 504 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C | 94.5% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active High | CE, CSA, TUV, UL | 60950-1; 62368-1 |
|
THM 10-2421WIDC DC CONVERTER +/-5V 10W |
191 |
|
Технический лист |
THM 10WI (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 1A, 1A | 10 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 90°C (With Derating) | 85% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
RP10-2405SEWDC DC CONVERTER 5V 10W |
486 |
|
Технический лист |
POWERLINE RP10-EW (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 2A | 10 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP | -25°C ~ 85°C | 80% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
THD 15-2423WINDC DC CONVERTER +/-15V 15W |
27 |
|
Технический лист |
THD 15WIN (15W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 500mA, 500mA | 15 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
THM 3-2412WIDC DC CONVERTER 12V 3W |
78 |
|
Технический лист |
THM 3WI (3W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 250mA | 3 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 90°C | 87% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
TVN 5-2425WIDC DC CONVERTER +/-24V 5W |
51 |
|
Технический лист |
TVN 5WI (5W) | 24-DIP Module, 12 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 24V | -24V | - | - | 104mA, 104mA | 5 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 90°C (With Derating) | 87% | - | - | Through Hole | 1.26" L x 0.79" W x 0.40" H (32.0mm x 20.0mm x 10.2mm) | - | - | - | - |
|
PXB15-48WS12/NTDC DC CONVERTER 12V 15W |
89 |
|
Технический лист |
PXB (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 1.3A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | - | - |
|
|
PXB15-24WS15/NTDC DC CONVERTER 15V 15W |
71 |
|
Технический лист |
PXB (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | - | - |
|

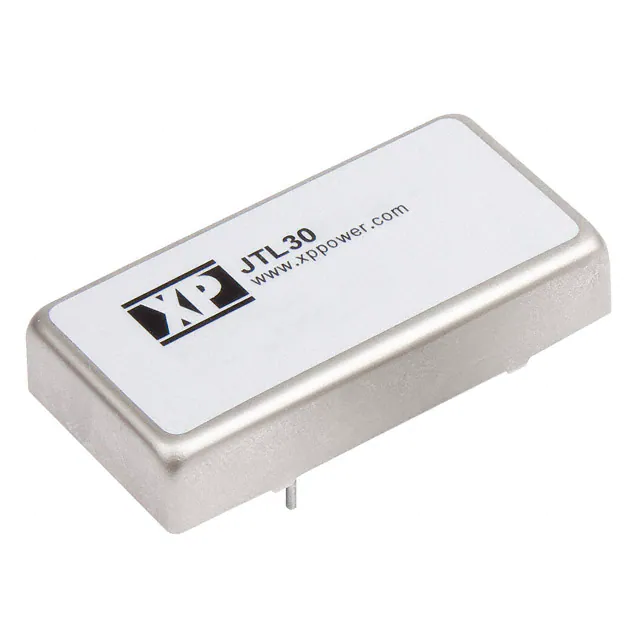

JTL3024S05DC DC CONVERTER 5V 30W |
74 |
|
Технический лист |
JTL (30W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 6A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 75°C | 91% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
.jpg)
|
MGFS404805DC DC CONVERTER 5V 40W |
28 |
|
Технический лист |
MGFS (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 76V | 5V | - | - | - | 8A | 40 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | CE, cURus, DEMKO | - |
|
E48SC32009NRAHDC DC CONVERTER 32V 301W |
88 |
|
Технический лист |
Delphi E48SC (300W) | Eighth Brick | Tray | Active | Isolated Module | 1 | 36V | 72V | 32V | - | - | - | 9.4A | 301 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 95% | - | - | Through Hole | 2.30" L x 0.90" W x 0.50" H (58.4mm x 22.8mm x 12.7mm) | Eighth Brick | - | - | - |
|
TEN 20-2421WINDC DC CONVERTER +/-5V 20W |
34 |
|
Технический лист |
TEN 20WIN (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 5V | -5V | - | - | 2A, 2A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
THP 3-7211DC DC CONVERTER 5V 3W |
26 |
|
Технический лист |
THP 3 (3W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 36V | 160V | 5V | - | - | - | 600mA | 3 W | 3 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C (With Derating) | 78% | - | - | Through Hole | 1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.5mm) | - | - | - | - |
|
|
THM 10-4811WIDC DC CONVERTER 5V 10W |
935 |
|
Технический лист |
THM 10WI (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 2A | 10 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 90°C (With Derating) | 86.5% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
TEN 10-2415DC DC CONVERTER 24V 10W |
130 |
|
Технический лист |
TEN 10 (10W) | 5-DIP Module, 4 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 415mA | 10 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP | -40°C ~ 85°C (With Derating) | 83% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | - | - | - |
|
LTM4641EY#PBFDC DC CONVERTER 0.6-6V |
48 |
|
Технический лист |
µModule® | 144-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 4.5V | 38V | 0.6 ~ 6V | - | - | - | 10A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.59" W x 0.20" H (15.0mm x 15.0mm x 5.0mm) | 144-BGA (15x15) | - | - | - |
|
MPS0117V2NBCDC DC CONV 36-75VIN 12V 17A 204W |
176 |
|
Технический лист |
- | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 17A | 204 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 94.5% | - | - | Through Hole | 1.30" L x 0.90" W x 0.51" H (33.0mm x 22.9mm x 12.9mm) | Sixteenth Brick | Enable, Active Low | cCSAus, CE, UKCA | 62368-1 |
|
MGFS400512DC DC CONVERTER 12V 30W |
430 |
|
Технический лист |
MGFS (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 13V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | Enable, Active Low | CE, cURus, DEMKO | - |
