DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CHB100-24S05DC DC CONVERTER 5V 100W |
161 |
|
Технический лист |
CHB100 (100W) | Half Brick | Tray | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 20A | 100 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 84% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|

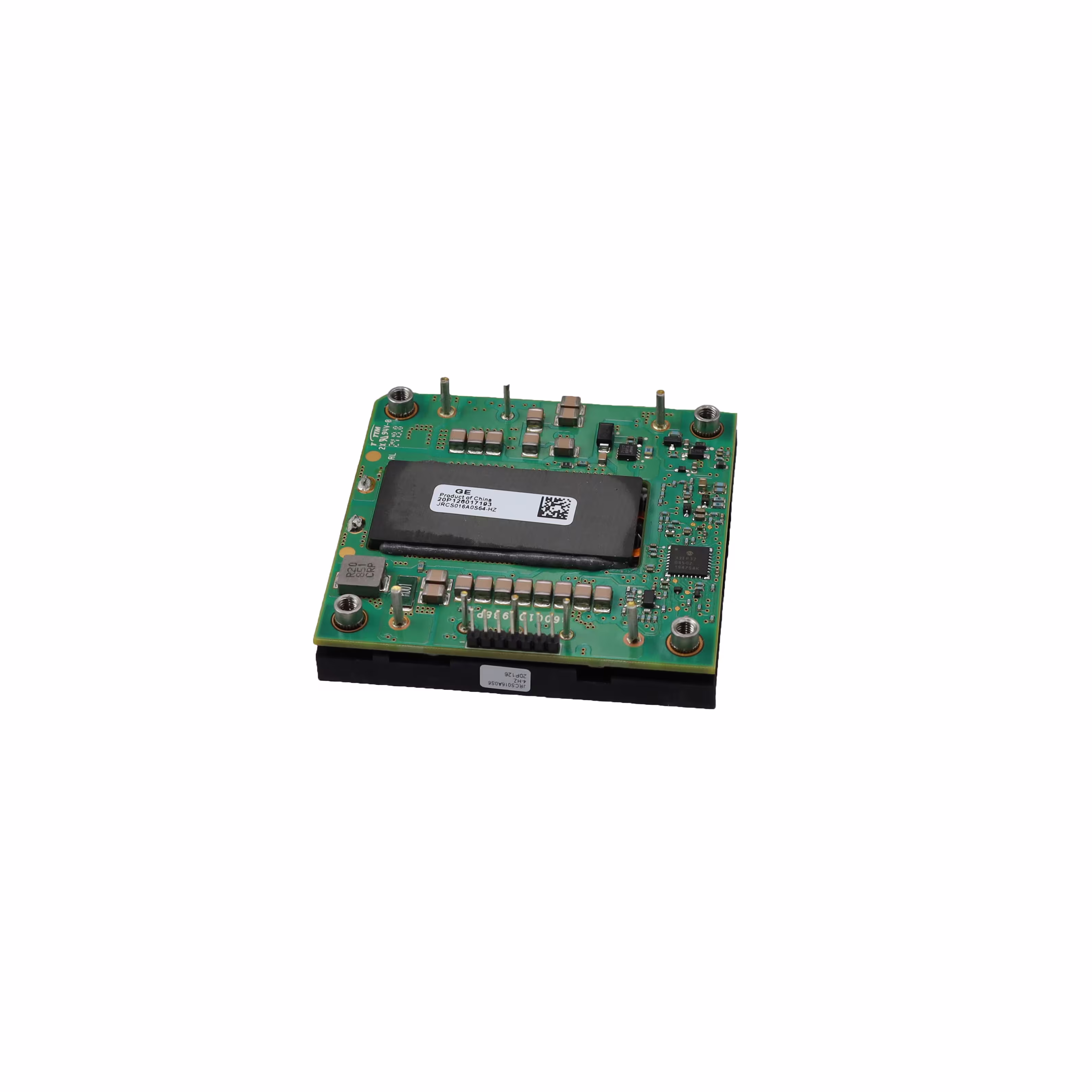

JRCS016A0S64-HZDC DC CONVERTER 18.5-60 V 400W |
33 |
|
Технический лист |
JRCS016 | Half Brick | Tray | Active | Non-Isolated PoL Module | 1 | 18V | 85V | 18.5 ~ 60V | - | - | - | 6.7A | 400 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C (With Derating) | 95% | - | - | Through Hole | 2.39" L x 2.27" W x 0.51" H (60.7mm x 57.7mm x 13.0mm) | Half Brick | Enable, Active High | - | - |
|

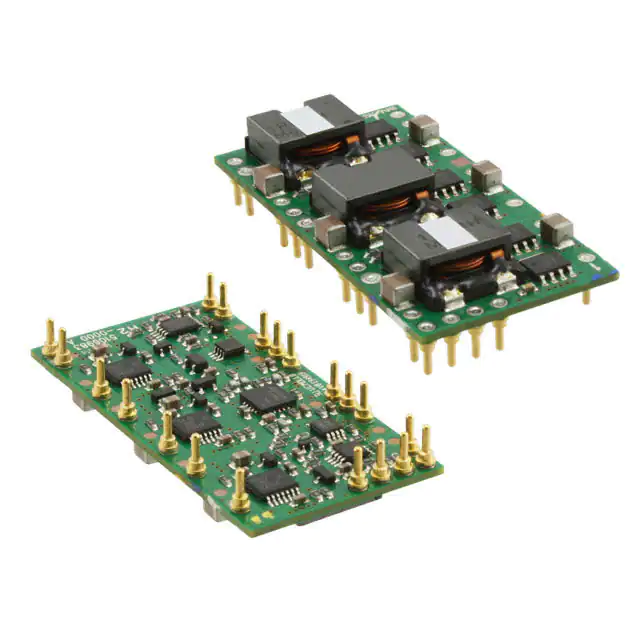

PTH12040WAHDC DC CONVERTER 0.8-5.5V |
69 |
|
Технический лист |
PTH12040 | 20-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 8V | 14V | 0.8 ~ 5.5V | - | - | - | 50A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 96% | - | - | Through Hole | 2.05" L x 1.05" W x 0.36" H (52.1mm x 26.7mm x 9.1mm) | - | - | - | - |
|
RP20-2412DFWDC DC CONVERTER +/-12V 20W |
104 |
|
Технический лист |
POWERLINE RP20-FW (20W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 833mA, 833mA | 20 W | 1.6 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 63°C | 85% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | - | Enable, Active High | - | - |
|

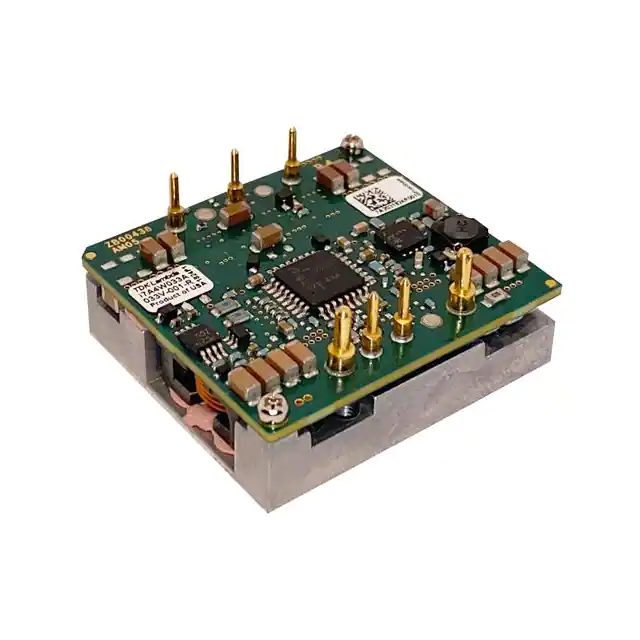

I7A24045A033V-0C1-RDC DC CONVERTER 3.3-18V 750W |
35 |
|
Технический лист |
i7A (750W) | Sixteenth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 18V | 32V | 3.3V ~ 18V | - | - | - | 45A | 750 W | - | ITE (Commercial) | Adjustable Output, Baseplate, Remote On/Off, Remote Sense | -40°C ~ 125°C | 98.5% | - | - | Through Hole | 1.45" L x 1.34" W x 0.50" H (36.8mm x 34.0mm x 12.7mm) | Sixteenth Brick | Enable, Active Low | CE, cURus, IEC | 62368-1 |
|
LTM8026MPYDC DC CONVERTER 1.2-24V |
86 |
|
Технический лист |
µModule® | 81-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 6V | 36V | 1.2 ~ 24V | - | - | - | 5A | - | - | ITE (Commercial) | OTP, OVP, SCP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.44" W x 0.11" H (15.0mm x 11.3mm x 2.8mm) | 81-BGA (15x11.25) | - | - | - |
|
VTM48EF160T015A00DC DC CONVERTER 16V 240W |
158 |
|
Технический лист |
VI Chip® VTM® | Module | Tray | Active | Voltage Transformation Module | 1 | 26V | 55V | 16V | - | - | - | 15A | 240 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 125°C | 95% | - | - | Surface Mount | 1.28" L x 0.87" W x 0.26" H (32.5mm x 22.0mm x 6.7mm) | - | - | - | - |
|
MGDDI-06-R-CDC DC CONVERTER 5V 5V 6W |
52 |
|
Технический лист |
MGDDI-06 | 10-DIP Module | Bulk | Active | Isolated Module | 2 | 12V | 160V | 5V | 5V | - | - | 600mA, 600mA | 6 W | 2.25 kV | ITE (Commercial) | - | -40°C ~ 100°C | 83% | - | - | Through Hole | 1.10" L x 0.78" W x 0.32" H (28.0mm x 19.8mm x 8.2mm) | - | - | - | - |
|
REM10-2415DW/ADC DC CONVERTER +/-15V 10W |
4 |
|
Технический лист |
MEDLINE REM10 (10W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 5 kV | ITE (Commercial), Medical | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 88% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active Low | - | - |
|
|
PTH12040WADDC DC CONVERTER 0.8-5.5V 50A |
124 |
|
Технический лист |
PTH12040 | 20-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 8V | 14V | 0.8 ~ 5.5V | - | - | - | 50A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 96% | - | - | Through Hole | 2.05" L x 1.05" W x 0.36" H (52.1mm x 26.7mm x 9.1mm) | - | - | - | - |
|
CQE50W-24S48DC DC CONVERTER 48V 50W |
36 |
|
Технический лист |
CQE50W (50W) | Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 48V | - | - | - | 1.04A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 105°C (With Derating) | 88.5% | - | - | Through Hole | 2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm) | Module | Enable, Active High | CE | 60950-1 |
|
|
REM10-2405S/ADC DC CONVERTER 5V 10W |
53 |
|
Технический лист |
MEDLINE REM10 (10W) | 24-DIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 2A | 10 W | 5 kV | ITE (Commercial), Medical | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 105°C | 86.5% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active Low | - | - |
|
PAH-28/12.5-D24NB-CDC DC CONVERTER 28V 350W |
612 |
|
Технический лист |
PAH (450W) | 9-DIP Module, 1/2 Brick | Tray | Active | Isolated Module | 1 | 18V | 36V | 28V | - | - | - | 12.5A | 350 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C | 92.5% | - | - | Through Hole | 2.40" L x 2.30" W x 0.50" H (61.0mm x 58.4mm x 12.7mm) | - | Enable, Active Low | - | - |
|
CHB75W-24S12DC DC CONVERTER 12V 75W |
40 |
|
Технический лист |
CHB75W (75W) | Half Brick | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 6.25A | 75 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 83% | - | - | Through Hole | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) | Half Brick | Enable, Active High | CE, cURus | 60950-1 |
|
BMR6841100/00136-75V IN: 50V OUT; 14A 700W; IS |
71 |
|
Технический лист |
BMR684 (700W) | Quarter Brick | Tray | Active | Isolated Module, Digital | 1 | 36V | 75V | 50V | - | - | - | 14A | 700 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Baseplate, PMBus™, Remote On/Off, Remote Sense | -40°C ~ 85°C | 95.8% | - | - | Through Hole | 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm) | Quarter Brick | - | UL | - |
|
THN 30-7212WIR30 WATT DC/DC CONVERTER, RAILWAY |
33 |
|
Технический лист |
THN 30WIR (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 160V | 12V | - | - | - | 2.5A | 30 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | 62368-1 |
|
0RQB-C5W24RGDC DC CONVERTER 24V 150W |
42 |
|
Технический лист |
0RQB-C5W24R (150W) | Quarter Brick | Box | Active | Isolated Module | 1 | 50V | 160V | 24V | - | - | - | 6.25A | 150 W | 3 kV | ITE (Commercial), Railway | Baseplate, Remote On/Off | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | 2.30" L x 1.45" W x 0.50" H (58.4mm x 36.8mm x 12.7mm) | Quarter Brick | Enable, Active Low | CSA, UL | 60950-1 |
|

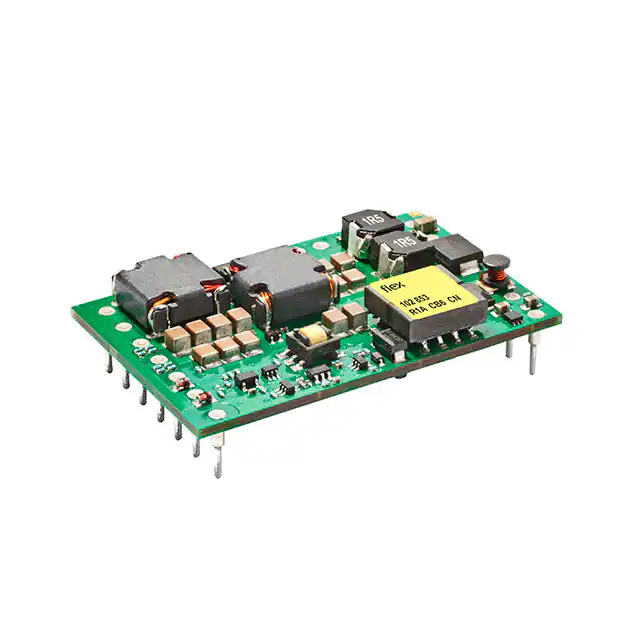

PIM4328PDADC DC CONVERTER 3.3V 5V 58W |
255 |
|
Технический лист |
PIM 4328 (540-648) | Quarter Brick | Tray | Active | Isolated Module | 2 | 36V | 75V | 3.3V | 5V | - | - | 12A, 3.6A | 58 W | 2.25 kV | ITE (Commercial) | Adjustable Output, PMBus™ | -40°C ~ 110°C (With Derating) | 98.80% | - | - | Through Hole | 2.28" L x 1.45" W x 0.42" H (57.9mm x 36.8mm x 10.7mm) | Quarter Brick | - | CB, CSA, IEC, TUV, UL | 62368-1 |
|

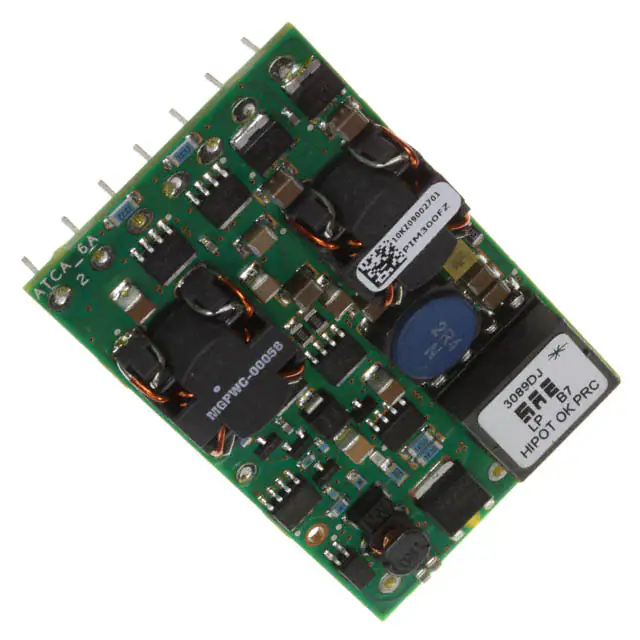

PIM300FZDC DC CONVERTER -48V 300W |
46 |
|
Технический лист |
PIM300X (300W) | Module | Tray | Active | Non-Isolated PoL Module | 1 | -38V | -75V | -48V | - | - | - | 6.25A, 2.4A | 300 W | - | ITE (Commercial) | OCP, OTP, OVP, UVLO | -5°C ~ 85°C | 98% | - | - | Through Hole | 2.78" L x 1.45" W x 0.50" H (70.6mm x 36.8mm x 12.7mm) | - | - | - | - |
|
TEN 30-2432WINDC DC CONVERTER 5V +/-15V |
32 |
|
Технический лист |
TEN 30WIN (30W) | 7-DIP Module | Tube | Active | Isolated Module | 3 | 9V | 36V | 5V | 15V | -15V | - | 4A, 333mA, 333mA | 30 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 75°C | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) | Module | - | - | - |
