DC-DC Преобразователи
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Количество выходов | Напряжение - вход (мин.) | Напряжение - вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Особенности | Рабочая температура | Эффективность | Марка | Квалификация | Тип крепления | Размер/измерение | Устройство поставщика Упаковка | Функции управления | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PKE8410APIDC DC CONVERTER 3.3V 30W |
782 |
|
Технический лист |
PKE 8000A (40W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 75V | 3.3V | - | - | - | 9.1A | 30 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 115°C (With Derating) | 87% | - | - | Through Hole | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 11.9mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|

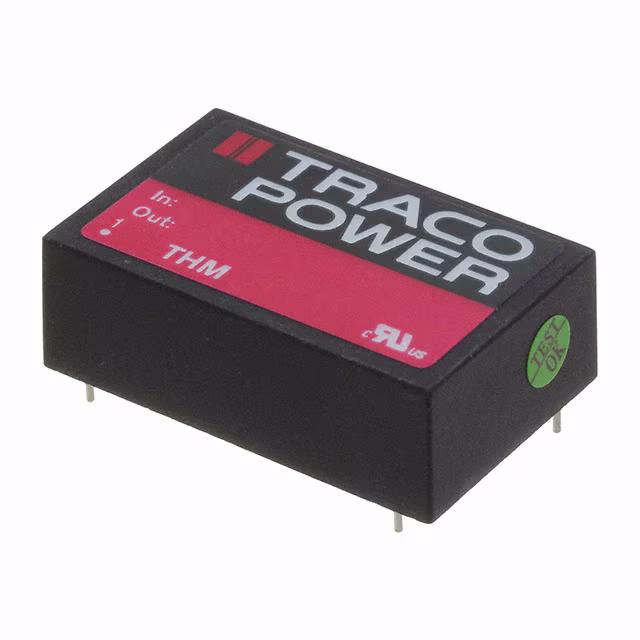

THM 6-2422DC DC CONVERTER +/-12V 6W |
110 |
|
Технический лист |
THM 6 (6W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 250mA, 250mA | 6 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 88°C | 88.5% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
THM 3-2411WIDC DC CONVERTER 5V 3W |
134 |
|
Технический лист |
THM 3WI (3W) | 24-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 5 kV | Medical | OCP, OVP, SCP | -40°C ~ 90°C | 84.5% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
ECLB40W-24S12DC DC CONVERTER 12V 40W |
35 |
|
Технический лист |
ECLB40W (40W) | 6-DIP Module | Tray | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 3.333A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 91% | - | - | Through Hole | 2.05" L x 1.20" W x 0.40" H (52.0mm x 30.5mm x 10.2mm) | - | Enable, Active High | CE | 60950-1 |
|
SKM50B-12DC DC CONVERTER 12V 50W |
27 |
|
Технический лист |
SKM50 (50W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 4.17A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP | -40°C ~ 75°C (With Derating) | 92% | - | - | Through Hole | 2.00" L x 1.00" W x 0.54" H (50.8mm x 25.4mm x 13.7mm) | - | - | - | - |
|
LTM8033IYDC DC CONVERTER 0.8-24V |
62 |
|
Технический лист |
µModule® | 76-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.6V | 36V | 0.8 ~ 24V | - | - | - | 3A | - | - | ITE (Commercial) | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.44" W x 0.19" H (15.0mm x 11.3mm x 4.9mm) | 76-BGA (15x11.25) | - | - | - |
|
TEN 5-0523DC DC CONVERTER +/-15V 6W |
60 |
|
Технический лист |
TEN 5 (6W) | 24-DIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 2 | 4.5V | 7V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | Module | - | - | - |
|
AET04A36-LDC DC CONVERTER 5V 20W |
136 |
|
Технический лист |
AET (20W) | 6-DIP Module | Bulk | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 4A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 71°C | 85% | - | - | Through Hole | 2.00" L x 1.60" W x 0.48" H (50.8mm x 40.6mm x 12.2mm) | - | - | - | - |
|
THD 12-1223DC DC CONVERTER +/-15V 12W |
30 |
|
Технический лист |
THD 12 (12W) | 24-DIP Module, 8 Leads | Tube | Active | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 400mA, 400mA | 12 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 87% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | - | - | - |
|
THN 10-2423WIRDC DC CONVERTER +/-15V 10W |
42 |
|
Технический лист |
THN 10WIR (10W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 333mA, 333mA | 10 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|
THN 20-4812WIDC DC CONVERTER 12V 20W |
37 |
|
Технический лист |
THN 20WI (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 1.67A | 20 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 75°C (With Derating) | 89% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|
|
THN 10-7211WIRDC DC CONVERTER 5V 10W |
51 |
|
Технический лист |
THN 10WIR (10W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 160V | 5V | - | - | - | 2A | 10 W | 3 kV | ITE (Commercial), Railway | Adjustable Output, Remote On/Off | -40°C ~ 105°C | 88% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | CB, cURus | - |
|
JTK3024D15DC DC CONVERTER +/-15V 30W |
58 |
|
Технический лист |
JTK30 (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OVP, SCP | -40°C ~ 100°C | 91% | - | - | Through Hole | 1.00" L x 1.00" W x 0.43" H (25.4mm x 25.4mm x 10.9mm) | - | Enable, Active High | - | 62368-1 |
|
THN 15-2415WIRDC DC CONVERTER 24V 15W |
107 |
|
Технический лист |
THN 15WIR (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 625mA | 15 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OVP, SCP, UVLO | -40°C ~ 90°C (With Derating) | 90% | - | - | Through Hole | 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm) | - | - | - | - |
|
JHM1012S12DC DC CONVERTER 12V 10W |
462 |
|
Технический лист |
JHM (10W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 833mA | 10 W | 4 kV | Medical | OCP, OVP, SCP, UVLO | -40°C ~ 80°C | 88% | - | - | Through Hole | 1.25" L x 0.80" W x 0.50" H (31.8mm x 20.3mm x 12.7mm) | - | - | - | - |
|
TEN 8-7211WIDC DC CONVERTER 5V 8W |
194 |
|
Технический лист |
TEN 8WI (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 43V | 160V | 5V | - | - | - | 1.6A | 8 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
RP08-243.3SAWDC DC CONVERTER 3.3V 8W |
46 |
|
Технический лист |
POWERLINE RP08-W (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 1 | 9V | 36V | 3.3V | - | - | - | 2.4A | 8 W | 1.6 kV | ITE (Commercial), Railway | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 74°C | 85% | - | - | Through Hole | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) | - | Enable, Active High | - | - |
|
LTM8050IYDC DC CONVERTER 0.8-24V 48W |
221 |
|
Технический лист |
µModule® | 70-BBGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 3.6V | 58V | 0.8 ~ 24V | - | - | - | 2A | - | - | ITE (Commercial) | OTP | -40°C ~ 125°C | - | - | - | Surface Mount | 0.59" L x 0.35" W x 0.19" H (15.0mm x 9.0mm x 4.9mm) | 70-BGA (15x9) | - | - | - |
|
TEN 8-7222WIDC DC CONVERTER +/-12V 8W |
40 |
|
Технический лист |
TEN 8WI (8W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 43V | 160V | 12V | -12V | - | - | 333mA, 333mA | 8 W | 1.5 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 85% | - | - | Through Hole | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) | - | - | - | - |
|
RGA4W250W020A-001DC DC CONVERTER 3.3-15V 250W |
50 |
|
Технический лист |
RGA (250W) | Sixteenth Brick | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 53V | 3.3 ~ 15V | - | - | - | 20A | 300 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 110°C | 97% | - | - | Through Hole | 1.40" L x 1.40" W x 0.51" H (35.6mm x 35.6mm x 13.0mm) | Sixteenth Brick | Enable, Active Low | CE | - |
