Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MM2XP AC110RELAY GEN PURPOSE DPDT 7A 110V |
0 |
|
Технический лист |
MM | Bulk | Discontinued | Socketable | 110VAC | DPDT (2 Form C) | 7.5 A | 250VAC, 250VDC - Max | 20VA, 800W | 35 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 88 VAC | 33 VAC | 25 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
MM4P AC110RELAY GEN PURPOSE 4PDT 7.5A 110V |
0 |
|
Технический лист |
MM | Bulk | Discontinued | Socketable | 110VAC | 4PDT (4 Form C) | 7.5 A | 250VAC, 250VDC - Max | - | 51 mA | Non Latching | - | Plug In, 15 Pin (Octal) | - | - | 88 VAC | 33 VAC | 25 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
MM4P-AC220RELAY GEN PURPOSE 4PDT 7.5A 220V |
0 |
|
Технический лист |
MM | Bulk | Discontinued | Socketable | 220VAC | 4PDT (4 Form C) | 7.5 A | 250VAC, 250VDC - Max | - | 25.5 mA | Non Latching | - | Plug In, 15 Pin (Octal) | - | - | 176 VAC | 66 VAC | 25 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
5-1393807-3RELAY GEN PURP |
0 |
|
- |
V23154, AXICOM | Bulk | Active | Socketable | - | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | - | - | Non Latching | - | Plug In | - | - | - | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
3-1393810-2RELAY GEN PURPOSE DPST 5A 24V |
0 |
|
Технический лист |
V23154, AXICOM | Bulk | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 16.7 mA | Non Latching | - | PC Pin | - | - | 11 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|

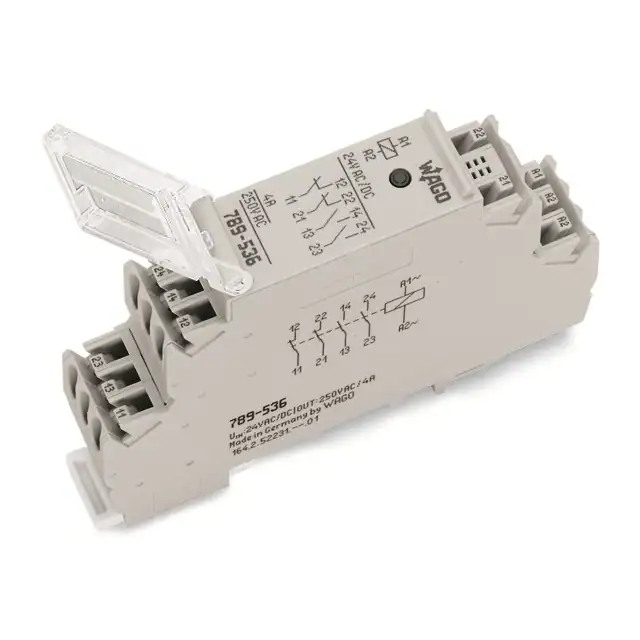

789-536RELAY GEN PURPOSE 4PST 4A 24V |
0 |
|
Технический лист |
789 | Box | Active | DIN Rail | 24VAC/DC | 4PST-2NO/2NC (2 Form A, 2 Form B) | 4 A | 250VAC - Max | 1000VA | 12 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 20 ms | 20 ms | -25°C ~ 40°C | Silver Nickel (AgNi), Gold (Au) | EAC | General Purpose | - | - |
|
|
3-1393810-7RELAY GEN PURPOSE DPST 5A 32V |
0 |
|
Технический лист |
V23154, AXICOM | Bulk | Obsolete | Through Hole | 32VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 16.7 mA | Non Latching | - | PC Pin | - | - | 16 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|
|
6-1393807-2RELAY GEN PURP |
0 |
|
Технический лист |
V23154, AXICOM | Bulk | Active | Socketable | - | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | - | - | Non Latching | - | Plug In | - | - | - | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
3RQ30382AE00RELAY GEN PURPOSE SPDT 3A 115V |
0 |
|
Технический лист |
SIRIUS 3RQ3 | Box | Active | DIN Rail | 115VAC/DC | SPDT (1 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 8 ms | 17 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | CCC, CSA, EAC, UL | General Purpose | - | - |
|
3RQ30381AE00RELAY GEN PURPOSE SPDT 3A 115V |
0 |
|
Технический лист |
SIRIUS 3RQ3 | Box | Active | DIN Rail | 115VAC/DC | SPDT (1 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | 8 ms | 17 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | CCC, CSA, EAC, UL | General Purpose | - | - |
|
|
1464780000RSM-8H 24V+ 1CO S |
0 |
|
Технический лист |
RSM | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) x 8 | 6 A | 250VAC - Max | 1500VA | 16.7 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
1464800000RSM-8H 24V- 1CO S |
0 |
|
Технический лист |
RSM | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) x 8 | 6 A | 250VAC - Max | 1500VA | 16.7 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
3RS18001HQ01RELAY GEN PURP 3PDT 3A 24-120V |
0 |
|
Технический лист |
SIRIUS 3RS18 | Box | Active | DIN Rail | 24 ~ 120VAC | 3PDT (3 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -25°C ~ 60°C | - | CCC, CSA, EAC, UL | General Purpose | - | - |
|
|
3RS18001HP01RELAY GEN PURP 3PDT 3A 24-240V |
0 |
|
Технический лист |
SIRIUS 3RS18 | Box | Active | DIN Rail | 24 ~ 240VAC | 3PDT (3 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -25°C ~ 60°C | - | CCC, CSA, EAC, UL | General Purpose | - | - |
|
|
MM2P-D DC200/220RELAY GEN PURPOSE DPDT 7.5A 220V |
0 |
|
Технический лист |
MM | Bulk | Active | Socketable | 220VDC | DPDT (2 Form C) | 7.5 A | 250VAC, 250VDC - Max | 1700VA, 120W | 8.6 mA | Non Latching | Diode | Plug In, 8 Pin (Octal) | - | - | 154 VDC | 22 VDC | 50 ms | 100 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
MM2XP AC125RELAY GEN PURPOSE DPDT 7A 125V |
0 |
|
Технический лист |
MM | Bulk | Obsolete | Socketable | 125VAC | DPDT (2 Form C) | 7.5 A | 250VAC, 250VDC - Max | 20VA, 800W | 28 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 100 VAC | 37.5 VAC | 25 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
MM2XPN DC48RELAY GEN PURPOSE DPDT 7A 48V |
0 |
|
Технический лист |
MM | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 7.5 A | 250VAC, 250VDC - Max | 20VA, 800W | 41 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | 33.6 VDC | 4.8 VDC | 50 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
G4Q-211A DC6 (Q2)DPDT 5A 6VDC |
0 |
|
- |
G4Q | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1448830000RSM-4I 24V+ 2CO Z |
0 |
|
Технический лист |
RSM | Box | Active | DIN Rail | 24VDC | DPDT (2 Form C) x 4 | 5 A | 250VAC - Max | 1250VA | 16.7 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
CAD326GDRELAY GEN PURPOSE 5PST 10A 125V |
0 |
|
- |
TeSys | Box | Active | DIN Rail | 125VDC | 5PST-3NO/2NC (3 Form A, 2 Form B) | 10 A | 690VAC - Max | - | - | Non Latching | - | Solder Lug | - | - | 87.5 VDC | 12.5 VDC | 72 ms | 25 ms | -40°C ~ 70°C | - | CB, CCC, CE, CSA, EAC, UKCA, UL | General Purpose | - | - |
