Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8501CO15V24POWER RELAY, TYPE C, 2 HP, 30A R |
0 |
|
Технический лист |
Square D 8501C | Box | Obsolete | Chassis Mount | 240VAC | SPDT (1 Form C) | 30 A | 600VAC - Max | 18000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 50°C | - | - | General Purpose | - | - |
|
FW1109D00FW1109D00=2020 FW RELAY |
0 |
|
Технический лист |
FW, CII | Bulk | Active | Chassis Mount | 12.6VDC | DPDT (2 Form C) | 3 A | - | - | 63 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 6.8 VDC | 0.74 VDC | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
G6D-F4B DC12RELAY GEN PURPOSE SPST 3A 12V |
0 |
|
Технический лист |
G6D-F4B | Bulk | Active | DIN Rail | 12VDC | SPST-NO (1 Form A) x 4 | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 16.7 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | 8.4 VDC | 1.2 VDC | 10 ms | 15 ms | -25°C ~ 55°C | - | CSA, UR, VDE | General Purpose | - | - |
|
|
KUL-11D55D-12RELAY GEN PURPOSE DPDT 10A 12V |
0 |
|
Технический лист |
KUL | Bulk | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 133.3 mA | Latching, Dual Coil | - | Quick Connect - 0.187" (4.7mm) | - | Class B | 9 VDC | - | 25 ms | 25 ms | -45°C ~ 50°C | Silver Cadmium Oxide (AgCdO) | CSA, UR | General Purpose | - | - |
|

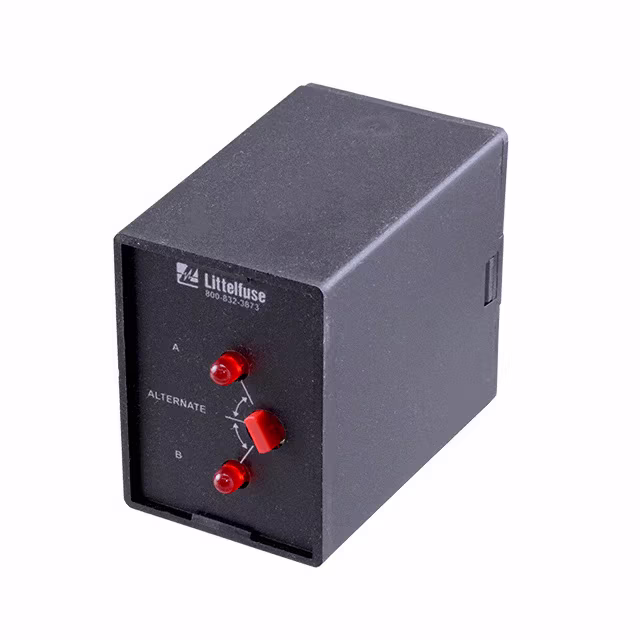

ARP23SRELAY IMPULSE DPDT 10A 24V |
0 |
|
Технический лист |
ARP | Bulk | Active | Socketable | 24VAC | DPDT (2 Form C) | 10 A | 250VAC - Max | - | - | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | - | - | - | - | -20°C ~ 60°C | - | - | Impulse | - | - |
|
|
ARP41SRELAY IMPULSE SPDT 10A 120V |
0 |
|
Технический лист |
ARP | Bulk | Active | Socketable | 120VAC | SPDT (1 Form C) | 10 A | 250VAC - Max | - | - | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | - | - | - | - | -20°C ~ 60°C | - | - | Impulse | - | - |
|
|
ARP42SRELAY IMPULSE DPDT 10A 120V |
0 |
|
Технический лист |
ARP | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 250VAC - Max | - | - | Non Latching | Lighted Indicator | Plug In, 11 Pin (Octal) | - | - | - | - | - | - | -20°C ~ 60°C | - | - | Impulse | - | - |
|
|
ARP43RELAY IMPULSE DPDT 10A 120V |
0 |
|
Технический лист |
ARP | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 250VAC - Max | - | - | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | - | - | - | - | -20°C ~ 60°C | - | - | Impulse | - | - |
|
|
ARP61SRELAY IMPULSE SPDT 10A 230V |
0 |
|
Технический лист |
ARP | Bulk | Active | Socketable | 230VAC | SPDT (1 Form C) | 10 A | 250VAC - Max | - | - | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | - | - | - | - | -20°C ~ 60°C | - | - | Impulse | - | - |
|
|
ARP62SRELAY IMPULSE DPDT 10A 230V |
0 |
|
Технический лист |
ARP | Bulk | Active | Socketable | 230VAC | DPDT (2 Form C) | 10 A | 250VAC - Max | - | - | Non Latching | Lighted Indicator | Plug In, 11 Pin (Octal) | - | - | - | - | - | - | -20°C ~ 60°C | - | - | Impulse | - | - |
|
|
8007790000EG03 EG3 12-23VDC 50 KHS |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MM2XP DC24RELAY GEN PURPOSE DPDT 7A 24V |
0 |
|
Технический лист |
MM | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 7.5 A | 250VAC, 250VDC - Max | 20VA, 800W | 87 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 16.8 VDC | 2.4 VDC | 50 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
MM2XP DC12DC SWITCHING 7.5A DPDT 12VDC |
0 |
|
- |
MM | Bulk | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 7.5 A | 250VAC, 250VDC - Max | 20VA, 800W | 176 mA | Non Latching | - | Solder Lug | - | - | 8.4 VDC | 1.2 VDC | 50 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
3RS18001BW00RELAY GEN PURP DPDT 3A 24-240V |
0 |
|
Технический лист |
SIRIUS 3RS18 | Box | Active | DIN Rail | 24 ~ 240VAC/DC | DPDT (2 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -25°C ~ 60°C | - | CCC, CSA, EAC, UL | General Purpose | - | - |
|
|
911372RELAY GEN PURPOSE DPDT 10A 120V |
0 |
|
- |
- | Bulk | Obsolete | DIN Rail | 120VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 28800VA | 11 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 20 ms | 20 ms | -25°C ~ 40°C | Silver Cadmium Oxide (AgCdO) | - | General Purpose | - | - |
|
|
2-1393807-5RELAY TELECOM DPDT 5A |
0 |
|
- |
V23154, AXICOM | Bulk | Active | Socketable | - | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | - | - | Non Latching | - | Plug In | - | - | - | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | Telecom | - | - |
|
|
3-1393807-1RELAY GEN PURP |
0 |
|
Технический лист |
V23154, AXICOM | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | - | 16.7 mA | Non Latching | - | Plug In | - | - | 6.6 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
3-1393807-6RELAY GEN PURP |
0 |
|
- |
V23154, AXICOM | Bulk | Active | Socketable | - | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | - | - | Non Latching | - | Plug In | - | - | - | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
1456810000RSMS-8 24V+ BASE S |
0 |
|
Технический лист |
RSM | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) x 8 | 4.5 A | 250VAC - Max | 1125VA | 7.1 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | - | - | -25°C ~ 50°C | - | CE, UR | General Purpose | - | - |
|
|
MM2XP-AC100RELAY GEN PURPOSE DPDT 7A 100V |
0 |
|
Технический лист |
MM | Bulk | Discontinued | Socketable | 100VAC | DPDT (2 Form C) | 7.5 A | 250VAC, 250VDC - Max | 20VA, 800W | 40 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 80 VAC | 30 VAC | 25 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
