Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1122661001RELAY GEN PURPOSE DPDT 4A 48V |
0 |
|
Технический лист |
RS | Bulk | Obsolete | DIN Rail | 48VAC/DC | DPDT (2 Form C) | 4 A | 250VAC - Max | 1000VA | 22 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 13 ms | 10 ms | -25°C ~ 40°C | Silver Nickel (AgNi), Gold (Au) | CE | General Purpose | - | - |
|

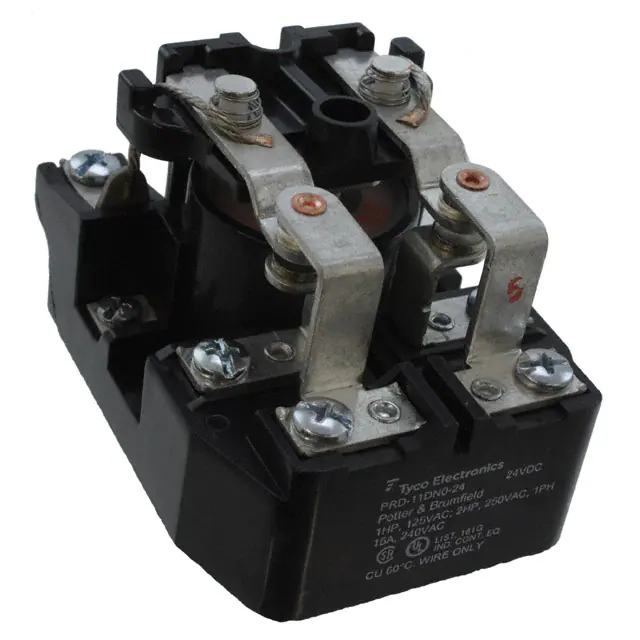

PRD-11DN0-24RELAY GEN PURPOSE DPDT 25A 24V |
0 |
|
Технический лист |
PRD | Bulk | Obsolete | Chassis Mount | 24VDC | DPDT (2 Form C) | 25 A | 600VAC, 125VDC - Nom | - | 84 mA | Non Latching | - | Screw Terminal | - | Class B | 18 VDC | 2.4 VDC | 40 ms | 20 ms | -55°C ~ 80°C | Silver Cadmium Oxide (AgCdO) | CSA, UL | General Purpose | - | - |
|
1447580000RSM-4 115VAC/DC 1CO Z |
0 |
|
Технический лист |
RSM | Box | Active | DIN Rail | 115VAC/DC | SPDT (1 Form C) x 4 | 6 A | 250VAC - Max | 1500VA | 3.3 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
1448820000RSM-4I 24V+ 2CO S |
0 |
|
Технический лист |
RSM | Box | Active | DIN Rail | 24VDC | DPDT (2 Form C) x 4 | 5 A | 250VAC - Max | 1250VA | 16.7 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
2944795RELAY MODULE |
0 |
|
Технический лист |
REL | Bulk | Active | DIN Rail | 230VAC | DPDT (2 Form C) | - | 250VAC, 250VDC - Max | - | 3.5 mA | Non Latching | Varistor | Screw Terminal | - | - | - | - | 15 ms | 15 ms | -20°C ~ 50°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
|
3RS18001HQ00RELAY GEN PURP 3PDT 3A 24-120V |
0 |
|
Технический лист |
SIRIUS 3RS18 | Box | Active | DIN Rail | 24 ~ 120VAC | 3PDT (3 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -25°C ~ 60°C | - | CCC, CSA, EAC, UL | General Purpose | - | - |
|
|
3RS18001HP00RELAY GEN PURP 3PDT 3A 24-240V |
0 |
|
Технический лист |
SIRIUS 3RS18 | Box | Active | DIN Rail | 24 ~ 240VAC | 3PDT (3 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -25°C ~ 60°C | - | CCC, CSA, EAC, UL | General Purpose | - | - |
|
3RQ30381AB00RELAY GEN PURPOSE SPDT 3A 24V |
0 |
|
Технический лист |
SIRIUS 3RQ3 | Box | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | 12 ms | 14 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | CCC, CSA, EAC, UL | General Purpose | - | - |
|
3RQ30382AB00RELAY GEN PURPOSE SPDT 3A 24V |
0 |
|
Технический лист |
SIRIUS 3RQ3 | Box | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 12 ms | 14 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | CCC, CSA, EAC, UL | General Purpose | - | - |
|
7-1393806-0RELAY GEN PURPOSE DPST 5A 12V |
0 |
|
Технический лист |
V23154, AXICOM | Bulk | Active | Socketable | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 16.7 mA | Non Latching | - | Plug In | - | - | 7.1 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|
|
1393807-2RELAY GEN PURPOSE DPST 5A 32V |
0 |
|
Технический лист |
V23154, AXICOM | Bulk | Active | Socketable | 32VDC | DPST-NO (2 Form A) | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 19.4 mA | Non Latching | - | Plug In | - | - | 16 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|
|
1393807-3RELAY GEN PURPOSE DPST 5A 32V |
0 |
|
Технический лист |
V23154, AXICOM | Bulk | Active | Socketable | 32VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 19.4 mA | Non Latching | - | Plug In | - | - | 16 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|
|
1-1393806-3RELAY GEN PURPOSE DPST 5A 24V |
0 |
|
Технический лист |
V23154, AXICOM | Bulk | Active | Socketable | 24VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 250VDC - Max | - | 34.3 mA | Non Latching | - | Plug In | - | - | 11 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | - | General Purpose | - | - |
|
|
6-1415064-1SR6ZA048 |
0 |
|
- |
SR6, SCHRACK | Box | Active | DIN Rail | 48VDC | 6PST-3NO/3NC (3 Form A, 3 Form B) | 8 A | 250VAC - Max | 3200VA | 25 mA | Non Latching | - | Screw Terminal | - | - | 43.2 VDC | 4.8 VDC | - | - | -25°C ~ 50°C | Silver Tin Oxide (AgSnO) | cURus, TUV, VDE | General Purpose | - | - |
|
|
KHAU-11D18-24RELAY GEN PURPOSE DPDT 3A 24V |
0 |
|
Технический лист |
KHA | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 3 A | 240VAC - Nom | - | 37.5 mA | Non Latching | - | Plug In | - | Class B | 18 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) | CSA, UR | General Purpose | - | - |
|
|
MM3P DC48RELAY GEN PURPOSE 3PDT 7.5A 48V |
0 |
|
- |
MM | Bulk | Active | Socketable | 48VDC | 3PDT (3 Form C) | 7.5 A | 250VAC, 250VDC - Max | 1700VA, 120W | 52 mA | Non Latching | - | Plug In, 11 Pin (Octal) | - | - | 33.6 VDC | 4.8 VDC | 50 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
PRD-11AN0-120RELAY GEN PURPOSE DPDT 25A 120V |
0 |
|
Технический лист |
PRD | Bulk | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 25 A | 600VAC, 125VDC - Nom | - | 85 mA | Non Latching | - | Screw Terminal | - | Class B | 102 VAC | 12 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | CSA, UL | General Purpose | - | - |
|
|
7940034328RELAY OPTICAL 72VDC 1N/O |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
997287RELAY 8PIN OCTAL W/CLEAR COV |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
3RQ31182AF01RELAY GEN PURPOSE SPDT 3A 230V |
0 |
|
Технический лист |
SIRIUS 3RQ3 | Box | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 9 ms | 19 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | CCC, CSA, EAC, UL | General Purpose | - | - |
