Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4-1393808-1RELAY GEN PURPOSE DPDT 5A 9V |
0 |
|
Технический лист |
V23154, AXICOM | Bulk | Active | Socketable | 9VDC | DPDT (2 Form C) | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 16.7 mA | Non Latching | - | Plug In | - | - | 4.8 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|
3RQ30381AF00RELAY GEN PURPOSE SPDT 3A 230V |
0 |
|
Технический лист |
SIRIUS 3RQ3 | Box | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | 9 ms | 19 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | CCC, CSA, EAC, UL | General Purpose | - | - |
|
|
3RQ30382AF00RELAY GEN PURPOSE SPDT 3A 230V |
0 |
|
Технический лист |
SIRIUS 3RQ3 | Box | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 9 ms | 19 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | CCC, CSA, EAC, UL | General Purpose | - | - |
|
|
CAD323BDRELAY GEN PURPOSE 5PST 10A 24V |
0 |
|
- |
TeSys | Box | Active | DIN Rail | 24VDC | 5PST-3NO/2NC (3 Form A, 2 Form B) | 10 A | 690VAC - Max | - | - | Non Latching | - | Spring Terminal | - | - | 16.8 VDC | 2.4 VDC | 72 ms | 25 ms | -40°C ~ 60°C | - | CB, CCC, CE, CSA, EAC, UKCA, UL | General Purpose | - | - |
|
|
HFW4A1231D00HFW4A1231D00 = HFW4A RELAY |
0 |
|
Технический лист |
HFW4A, CII | Bulk | Active | Through Hole | 26.5 ~ 32VDC | DPDT (2 Form C) | 4 A | - | - | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver Alloy | - | General Purpose | - | - |
|
|
4-1393806-8RELAY GEN PURPOSE DPST 5A 72V |
0 |
|
Технический лист |
V23154, AXICOM | Bulk | Active | Socketable | 72VDC | DPST-NO (2 Form A) | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 16.7 mA | Non Latching | - | Plug In | - | - | 36.2 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|
|
1617036-3HFW4A1140S01 = 2100 HFW4A RELA |
0 |
|
Технический лист |
HFW4A, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 4 A | - | - | 44.2 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.4 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver Alloy | - | General Purpose | - | - |
|
|
2-1617036-0HFW4A1201S14 = HFW4A RELAY |
0 |
|
- |
HFW4A, CII | Bulk | Active | Through Hole | - | DPDT (2 Form C) | 4 A | - | - | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | Silver Alloy | - | General Purpose | - | - |
|
8501CDO22V53POWER RELAY, TYPE C, 10A RESISTI |
0 |
|
Технический лист |
Square D 8501C | Box | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 20 A | 325VDC - Max | 6440VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -30°C ~ 60°C | - | - | General Purpose | - | - |
|
|
8501KPDR13P14V51RELAY 3CO CYL PINS 10A@240V 12VD |
0 |
|
Технический лист |
Square D 8501K | Box | Obsolete | DIN Rail | 12VDC | 3PDT (3 Form C) | 10 A | 300VAC, 30VDC - Max | 3000VA, 300W | - | Non Latching | Lighted Indicator | Plug In, 11 Pin (Octal) | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | - | General Purpose | - | - |
|
|
MM2P DC100/110RELAY GEN PURPOSE DPDT 7.5A 110V |
0 |
|
Технический лист |
MM | Bulk | Active | Socketable | 110VDC | DPDT (2 Form C) | 7.5 A | 250VAC, 250VDC - Max | 1700VA, 120W | 17 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 77 VDC | 11 VDC | 50 ms | 30 ms | -10°C ~ 55°C | Silver (Ag) | - | General Purpose | - | - |
|
|
6-1393808-2RELAY GEN PURPOSE DPDT 5A 15V |
0 |
|
Технический лист |
V23154, AXICOM | Bulk | Obsolete | Socketable | 15VDC | DPDT (2 Form C) | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 16.7 mA | Non Latching | - | Plug In | - | - | 6.8 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|

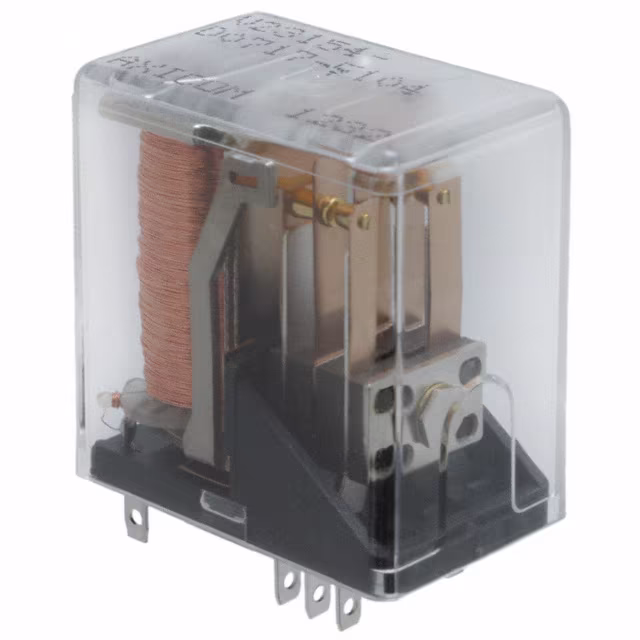

5-1393808-4RELAY GEN PURPOSE DPDT 5A 12V |
0 |
|
Технический лист |
V23154, AXICOM | Bulk | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 16.7 mA | Non Latching | - | Plug In | - | - | 7 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|
|
1448740000RSM-4 24VAC/DC 2CO S |
0 |
|
Технический лист |
- | Box | Active | Chassis Mount | 24VAC | DPDT (2 Form C) | 5 A | 250VAC - Max | 1250VA | 13.9 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | - | - | -25°C ~ 50°C | Silver Nickel (AgNi) | CE, UR | General Purpose | - | - |
|
|
ARB-24-ABARELAY GEN PURPOSE SPDT 10A 24V |
0 |
|
Технический лист |
ARB | Box | Discontinued | Socketable | 24VAC/DC | SPDT (1 Form C) | 10 A | 240VAC - Nom | - | - | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | - | - | - | - | -20°C ~ 55°C | - | - | General Purpose | - | - |
|
|
CAD50FDRELAY GEN PURPOSE 5PST 10A 110V |
0 |
|
Технический лист |
TeSys | Box | Active | DIN Rail | 110VDC | 5PST-NO (5 Form A) | 10 A | 690VAC - Max | - | - | Non Latching | - | Screw Terminal | - | - | 77 VDC | 11 VDC | 72 ms | 24 ms | -40°C ~ 70°C | - | CB, CCC, CE, CSA, EAC, UKCA, UL | General Purpose | - | - |
|
|
CAD326KDRELAY GEN PURPOSE 5PST 10A 100V |
0 |
|
Технический лист |
TeSys | Box | Active | DIN Rail | 100VDC | 5PST-3NO/2NC (3 Form A, 2 Form B) | 10 A | 690VAC - Max | - | - | Non Latching | - | Solder Lug | - | - | 70 VDC | 10 VDC | 72 ms | 25 ms | -40°C ~ 70°C | - | CB, CCC, CE, CSA, EAC, UKCA, UL | General Purpose | - | - |
|
|
3-1393810-3RELAY GEN PURPOSE DPST 5A 24V |
0 |
|
Технический лист |
V23154, AXICOM | Bulk | Active | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 125VAC, 150VDC - Max | 625VA, 750W | 16.7 mA | Non Latching | - | PC Pin | - | - | 11 VDC | - | 7.5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag) | - | General Purpose | - | - |
|
3RQ30382AB01RELAY GEN PURPOSE SPDT 3A 24V |
0 |
|
Технический лист |
SIRIUS 3RQ3 | Box | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 12 ms | 14 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | CCC, CSA, EAC, UL | General Purpose | - | - |
|
3RQ30381AB01RELAY GEN PURPOSE SPDT 3A 24V |
0 |
|
Технический лист |
SIRIUS 3RQ3 | Box | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 3 A | 250VAC - Max | 750VA | - | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | 12 ms | 14 ms | -25°C ~ 60°C | Silver Tin Oxide (AgSnO) | CCC, CSA, EAC, UL | General Purpose | - | - |
