Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G2R-1A4 DC48RELAY GEN PURPOSE SPST 8A 48V |
190 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 11.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 33.6 VDC | 7.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
RT424A24RELAY GEN PURPOSE DPDT 8A 24V |
1,951 |
|
Технический лист |
RT2, SCHRACK | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 14.2 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | - | 10 ms | 5 ms | -10°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|

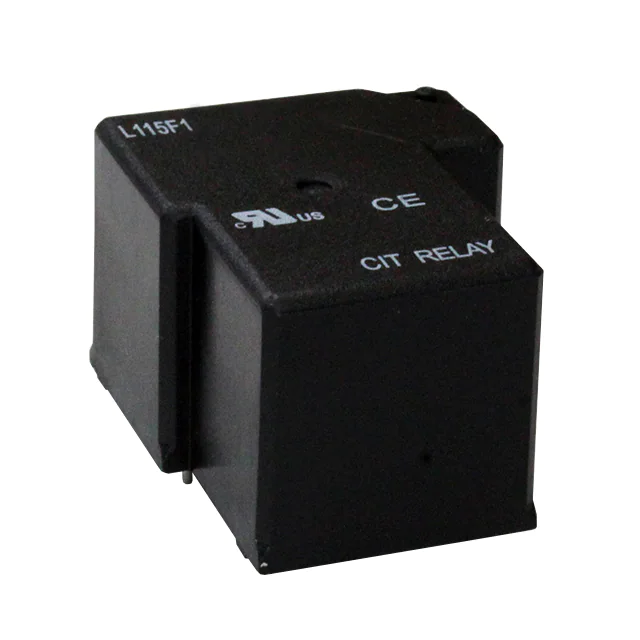

L115F11AH5VDCS1.5RELAY GEN PURPOSE SPST 50A 5V |
143 |
|
Технический лист |
L115F1 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 299.4 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 4 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
J1512CF240VAC1.2DRELAY GEN PURPOSE DPDT 20A 240V |
364 |
|
Технический лист |
J151 | Tray | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 12.6 mA | Non Latching | Lighted Indicator | Plug In | - | - | 192 VAC | 72 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
G5RL-K1A-EL-HA DC5RELAY GEN PURPOSE SPST 16A 5V |
1,880 |
|
Технический лист |
G5RL-K | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 150 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, cURus, UR, VDE | General Purpose | - | - |
|
|
AL2C20SCLD02400GRELAY GEN PURPOSE DPDT 20A 24V |
713 |
|
Технический лист |
AL | Box | Active | Socketable | 24VDC | DPDT (2 Form C) | 20 A | 277VAC, 28VDC - Max | 5540VA, 560W | 36.9 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -25°C ~ 50°C | Silver Tin Oxide (AgSnO) | cURus, UL | General Purpose | - | - |
|
RTS3T012RELAY GEN PURPOSE SPST 16A 12V |
4,087 |
|
Технический лист |
RT1, Inrush, SCHRACK | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO), Tungsten (W) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|

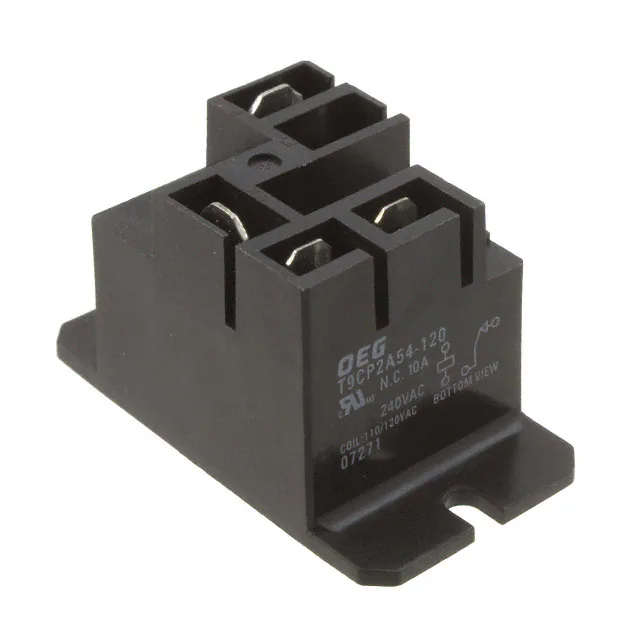

T9CP2A54-120RELAY GEN PURPOSE SPST 10A 120V |
908 |
|
Технический лист |
T9C, OEG | Bulk | Active | Chassis Mount | 120VAC | SPST-NC (1 Form B) | 10 A | 277VAC - Max | 2770VA | 42.9 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 96 VAC | 12 VAC | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | CSA, UR, VDE | General Purpose | - | - |
|
T9AP1D52-9RELAY GEN PURPOSE SPST 30A 9V |
255 |
|
Технический лист |
T9A | Bulk | Active | Chassis Mount | 9VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 111 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
ADW1212HTWRELAY GEN PURPOSE SPST 16A 12V |
16,093 |
|
Технический лист |
DW | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 33.3 mA | Latching, Dual Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 9.6 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
J1524CF24VACRELAY GEN PURPOSE 4PDT 10A 24V |
166 |
|
Технический лист |
J152 | Tray | Active | Chassis Mount | 24VAC | 4PDT (4 Form C) | 10 A | 300VAC - Max | 3000VA | 130.4 mA | Non Latching | - | Plug In | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, TUV | General Purpose | - | - |
|
V23092A1005A201RELAY GEN PURPOSE SPDT 6A 5V |
956 |
|
Технический лист |
SNR, SCHRACK | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 34 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.25 VDC | 12 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|
JVN1A-6V-FRELAY GEN PURPOSE SPST 16A 6V |
367 |
|
Технический лист |
JV-N | Bulk | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 16 A | 277VAC, 30VDC - Max | 4432VA, 480W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.3 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
T9AS5D12-9RELAY GEN PURPOSE SPDT 20A 9V |
458 |
|
Технический лист |
T9A | Bulk | Active | Through Hole | 9VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 111 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
RT314A12RELAY GEN PURPOSE SPDT 16A 12V |
1,529 |
|
Технический лист |
RT1 Bistable, SCHRACK | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 33.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
DSP2A-L2-DC24VRELAY GEN PURPOSE DPST 5A 24V |
1,809 |
|
Технический лист |
DSP | Bulk | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 125VDC - Max | 1500VA, 625W | 12.5 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 19.2 VDC | - | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|

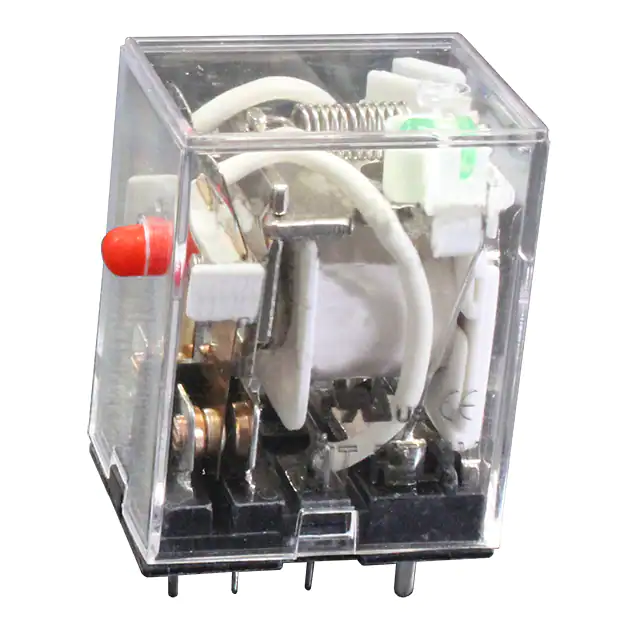

J1524CT24VDCDTRELAY GEN PURPOSE 4PDT 10A 24V |
453 |
|
Технический лист |
J152 | Tray | Active | Socketable | 24VDC | 4PDT (4 Form C) | 10 A | 300VAC - Max | 3000VA | 37.5 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 18 VDC | 2.4 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, TUV | General Purpose | - | - |
|
G2RG-2A4 DC12RELAY GEN PURPOSE DPST 8A 12V |
365 |
|
Технический лист |
G2RG | Tray | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9.6 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR VDE | General Purpose | - | - |
|

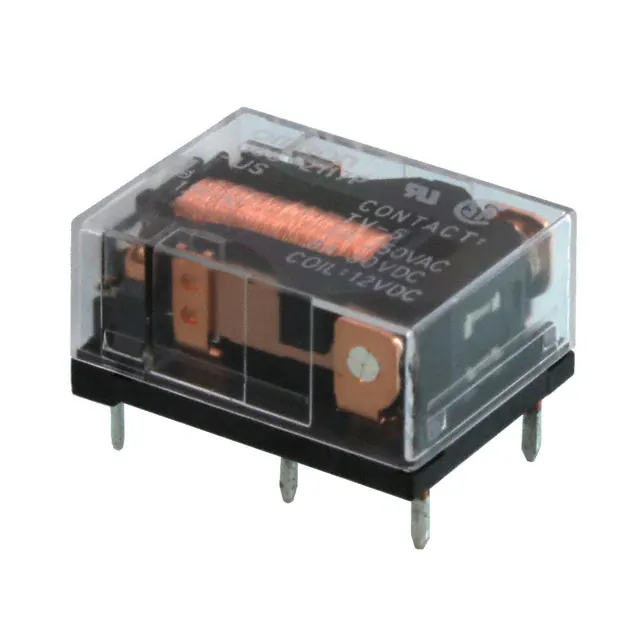

G6CU-2117P-US DC3RELAY GEN PURPOSE DPST 8A 3V |
979 |
|
Технический лист |
G6C | Bulk | Active | Through Hole | 3VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 67 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 2.1 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
T9SV1K15-12SRELAY GEN PURPOSE SPST 35A 12V |
1,863 |
|
Технический лист |
T9S | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 35 A | 250VAC - Max | 8750VA | 188 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9.6 VDC | 0.8 VDC | 18 ms | 15 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | UR, VDE | General Purpose | - | - |
