Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T9GS5L24-24RELAY GEN PURPOSE SPDT 20A 24V |
12 |
|
Технический лист |
T9G | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 9600VA | 37.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
ADW1224HTWRELAY GEN PURPOSE SPST 16A 24V |
1,710 |
|
Технический лист |
DW | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 16.7 mA | Latching, Dual Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 19.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
8-1393239-4RELAY GEN PURPOSE SPDT 16A 3V |
1,061 |
|
Технический лист |
RT1 Bistable, SCHRACK | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 200 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 2.1 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
ADW1205HTWRELAY GEN PURPOSE SPST 16A 5V |
173 |
|
Технический лист |
DW | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 80 mA | Latching, Dual Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
J1522CF12VDCDRELAY GEN PURPOSE DPDT 10A 12V |
109 |
|
Технический лист |
J152 | Tray | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 10 A | 300VAC - Max | 3000VA | 75 mA | Non Latching | Lighted Indicator | Plug In | - | - | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, TUV | General Purpose | - | - |
|
DSP1A-L2-DC3VRELAY GEN PURPOSE SPST 8A 3V |
925 |
|
Технический лист |
DSP | Bulk | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 100 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 2.4 VDC | - | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | cURus, VDE | General Purpose | - | - |
|

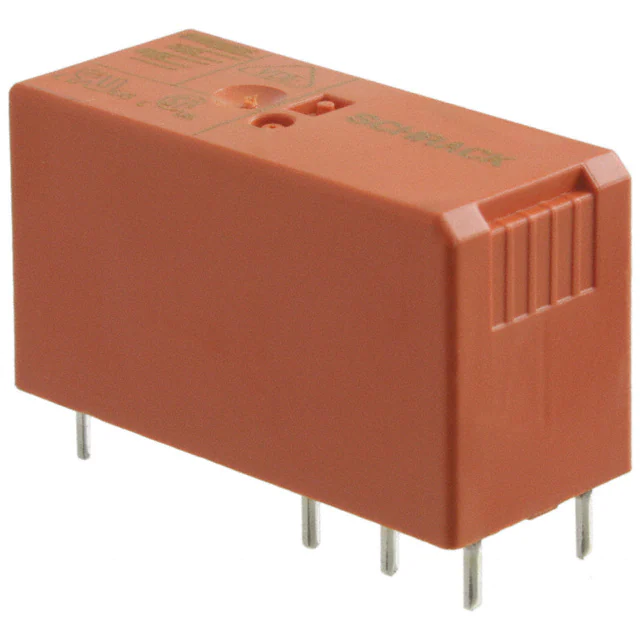

RT314110RELAY GEN PURPOSE SPDT 16A 110V |
888 |
|
Технический лист |
RT1, SCHRACK | Tube | Active | Through Hole | 110VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 77 VDC | 11 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
G6B-1114P-US-P6B DC5RELAY GEN PURPOSE SPST 5A 5V |
1,452 |
|
Технический лист |
G6B | Bulk | Active | Socketable | 5VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 40 mA | Non Latching | - | Plug In | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
G5CA-1A-E-H DC12RELAY GEN PURPOSE SPST 15A 12V |
399 |
|
Технический лист |
G5CA | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -25°C ~ 70°C | - | CQC, CSA, TUV, UR | General Purpose | - | - |
|
J1511CT120VAC1.2DRELAY GEN PURPOSE SPDT 20A 120V |
178 |
|
Технический лист |
J151 | Tray | Active | Socketable | 120VAC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 26.4 mA | Non Latching | Lighted Indicator | Plug In | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
J1522CF24VDCDRELAY GEN PURPOSE DPDT 10A 24V |
533 |
|
Технический лист |
J152 | Tray | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 10 A | 300VAC - Max | 3000VA | 37.5 mA | Non Latching | Lighted Indicator | Plug In | - | - | 18 VDC | 2.4 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, TUV | General Purpose | - | - |
|
AM4C05SCLA22000GRELAY GEN PURPOSE 4PDT 5A 220V |
983 |
|
Технический лист |
AM | Box | Active | Socketable | 220VAC | 4PDT (4 Form C) | 5 A | 277VAC, 28VDC - Max | 1385VA, 140W | 14.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 176 VAC | 33 VAC | 20 ms | 20 ms | -25°C ~ 50°C | Silver Nickel (AgNi) | cURus, UL | General Purpose | - | - |
|
J1511CF24VAC1.2RELAY GEN PURPOSE SPDT 20A 24V |
213 |
|
Технический лист |
J151 | Tray | Active | Chassis Mount | 24VAC | SPDT (1 Form C) | 12 A | 300VAC - Max | 6000VA | 130.4 mA | Non Latching | - | Plug In | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
RTB14524RELAY GEN PURPOSE SPDT 12A 24V |
814 |
|
Технический лист |
RT1, SCHRACK | Tube | Active | Through Hole | 24VAC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VAC | 3.6 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
J1512CF24VDC.9RELAY GEN PURPOSE DPDT 20A 24V |
594 |
|
Технический лист |
J151 | Tray | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 36.9 mA | Non Latching | - | Plug In | - | - | 18 VDC | 2.4 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
G2R-1 DC3RELAY GEN PURPOSE SPDT 10A 3V |
167 |
|
Технический лист |
G2R | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 176 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 2.1 VDC | 0.45 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
RT314A24RELAY GEN PURPOSE SPDT 16A 24V |
2,851 |
|
Технический лист |
RT1 Bistable, SCHRACK | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
RT314A05RELAY GEN PURPOSE SPDT 16A 5V |
1,927 |
|
Технический лист |
RT1 Bistable, SCHRACK | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 80.6 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
J1512CF12VDC.9DRELAY GEN PURPOSE DPDT 20A 12V |
220 |
|
Технический лист |
J151 | Tray | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 75 mA | Non Latching | Lighted Indicator | Plug In | - | - | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
ADW1224HLWRELAY GEN PURPOSE SPST 16A 24V |
575 |
|
Технический лист |
DW | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 16.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 19.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
