Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADJ14024RELAY GEN PURPOSE SPDT 16A 24V |
926 |
|
Технический лист |
ADJ | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 10.4 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 16.8 VDC | - | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
G6CK-2114P-US DC5RELAY GEN PURPOSE DPST 8A 5V |
1,913 |
|
Технический лист |
G6C | Bulk | Active | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 56 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
G6B-2114P-US DC6RELAY GENERAL PURPOSE DPST 5A 6V |
690 |
|
Технический лист |
G6B | Bulk | Active | Through Hole | 6VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.8 VDC | 0.6 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
AZEV132-1AE1BG-24DRELAY EV CHARGING SPST 32A 24V |
301 |
|
Технический лист |
AZEV132 | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 32 A | 400VAC - Max | 12800VA | 64.5 mA | Non Latching | Contact Weld Detection | PC Pin | - | Class F | 18 VDC | 1.2 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO); Silver Nickel (AgNi), Gold (Au) | CQC, cURus, TUV | EV Charging | - | - |
|
RTD14730RELAY GEN PURPOSE SPDT 16A 230V |
1,069 |
|
Технический лист |
RT1, SCHRACK | Tube | Active | Through Hole | 230VAC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 172.5 VAC | 34.5 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
1-1904005-4RELAY SPDT 12V |
1 |
|
Технический лист |
V2337 | Tray | Active | Chassis Mount | 12VDC | SPDT (1 Form C) | - | - | - | - | Non Latching | - | Plug In | - | - | 8 VDC | 0.5 VDC | 10 ms | 10 ms | -40°C ~ 100°C | Silver (Ag) | - | General Purpose | - | - |
.jpg)
|

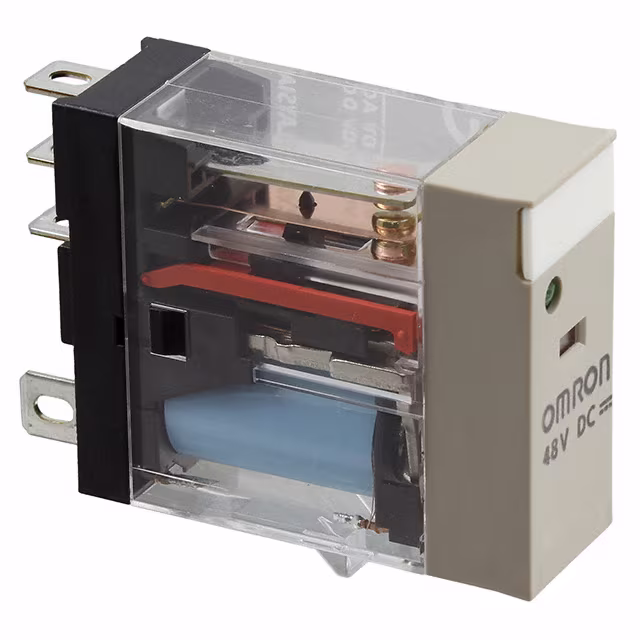

G2R-1-SN DC48(S)RELAY GEN PURPOSE SPDT 10A 48V |
463 |
|
Технический лист |
G2RS | Bulk | Active | Socketable | 48VDC | SPDT (1 Form C) | 10 A | 440VAC, 125VDC - Max | 4400VA, 1250W | 11.4 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 33.6 VDC | 7.2 VDC | 15 ms | 10 ms | -40°C ~ 70°C | - | CE, CSA, LR, UR, VDE | General Purpose | - | - |
|
|
G4W-1112P-US-TV8-HP DC12RELAY GEN PURPOSE SPST 15A 12V |
338 |
|
Технический лист |
G4W | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 66.7 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 5 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
G2R-1-E AC120RELAY GEN PURPOSE SPDT 16A 120V |
932 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 120VAC | SPDT (1 Form C) | 16 A | 380VAC, 125VDC - Max | 6080VA, 2000W | 7.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 96 VAC | 36 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
DK1A1B-L2-5VRELAY GEN PURPOSE DPST 8A 5V |
632 |
|
Технический лист |
DK | Box | Active | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 40 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 8 ms | -40°C ~ 65°C | Silver Nickel (AgNi) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
T9AP5D52-48RELAY GEN PURPOSE SPDT 20A 48V |
348 |
|
Технический лист |
T9A | Bulk | Active | Chassis Mount | 48VDC | SPDT (1 Form C) | 20 A | 277VAC - Max | 5540VA | 21 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 36 VDC | 4.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
G6B-1174P-1-US DC12RELAY GEN PURPOSE SPST 8A 12V |
372 |
|
Технический лист |
G6B | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
RT425005RELAY GEN PURPOSE DPDT 8A 5V |
1,026 |
|
Технический лист |
RT2, SCHRACK | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.5 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
RT425024RELAY GEN PURPOSE DPDT 8A 24V |
908 |
|
Технический лист |
RT2, SCHRACK | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
DE1A1B-L2-12VRELAY GEN PURPOSE DPST 8A 12V |
1,010 |
|
Технический лист |
DE | Tube | Active | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC, 30VDC - Max | 2500VA, 300W | 16.7 mA | Latching, Dual Coil | - | PC Pin | - | - | 8.4 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
|
G2R-1A-E AC24RELAY GEN PURPOSE SPST 16A 24V |
103 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 24VAC | SPST-NO (1 Form A) | 16 A | 380VAC, 125VDC - Max | 6080VA, 2000W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
DK1A1B-L2-3VRELAY GEN PURPOSE DPST 8A 3V |
876 |
|
Технический лист |
DK | Box | Active | Through Hole | 3VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 250VAC, 125VDC - Max | 2000VA, 1000W | 66.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 2.1 VDC | - | 10 ms | 8 ms | -40°C ~ 65°C | Silver Nickel (AgNi) | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
8-1415536-6RELAY GEN PURPOSE SPST 16A 24V |
4,790 |
|
Технический лист |
41083 3mm, SCHRACK | Tray | Active | Through Hole | 24VDC | SPST-NO (DM) (1 Form X) | 16 A | 400VAC - Max | 6400VA | 15 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | - | 15.8 VDC | 1.8 VDC | - | - | -20°C ~ 85°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
|
G2R-24 DC36RELAY GEN PURPOSE DPDT 4A 36V |
119 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 36VDC | DPDT (2 Form C) | 4 A | 380VAC, 125VDC - Max | 1520VA, 500W | 14.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 25.2 VDC | 5.4 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
1984600000RELAY GEN PURPOSE SPDT 6A 230V |
10 |
|
Технический лист |
TERMSERIES | Bulk | Active | DIN Rail | 230VAC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 10.1 mA | Non Latching | Lighted Indicator, RC Circuit, Socket Included | Screw Terminal | - | - | 169 VAC | 85 VAC | 16 ms | 45 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | CE, cULus, EAC | General Purpose | - | - |
