Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J1512CT12VDC.9DRELAY GEN PURPOSE DPDT 20A 12V |
625 |
|
Технический лист |
J151 | Tray | Active | Socketable | 12VDC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 75 mA | Non Latching | Lighted Indicator | Plug In | - | - | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
RTB74024RELAY GEN PURPOSE SPDT 10A 24V |
2,365 |
|
Технический лист |
RT1, SCHRACK | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 400VAC - Max | 4000VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 8 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
ADW1212HLWRELAY GEN PURPOSE SPST 16A 12V |
772 |
|
Технический лист |
DW | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 33.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 9.6 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
RTE24048FRELAY GEN PURPOSE DPDT 8A 48V |
2,891 |
|
Технический лист |
RT2 | Box | Active | Through Hole | 48VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 8.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 33.6 VDC | 4.8 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
G5CA-1A4 DC12RELAY GEN PURPOSE SPST 10A 12V |
307 |
|
Технический лист |
G5CA | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | - | CQC, CSA, TUV, UR | General Purpose | - | - |
|
G2R-1-H DC24RELAY GEN PURPOSE SPDT 5A 24V |
3,048 |
|
Технический лист |
G2R | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 15 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
AL2C20SCM4LD02400GRELAY GEN PURPOSE DPDT 20A 24V |
908 |
|
Технический лист |
AL | Box | Active | Socketable | 24VDC | DPDT (2 Form C) | 20 A | 277VAC, 28VDC - Max | 5540VA, 560W | 36.9 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -25°C ~ 50°C | Silver Tin Oxide (AgSnO) | cURus, UL | General Purpose | - | - |
|

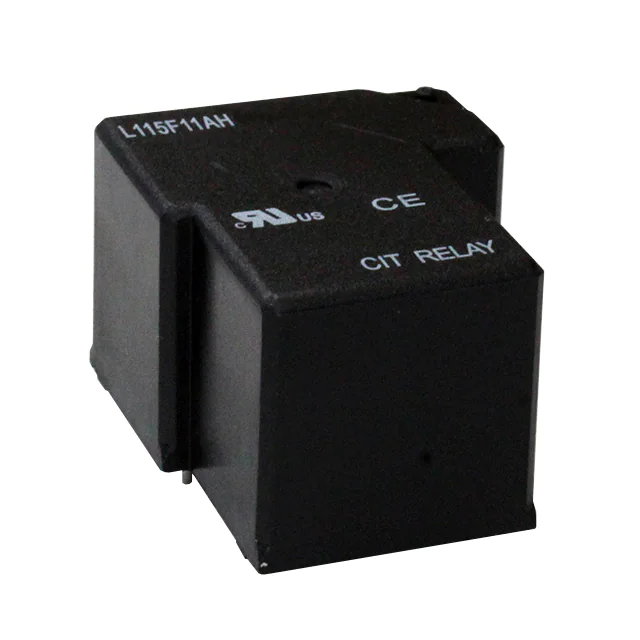

L115F11AH12VDCS1.5URELAY GEN PURPOSE SPST 50A 12V |
258 |
|
Технический лист |
L115F1 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 125 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | Class F | 9.6 VDC | - | 15 ms | 15 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
J1512CF24VDC.9DRELAY GEN PURPOSE DPDT 20A 24V |
177 |
|
Технический лист |
J151 | Tray | Active | Chassis Mount | 24VDC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 36.9 mA | Non Latching | Lighted Indicator | Plug In | - | - | 18 VDC | 2.4 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
RT184012RELAY GEN PURPOSE SPST 10A 12V |
385 |
|
Технический лист |
RT1, SCHRACK | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 400VAC - Max | 4000VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 1.2 VDC | 10 ms | 8 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
|
G5CA-1A4 DC24RELAY GEN PURPOSE SPST 10A 24V |
140 |
|
Технический лист |
G5CA | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | - | CQC, CSA, TUV, UR | General Purpose | - | - |
|
G6BU-1114P-US DC3RELAY GEN PURPOSE SPST 5A 3V |
542 |
|
Технический лист |
G6B | Bulk | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 66.7 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 2.1 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR | General Purpose | - | - |
|
|
RT314005FRELAY GEN PURPOSE SPDT 16A 5V |
946 |
|
Технический лист |
RT1 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 80.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.5 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
J1522CF24VACRELAY GEN PURPOSE DPDT 10A 24V |
198 |
|
Технический лист |
J152 | Tray | Active | Chassis Mount | 24VAC | DPDT (2 Form C) | 10 A | 300VAC - Max | 3000VA | 130.4 mA | Non Latching | - | Plug In | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus, TUV | General Purpose | - | - |
|
|
G6C-1117P-US DC24RELAY GEN PURPOSE SPST 10A 24V |
2,048 |
|
Технический лист |
G6C | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | CSA, TUV, UR, VDE | General Purpose | - | - |
|
|
J1512CT24VAC1.2DRELAY GEN PURPOSE DPDT 20A 24V |
126 |
|
Технический лист |
J151 | Tray | Active | Socketable | 24VAC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 130.4 mA | Non Latching | Lighted Indicator | Plug In | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | cURus | General Purpose | - | - |
|
|
G6B-1114P-FD-US DC12RELAY GEN PURPOSE SPST 5A 12V |
457 |
|
Технический лист |
G6B | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Indium Tin (AgInSn) | CSA, TUV, UR | General Purpose | - | - |
|
3-1415379-1RELAY GEN PURPOSE SPST 16A 24V |
960 |
|
Технический лист |
RT1, Inrush, SCHRACK | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | - | 10 ms | 10 ms | -10°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
RY612005RELAY GEN PURPOSE SPDT 8A 5V |
1,796 |
|
Технический лист |
RY, SCHRACK | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 44.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
ADY10012RELAY GEN PURPOSE SPST 10A 12V |
946 |
|
Технический лист |
ADY | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 16.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 8 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | CSA, UR, VDE | General Purpose | - | - |
