Реле мощности, более 2 А
| Фото | Номер производителя | Наличие | Количество | Технический лист | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Нагрузка - макс. переключение | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Изоляция катушки | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта | Сертифицирующее агентство | Тип реле | Марка | Квалификация |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

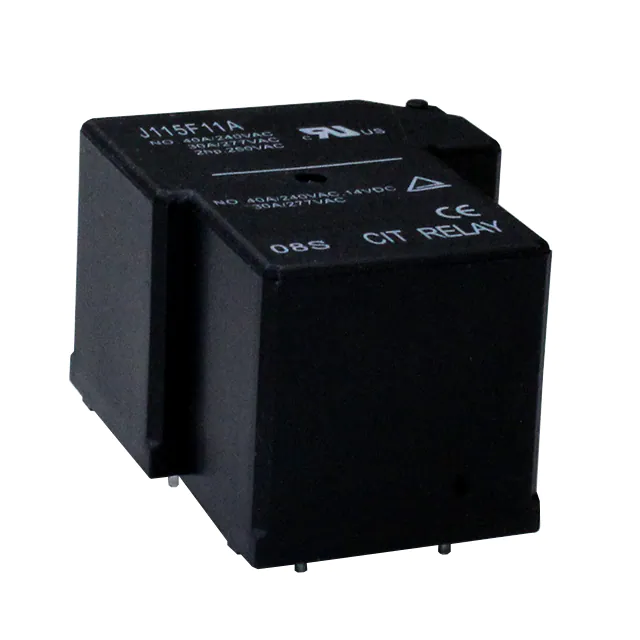

J115F11A120VACS6RELAY GEN PURPOSE SPST 40A 120V |
384 |
|
Технический лист |
J115F1 | Tube | Active | Through Hole | 120VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 9600VA, 1120W | 39.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 90 VAC | 36 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
G2RL-1-E-HA DC5RELAY GEN PURPOSE SPDT 16A 5V |
894 |
|
Технический лист |
G2RL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 80 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
J115F31AL277VACSRELAY GEN PURPOSE SPST 40A 277V |
403 |
|
Технический лист |
J115F3 | Tray | Active | Chassis Mount | 277VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 13.7 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 207 VAC | 83.1 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | cURus, TUV | General Purpose | - | - |
|
G6RL-1-ASI DC24RELAY GEN PURPOSE SPDT 8A 24V |
256 |
|
Технический лист |
G6RL | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 2000VA | 9.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | cURus, VDE | General Purpose | - | - |
|
G6RL-1A-ASI DC5RELAY GEN PURPOSE SPST 10A 5V |
158 |
|
Технический лист |
G6RL | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Nom | 2500VA | 44 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | cURus, VDE | General Purpose | - | - |
|
G2RL-2-CF DC12RELAY GEN PURPOSE DPDT 8A 12V |
1,146 |
|
Технический лист |
G2RL | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 440VAC, 300VDC - Max | 3520VA, 2400W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, UR, VDE | General Purpose | - | - |
|
T9GV2L14-12RELAY GEN PURPOSE SPST 20A 12V |
4,853 |
|
Технический лист |
T9G | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 75 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 9 VDC | 1.2 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
T9GV1L24-18RELAY GEN PURPOSE SPST 30A 18V |
293 |
|
Технический лист |
T9G | Bulk | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 30 A | 480VAC - Max | 14400VA | 50 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class B | 13.5 VDC | 1.8 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
8-1393238-4RELAY GEN PURPOSE SPST 16A 15V |
262 |
|
Технический лист |
RT1, SCHRACK | Tube | Active | Through Hole | 15VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | - | Non Latching | - | PC Pin | Sealed - Fully | Class F | 10.5 VDC | 1.5 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
|
RY212005RELAY GEN PURPOSE SPDT 8A 5V |
300 |
|
Технический лист |
RY, SCHRACK | Bulk | Active | Through Hole | 5VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 44.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | cURus, VDE | General Purpose | - | - |
|
G5RLU-1A-E DC5RELAY GEN PURPOSE SPST 16A 5V |
1,164 |
|
Технический лист |
G5RL-U | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 120 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, cURus, UR, VDE | General Purpose | - | - |
|
|
G5RLU-1A-E DC3RELAY GEN PURPOSE SPST 16A 3V |
1,051 |
|
Технический лист |
G5RL-U | Tube | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 200 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 2.1 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, cURus, UR, VDE | General Purpose | - | - |
|
|
G5RL-U1A-E DC12RELAY GEN PURPOSE SPST 16A 12V |
913 |
|
Технический лист |
G5RL-U | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 50 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, cURus, UR, VDE | General Purpose | - | - |
|
L114FL1CS5VDC.60DRELAY GEN PURPOSE SPDT 20A 5V |
746 |
|
Технический лист |
L114FL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 20 A | 300VAC - Max | 6000VA | 119 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | cURus | General Purpose | - | - |
|
ADW1105HTRELAY GEN PURPOSE SPST 16A 5V |
488 |
|
Технический лист |
DW | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 4432VA | 40 mA | Latching, Single Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
T9GS2L14-12RELAY GEN PURPOSE SPST 20A 12V |
446 |
|
Технический лист |
T9G | Bulk | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 20 A | 480VAC - Max | 9600VA | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
J115F31CH48VDCS61.5URELAY GEN PURPOSE SPDT 50A 48V |
329 |
|
Технический лист |
J115F | Tray | Active | Chassis Mount | 48VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 31.3 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | cURus | General Purpose | - | - |
|
|
G5RL-U1-E DC12RELAY GEN PURPOSE SPDT 16A 12V |
1,400 |
|
Технический лист |
G5RL-U | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 50 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | CQC, CSA, cURus, UR, VDE | General Purpose | - | - |
|
T9GS1L24-18RELAY GEN PURPOSE SPST 30A 18V |
581 |
|
Технический лист |
T9G | Bulk | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 30 A | 480VAC - Max | 14400VA | 50 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | CQC, cURus, VDE | General Purpose | - | - |
|
RTE24048RELAY GEN PURPOSE DPDT 8A 48V |
2,900 |
|
Технический лист |
RT2, SCHRACK | Box | Active | Through Hole | 48VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 8.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 33.6 VDC | 4.8 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | CQC, CSA, cURus, VDE | General Purpose | - | - |
